Model # SC-D6550 Official Samsung digital camcorder

Here are the diagrams and repair parts for Official Samsung SC-D6550 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

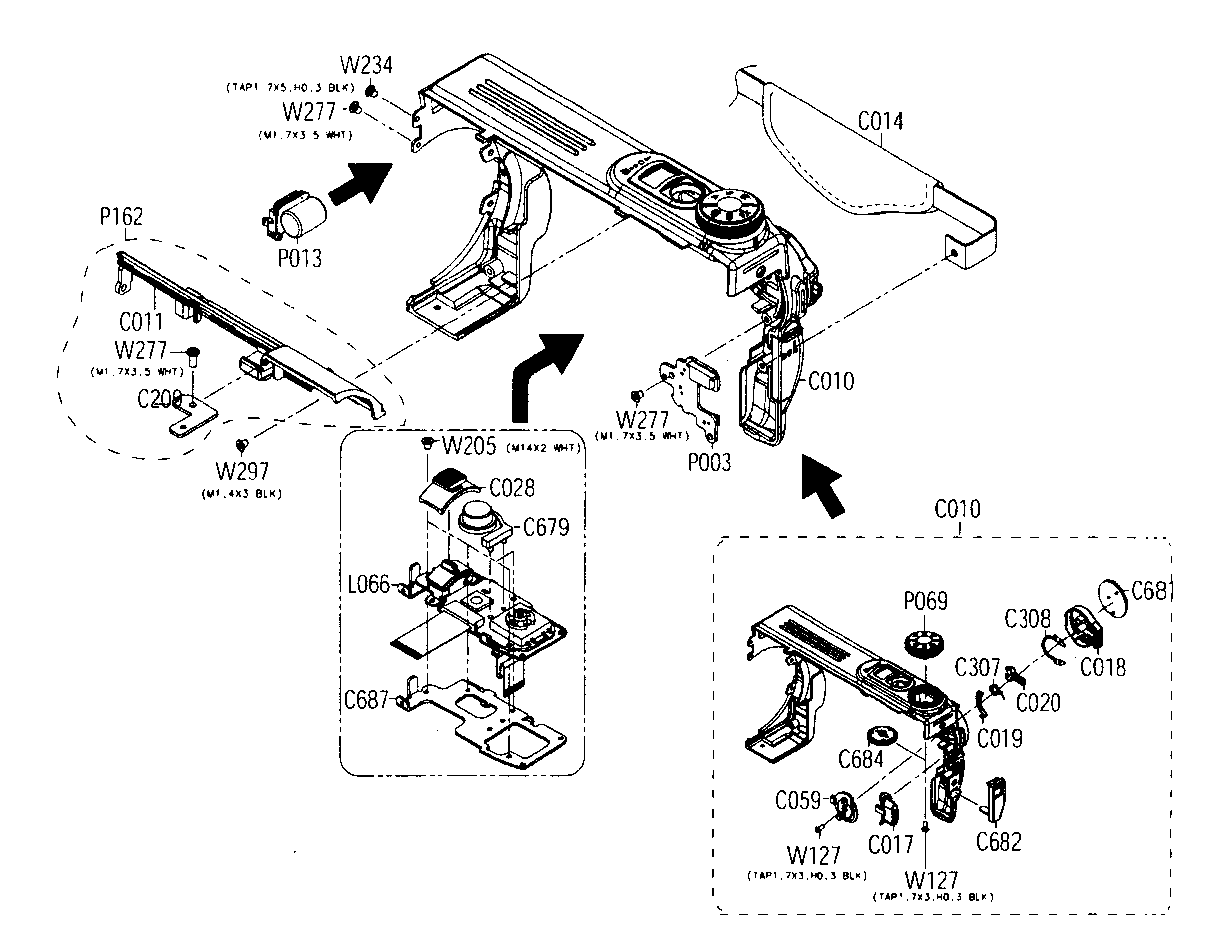

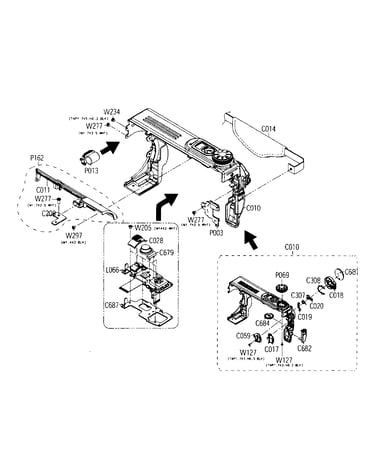

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Ntsc Ccd AD97-09841A
#C314

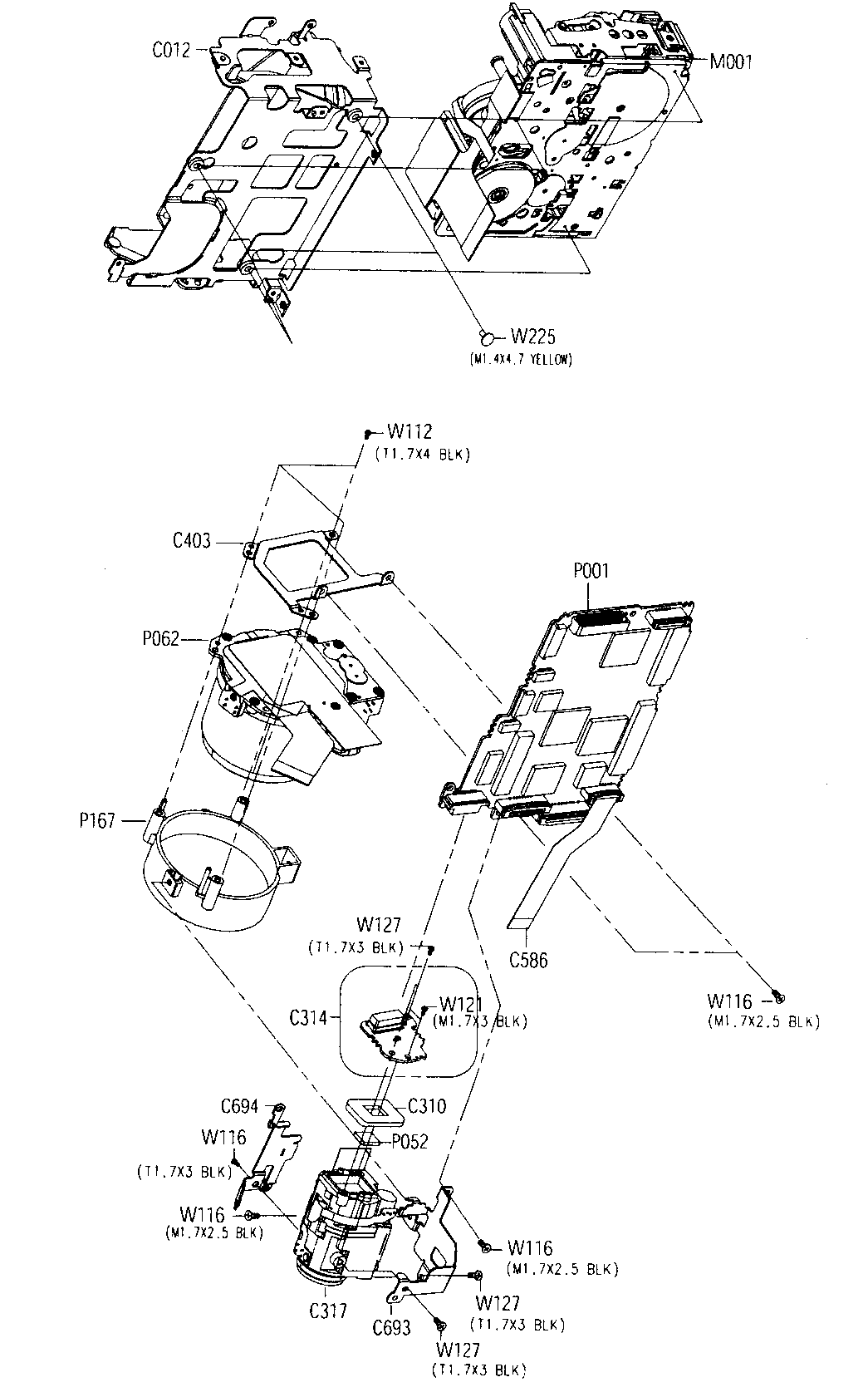

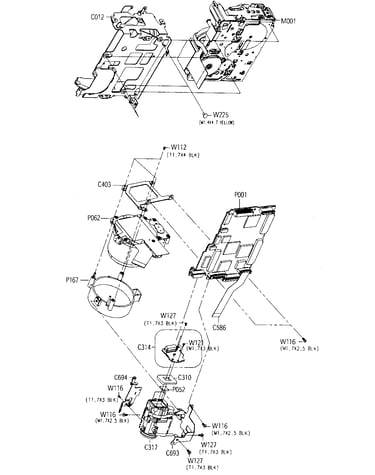

Chassis assy diagram

Ntsc ccd

Part #AD97-09841A

The manufacturer no longer makes this part, and there's no substitute part

Door Cover AD63-00764A
#C005

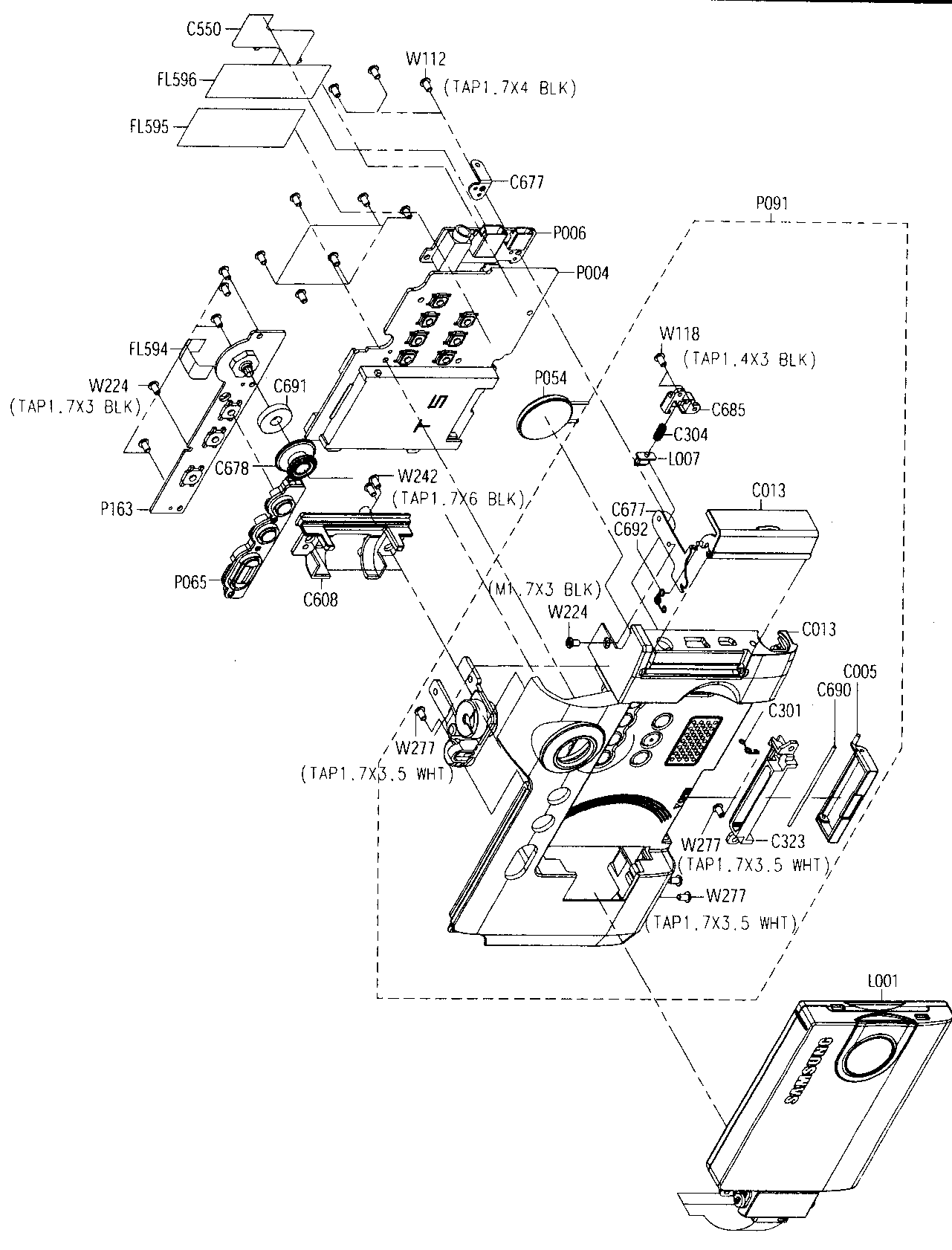

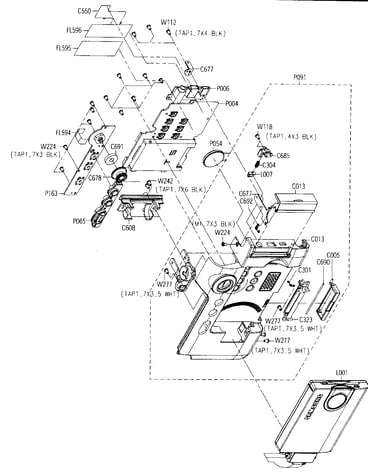

Left assy diagram

Door cover

Part #AD63-00764A

The manufacturer no longer makes this part, and there's no substitute part

Hood Lens AD67-00307A
#C035

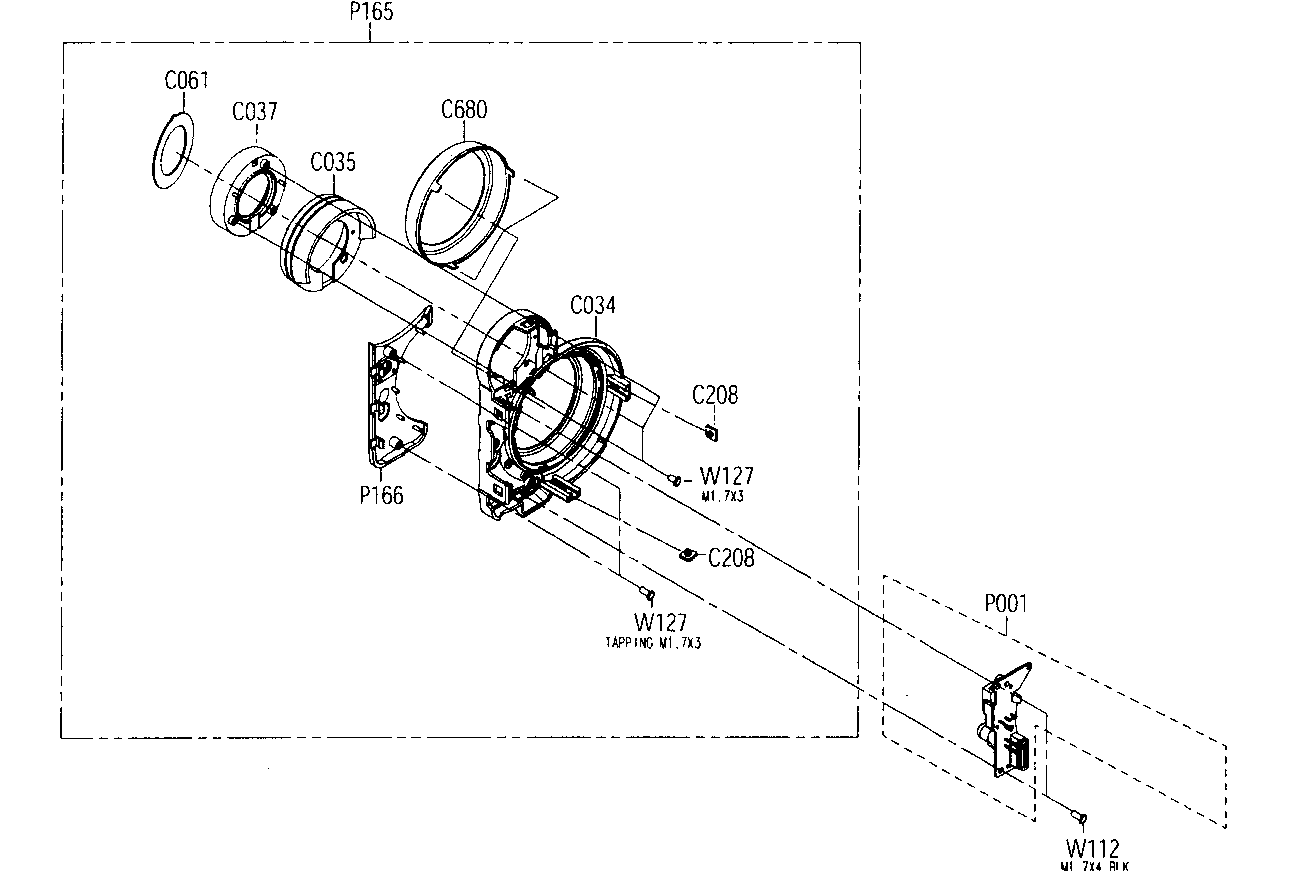

Front assy diagram

Hood lens

Part #AD67-00307A

The manufacturer no longer makes this part, and there's no substitute part

Fuse 3601-000207
#NI

Chassis assy diagram

Fuse

Part #3601-000207

The manufacturer no longer makes this part, and there's no substitute part

Fuse 3601-001331
#NI

Chassis assy diagram

Fuse

Part #3601-001331

The manufacturer no longer makes this part, and there's no substitute part

Holder AD61-02122A
#C683

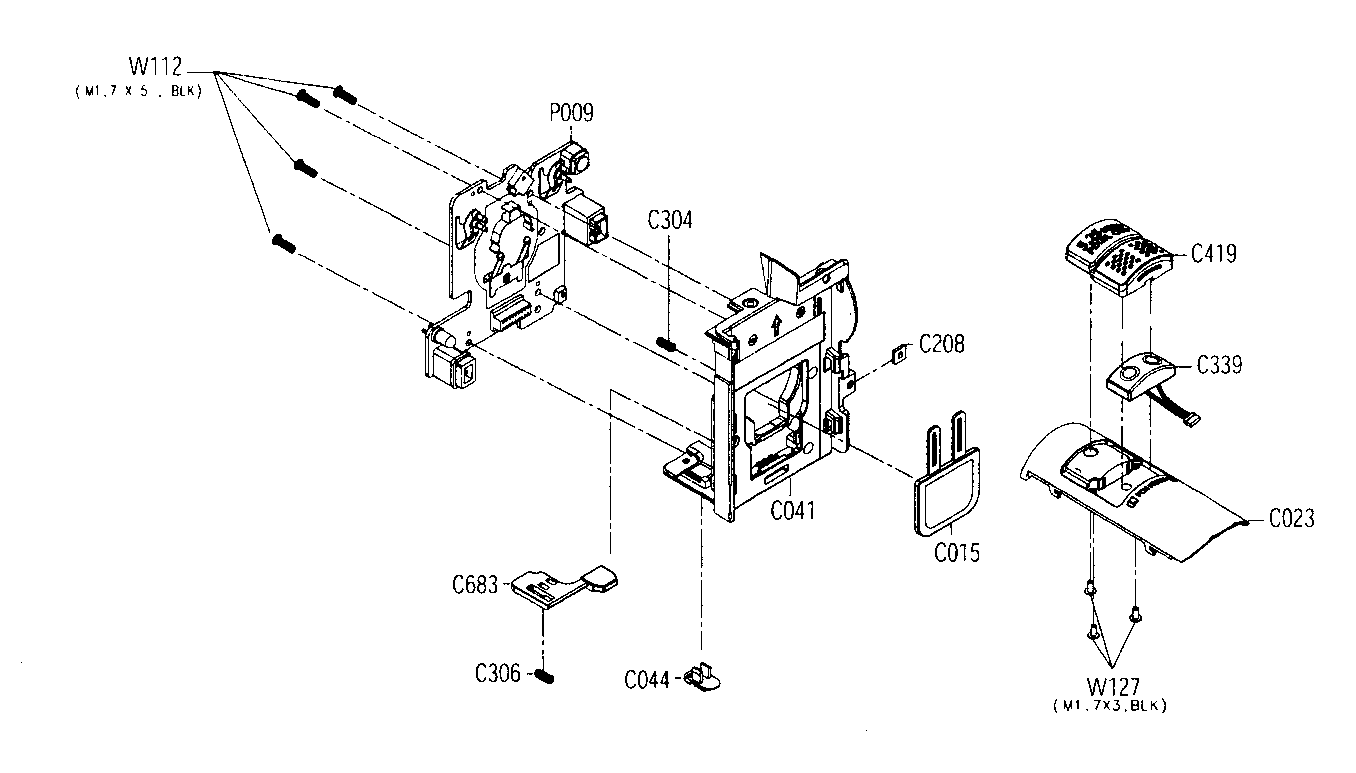

Rear/top assy diagram

Holder

Part #AD61-02122A

The manufacturer no longer makes this part, and there's no substitute part

Menu Button AD64-01287A
#C497

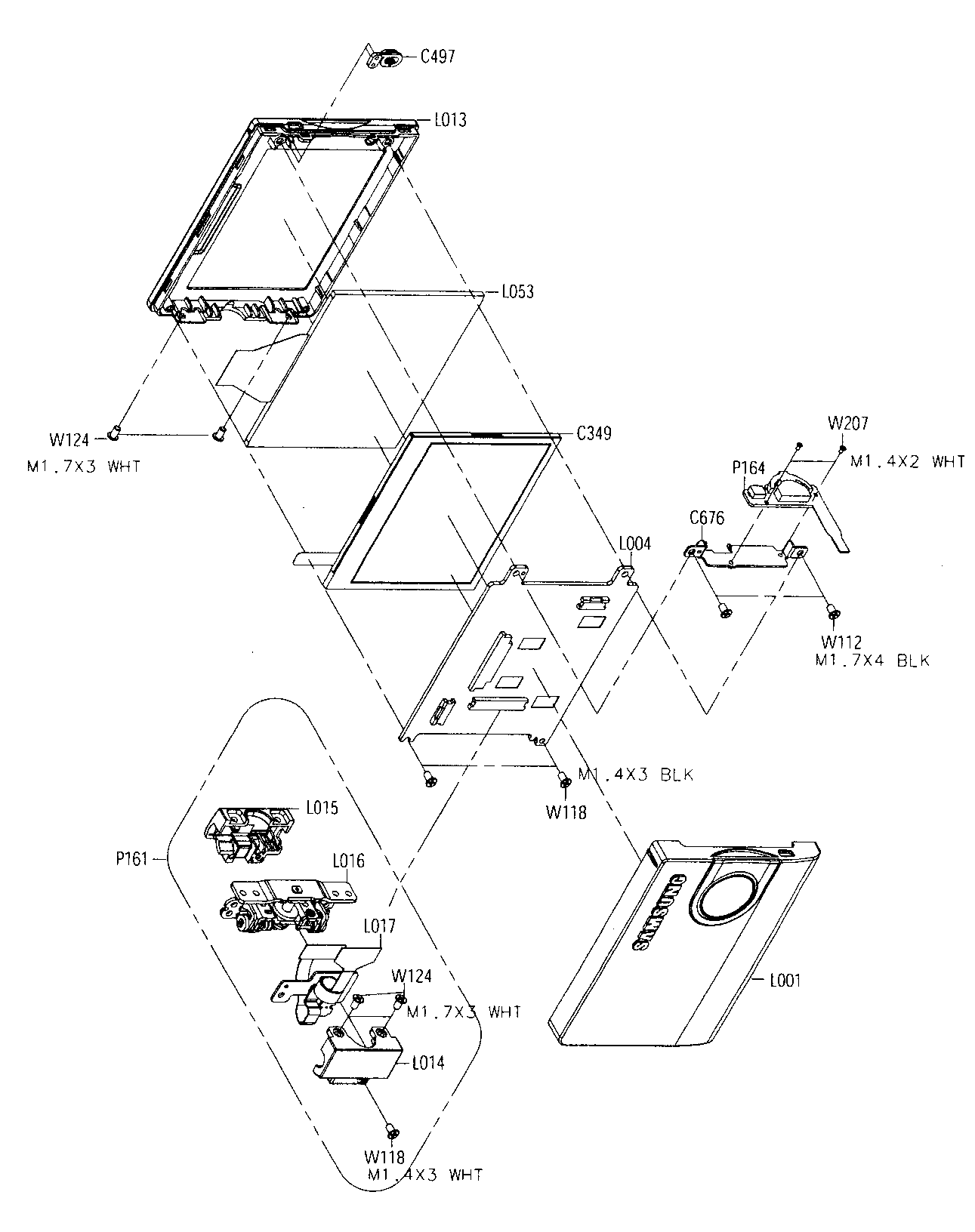

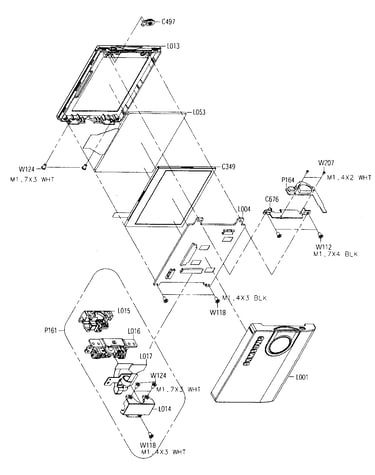

Lcd assy diagram

Menu button

Part #AD64-01287A

The manufacturer no longer makes this part, and there's no substitute part

Clip Assembly AD97-09902A
#P133

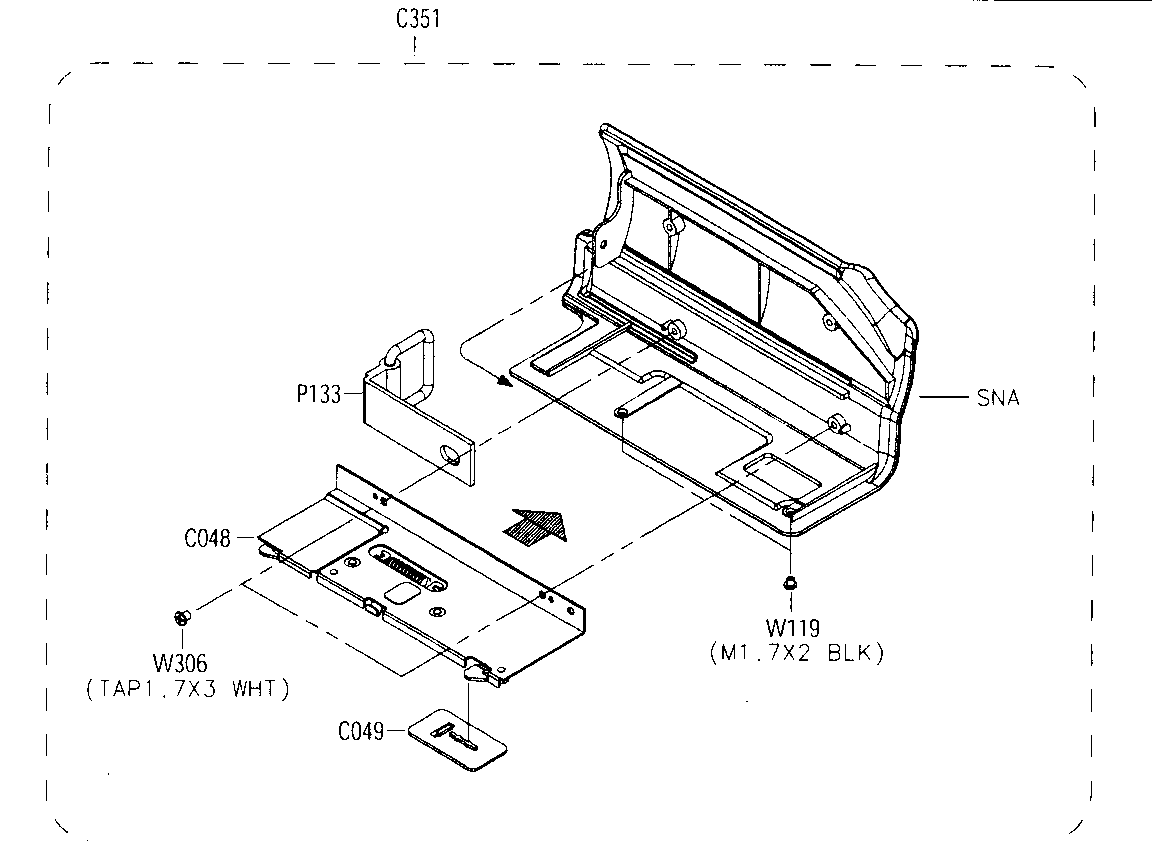

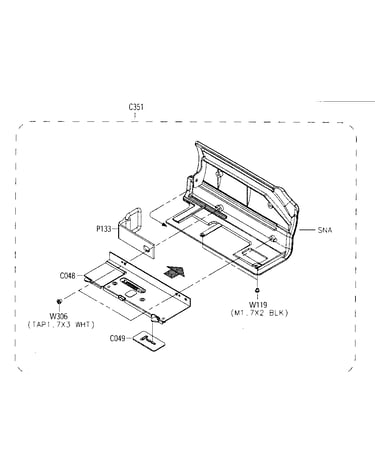

Cover housing assy diagram

Clip assembly

Part #AD97-09902A

The manufacturer no longer makes this part, and there's no substitute part

Hinge Cover AD63-00765A
#C608

Left assy diagram

Hinge cover

Part #AD63-00765A

The manufacturer no longer makes this part, and there's no substitute part

Holder Lens AD61-02126A
#C378

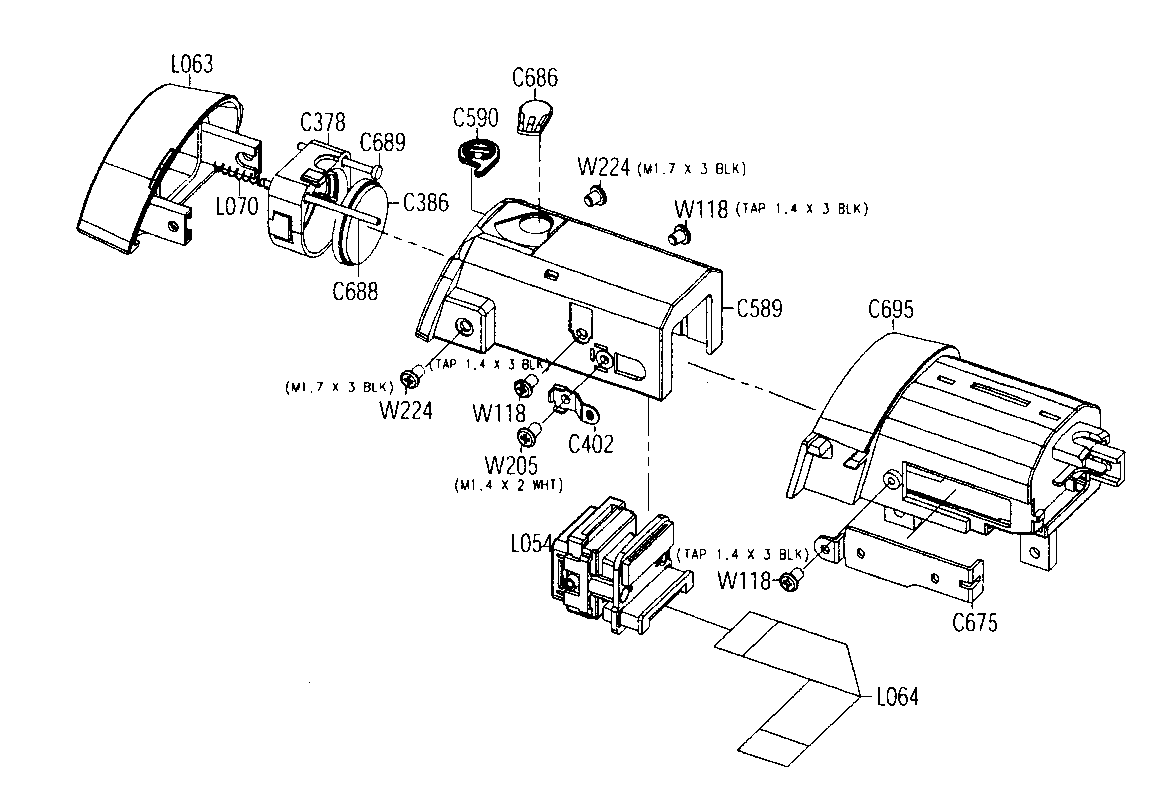

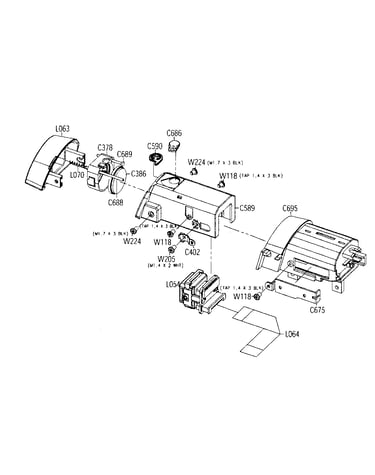

Cvf assy diagram

Holder lens

Part #AD61-02126A

The manufacturer no longer makes this part, and there's no substitute part
