Model #KECC567HSS2 KitchenAid electric counter unit

Here are the diagrams and repair parts for KitchenAid KECC567HSS2 electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 48 parts

    Affresh Cooktop Cleaner

    #NI

    All parts Diagram

    Polish

    Part #3191048
    Replaced by #W10355051
    ?
    Manufacturer substitution
    This part replaces 3191048. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable

    Get free shipping with Automatic Reorder

    In Stock
    $10.99
    Range Dual Radiant Surface Element#24

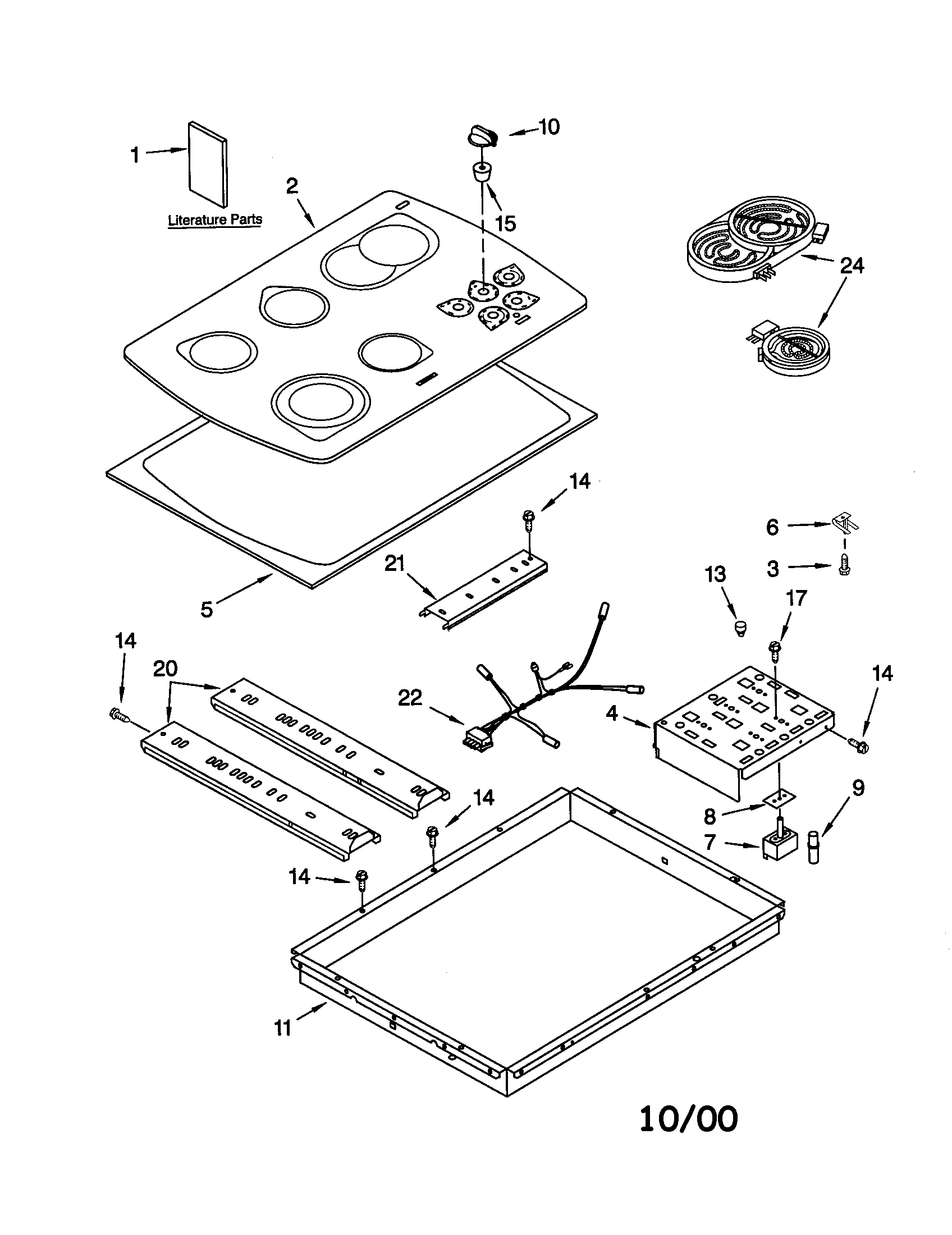

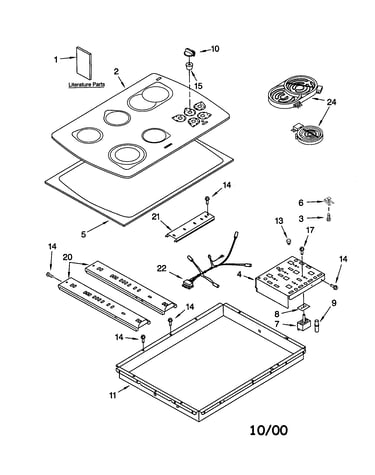

    Cooktop Diagram

    Surface element

    Part #8272563
    Replaced by #W10823692
    ?
    Manufacturer substitution
    This part replaces 8272563. Substitute parts can look different from the original.
    Back Order
    $184.59
    Range Surface Burner Knob#10

    Cooktop Diagram

    Range burner control knob

    Part #9750372FF
    Replaced by #WP9750372FF
    ?
    Manufacturer substitution
    This part replaces 9750372FF. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $19.39
    Cooktop Element Control Switch#7A

    Cooktop Diagram

    Infinite switch

    Part #3188516
    Replaced by #8203534
    ?
    Manufacturer substitution
    This part replaces 3188516. Substitute parts can look different from the original.
    In Stock
    $88.89
    Seal Switch#8

    Cooktop Diagram

    Seal switch

    Part #3192439
    Replaced by #W10491984
    ?
    Manufacturer substitution
    This part replaces 3192439. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.73
    Cooking Appliance 14-gauge Splicing Wire, 200-degree C (Red)

    #NI

    All parts Diagram

    In Stock
    $318.95
    Cooktop Element Control Switch Seal#24F

    Cooktop Diagram

    Cooktop element control switch seal

    Part #3183956
    This item is not returnable
    In Stock
    $31.19
    Cooktop Indicator Light#9

    Cooktop Diagram

    In Stock
    $41.89
    Screw#17

    Cooktop Diagram

    Screw

    Part #311865

    The manufacturer no longer makes this part, and there's no substitute part

    Range Surface Element Control Switch#7

    Cooktop Diagram

    Range surface element control switch

    Part #3191049
    Replaced by #WP3191049
    ?
    Manufacturer substitution
    This part replaces 3191049. Substitute parts can look different from the original.
    In Stock
    $75.79
