Craftsman 315114832 drill Parts

Here are the diagrams and repair parts for Craftsman 315114832 drill, as well as links to manuals and error code tables, if available.

Craftsman 315114832 drill
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 315114832 Power Tools

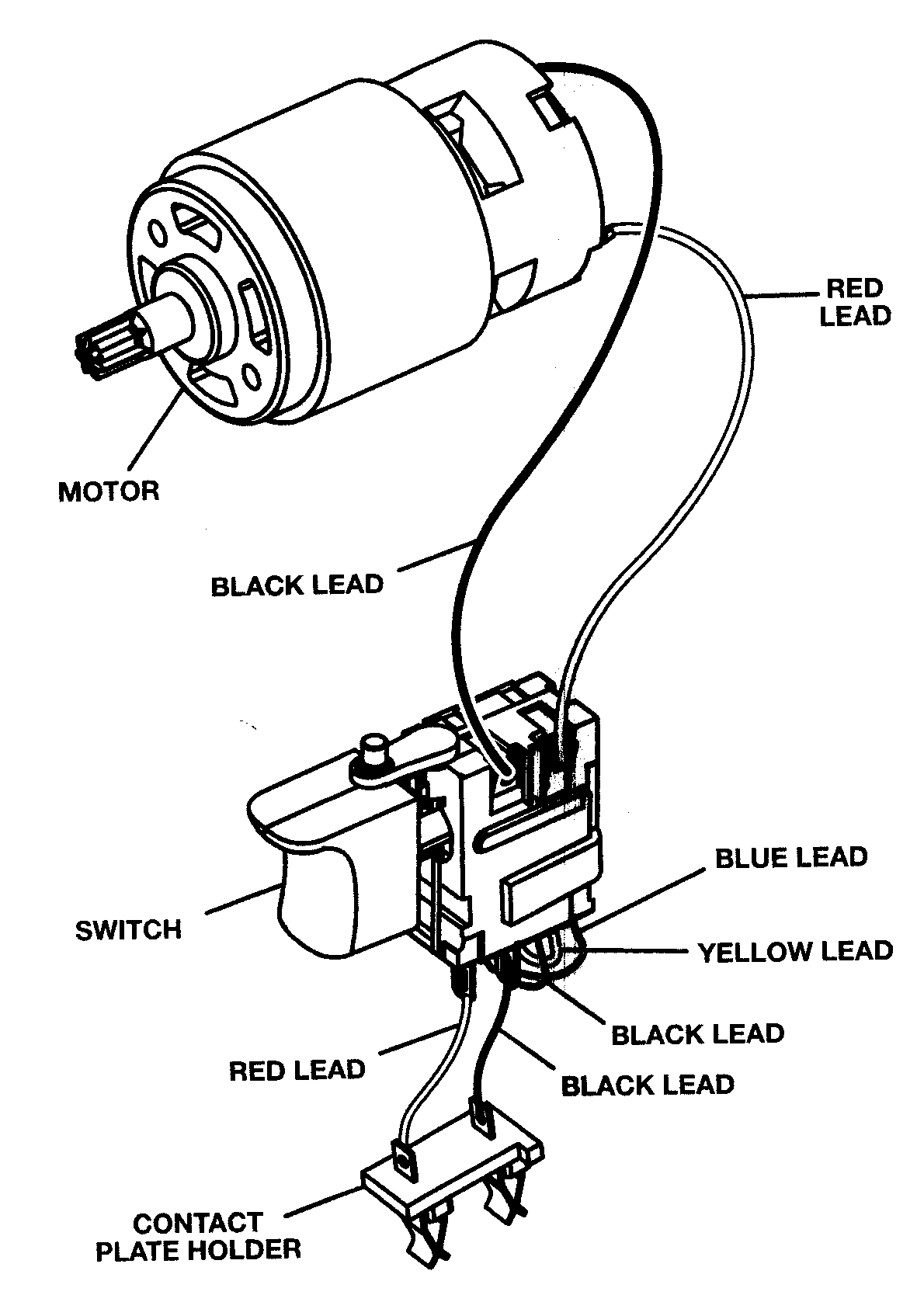

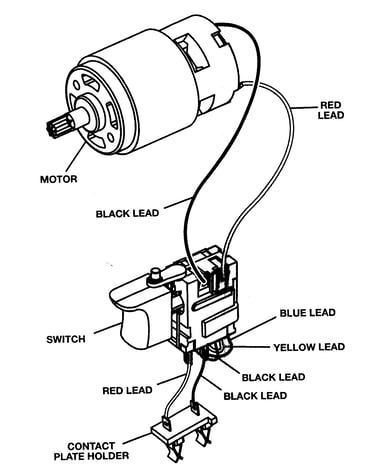

  • Drill/driver Motor Assembly for Craftsman 315114832 - Part 230081005

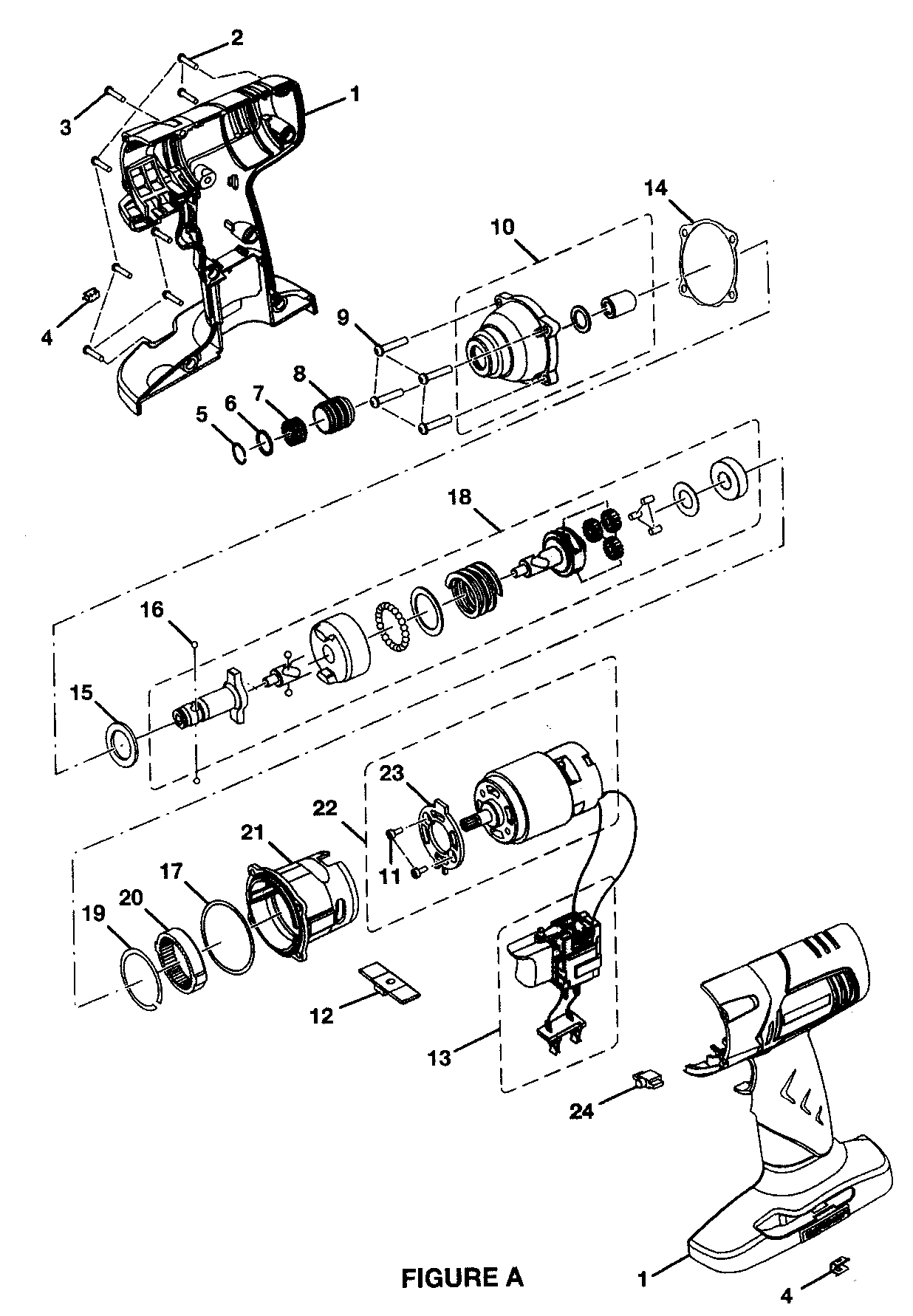

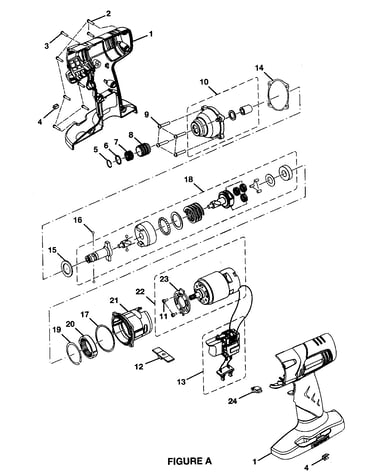

    Motor assy diagram

    Drill/driver Motor Assembly

    Part #230081005

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw M3.5 X 16mm for Craftsman 315114832 - Part 6620606

    Motor assy diagram

    Screw M3.5 X 16mm

    Part #6620606

    The manufacturer no longer makes this part, and there's no substitute part

  • Seal Ring for Craftsman 315114832 - Part 570315001

    Motor assy diagram

    Seal Ring

    Part #570315001

    The manufacturer no longer makes this part, and there's no substitute part

  • Label for Craftsman 315114832 - Part 940203053

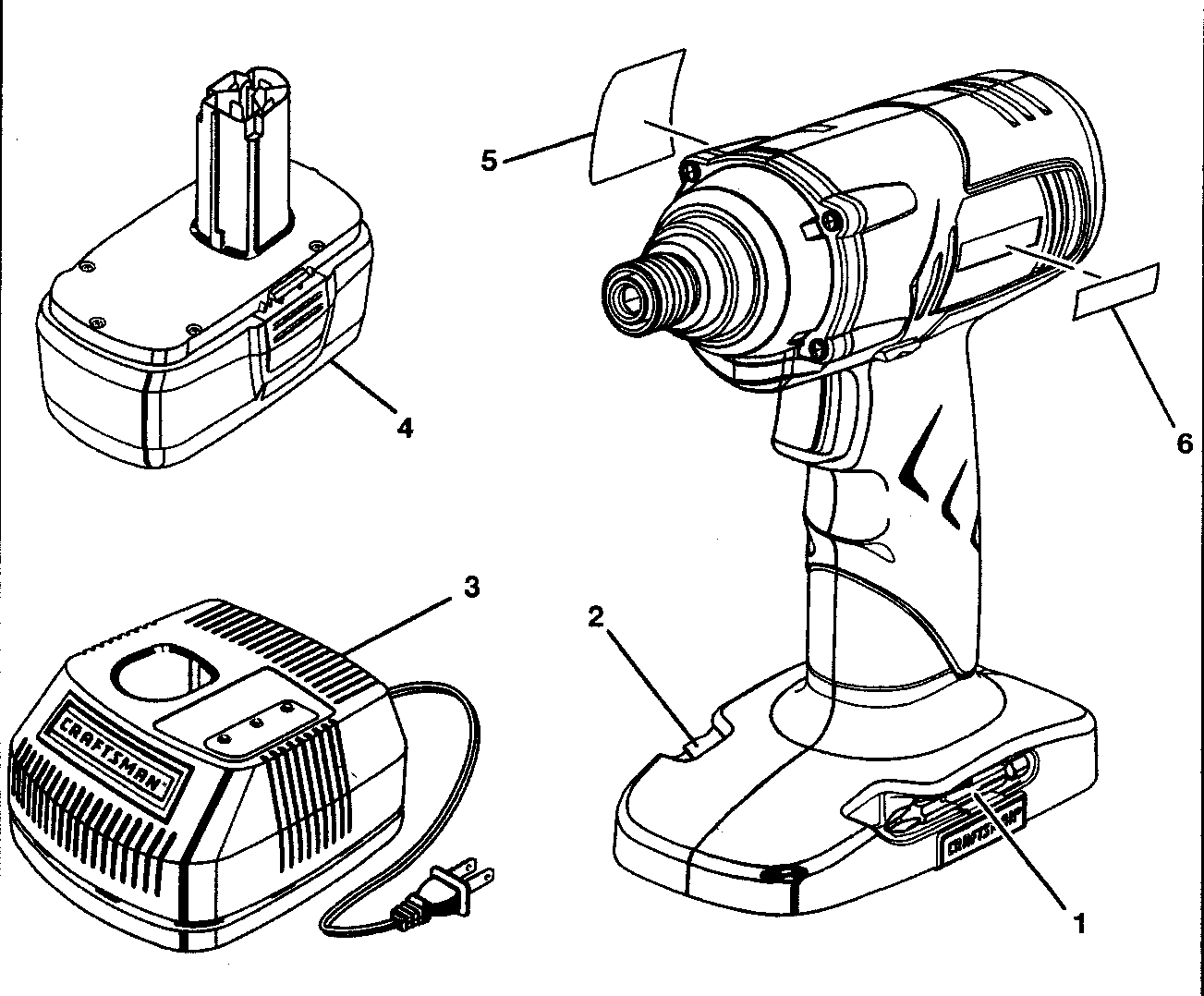

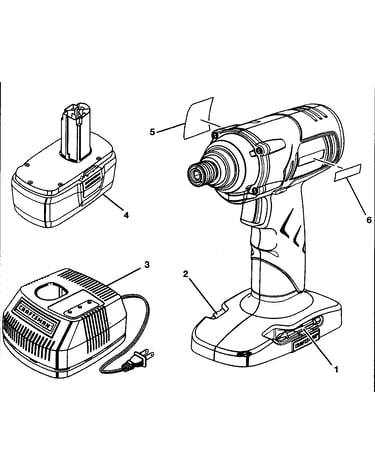

    Drill diagram

    Label

    Part #940203053

    The manufacturer no longer makes this part, and there's no substitute part

  • Drill Trigger Switch for Craftsman 315114832 - Part 270001311

    Motor assy diagram

    Drill Trigger Switch

    Part #270001311

    The manufacturer no longer makes this part, and there's no substitute part

  • Drill/driver Washer, 0.29 X 0.19 X 2-in for Craftsman 315114832 - Part 690249001

    Motor assy diagram

    Drill/driver Washer, 0.29 X 0.19 X 2-in

    Part #690249001

    The manufacturer no longer makes this part, and there's no substitute part

  • Retaining Ring for Craftsman 315114832 - Part 690256001

    Motor assy diagram

    Retaining Ring

    Part #690256001

    The manufacturer no longer makes this part, and there's no substitute part

  • Data Label for Craftsman 315114832 - Part 940045027

    Drill diagram

    Data Label

    Part #940045027

    The manufacturer no longer makes this part, and there's no substitute part

  • Inner Case for Craftsman 315114832 - Part 640915001

    Motor assy diagram

    Inner Case

    Part #640915001

    The manufacturer no longer makes this part, and there's no substitute part

  • Gear Case for Craftsman 315114832 - Part 300639009

    Motor assy diagram

    Gear Case

    Part #300639009

    The manufacturer no longer makes this part, and there's no substitute part
