Criterion
Upright Freezer

Model # CUF154WD1W Official Criterion upright freezer

Here are the diagrams and repair parts for Official Criterion CUF154WD1W upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |

Freezer Electronic Control Board 40301-0277700-00
#B14

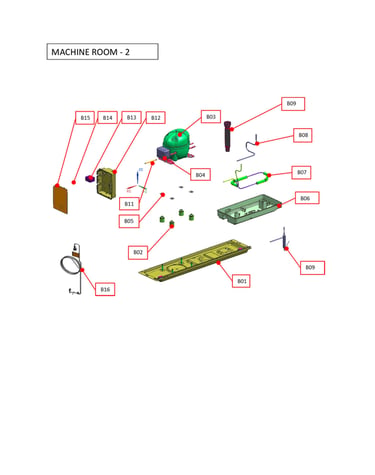

Machine room diagram

Freezer electronic control board

Part #40301-0277700-00

The manufacturer no longer makes this part, and there's no substitute part

Freezer Defrost Heater 60128-0021200-00
#C01B

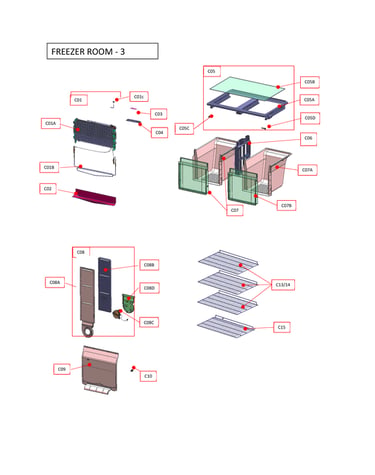

Freezer room diagram

Freezer defrost heater

Part #60128-0021200-00

The manufacturer no longer makes this part, and there's no substitute part

Freezer Evaporator Fan Motor 60159-0015900-00
#C08C

Freezer room diagram

Freezer evaporator fan motor

Part #60159-0015900-00

The manufacturer no longer makes this part, and there's no substitute part

Freezer Door Gasket 30123-0013904-00
#D02

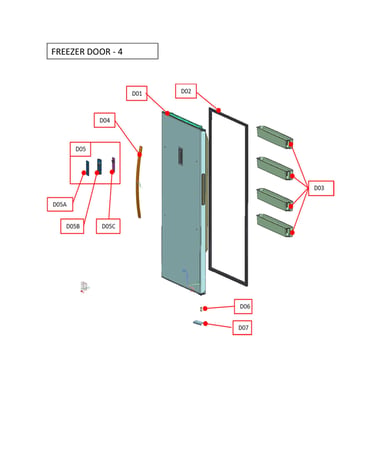

Freezer door diagram

Freezer door gasket

Part #30123-0013904-00

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Compressor 60110-0020300-00
#B03

Machine room diagram

Refrigerator compressor

Part #60110-0020300-00

The manufacturer no longer makes this part, and there's no substitute part

Foor Adj *l As 3012106500
#A05

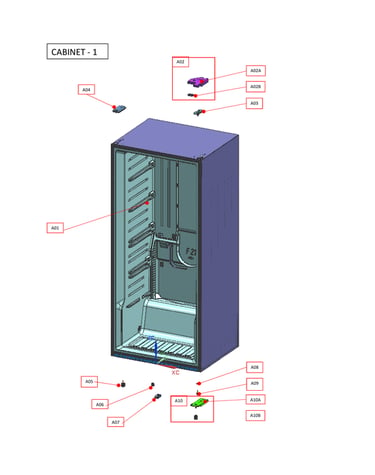

Cabinet diagram

Foor adj *l as

Part #3012106500

The manufacturer no longer makes this part, and there's no substitute part

Lamp Led As 30136A1500
#C03

Freezer room diagram

Lamp led as

Part #30136A1500

The manufacturer no longer makes this part, and there's no substitute part

Freezer Wire Shelf 30178-0048500-00
#C14

Freezer room diagram

Freezer wire shelf

Part #30178-0048500-00

The manufacturer no longer makes this part, and there's no substitute part

Lamp Led As 30136A1600
#A06

Cabinet diagram

Lamp led as

Part #30136A1600

The manufacturer no longer makes this part, and there's no substitute part

Cord Power As 60113-0012300-00
#B16

Machine room diagram

Cord power as

Part #60113-0012300-00

The manufacturer no longer makes this part, and there's no substitute part
