Kelvinator UFS101DM1 upright freezer - k1700-87 Parts

Here are the diagrams and repair parts for Kelvinator UFS101DM1 upright freezer - k1700-87, as well as links to manuals and error code tables, if available.

Kelvinator UFS101DM1 upright freezer - k1700-87
By Schematic

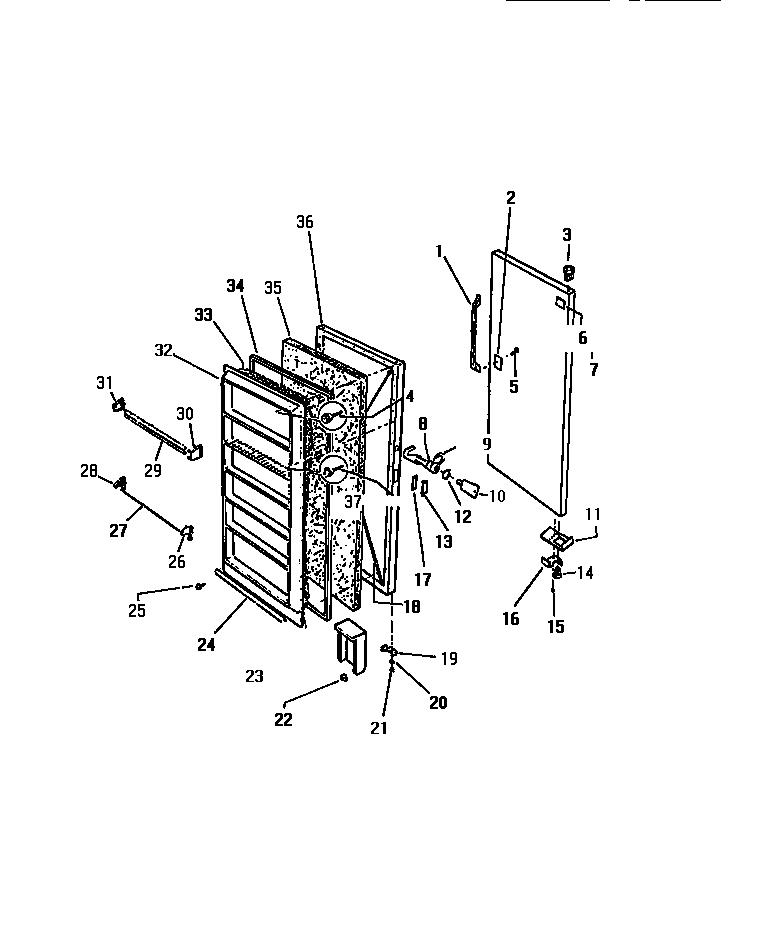

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for UFS101DM1 Freestanding Freezers

  • Basket for Kelvinator UFS101DM1 - Part 08037976

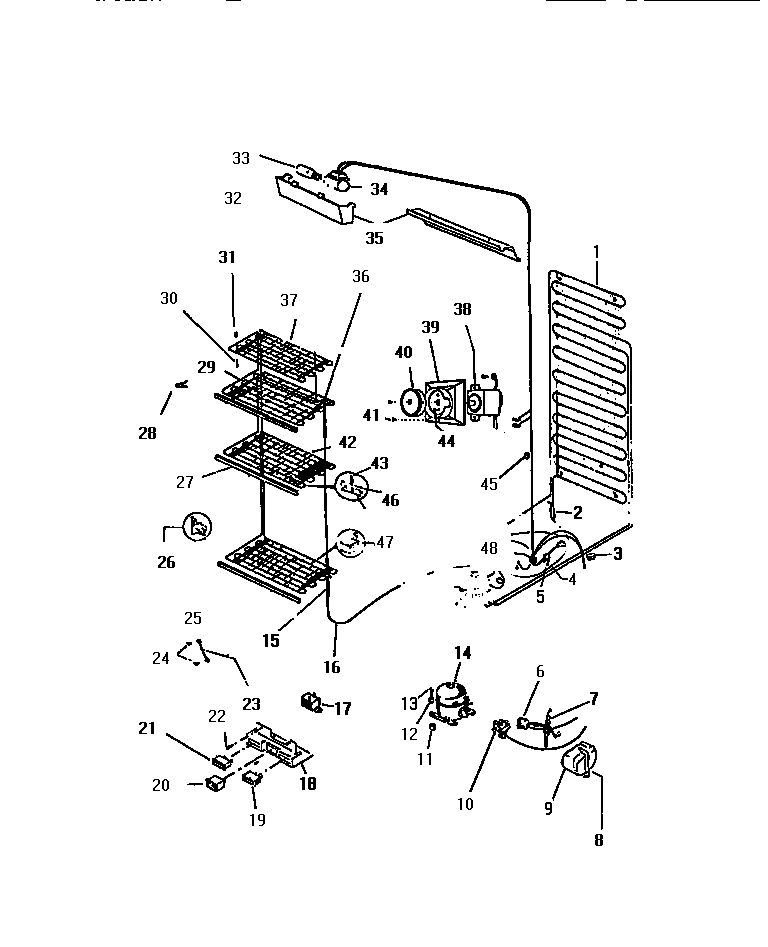

    Systems diagram

    Shelf

    Part #F125241

    Replaced by #08037976

    Info Icon
    Manufacturer substitution
    This part replaces F125241. Substitute parts can look different from the original.
    In Stock
    $149.74
    Minus Item
    Qty
    Plus Item
  • Plate for Kelvinator UFS101DM1 - Part 06594550

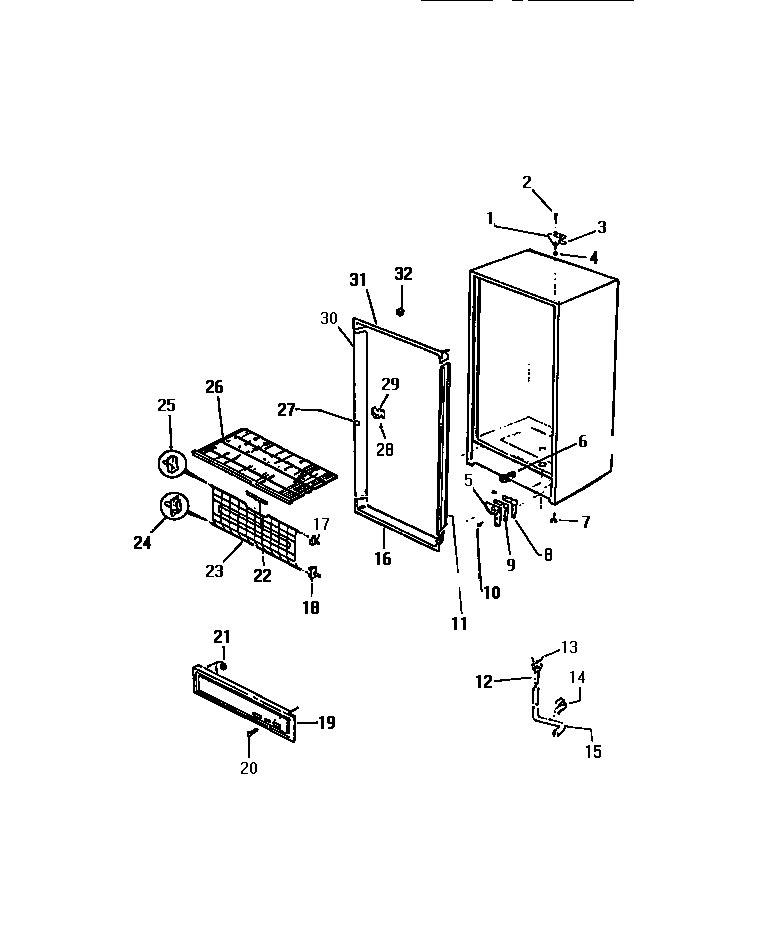

    Cabinet diagram

    Retainer

    Part #F84948

    Replaced by #06594550

    Info Icon
    Manufacturer substitution
    This part replaces F84948. Substitute parts can look different from the original.
    In Stock
    $25.75
    Minus Item
    Qty
    Plus Item
  • Shelf for Kelvinator UFS101DM1 - Part 216045702

    Systems diagram

    Front

    Part #F119270-4

    Replaced by #216045702

    Info Icon
    Manufacturer substitution
    This part replaces F119270-4. Substitute parts can look different from the original.
    In Stock
    $112.87
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Switch for Kelvinator UFS101DM1 - Part 5303289051

    Systems diagram

    Switch

    Part #F111271

    Replaced by #5303289051

    Info Icon
    Manufacturer substitution
    This part replaces F111271. Substitute parts can look different from the original.
    In Stock
    $48.24
    Minus Item
    Qty
    Plus Item
  • Spacer for Kelvinator UFS101DM1 - Part 08037937

    Cabinet diagram

    Spacer

    Part #F86536

    Replaced by #08037937

    Info Icon
    Manufacturer substitution
    This part replaces F86536. Substitute parts can look different from the original.
    In Stock
    $25.17
    Minus Item
    Qty
    Plus Item
  • Molding for Kelvinator UFS101DM1 - Part 5308005501

    Cabinet diagram

    Molding

    Part #F121239-64

    Replaced by #5308005501

    Info Icon
    Manufacturer substitution
    This part replaces F121239-64. Substitute parts can look different from the original.
    In Stock
    $115.48
    Minus Item
    Qty
    Plus Item
  • Bracket for Kelvinator UFS101DM1 - Part 08016369

    Systems diagram

    Bracket

    Part #F128591

    Replaced by #08016369

    Info Icon
    Manufacturer substitution
    This part replaces F128591. Substitute parts can look different from the original.
    In Stock
    $35.25
    Minus Item
    Qty
    Plus Item
  • Screw for Kelvinator UFS101DM1 - Part 5300052943

    Systems diagram

    Clamp Screw

    Part #F52943

    Replaced by #5300052943

    Info Icon
    Manufacturer substitution
    This part replaces F52943. Substitute parts can look different from the original.
    In Stock
    $29.37
    Minus Item
    Qty
    Plus Item
  • Retainer for Kelvinator UFS101DM1 - Part 08037401

    Systems diagram

    Retainer

    Part #F112321

    Replaced by #08037401

    Info Icon
    Manufacturer substitution
    This part replaces F112321. Substitute parts can look different from the original.
    In Stock
    $27.20
    Minus Item
    Qty
    Plus Item
  • Shelf for Kelvinator UFS101DM1 - Part 08037940

    Systems diagram

    Shelf

    Part #F125251

    Replaced by #08037940

    Info Icon
    Manufacturer substitution
    This part replaces F125251. Substitute parts can look different from the original.
    In Stock
    $152.20
    Minus Item
    Qty
    Plus Item

Most common symptoms to help you fix your freestanding freezers

Choose a symptom to see related freezer repairs.

View all

Why is my freezer hot on the outside?

Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…

Read more

Why isn't my freezer running?

Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…

Read more

Why is my freezer so noisy?

Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …

Read more

What should I do when my freezer's high-temperature alarm sounds?

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…

Read more

Why does my freezer have a lot of frost inside?

Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …

Read more

Why don't the lights in my freezer work?

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…

Read more

Why isn't my freezer cooling?

Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…

Read more

Why is my freezer too warm?

Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …

Read more

Repair guides for upright freezers

View all
How to replace a freezer electronic control board

How to replace a freezer electronic control board

The electronic control board manages the compressor to control freezer temperature. Replace the control board using the…

Read more

Repair time and Difficulty

 45 minutes or less
How to replace a freezer thermistor

How to replace a freezer thermistor

When the thermistor can’t sense the freezer temperature, the freezer is colder or warmer than the set temperature. Follo…

Read more

Repair time and Difficulty

 45 minutes or less
How to replace a freezer door switch

How to replace a freezer door switch

When the door switch fails, the freezer can’t detect that the door is closed. Follow the steps in this repair guide to r…

Read more

Repair time and Difficulty

 15 minutes or less

Effective articles & videos to help repair your freestanding freezers

Use the advice and tips in these articles and videos to get the most out of your freezer.

View all
Introducing new technical repair content that we’re developing for the Sears Technical Institute

Introducing new technical repair content that we’re developing for the Sears Technical Institute

Learn about Sears Technical Institute and the advanced technical content being developed for aspiring appliance techs.…

Read more
Top questions about Sears and Sears PartsDirect

Top questions about Sears and Sears PartsDirect

Get answers to frequently asked questions about Sears and Sears PartsDirect.…

Read more
Wiring schematic symbols explained video

Wiring schematic symbols explained video

Learn some of the most common symbols found in a wiring diagram and what they mean.…

Read more
