Kenmore
Countertop Microwave

Model # 5658728510 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 5658728510 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

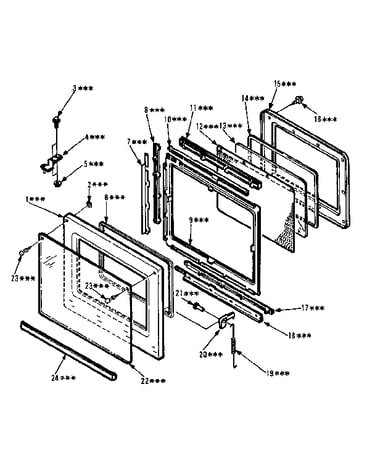

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Micro-switch 12478
#8

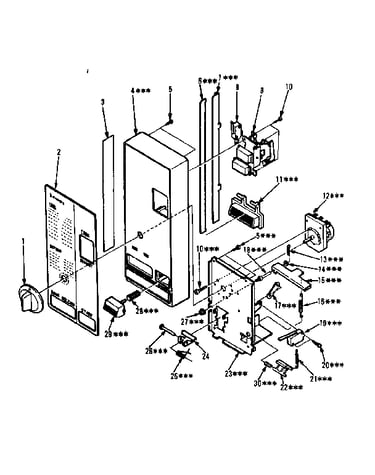

Control panel parts diagram

Micro-switch

Part #12478

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch 12484
#19

Control panel parts diagram

Micro-switch

Part #12484

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 12448
#2

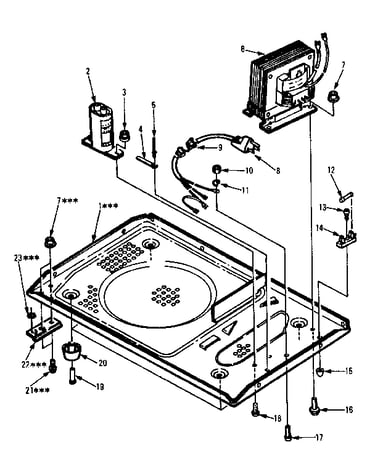

Microwave parts diagram

Capacitor

Part #12448

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder 11256
#14

Microwave parts diagram

Fuse holder

Part #11256

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 12438
#5

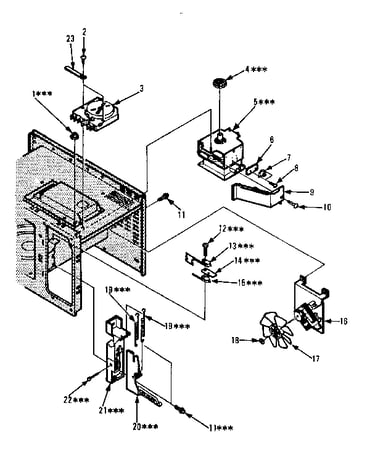

Switches and microwave diagram

Magnetron

Part #12438

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 11235
#7

Switches and microwave diagram

Thermostat

Part #11235

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch 12686
#15

Switches and microwave diagram

Micro-switch

Part #12686

The manufacturer no longer makes this part, and there's no substitute part

Defrost Timer 12437
#3

Switches and microwave diagram

Defrost timer

Part #12437

The manufacturer no longer makes this part, and there's no substitute part

Screw 10017
#2

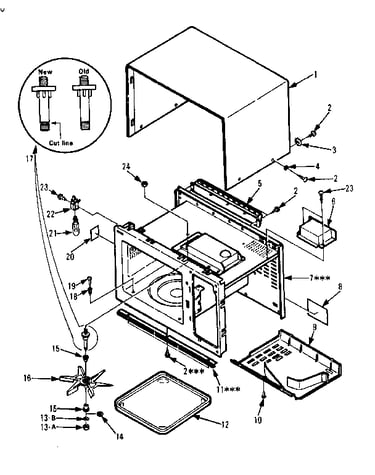

Cabinet diagram

Screw

Part #10017

The manufacturer no longer makes this part, and there's no substitute part

Spring 12490
#28

Control panel parts diagram

Spring

Part #12490

The manufacturer no longer makes this part, and there's no substitute part
