Sears 502474422 27" lightweight bicycle Parts

Here are the diagrams and repair parts for Sears 502474422 27" lightweight bicycle, as well as links to manuals and error code tables, if available.

Sears 502474422 27" lightweight bicycle

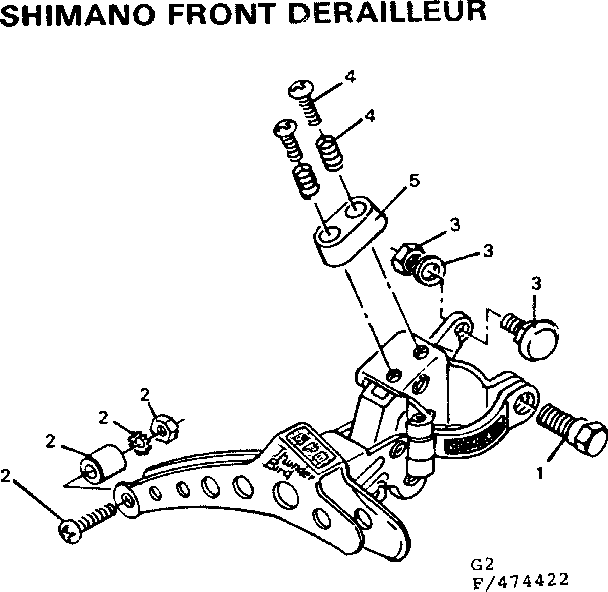

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 502474422 27" Lightweight Bicycle

  • Cone for Sears 502474422 - Part 301214

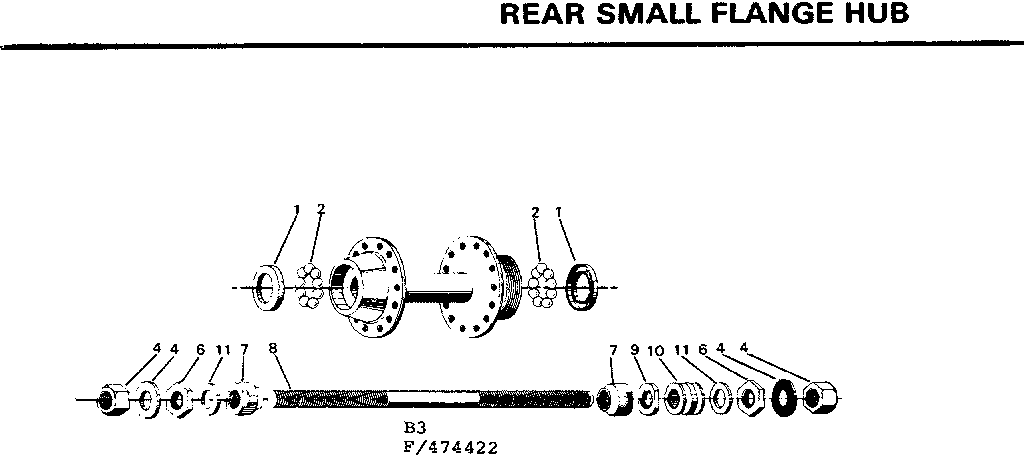

    Rear small flange hub diagram

    Cone

    Part #301214

    The manufacturer no longer makes this part, and there's no substitute part

  • Adj Screw for Sears 502474422 - Part 300930

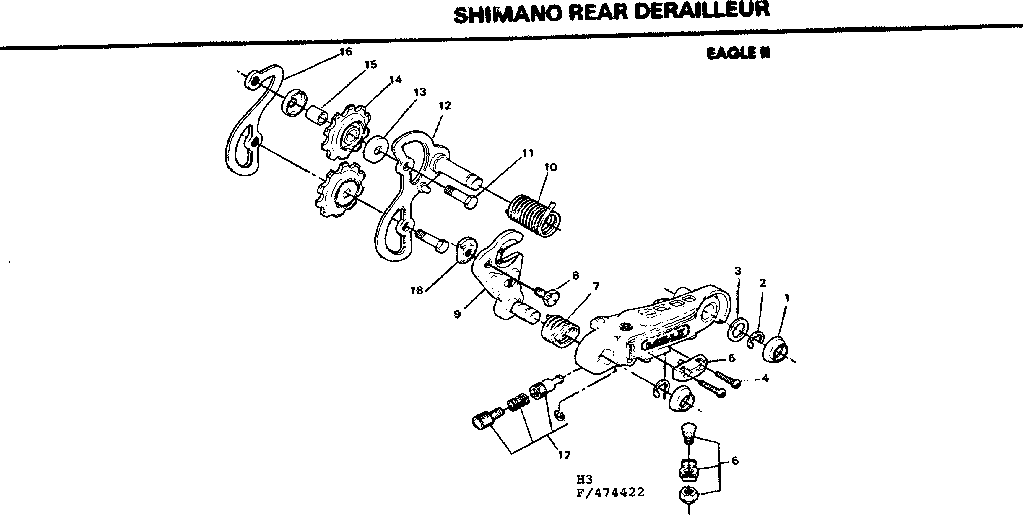

    Shimano rear derailleur-eagle ii diagram

    Adj Screw

    Part #300930

    The manufacturer no longer makes this part, and there's no substitute part

  • Tire Tube for Sears 502474422 - Part 75X486PA

    Tire Tube

    Part #75X486PA

    The manufacturer no longer makes this part, and there's no substitute part

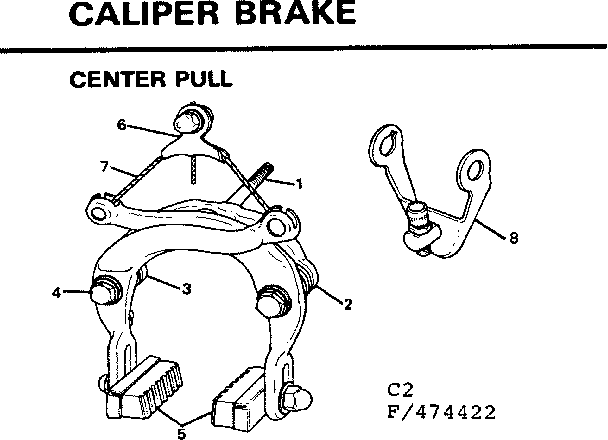

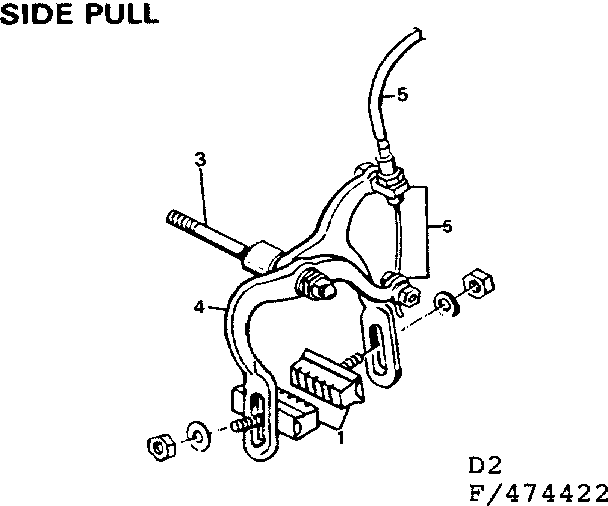

  • Rr Brake for Sears 502474422 - Part 32931PA

    Rr Brake

    Part #32931PA

    The manufacturer no longer makes this part, and there's no substitute part

  • Clamp for Sears 502474422 - Part 300396

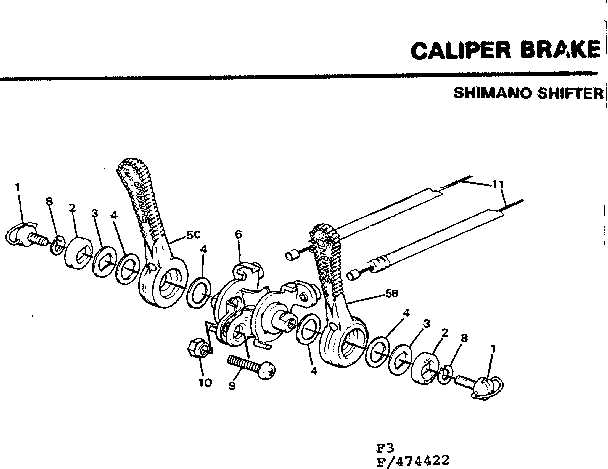

    Caliper brake-shimano shifter diagram

    Clamp

    Part #300396

    The manufacturer no longer makes this part, and there's no substitute part

  • Crank for Sears 502474422 - Part 12300C

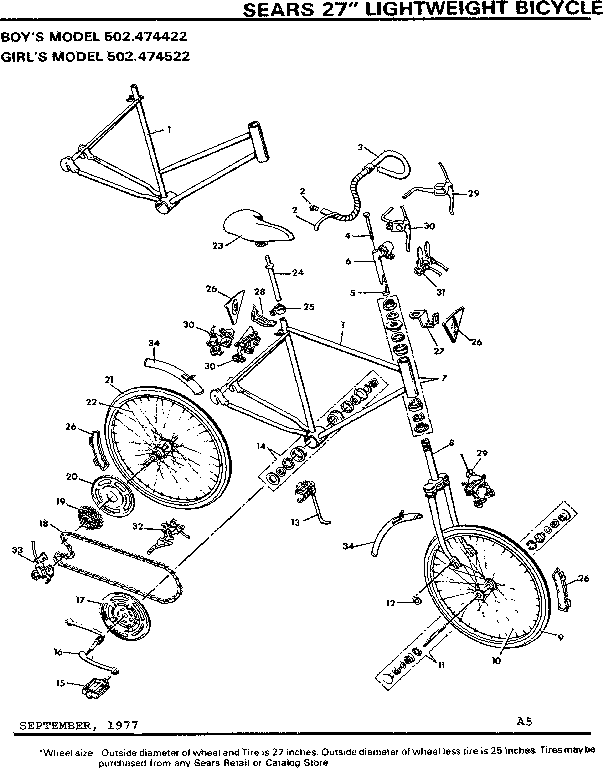

    Unit parts diagram

    Crank

    Part #12300C

    The manufacturer no longer makes this part, and there's no substitute part

  • 28 Hub for Sears 502474422 - Part 27651PA

    #NI

    All parts diagram

    28 Hub

    Part #27651PA

    The manufacturer no longer makes this part, and there's no substitute part

  • Bushing for Sears 502474422 - Part 304236

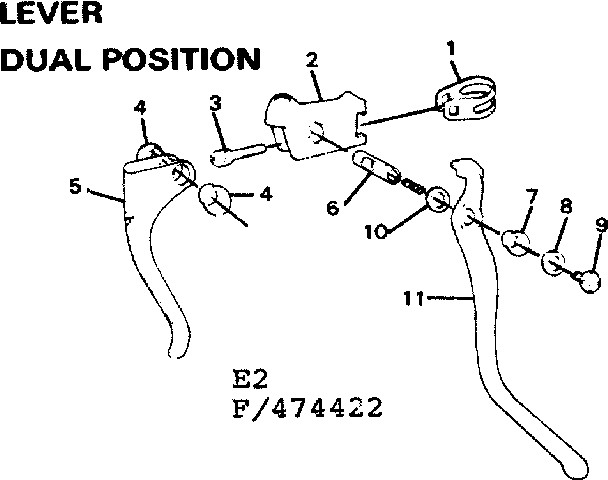

    Caliper brake-lever dual position diagram

    Bushing

    Part #304236

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Sears 502474422 - Part 304238

    Caliper brake-lever dual position diagram

    Screw

    Part #304238

    The manufacturer no longer makes this part, and there's no substitute part

  • Rr Stirrup for Sears 502474422 - Part 302305

    #NI

    All parts diagram

    Rr Stirrup

    Part #302305

    The manufacturer no longer makes this part, and there's no substitute part
