Model # CA5018VKB1 Official ICP cooling condenser

Here are the diagrams and repair parts for Official ICP CA5018VKB1 cooling condenser, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Contactor 1050699
#5

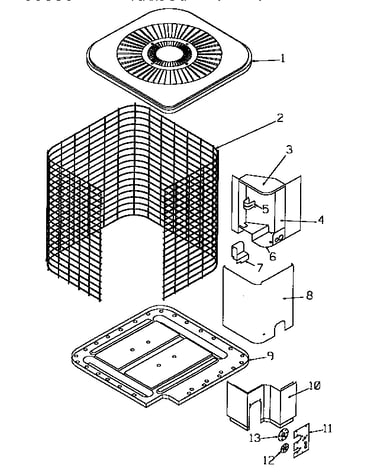

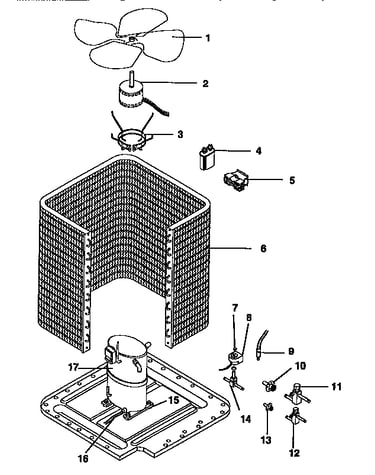

Cooling condenser diagram

Contactor

Part #1050699

Replaced by #94-388

?
Manufacturer substitution
This part replaces 1050699. Substitute parts can look different from the original.
$33.20 |
13% OFF Phone Price : $38.20
In Stock
Cap Rnrdv+ 1094975
#4

Cooling condenser diagram

Cap rnrdv+

Part #1094975

The manufacturer no longer makes this part, and there's no substitute part

Valve Servic 1063722
#12

Cooling condenser diagram

Valve servic

Part #1063722

Replaced by #1080999

?
Manufacturer substitution
This part replaces 1063722. Substitute parts can look different from the original.
$127.30
In Stock
Central Air Conditioner Condenser Fan Motor, 1/6-hp (replaces 1068865) 1052662
#2

Cooling condenser diagram

Central air conditioner condenser fan motor, 1/6-hp (replaces 1068865)

Part #1052662

$182.64 |
5% OFF Phone Price : $192.64
In Stock
Valve Servic 1063718
#11

Cooling condenser diagram

Valve servic

Part #1063718

Replaced by #1080995

?
Manufacturer substitution
This part replaces 1063718. Substitute parts can look different from the original.
$176.28
In Stock
Timer 1060410

#NI

All parts diagram

Timer

Part #1060410

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 1050832
#1

Cooling condenser diagram

Fan blade

Part #1050832

Replaced by #1085958

?
Manufacturer substitution
This part replaces 1050832. Substitute parts can look different from the original.
$127.74 |
7% OFF Phone Price : $137.74
In Stock
C-box Bttm 1052888
#6

Cooling condenser diagram

C-box bttm

Part #1052888

The manufacturer no longer makes this part, and there's no substitute part

Base 1063397
#9

Cooling condenser diagram

Base

Part #1063397

The manufacturer no longer makes this part, and there's no substitute part

#36 Drill, .1065 F/f/867.762701 867.762721 867.762731 N/P
#36 drill, .1065 f/f/867.762701 867.762721 867.762731

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part
