Craftsman
Lawn & Garden Engine

Model # 143561222 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143561222 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

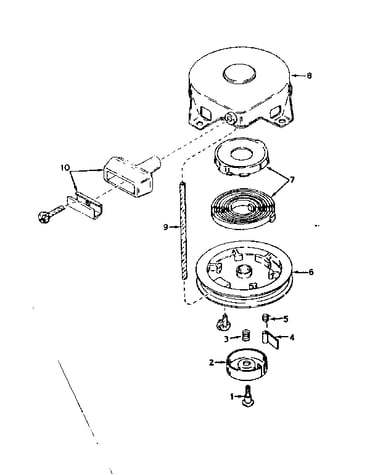

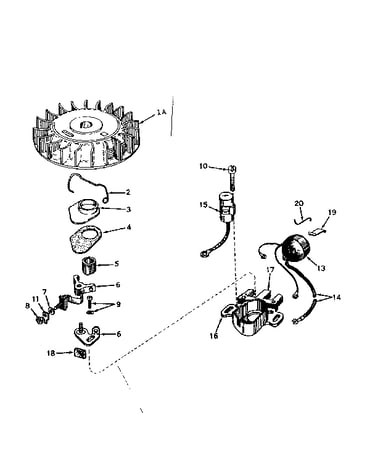

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 169 parts  |

Fuel Line 29774
#118

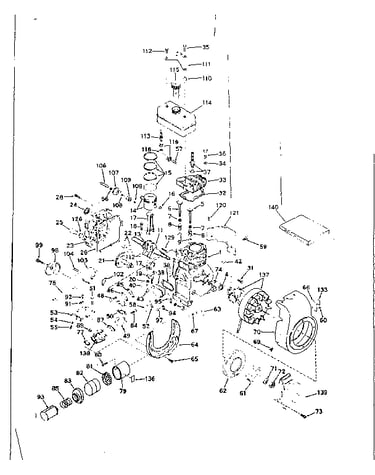

Basic engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Screw 28820
#80

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Governor Gear Assembly 30591
#107

Basic engine diagram

Governor gear assembly

Part #30591

The manufacturer no longer makes this part, and there's no substitute part

Spring 630738
#11

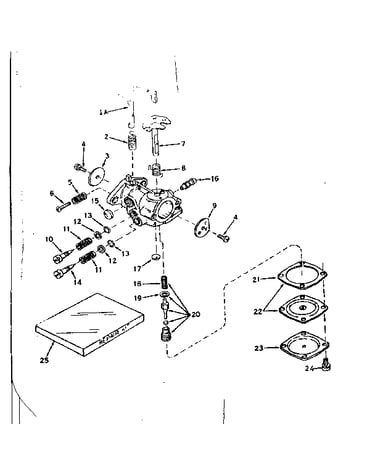

Carburetor diagram

Spring

Part #630738

The manufacturer no longer makes this part, and there's no substitute part

Spacer 28277
#67

Basic engine diagram

Spacer

Part #28277

The manufacturer no longer makes this part, and there's no substitute part

Diap/gaskt 630978
#22

Carburetor diagram

Diap/gaskt

Part #630978

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Shaft 30574
#106

Basic engine diagram

/gvnr shaft

Part #30574

The manufacturer no longer makes this part, and there's no substitute part

Washer 630739
#12

Carburetor diagram

Washer

Part #630739

The manufacturer no longer makes this part, and there's no substitute part

Cover 630751
#23

Carburetor diagram

Cover

Part #630751

The manufacturer no longer makes this part, and there's no substitute part

Chmp J8 Plug 21943
#37

Basic engine diagram

Chmp j8 plug

Part #21943

The manufacturer no longer makes this part, and there's no substitute part
