Model # AC2904XS0 Official Whirlpool air conditioner heat pump

Here are the diagrams and repair parts for Official Whirlpool AC2904XS0 air conditioner heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

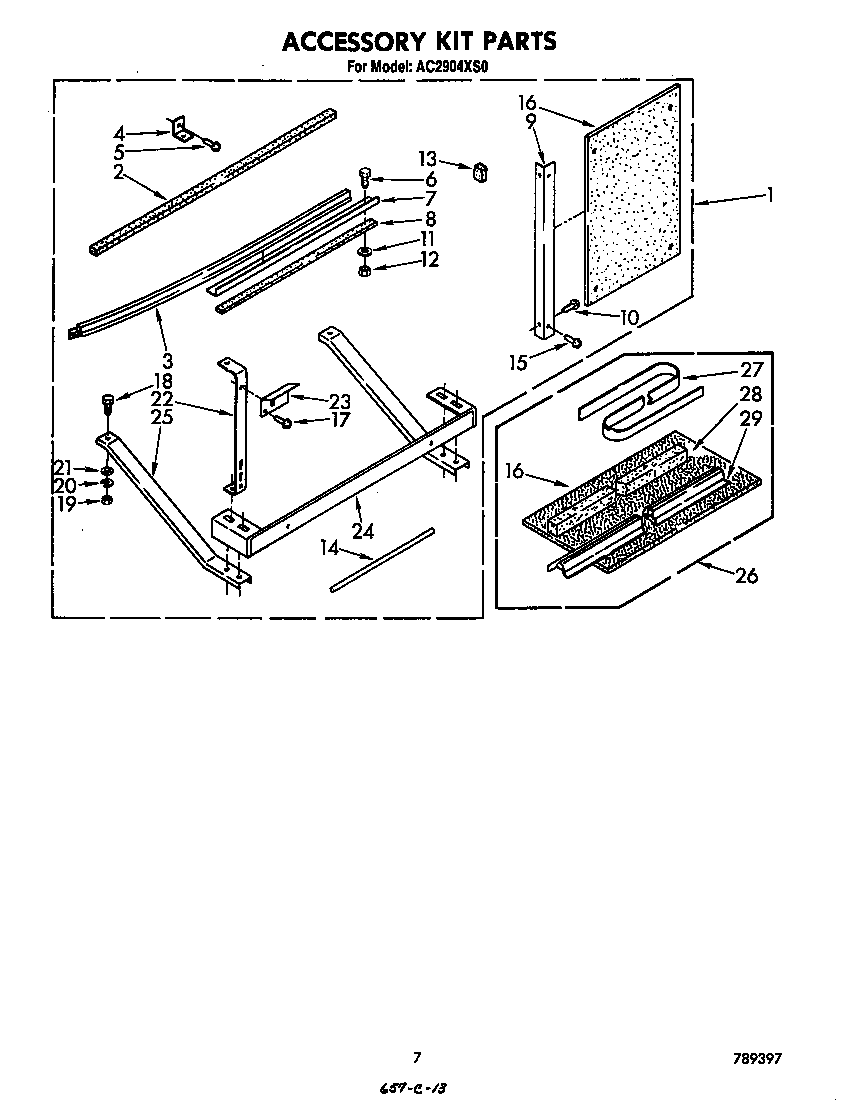

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 182 parts  |
Valve Kit 978030
#6G

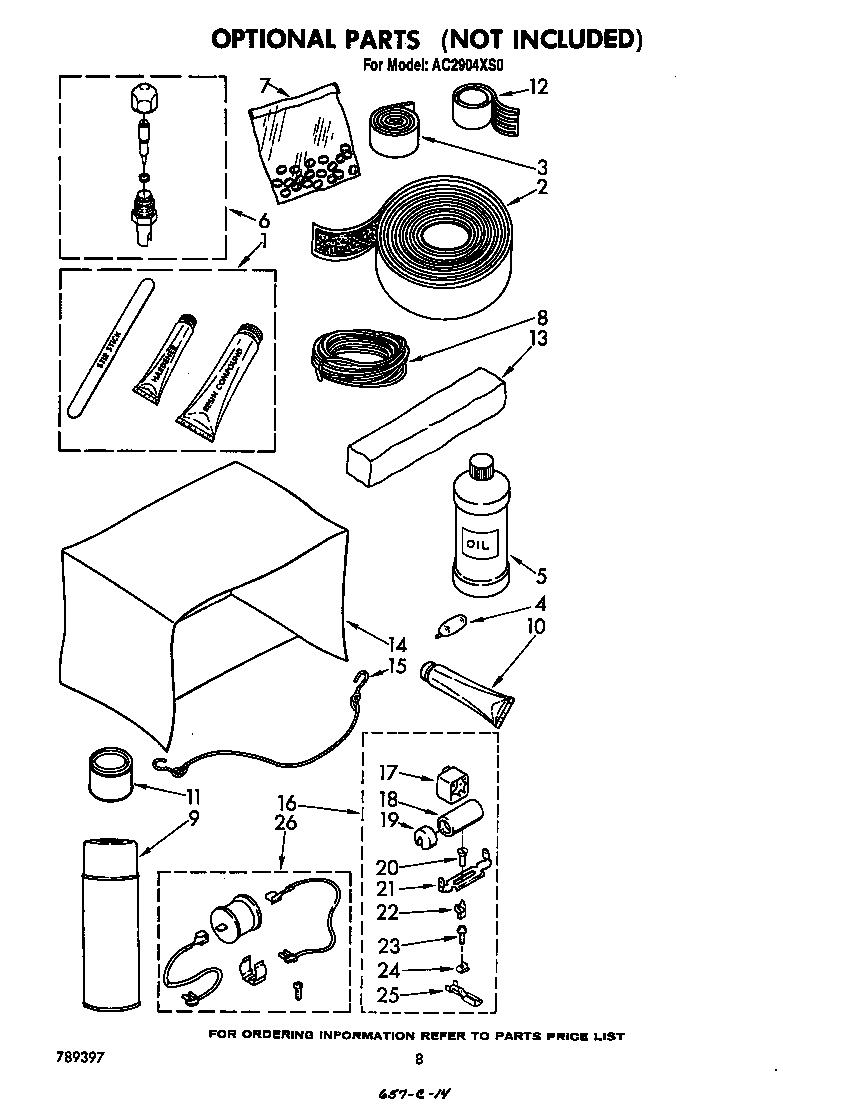

Lit/optional diagram

Valve kit

Part #978030

Replaced by #978030

?
Manufacturer substitution
This part replaces 978030. Substitute parts can look different from the original.
BEST SELLER
$40.49 |
33% OFF MSRP : $60.00
In Stock
Cement 279368
#10

Lit/optional diagram

Cement

Part #279368

Replaced by #WP279368

?
Manufacturer substitution
This part replaces 279368. Substitute parts can look different from the original.
BEST SELLER
$42.72 |
36% OFF MSRP : $67.00
In Stock
Valve Kit 978025
#6B

Lit/optional diagram

Valve kit

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$29.51 |
44% OFF MSRP : $53.00
In Stock
Screw, 8 X 1 488480
Screw, 8 x 1

Part #488480

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 488480. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Cable Tie 857547
#9

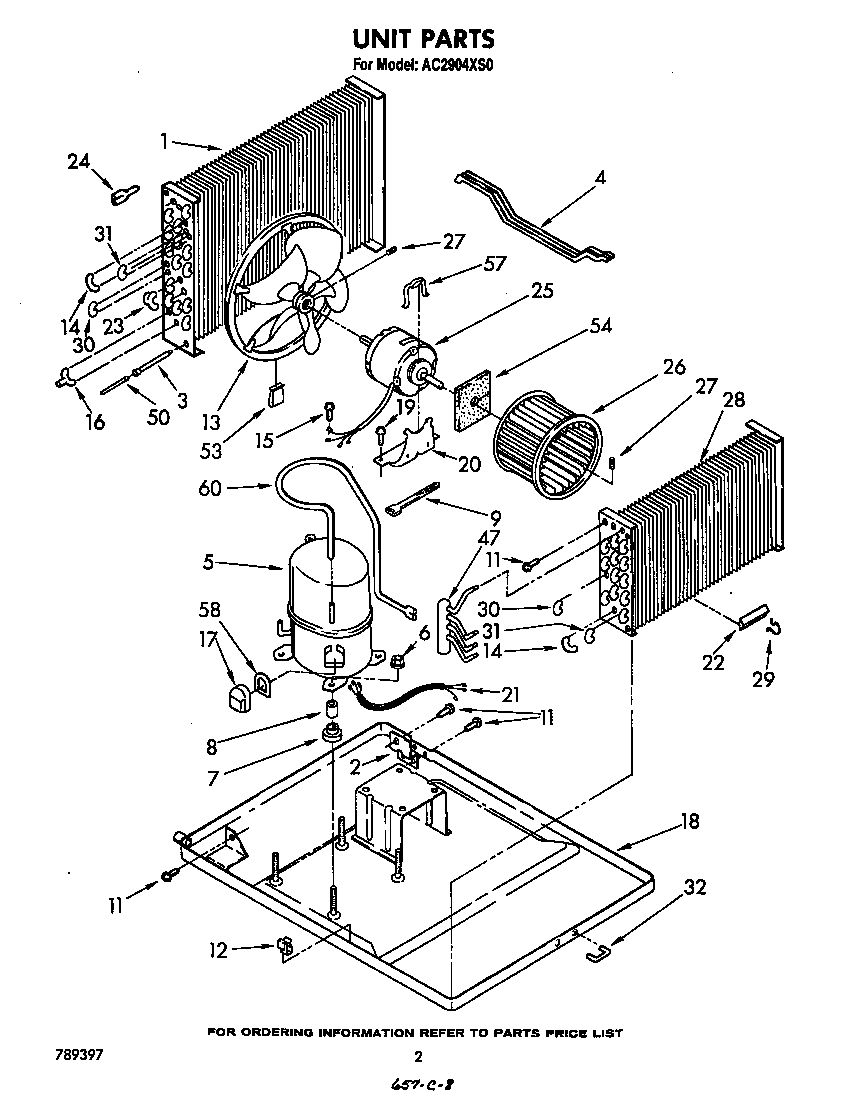

Unit diagram

Cable tie

Part #857547

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 857547. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerant Access Valve, 5/8-in 978029
#6F

Lit/optional diagram

Refrigerant access valve, 5/8-in

Part #978029

Replaced by #978029

?
Manufacturer substitution
This part replaces 978029. Substitute parts can look different from the original.
$41.18
In Stock
Wire 857078
#1

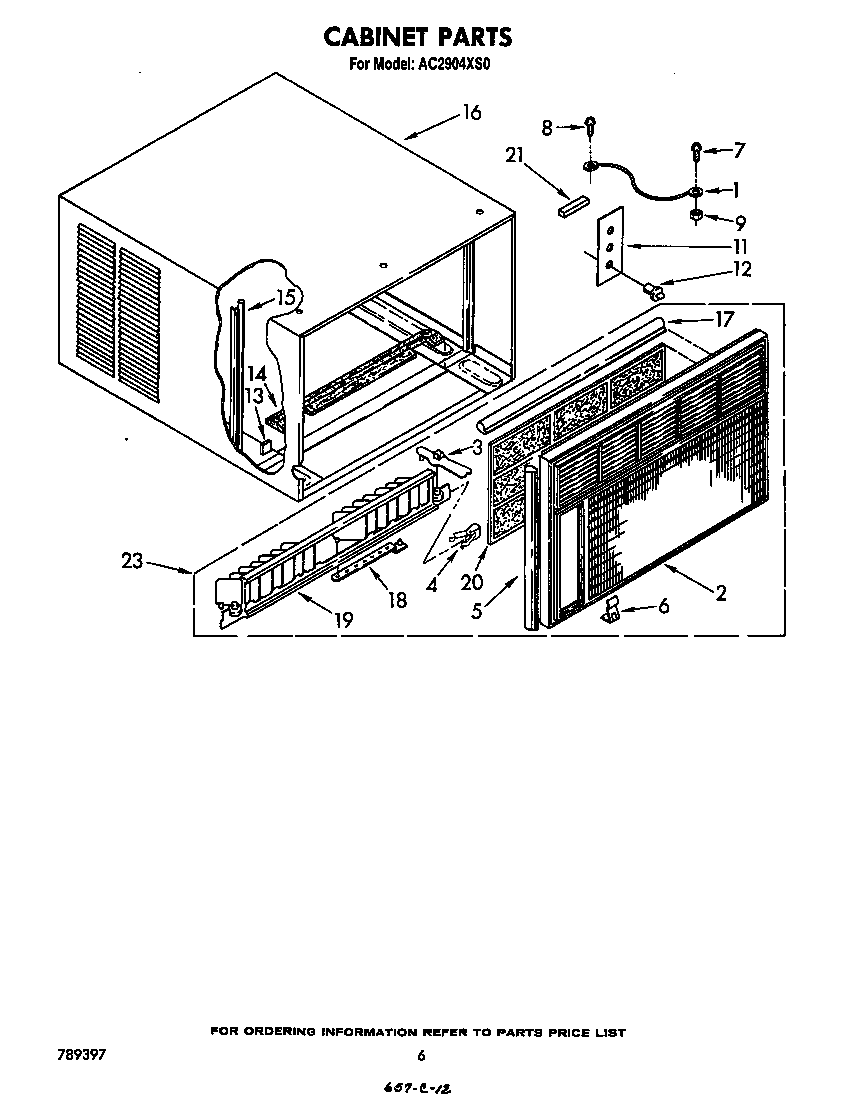

Cabinet diagram

Wire

Part #857078

$10.49 |
16% OFF Phone Price : $12.49
In Stock
Screw 487415
#50

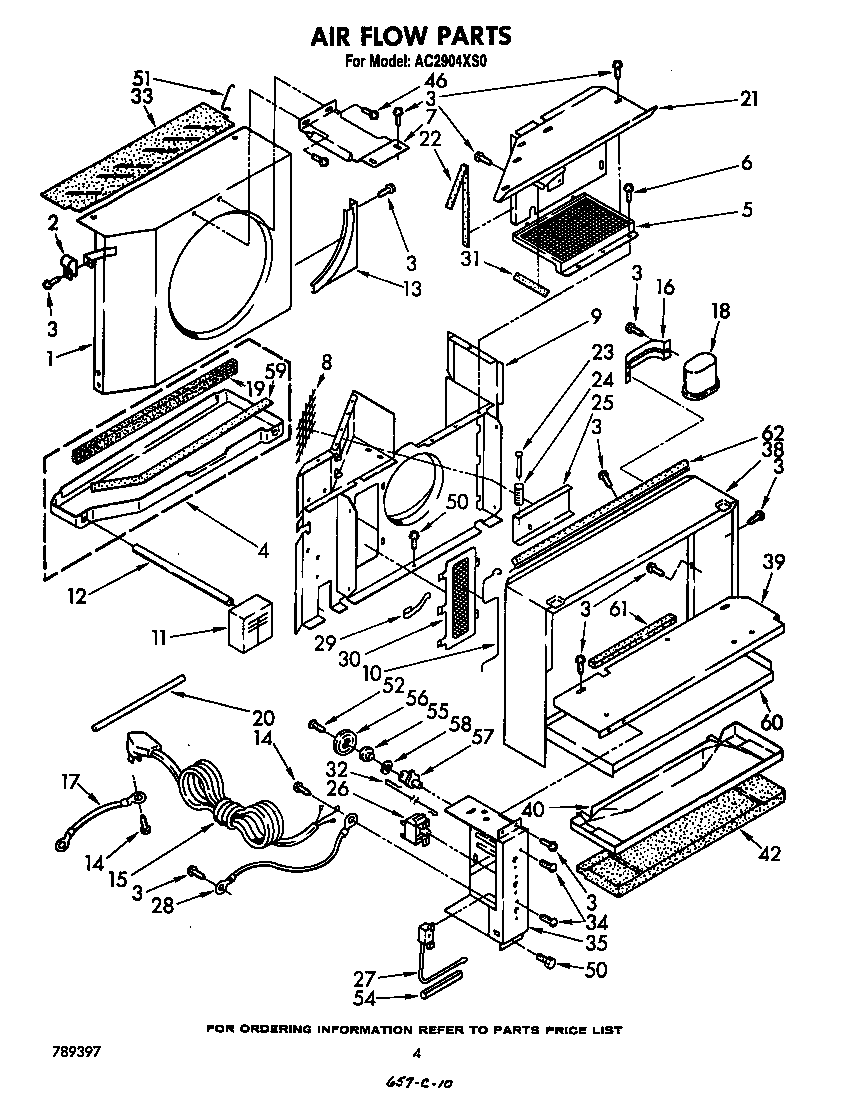

Air flow diagram

Screw

Part #487415

Replaced by #WP965173

?
Manufacturer substitution
This part replaces 487415. Substitute parts can look different from the original.
This item is not returnable
$5.85
In Stock
Capacitor 951519
#18

Air flow diagram

Capacitor

Part #951519

The manufacturer no longer makes this part, and there's no substitute part

Spacer 857471
#13

Cabinet diagram

Spacer

Part #857471

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 857471. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
