Model # 919670070 Official Craftsman generator

Here are the diagrams and repair parts for Official Craftsman 919670070 generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

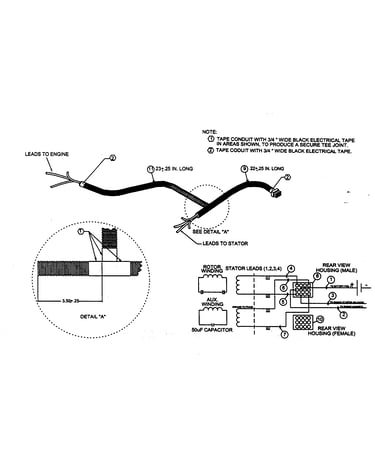

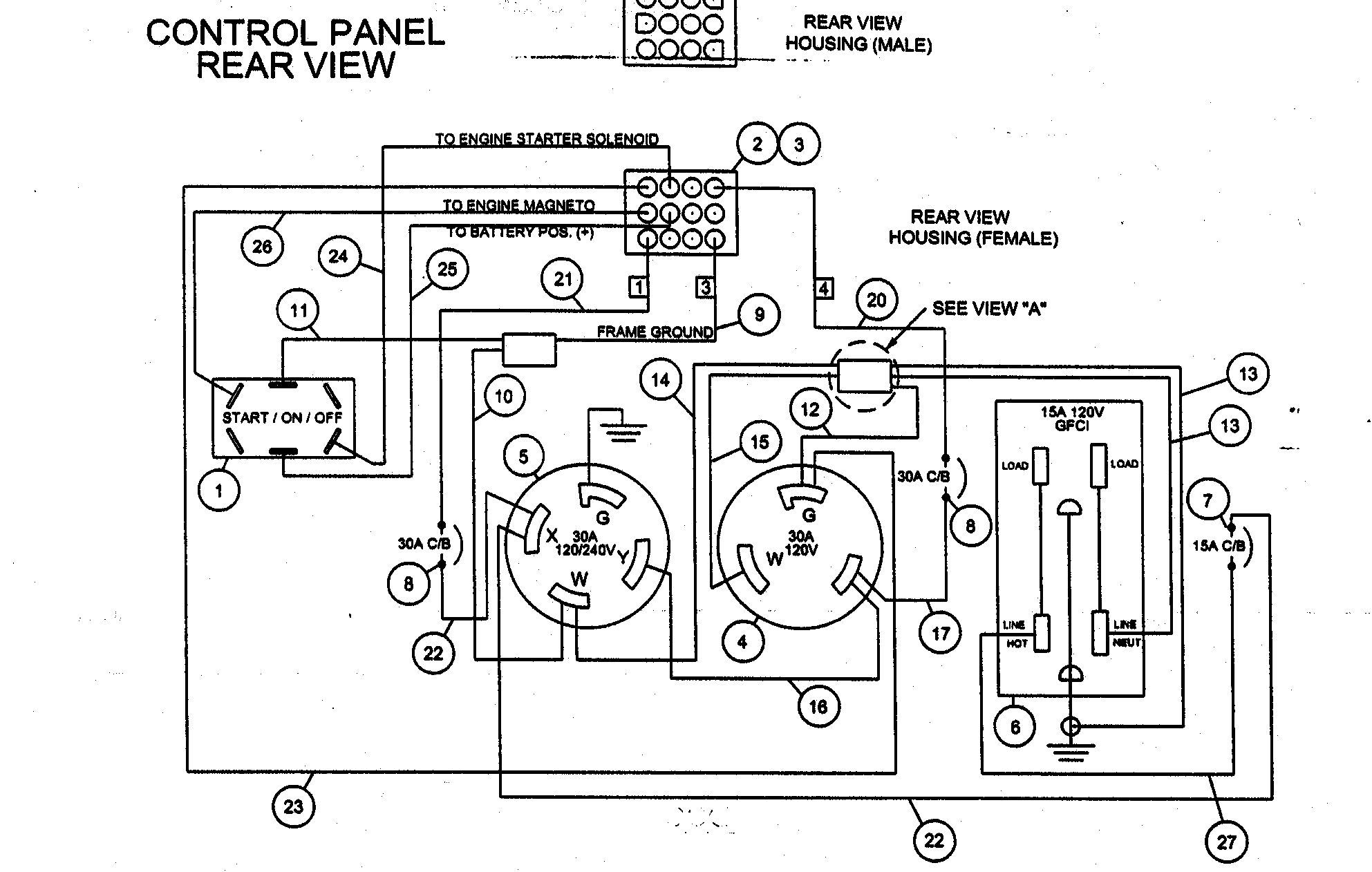

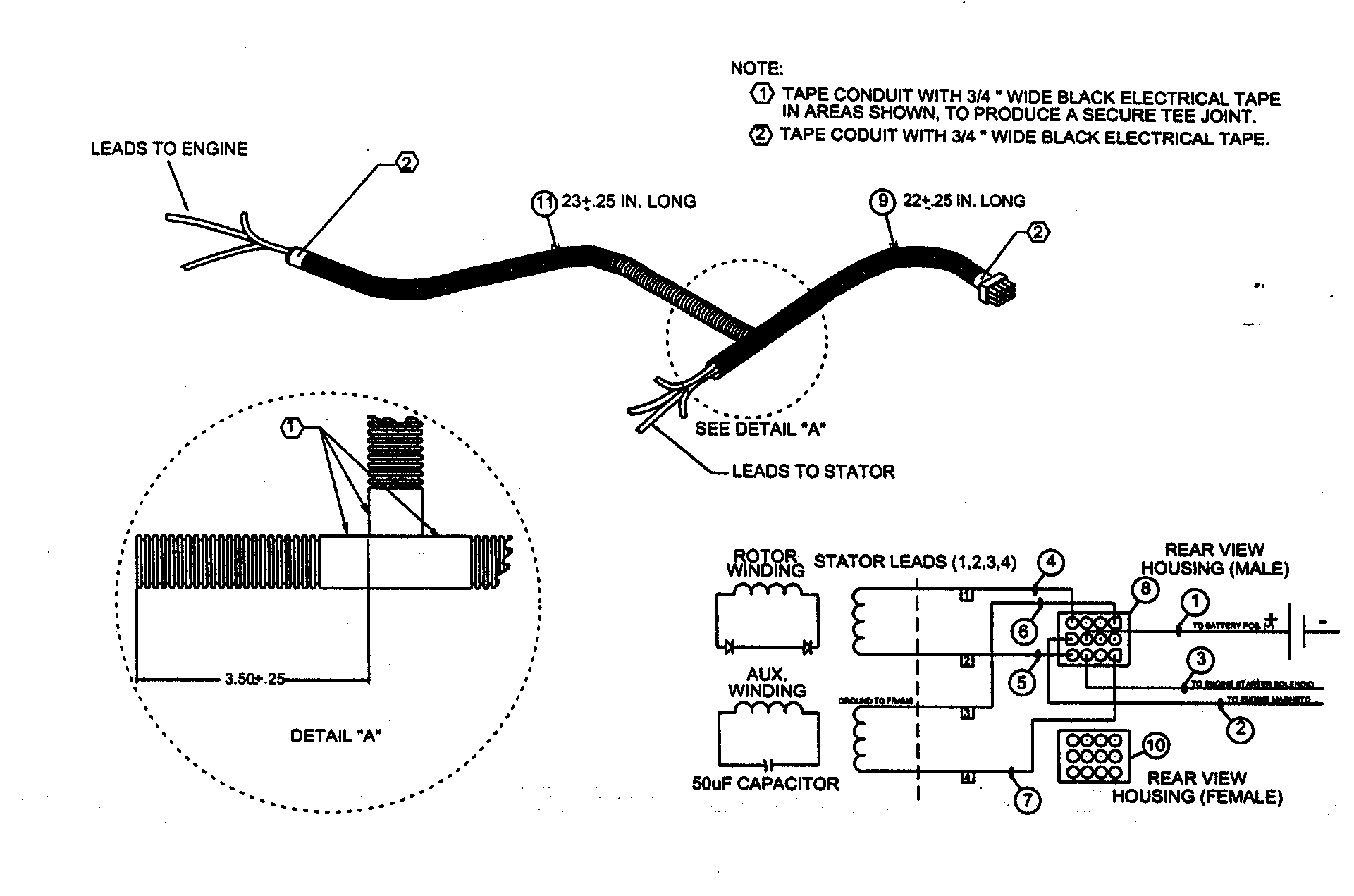

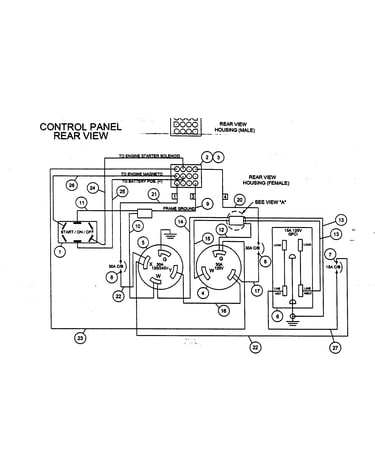

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 66 parts |

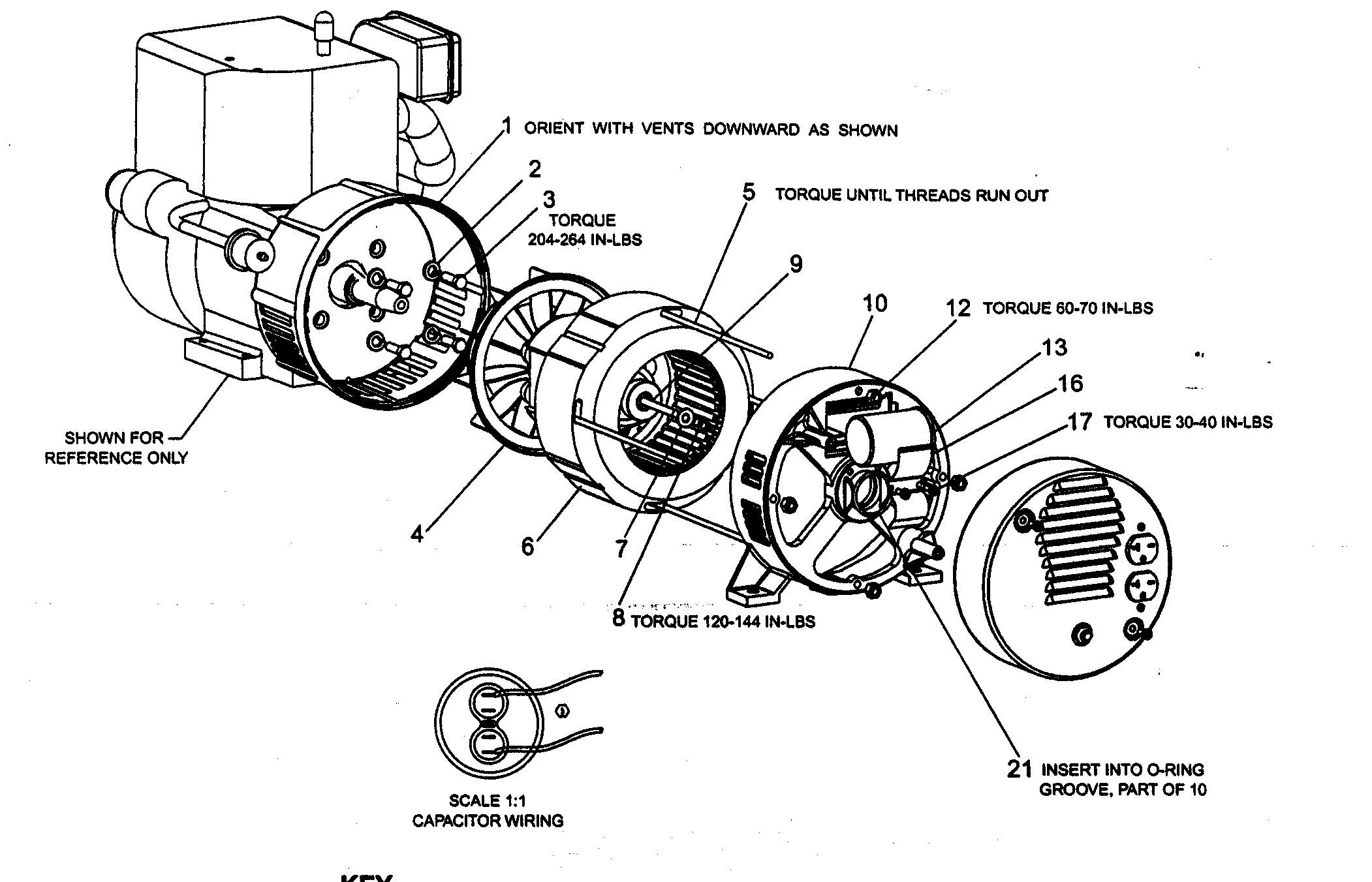

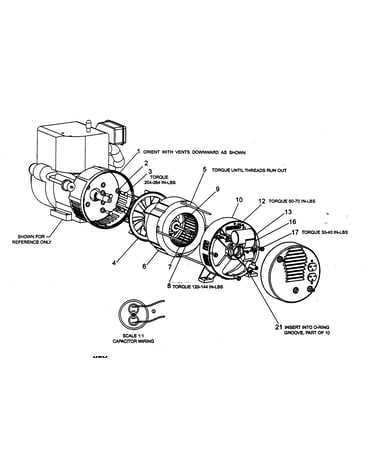

Elec motor assy diagram

Washer

Part #SSN-619

The manufacturer no longer makes this part, and there's no substitute part

#12

Elec motor assy diagram

Generator run capacitor

Part #GS-0592

The manufacturer no longer makes this part, and there's no substitute part

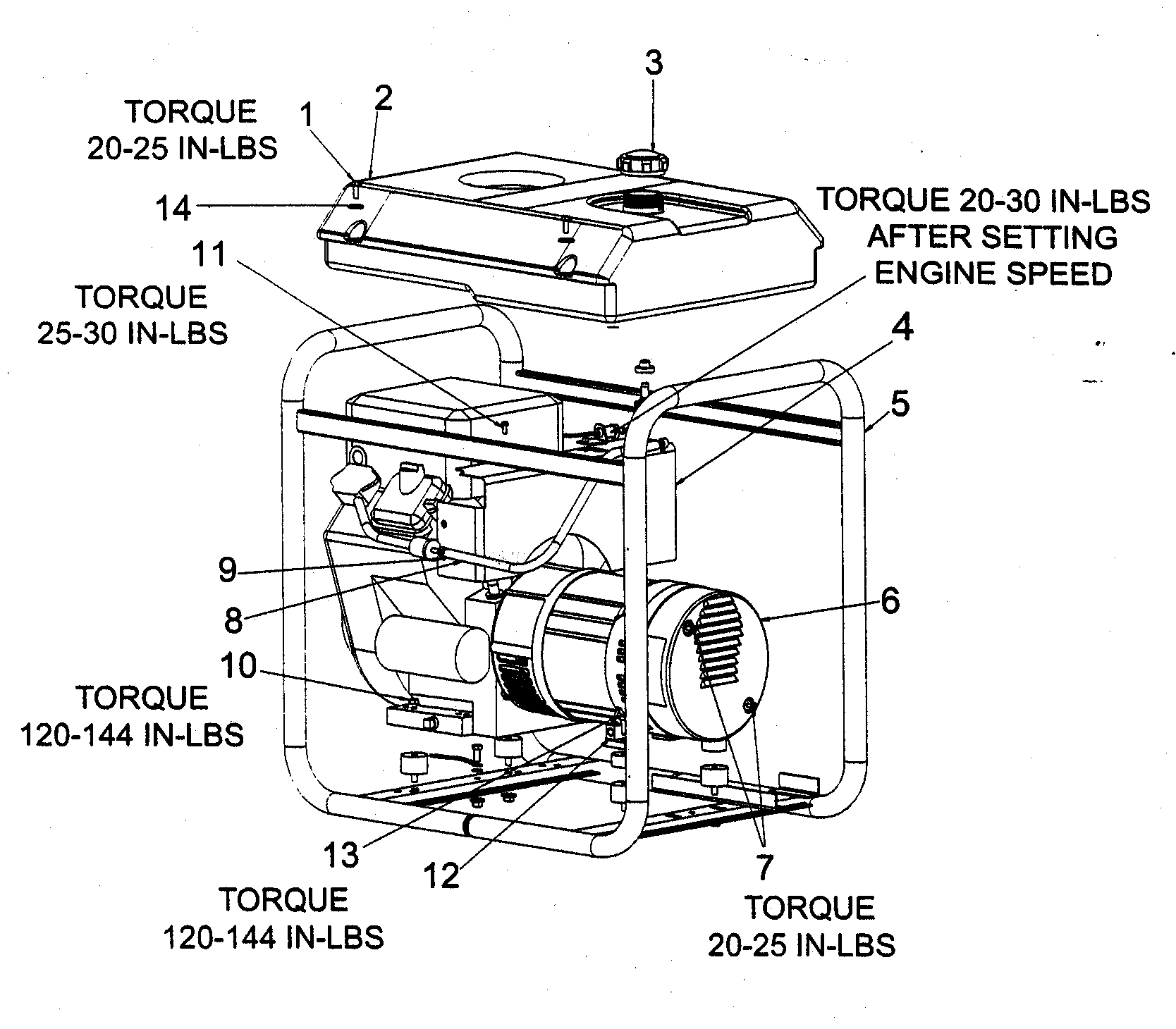

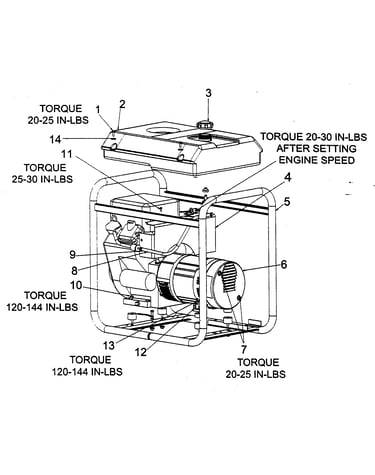

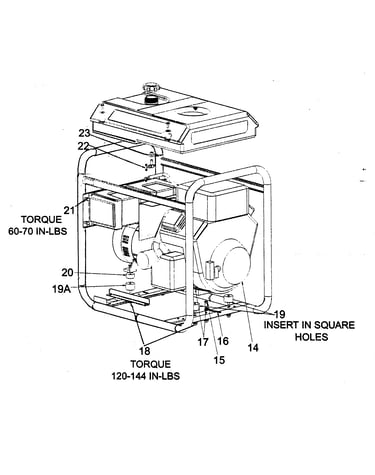

Generator 1 diagram

Shield

Part #GS-0271

The manufacturer no longer makes this part, and there's no substitute part

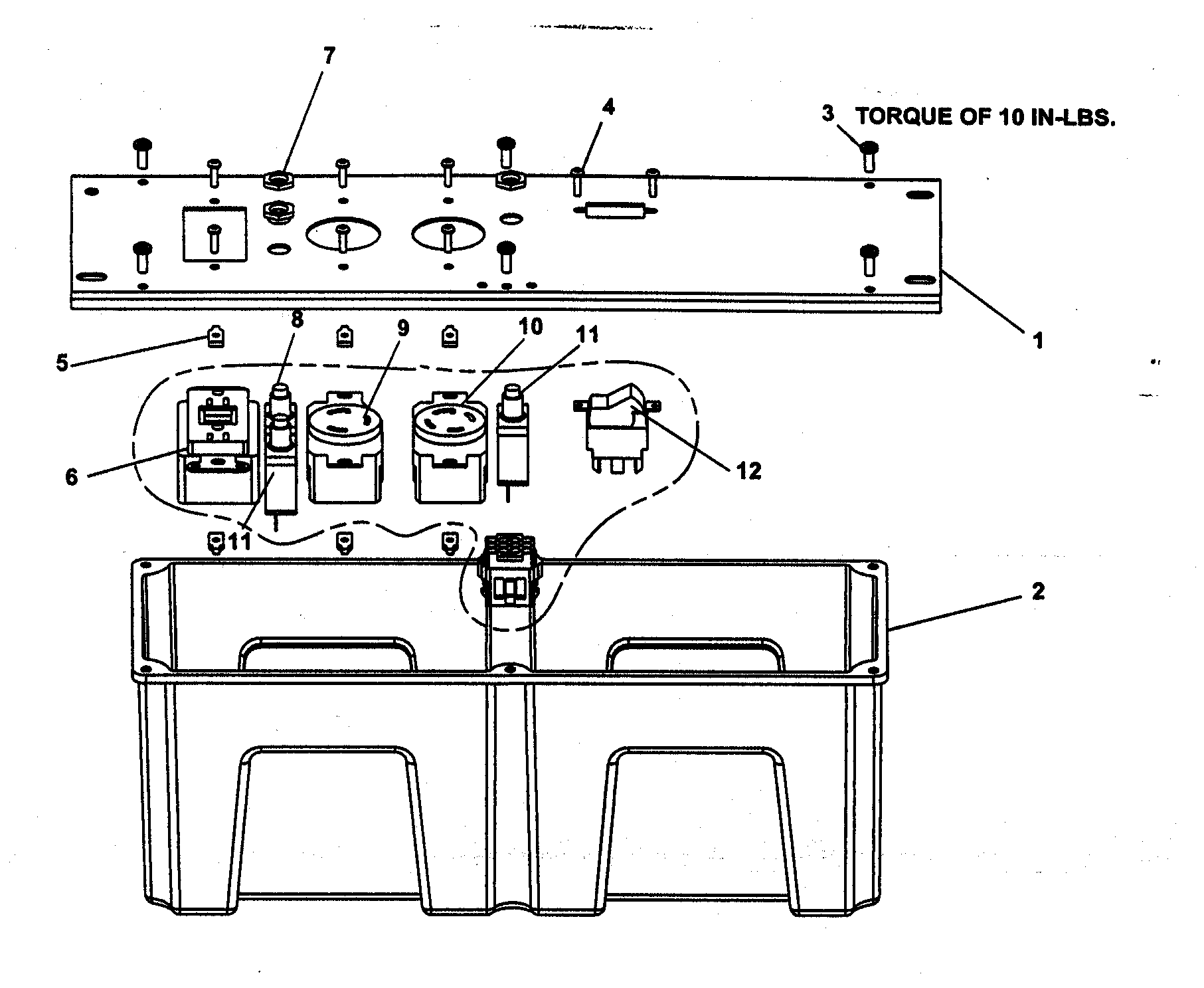

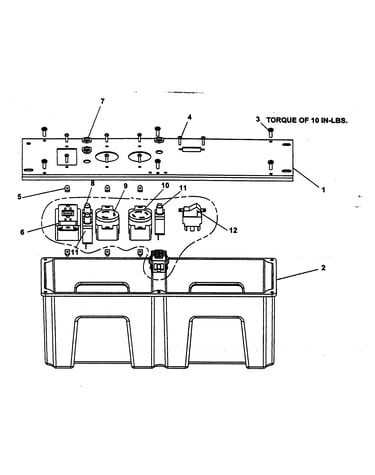

Panel assy diagram

Speed nut

Part #SSF-584

The manufacturer no longer makes this part, and there's no substitute part

Elec motor assy diagram

Adapter

Part #GS-0076

The manufacturer no longer makes this part, and there's no substitute part

Lock nut

Part #SSF-8150

The manufacturer no longer makes this part, and there's no substitute part

#16

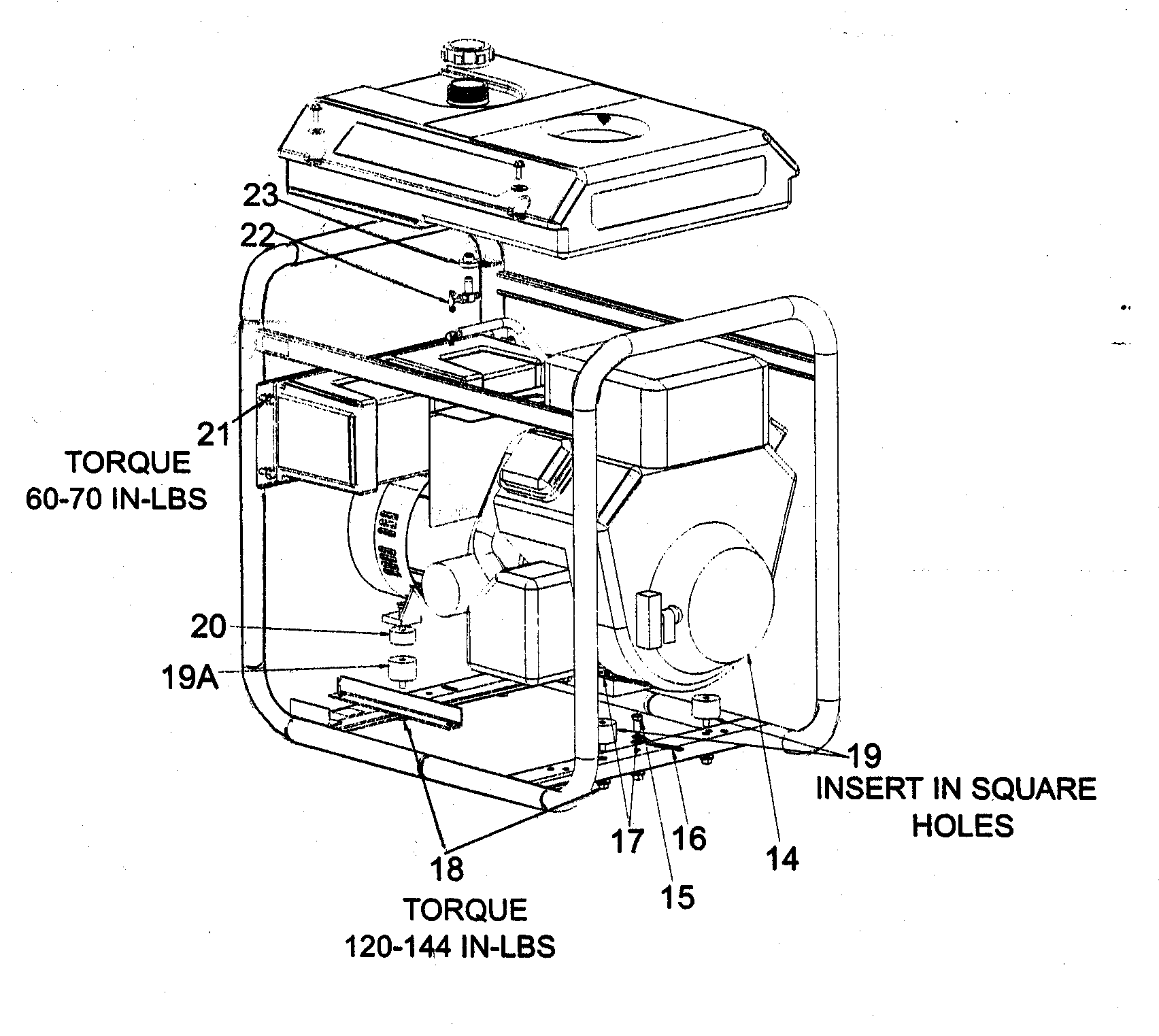

Generator 2 diagram

Ground str

Part #GS-0118

The manufacturer no longer makes this part, and there's no substitute part

Receptacle

Part #GS-0806

The manufacturer no longer makes this part, and there's no substitute part

#12

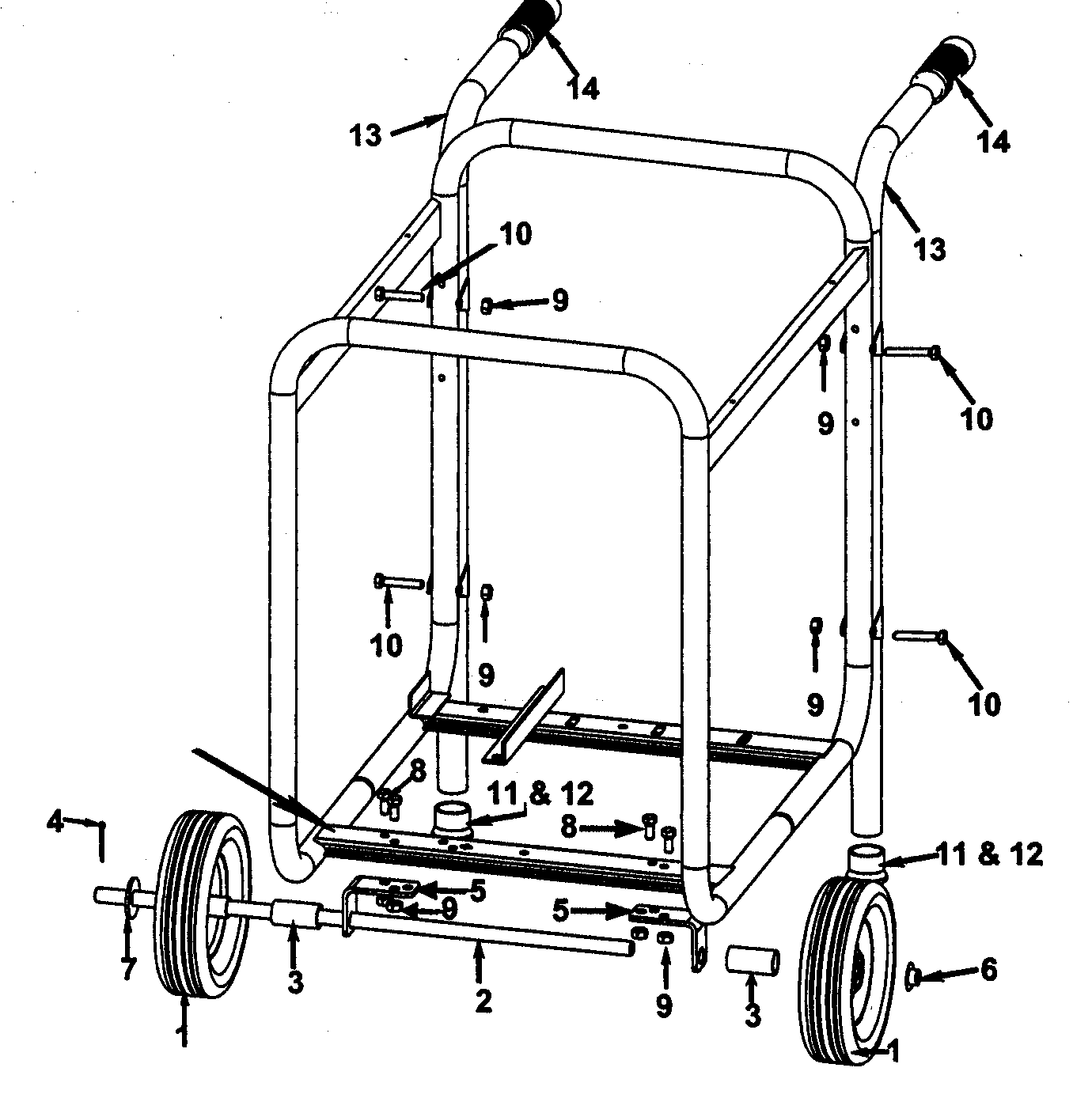

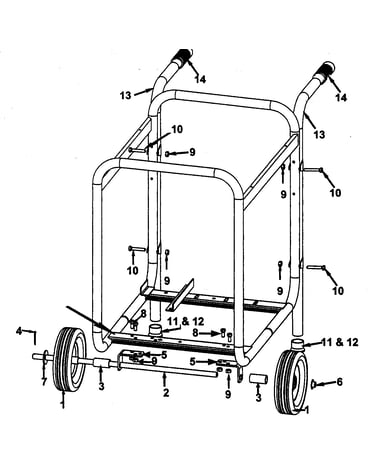

Wheel kit diagram

Washer

Part #91890228

The manufacturer no longer makes this part, and there's no substitute part

Generator screw, #10-24 x 9/16-in

Part #SSF-553-1

The manufacturer no longer makes this part, and there's no substitute part
