Model # HHT25 Official Poulan hedge trimmer

Here are the diagrams and repair parts for Official Poulan HHT25 hedge trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

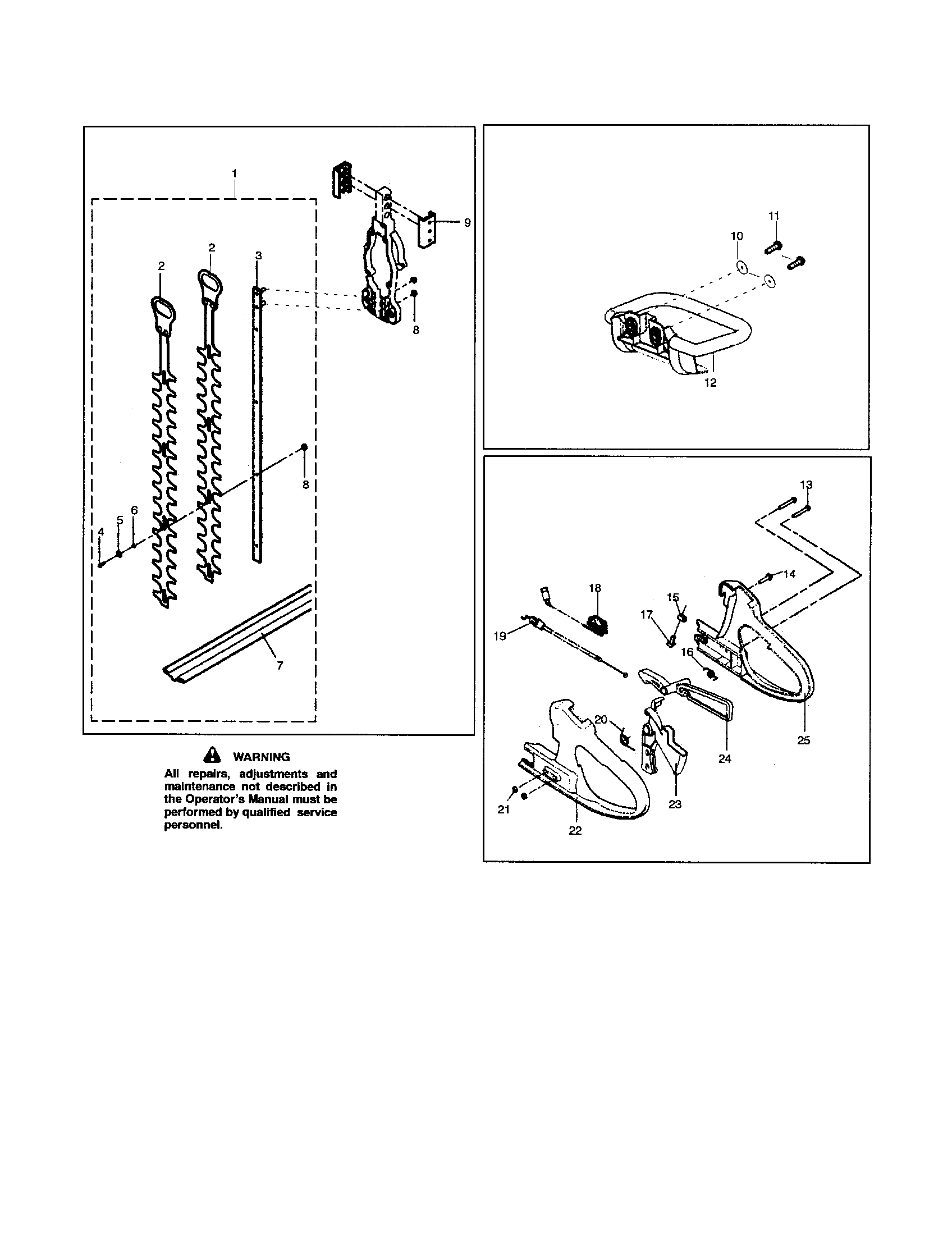

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Lawn & Garden Equipment Fuel Line, Small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404) 530069247
#24

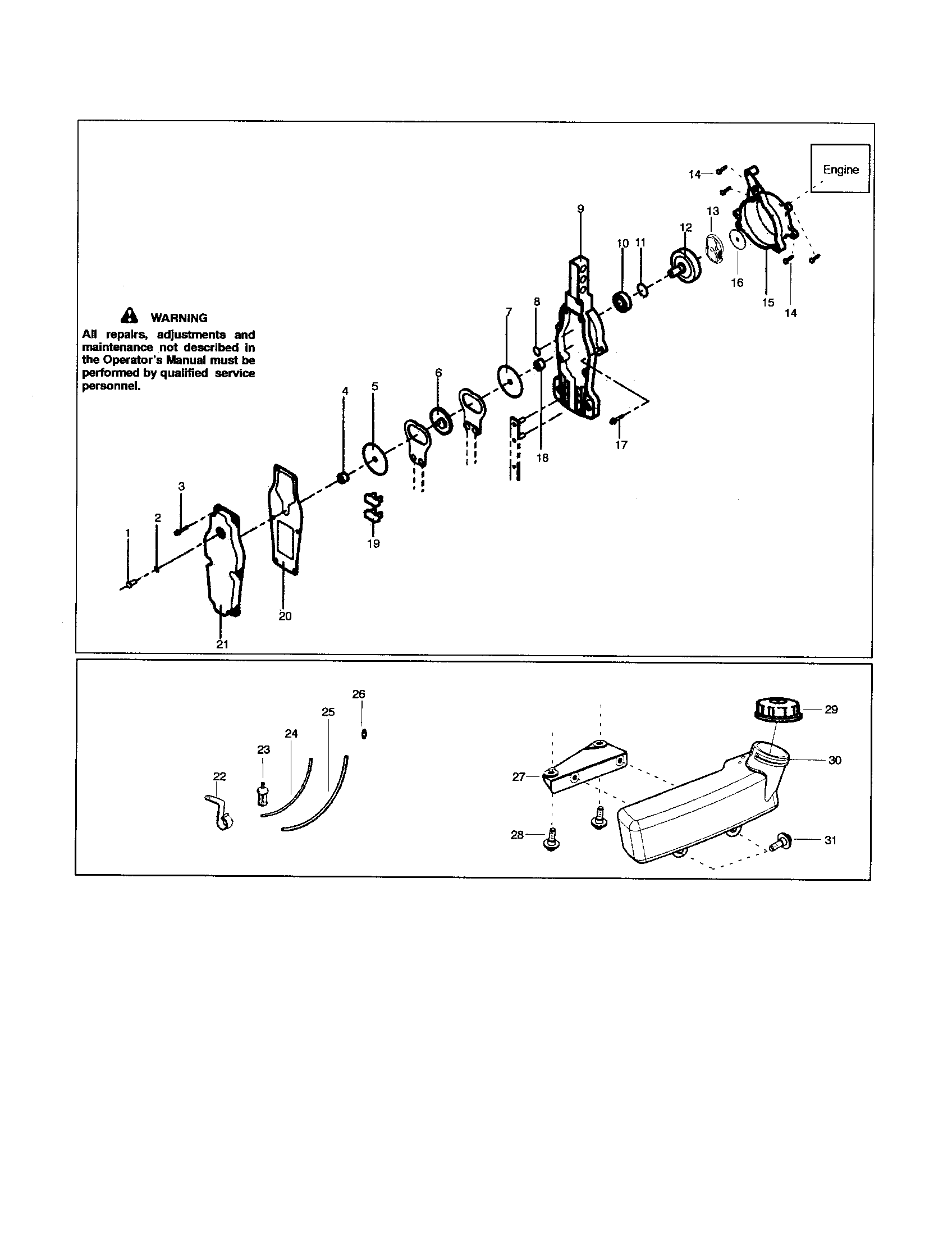

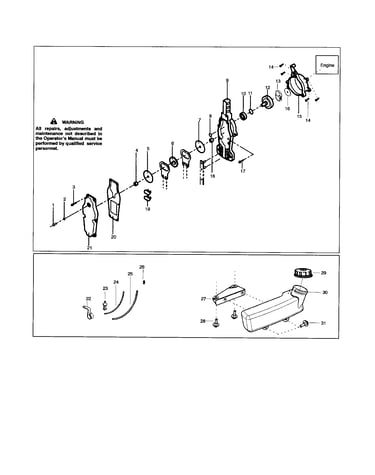

Cam case/fuel tank diagram

Lawn & garden equipment fuel line, small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404)

Part #530069247

BEST SELLER
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Lawn & Garden Equipment Fuel Line, Large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216) 530069216
#25

Cam case/fuel tank diagram

Lawn & garden equipment fuel line, large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216)

Part #530069216

BEST SELLER
This item is not returnable
$6.41 |
13% OFF Phone Price : $7.41
In Stock
Lawn & Garden Equipment Engine Fuel Filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649) 530095646
#23

Cam case/fuel tank diagram

Lawn & garden equipment engine fuel filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649)

Part #530095646

BEST SELLER
This item is not returnable
$5.07 |
16% OFF Phone Price : $6.07
In Stock
Chainsaw Fuel Line Fitting (replaces 530-023877) 530023877
#26

Cam case/fuel tank diagram

Chainsaw fuel line fitting (replaces 530-023877)

Part #530023877

BEST SELLER
This item is not returnable
$3.19 |
24% OFF Phone Price : $4.19
In Stock
Piston Ring 530012472
#31

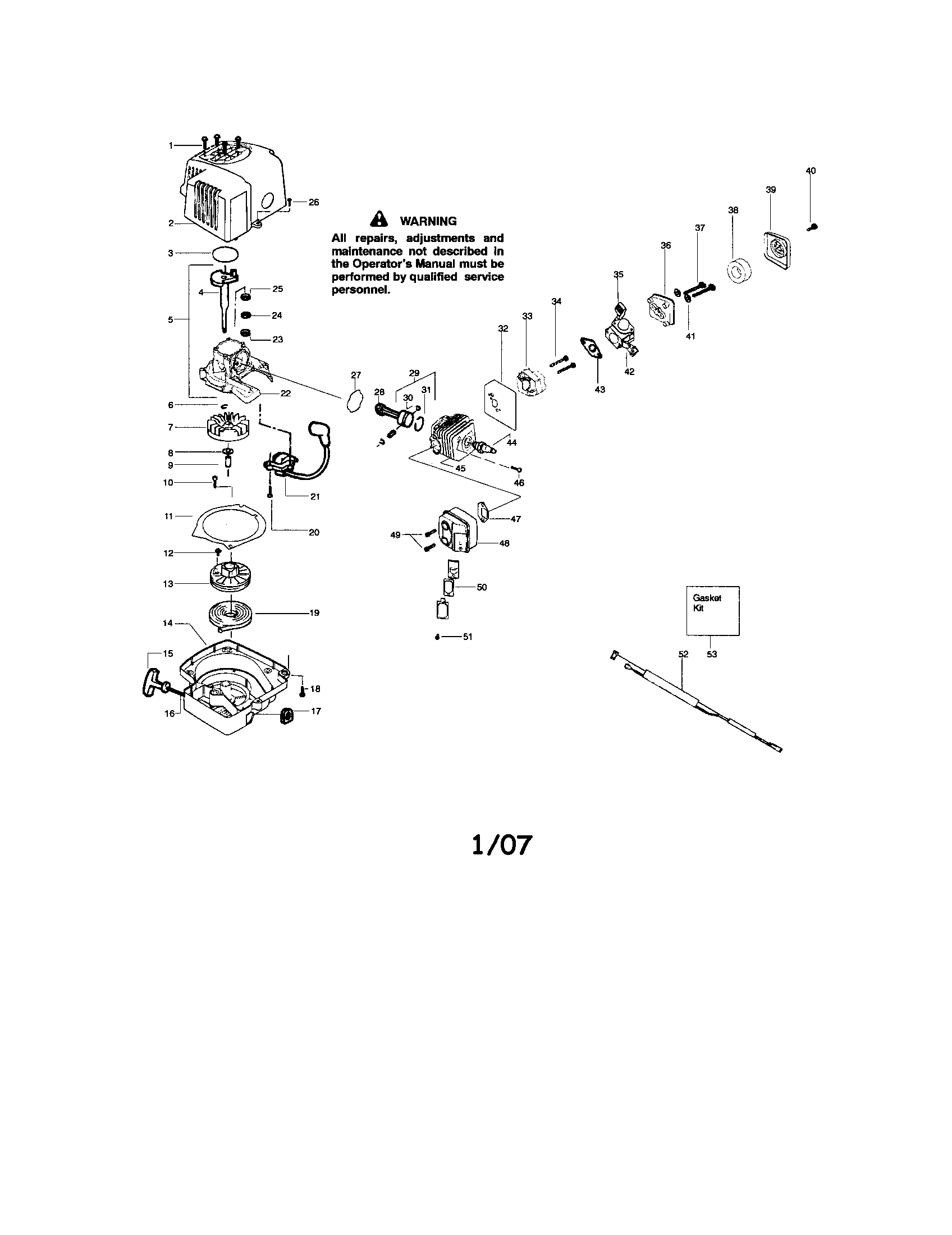

Cylinder/crankshaft/crankcase diagram

Piston ring

Part #530012472

Replaced by #545154009

?
Manufacturer substitution
This part replaces 530012472. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.19 |
24% OFF Phone Price : $4.19
In Stock
Line Trimmer Fuel Cap 530049386
#29

Cam case/fuel tank diagram

Line trimmer fuel cap

Part #530049386

Replaced by #578931605

?
Manufacturer substitution
This part replaces 530049386. Substitute parts can look different from the original.
This item is not returnable
$6.74 |
13% OFF Phone Price : $7.74
In Stock
Flywheel Assembly 530071487
#7

Cylinder/crankshaft/crankcase diagram

Flywheel assembly

Part #530071487

Replaced by #545221701

?
Manufacturer substitution
This part replaces 530071487. Substitute parts can look different from the original.
This item is not returnable
$15.99 |
11% OFF Phone Price : $17.99
In Stock
Line Trimmer Air Filter (replaces 5300479-32, 530-047932) 530047932
#38

Cylinder/crankshaft/crankcase diagram

Line trimmer air filter (replaces 5300479-32, 530-047932)

Part #530047932

This item is not returnable
$2.69 |
27% OFF Phone Price : $3.69
In Stock
Lawn & Garden Equipment Thrust Washer 530015611
#16

Cam case/fuel tank diagram

Lawn & garden equipment thrust washer

Part #530015611

This item is not returnable
$2.99
In Stock
Lawn & Garden Equipment Screw 530016429
#37

Cylinder/crankshaft/crankcase diagram

Lawn & garden equipment screw

Part #530016429

This item is not returnable
$3.29 |
23% OFF Phone Price : $4.29
In Stock
