Kenmore 689104402 42" turn-of-the-century deluxe ceiling fan

Kenmore 689104402 42" turn-of-the-century deluxe ceiling fan Parts

Here are the diagrams and repair parts for Kenmore 689104402 42" turn-of-the-century deluxe ceiling fan, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 689104402 42" Turn-of-the-Century Deluxe Ceiling Fan

  • Capacitor for Kenmore 689104402 - Part 813908

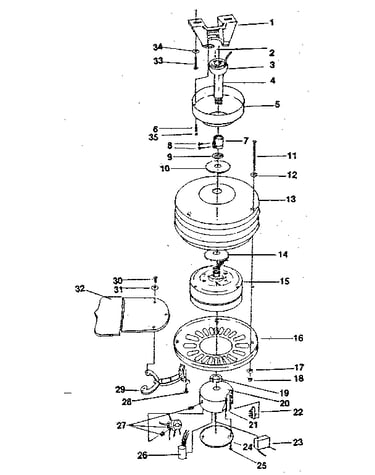

    Unit parts diagram

    Capacitor

    Part #813908

    The manufacturer no longer makes this part, and there's no substitute part

  • Coupling for Kenmore 689104402 - Part 813679-2

    Unit parts diagram

    Coupling

    Part #813679-2

    The manufacturer no longer makes this part, and there's no substitute part

  • Washer for Kenmore 689104402 - Part 813695-8

    Washer

    Part #813695-8

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor for Kenmore 689104402 - Part 813862

    Unit parts diagram

    Motor

    Part #813862

    The manufacturer no longer makes this part, and there's no substitute part

  • Housing for Kenmore 689104402 - Part 813863-2

    Unit parts diagram

    Housing

    Part #813863-2

    The manufacturer no longer makes this part, and there's no substitute part

  • Blade for Kenmore 689104402 - Part 813889-1

    Unit parts diagram

    Blade

    Part #813889-1

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor for Kenmore 689104402 - Part 813787-1

    Unit parts diagram

    Capacitor

    Part #813787-1

    The manufacturer no longer makes this part, and there's no substitute part

  • Canopy for Kenmore 689104402 - Part 813906-2

    Unit parts diagram

    Canopy

    Part #813906-2

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Kenmore 689104402 - Part 813872

    Unit parts diagram

    Screw

    Part #813872

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Kenmore 689104402 - Part 813371-5

    Unit parts diagram

    Screw

    Part #813371-5

    The manufacturer no longer makes this part, and there's no substitute part
