Craftsman
Lawn Tractor Attachment

Model # 917252330 Official Craftsman 10" sleeve hitch plow

Here are the diagrams and repair parts for Official Craftsman 917252330 10" sleeve hitch plow, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |

Lawn Tractor Grease Fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, Lp-706) 6855M
#4

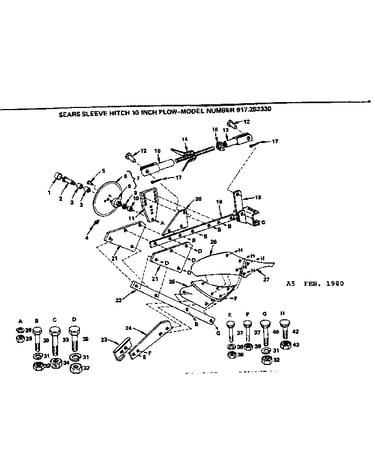

Repair parts diagram

Lawn tractor grease fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, lp-706)

Part #6855M

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Bolt 32P
#37

Repair parts diagram

Bolt

Part #32P

The manufacturer no longer makes this part, and there's no substitute part

Nut STD541043
Nut

Part #STD541043

The manufacturer no longer makes this part, and there's no substitute part

Beam 3242J
#22

Repair parts diagram

Beam

Part #3242J

The manufacturer no longer makes this part, and there's no substitute part

Clevis 8975R
#13

Repair parts diagram

Clevis

Part #8975R

The manufacturer no longer makes this part, and there's no substitute part

Heel/bolts 634A225
#24

Repair parts diagram

Heel/bolts

Part #634A225

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin 2521P
#17

Repair parts diagram

Cotter pin

Part #2521P

The manufacturer no longer makes this part, and there's no substitute part

Hub Cap 6341M
#1

Repair parts diagram

Hub cap

Part #6341M

The manufacturer no longer makes this part, and there's no substitute part

Hug Lock Nut 4764H
#34

Repair parts diagram

Hug lock nut

Part #4764H

The manufacturer no longer makes this part, and there's no substitute part

Moldboard 634A220
#26

Repair parts diagram

Moldboard

Part #634A220

The manufacturer no longer makes this part, and there's no substitute part
