Craftsman
Power Sander

Model # 315116211 Official Craftsman orbital sander

Here are the diagrams and repair parts for Official Craftsman 315116211 orbital sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

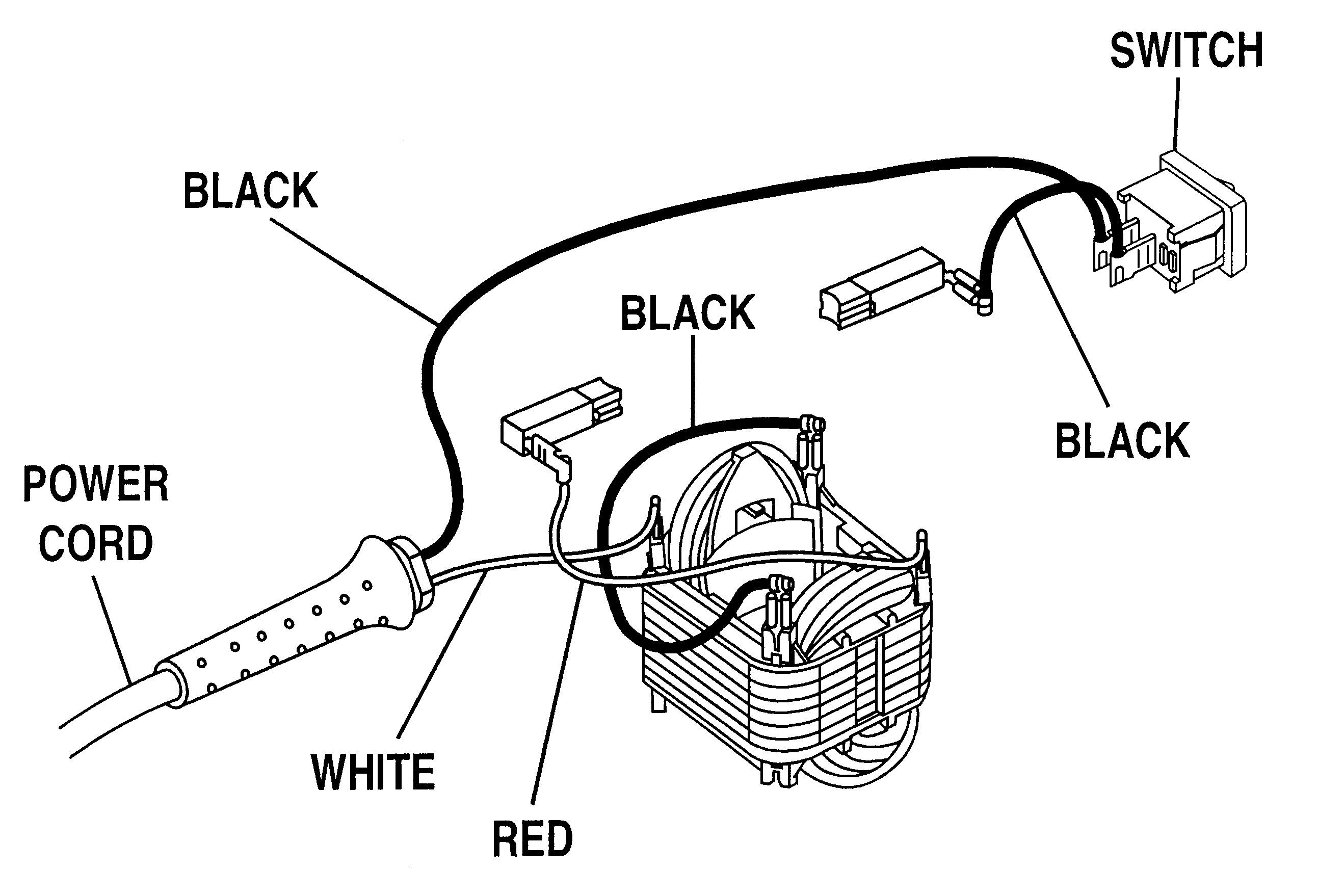

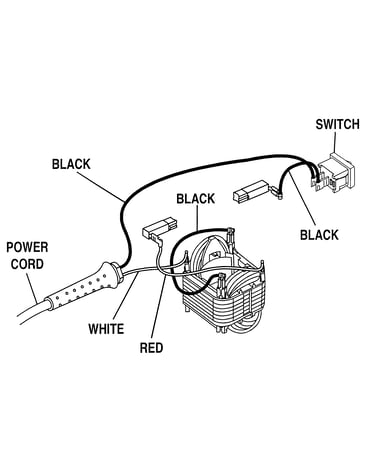

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Screw 606124-007
#11

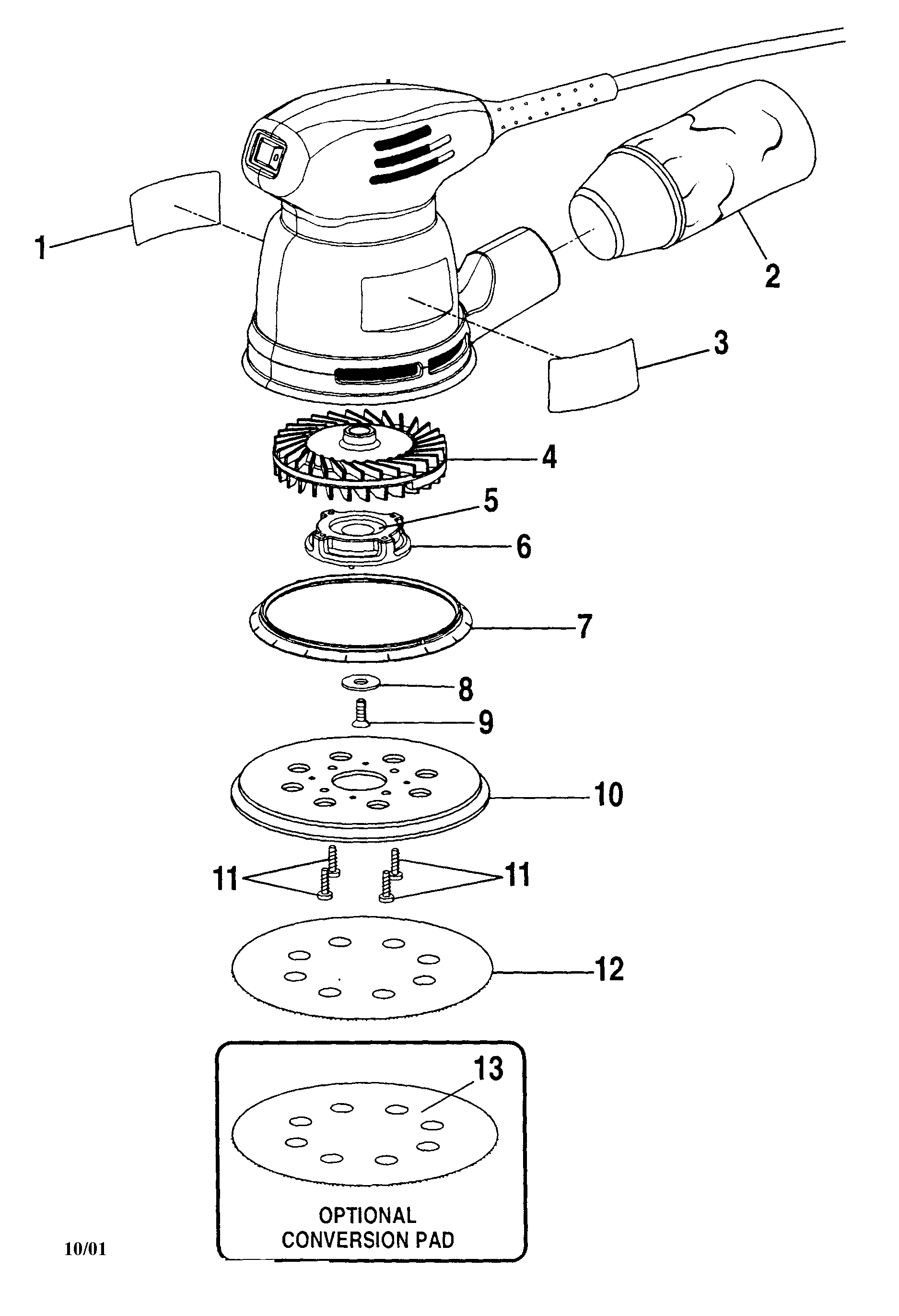

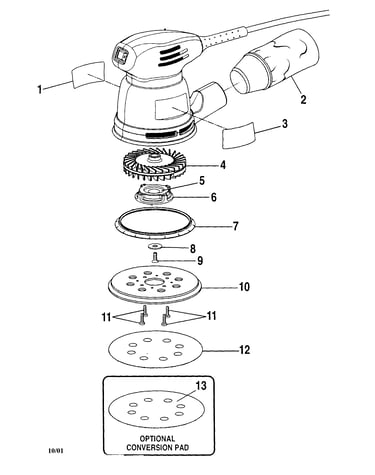

Housing diagram

Screw

Part #606124-007

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 982815-001
#1

Housing diagram

Data plate

Part #982815-001

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 975874-001
#3

Housing diagram

Logo plate

Part #975874-001

The manufacturer no longer makes this part, and there's no substitute part

Sander Backing Pad 974484-002
#13

Housing diagram

Sander backing pad

Part #974484-002

The manufacturer no longer makes this part, and there's no substitute part

Sander Bearing And Cap 976801-001
#6

Housing diagram

Sander bearing and cap

Part #976801-001

The manufacturer no longer makes this part, and there's no substitute part

Stator Pad 623552-004
#13

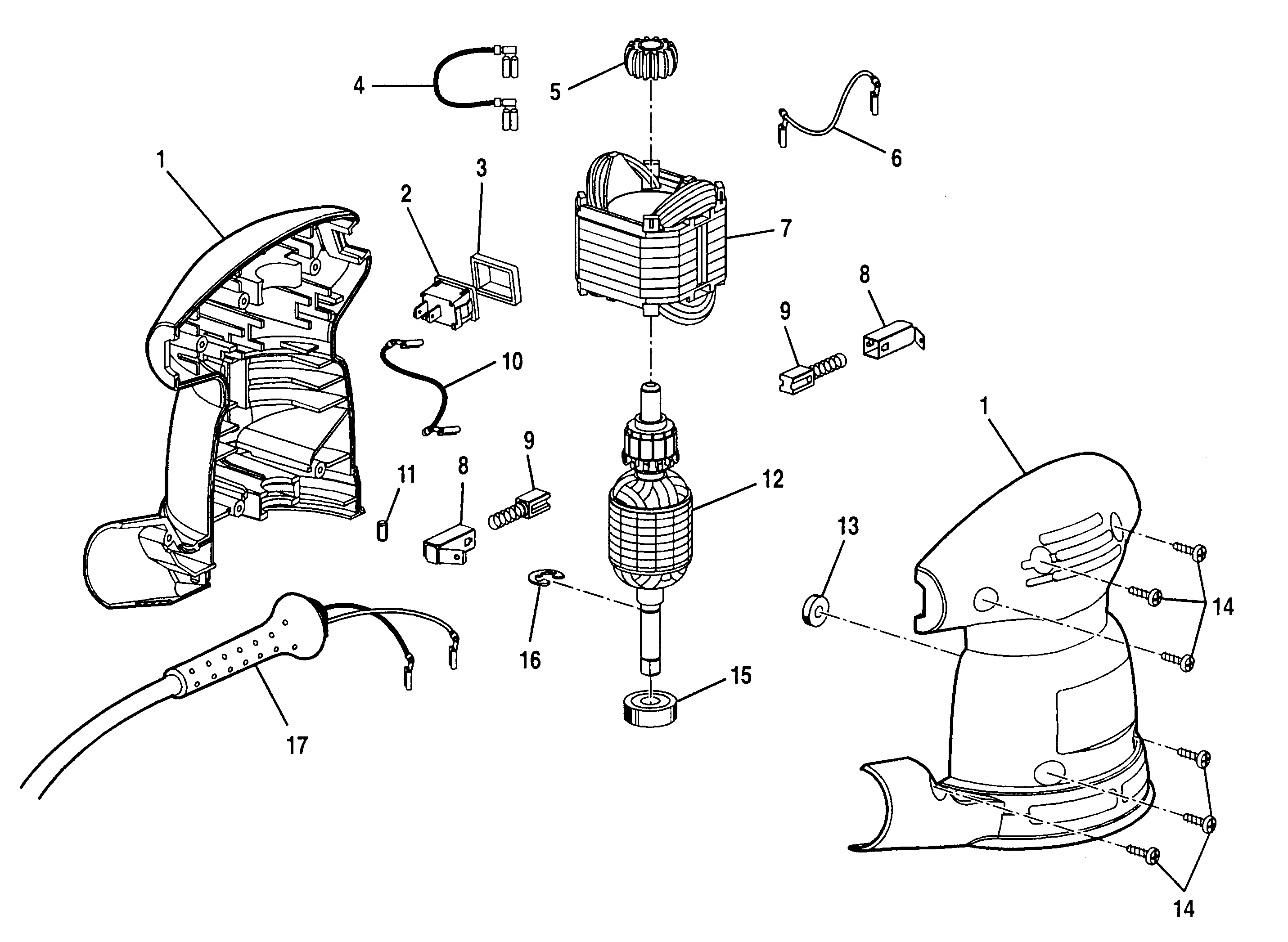

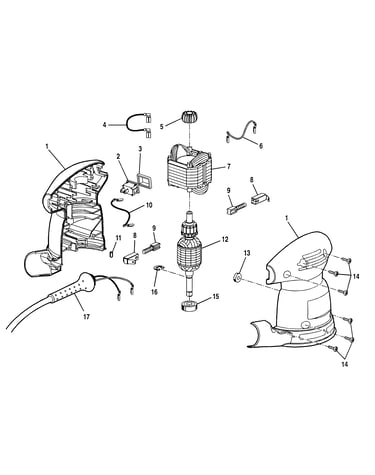

Motor diagram

Stator pad

Part #623552-004

The manufacturer no longer makes this part, and there's no substitute part

Lead (black) 975421-001
#10

Motor diagram

Lead (black)

Part #975421-001

The manufacturer no longer makes this part, and there's no substitute part

Sander Motor Housing Rubber Plug 623019-004
#11

Motor diagram

Sander motor housing rubber plug

Part #623019-004

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly 610784-042
#9

Motor diagram

Brush assembly

Part #610784-042

The manufacturer no longer makes this part, and there's no substitute part

Red Lead 975421-002
#6

Motor diagram

Red lead

Part #975421-002

The manufacturer no longer makes this part, and there's no substitute part
