Weber
Gas Grill

Model # 10001 Official Weber 14" smokey joe

Here are the diagrams and repair parts for Official Weber 10001 14" smokey joe, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Washer 87605
Washer

Part #87605

The manufacturer no longer makes this part, and there's no substitute part

Charcoal Grate 972201
#7

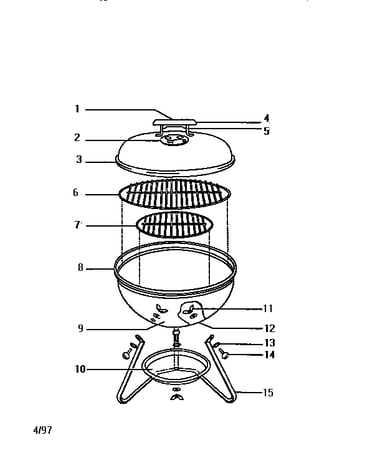

Grill diagram

Charcoal grate

Part #972201

The manufacturer no longer makes this part, and there's no substitute part

Complete Hardware 80803

#NI

All parts diagram

Complete hardware

Part #80803

The manufacturer no longer makes this part, and there's no substitute part

Complete Hardware 80805

#NI

All parts diagram

Complete hardware

Part #80805

The manufacturer no longer makes this part, and there's no substitute part

Cookbook U 10700

#NI

All parts diagram

Cookbook u

Part #10700

The manufacturer no longer makes this part, and there's no substitute part

Instr.sht 86056

#NI

All parts diagram

Instr.sht

Part #86056

The manufacturer no longer makes this part, and there's no substitute part

Handle 1 Scr 79203
#4

Grill diagram

Handle 1 scr

Part #79203

The manufacturer no longer makes this part, and there's no substitute part

Washer 87603
#13

Grill diagram

Washer

Part #87603

The manufacturer no longer makes this part, and there's no substitute part

Ash Catchr 86061
#10

Grill diagram

Ash catchr

Part #86061

The manufacturer no longer makes this part, and there's no substitute part

Handle 1 Scr 79202
#5

Grill diagram

Handle 1 scr

Part #79202

The manufacturer no longer makes this part, and there's no substitute part
