Kenmore
Upright Vacuum

Model #21637000700 Kenmore vacuum

Here are the diagrams and repair parts for Kenmore 21637000700 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 97 parts

    Tool Caddy

    #60

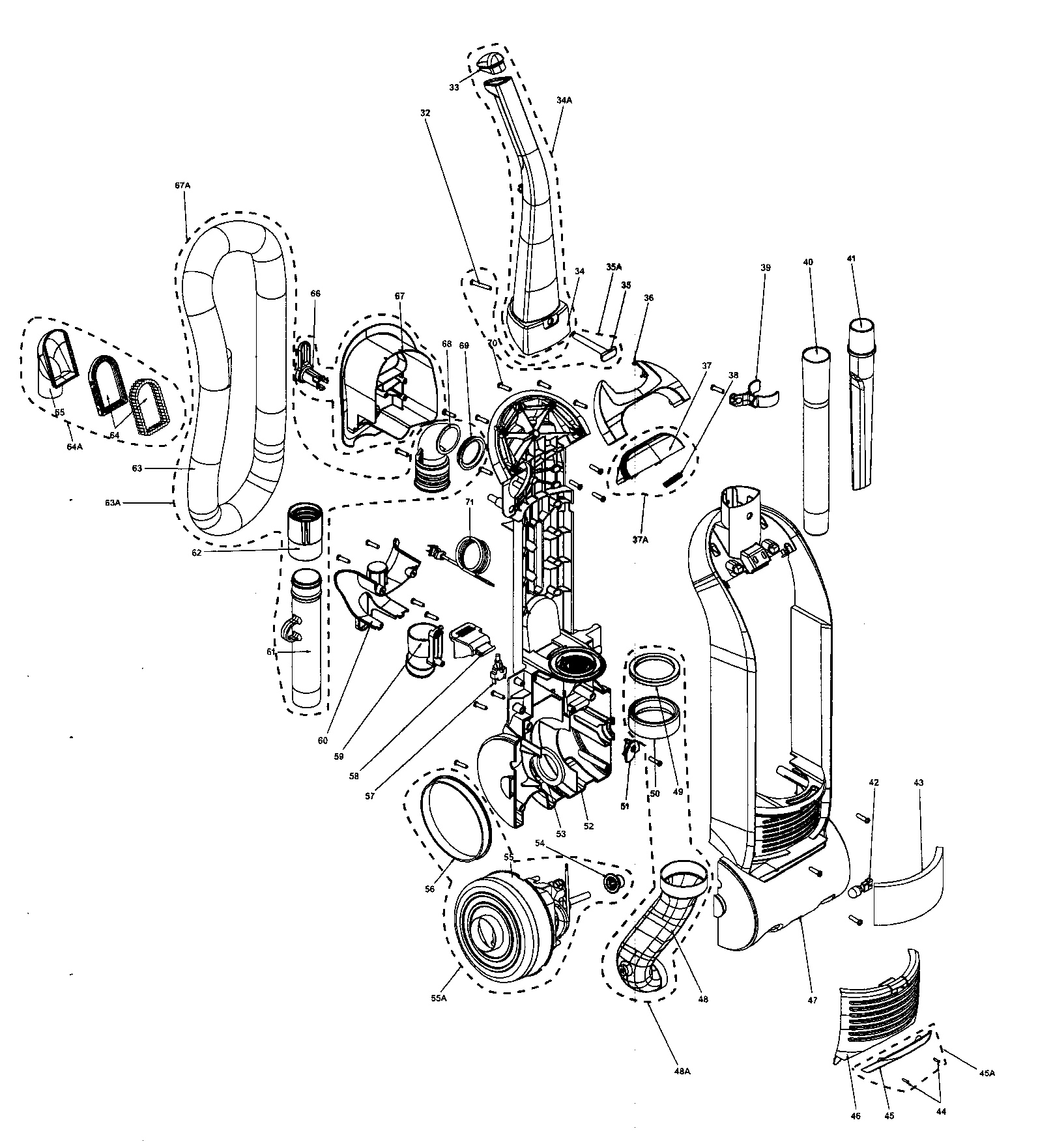

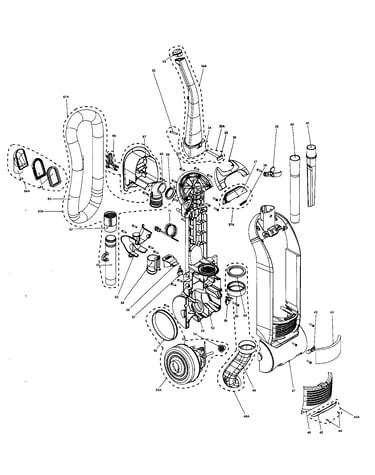

    Main body Diagram

    Tool caddy

    Part #515329001

    The manufacturer no longer makes this part, and there's no substitute part

    Pivot Cover

    #29

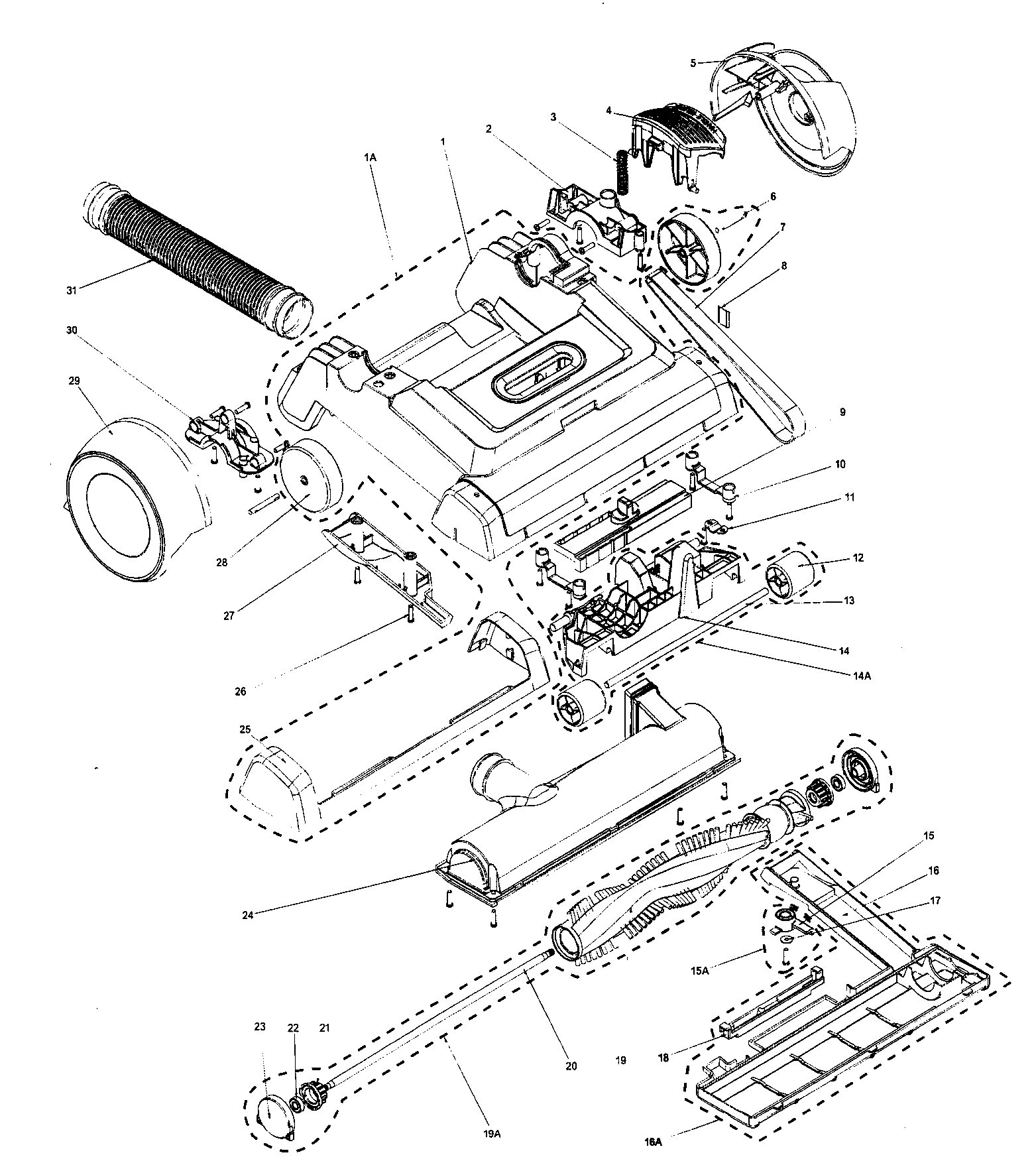

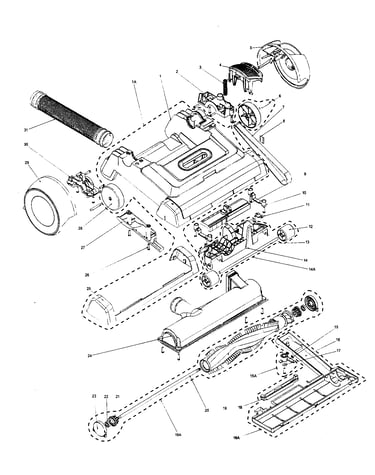

    Nozzle parts Diagram

    Pivot cover

    Part #515352001

    The manufacturer no longer makes this part, and there's no substitute part

    Bracket Knob

    #10

    Nozzle parts Diagram

    Bracket knob

    Part #515356001

    The manufacturer no longer makes this part, and there's no substitute part

    Latch

    #74

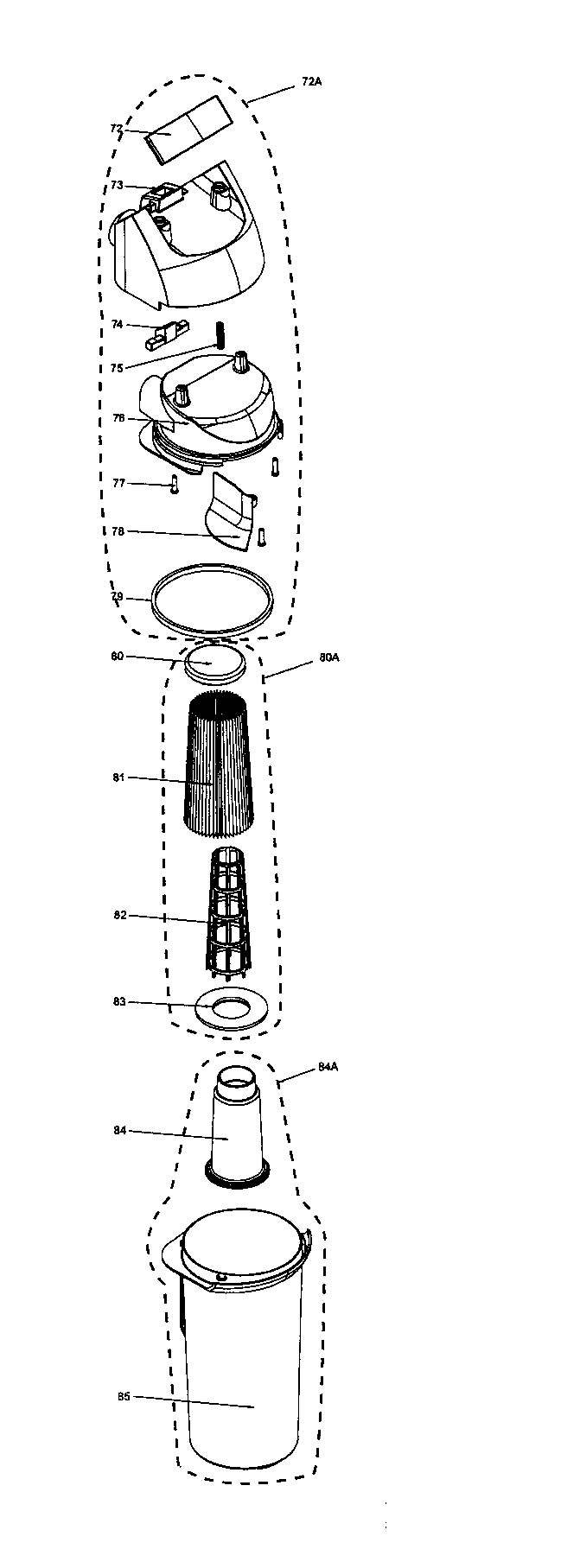

    Conteiner Diagram

    Latch

    Part #515730001

    The manufacturer no longer makes this part, and there's no substitute part

    Guard

    #16A

    Nozzle parts Diagram

    Guard

    Part #K2-AA410-X00

    The manufacturer no longer makes this part, and there's no substitute part

    Vacuum On/Off Switch Pedal

    #58

    Main body Diagram

    Vacuum on/off switch pedal

    Part #515363001

    The manufacturer no longer makes this part, and there's no substitute part

    Air Dflctr

    #78

    Conteiner Diagram

    Air dflctr

    Part #515729001

    The manufacturer no longer makes this part, and there's no substitute part

    Lower Hose

    #31

    Nozzle parts Diagram

    Lower hose

    Part #580433003

    The manufacturer no longer makes this part, and there's no substitute part

    Front Panel

    #47

    Main body Diagram

    Front panel

    Part #515316001

    The manufacturer no longer makes this part, and there's no substitute part

    Clip

    #39

    Main body Diagram

    Clip

    Part #515327001

    The manufacturer no longer makes this part, and there's no substitute part
