Frigidaire
Countertop Microwave

Model # GLMB186KB01 Official Frigidaire microwave

Here are the diagrams and repair parts for Official Frigidaire GLMB186KB01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

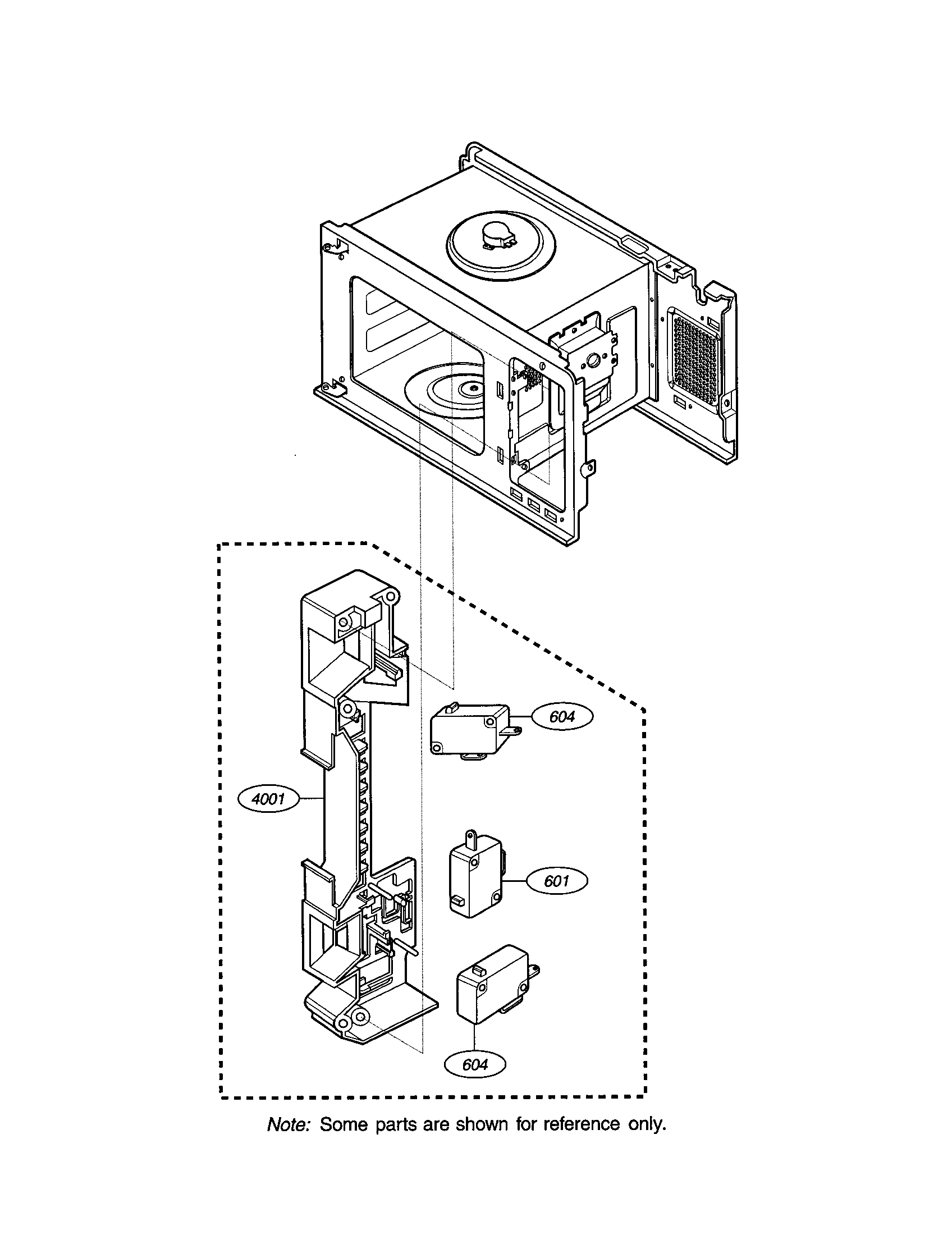

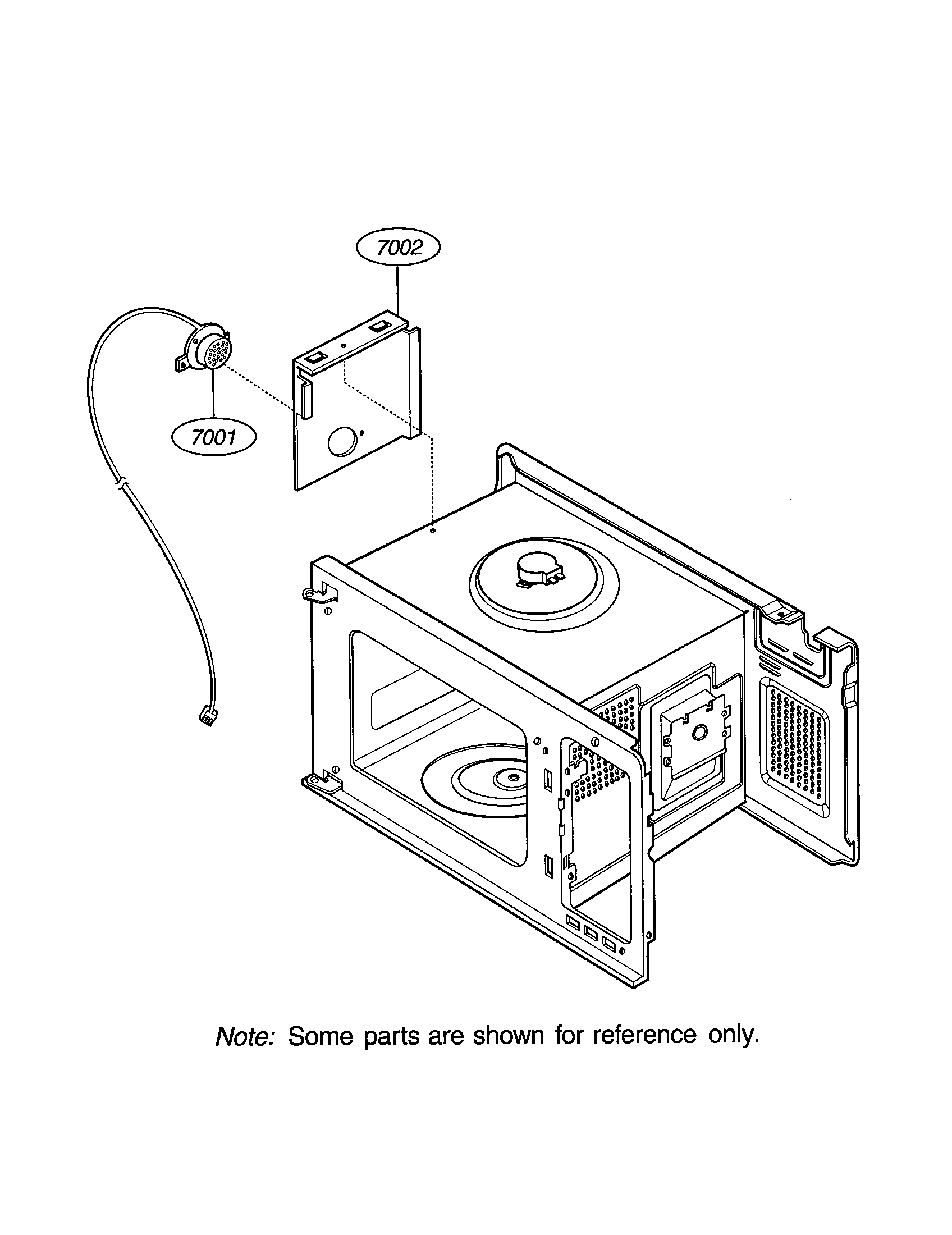

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Panel-outs 5304423420
#1827A

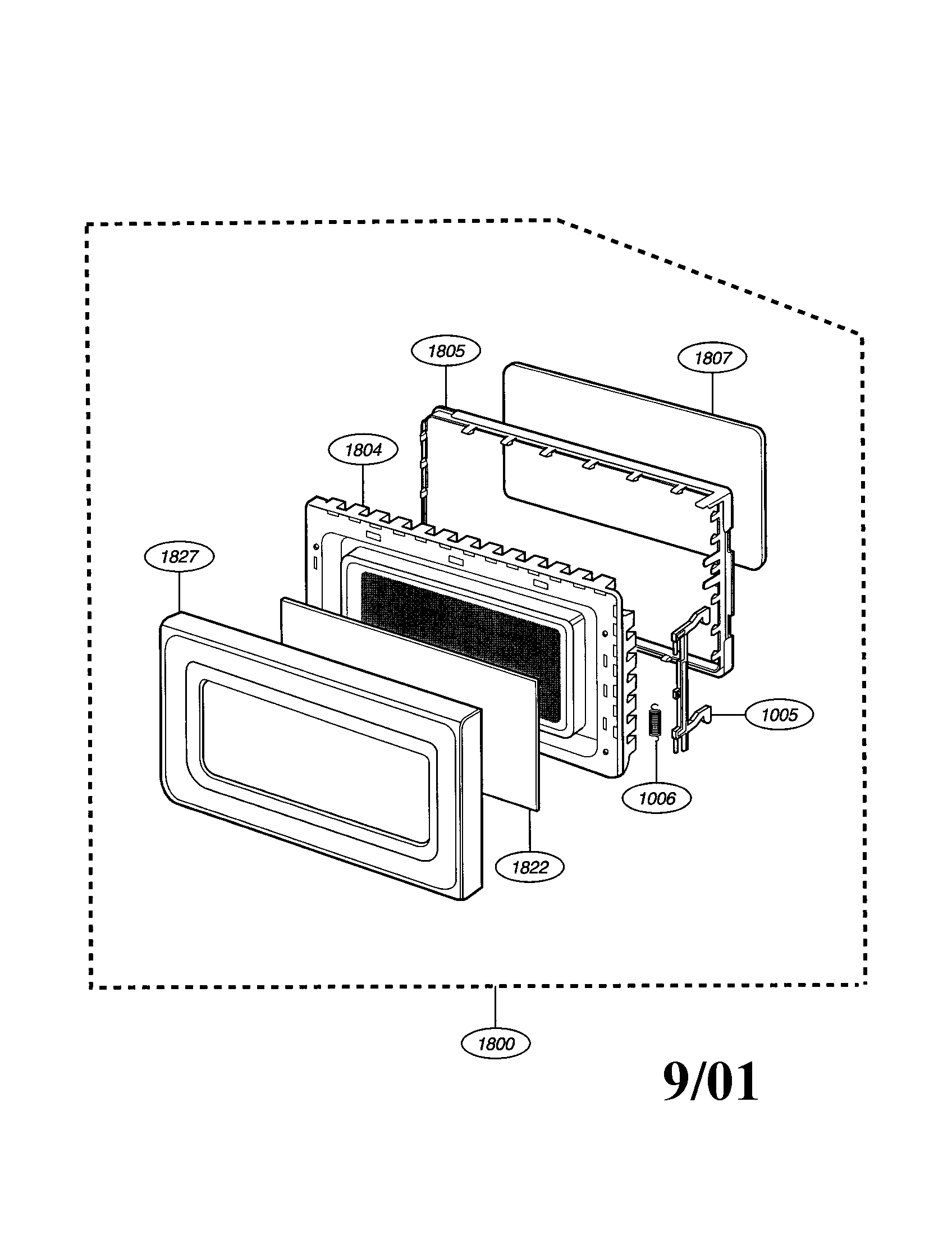

Door diagram

Panel-outs

Part #5304423420

Replaced by #5304423420

?
Manufacturer substitution
This part replaces 5304423420. Substitute parts can look different from the original.
$112.87
In Stock
Cover 5304423496
#1203

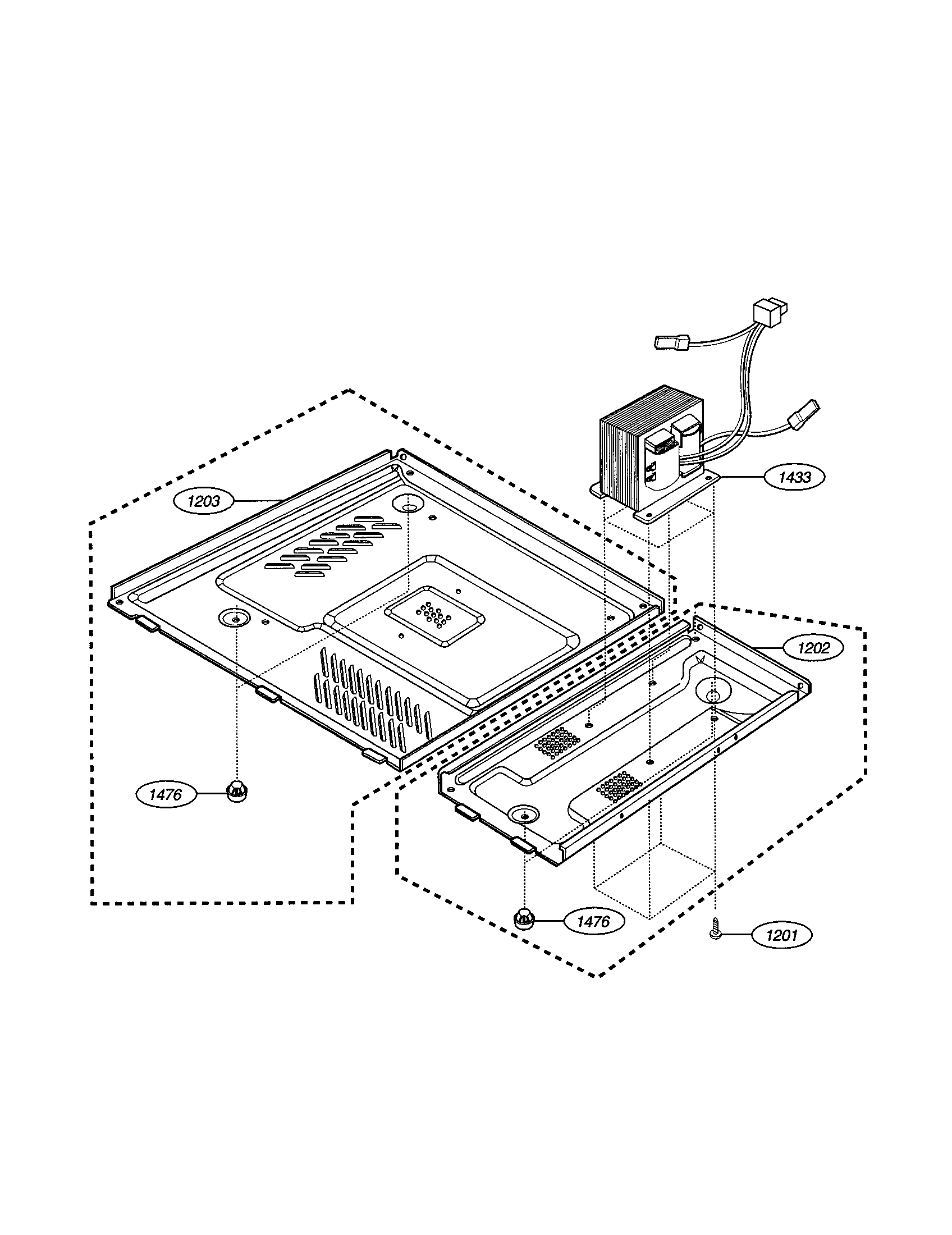

Base plate diagram

Cover

Part #5304423496

Replaced by #5304423496

?
Manufacturer substitution
This part replaces 5304423496. Substitute parts can look different from the original.
$128.85
In Stock
Complete Door 5304423408
#1800

Door diagram

Complete door

Part #5304423408

Replaced by #5304423408

?
Manufacturer substitution
This part replaces 5304423408. Substitute parts can look different from the original.
$120.11
In Stock
Door Choke 5304423413
#1805

Door diagram

Door choke

Part #5304423413

Replaced by #5304423413

?
Manufacturer substitution
This part replaces 5304423413. Substitute parts can look different from the original.
$63.84
In Stock
Door Liner 5304423412
#1804A

Door diagram

Door liner

Part #5304423412

Replaced by #5304423412

?
Manufacturer substitution
This part replaces 5304423412. Substitute parts can look different from the original.
$104.15
In Stock
Motor 5304423456
#1523

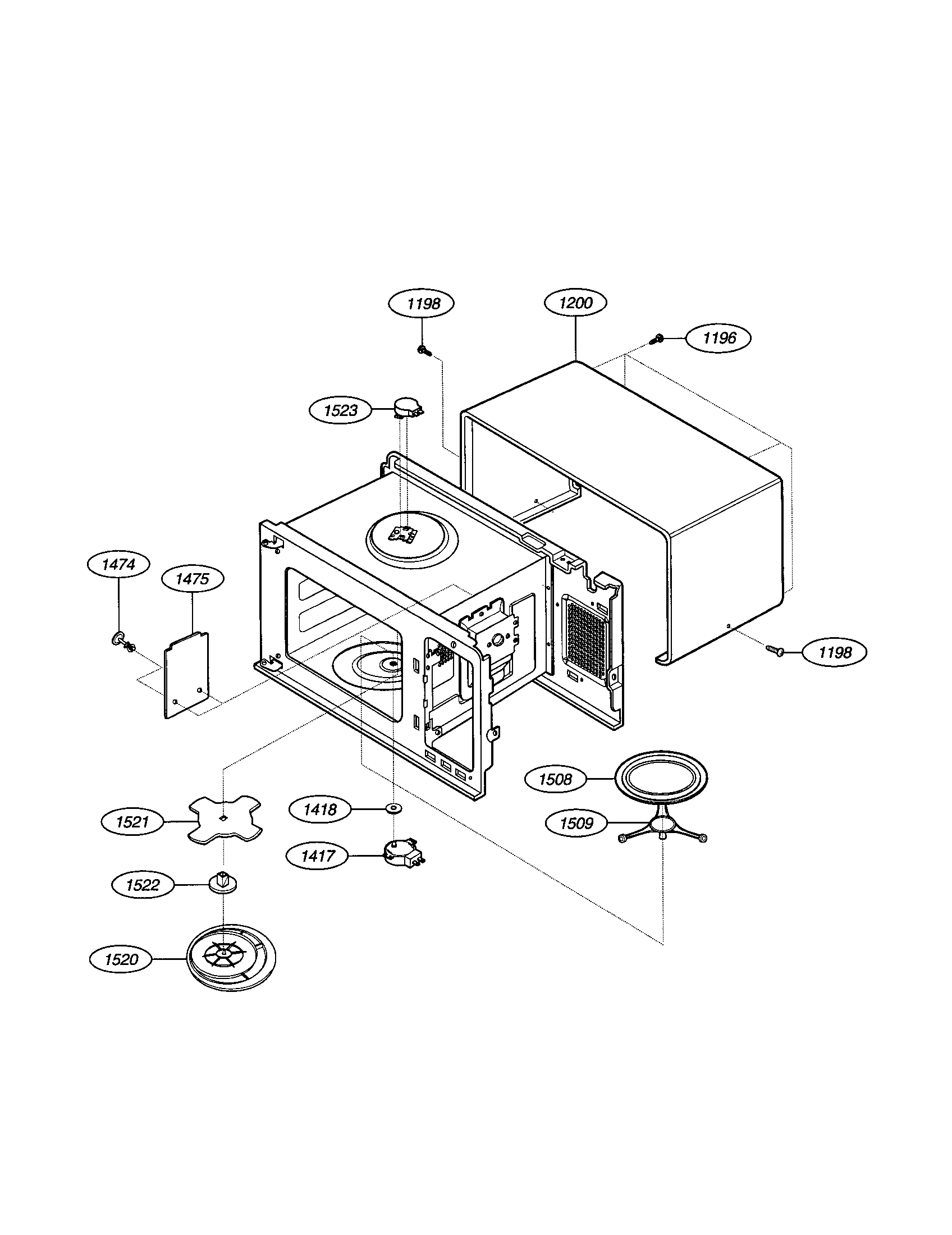

Oven cavity diagram

Motor

Part #5304423456

Replaced by #5304423456

?
Manufacturer substitution
This part replaces 5304423456. Substitute parts can look different from the original.
$132.65
In Stock
Guide 5304423481
#1423

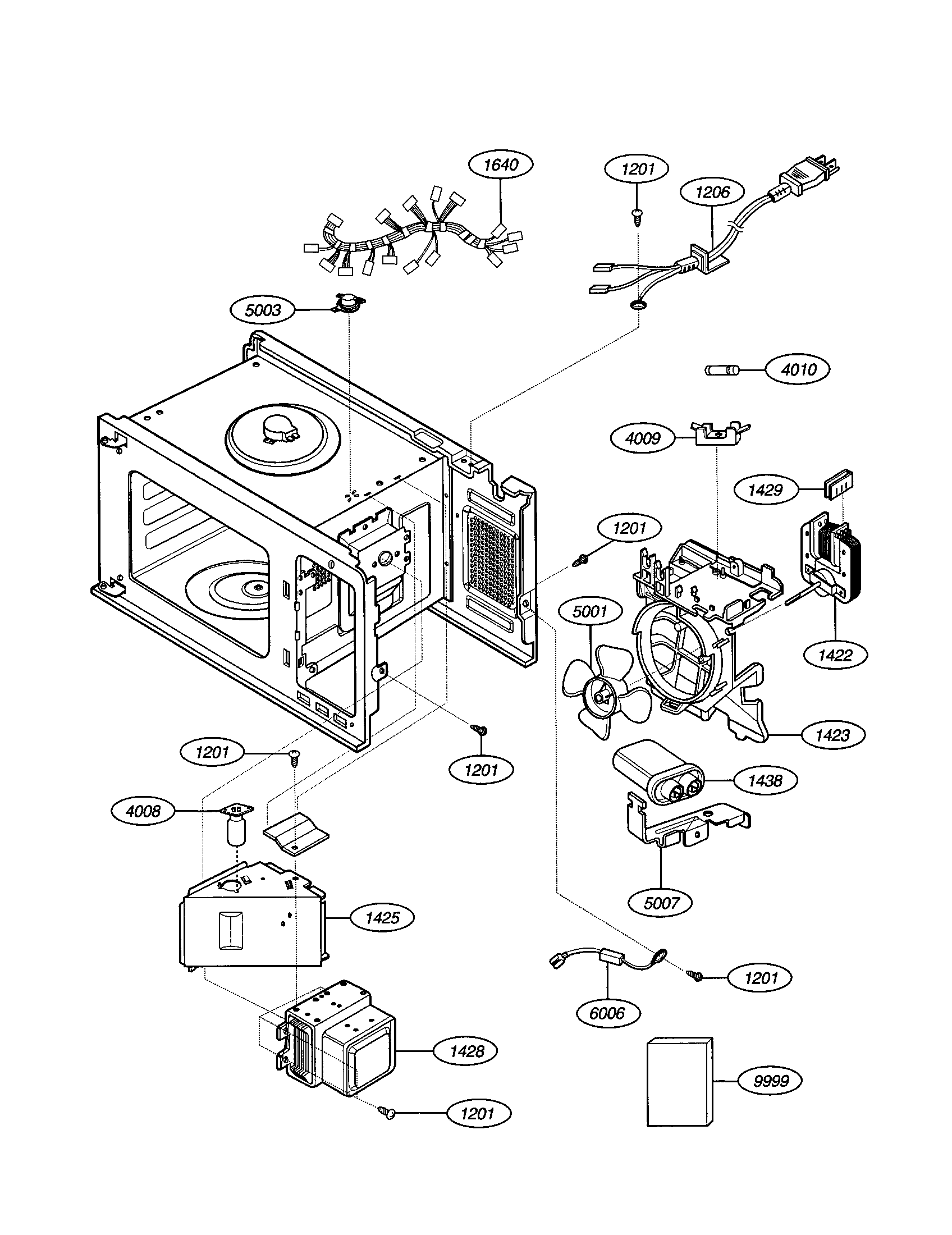

Interior diagram

Guide

Part #5304423481

Replaced by #5304423481

?
Manufacturer substitution
This part replaces 5304423481. Substitute parts can look different from the original.
$53.57
In Stock
Panel 5304423419
#1827

Door diagram

Panel

Part #5304423419

Replaced by #5304423419

?
Manufacturer substitution
This part replaces 5304423419. Substitute parts can look different from the original.
$110.27
In Stock
Button 5304423426
#1613

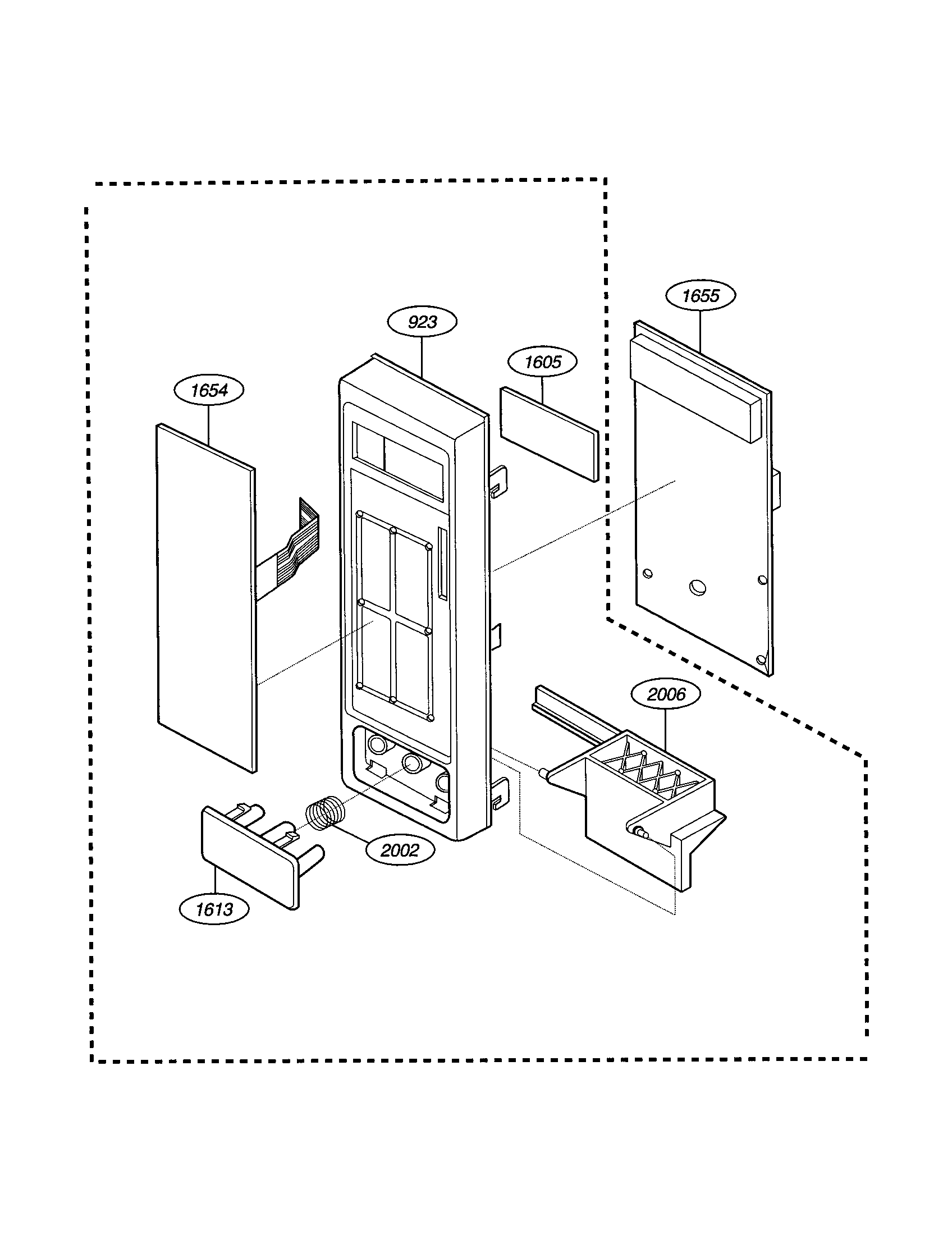

Control panel diagram

Button

Part #5304423426

Replaced by #5304423426

?
Manufacturer substitution
This part replaces 5304423426. Substitute parts can look different from the original.
$58.44
In Stock
Door Liner 5304423411
#1804

Door diagram

Door liner

Part #5304423411

Replaced by #5304423411

?
Manufacturer substitution
This part replaces 5304423411. Substitute parts can look different from the original.
$104.15
In Stock
