Craftsman
Bench Grinder

Model # 152211520 Official Craftsman bench grinder

Here are the diagrams and repair parts for Official Craftsman 152211520 bench grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
+b 3.0x6.0 OR90057
#29

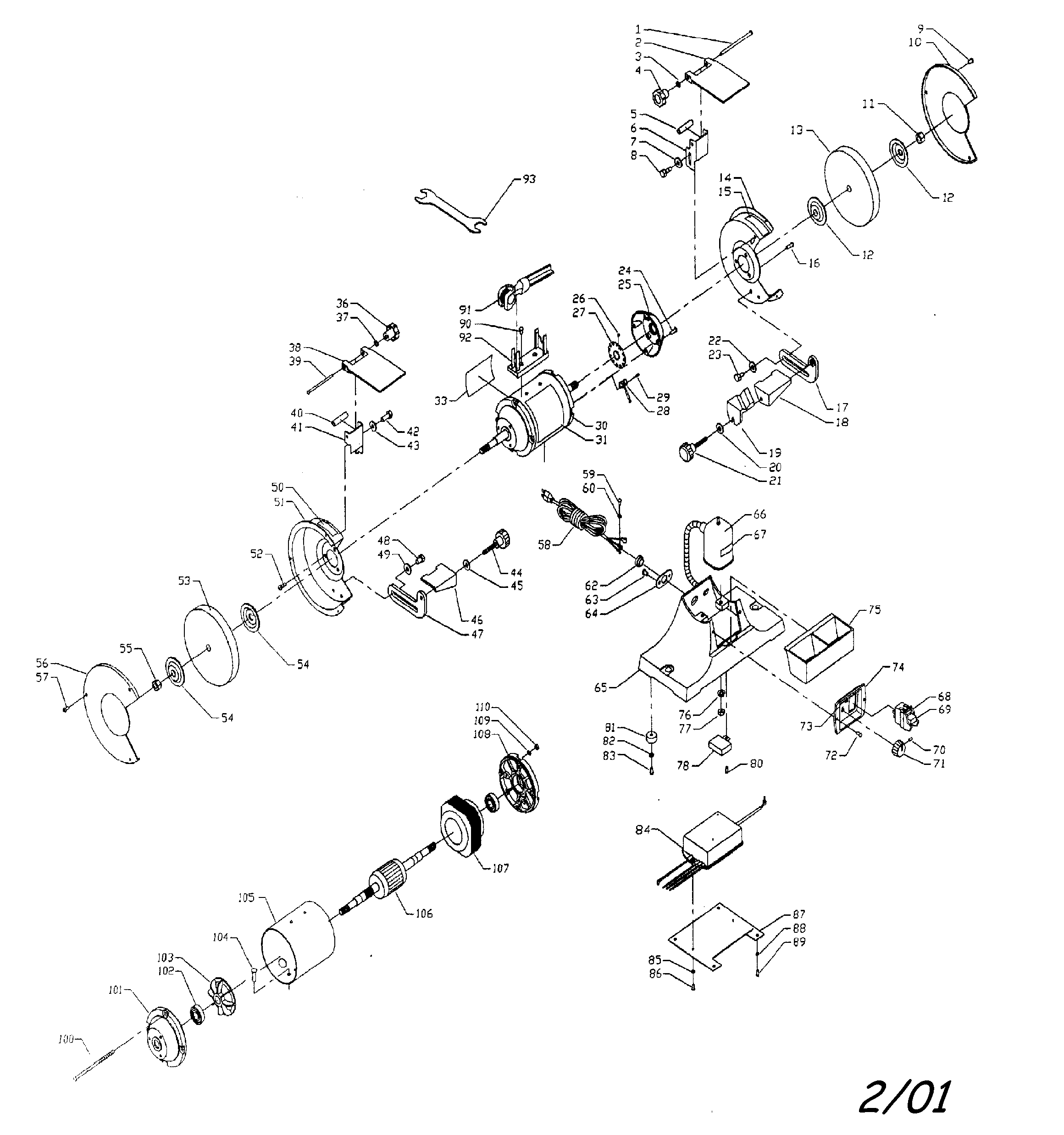

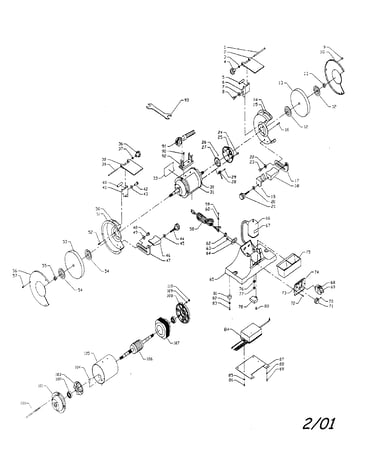

Cabinet parts diagram

+b 3.0x6.0

Part #OR90057

The manufacturer no longer makes this part, and there's no substitute part

Bulb OR90058
#NI

Cabinet parts diagram

Bulb

Part #OR90058

The manufacturer no longer makes this part, and there's no substitute part

Hex Screw 1/4-20x3/8" STD522503
Hex screw 1/4-20x3/8"

Part #STD522503

The manufacturer no longer makes this part, and there's no substitute part

Nameplate (287180) Canada OR90411
#31A

Cabinet parts diagram

Nameplate (287180) canada

Part #OR90411

The manufacturer no longer makes this part, and there's no substitute part

Field OR90021
#107

Cabinet parts diagram

Field

Part #OR90021

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual OR90051
#(NI)

Cabinet parts diagram

Owner's manual

Part #OR90051

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 1/4-20 STD541025
#77

Cabinet parts diagram

Hex nut 1/4-20

Part #STD541025

The manufacturer no longer makes this part, and there's no substitute part

5/16" Flat Washer (3) STD551031
5/16" flat washer (3)

Part #STD551031

The manufacturer no longer makes this part, and there's no substitute part

Arrestor OR90003
#6

Cabinet parts diagram

Arrestor

Part #OR90003

The manufacturer no longer makes this part, and there's no substitute part

Spacer OR90002
Spacer

Part #OR90002

The manufacturer no longer makes this part, and there's no substitute part
