Craftsman
Line Trimmer

Model # 271358260 Official Craftsman chainsaw

Here are the diagrams and repair parts for Official Craftsman 271358260 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 228 parts  |
Spark Plug 159010-00330
#63

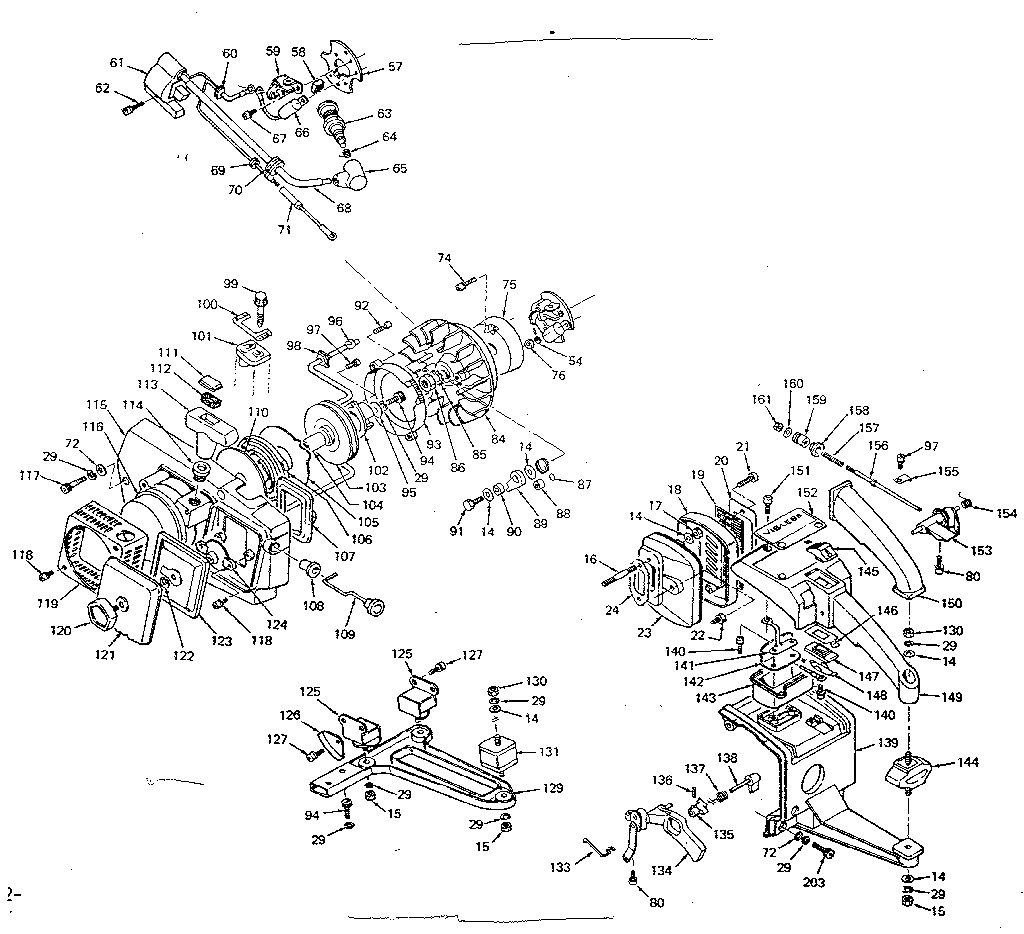

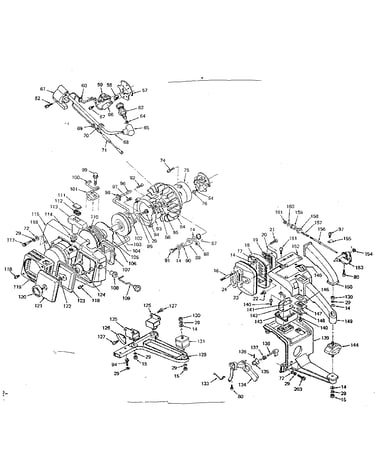

Engine diagram

Spark plug

Part #159010-00330

Replaced by #CJ8

?
Manufacturer substitution
This part replaces 159010-00330. Substitute parts can look different from the original.
This item is not returnable
$2.15 |
55% OFF MSRP : $4.80
In Stock
File Holder 55003
#1

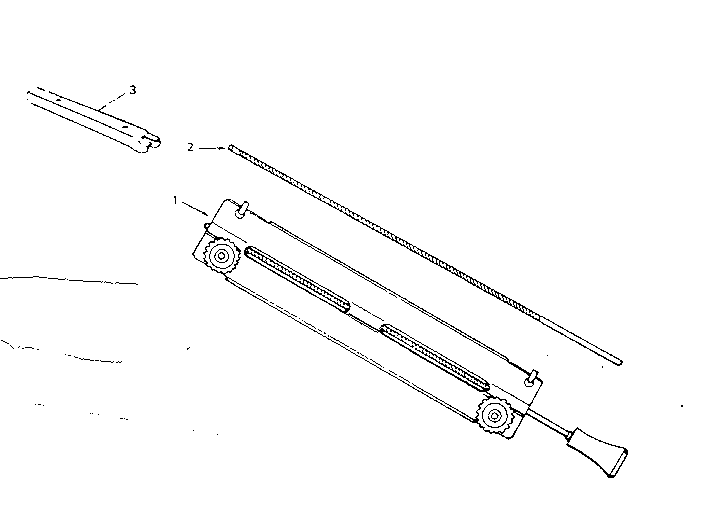

Maintenance kit diagram

File holder

Part #55003

The manufacturer no longer makes this part, and there's no substitute part

Diaphragm 122112-0083-0
#21

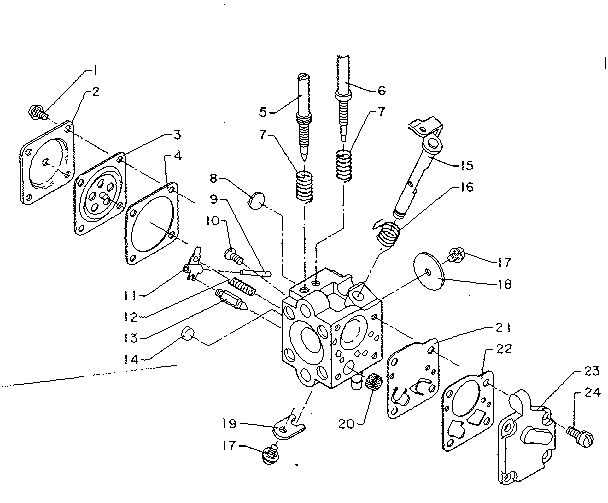

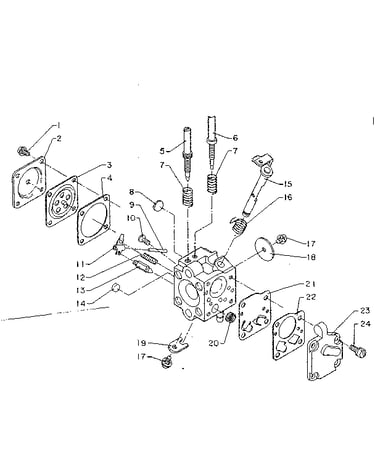

Carburetor diagram

Diaphragm

Part #122112-0083-0

The manufacturer no longer makes this part, and there's no substitute part

Point 154101-03430
#59

Engine diagram

Point

Part #154101-03430

The manufacturer no longer makes this part, and there's no substitute part

Tank Cap 131017-03431
#45

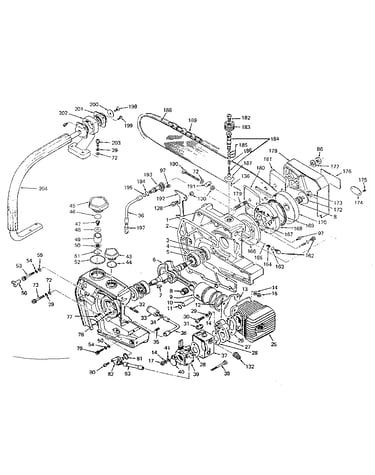

Main frame diagram

Tank cap

Part #131017-03431

The manufacturer no longer makes this part, and there's no substitute part

Carburetor Assembly 122000-03431
#39

Main frame diagram

Carburetor assembly

Part #122000-03431

The manufacturer no longer makes this part, and there's no substitute part

Earth Plate 163413-02830
#146

Engine diagram

Earth plate

Part #163413-02830

The manufacturer no longer makes this part, and there's no substitute part

Adapter 437121-03430
#162

Main frame diagram

Adapter

Part #437121-03430

The manufacturer no longer makes this part, and there's no substitute part

Spring 437019-02830
#186

Main frame diagram

Spring

Part #437019-02830

The manufacturer no longer makes this part, and there's no substitute part

Pawl Catch 177243-02832
#102

Engine diagram

Pawl catch

Part #177243-02832

The manufacturer no longer makes this part, and there's no substitute part
