Countertop Microwave

Model # MV-1330B Official Goldstar microwave

Here are the diagrams and repair parts for Official Goldstar MV-1330B microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

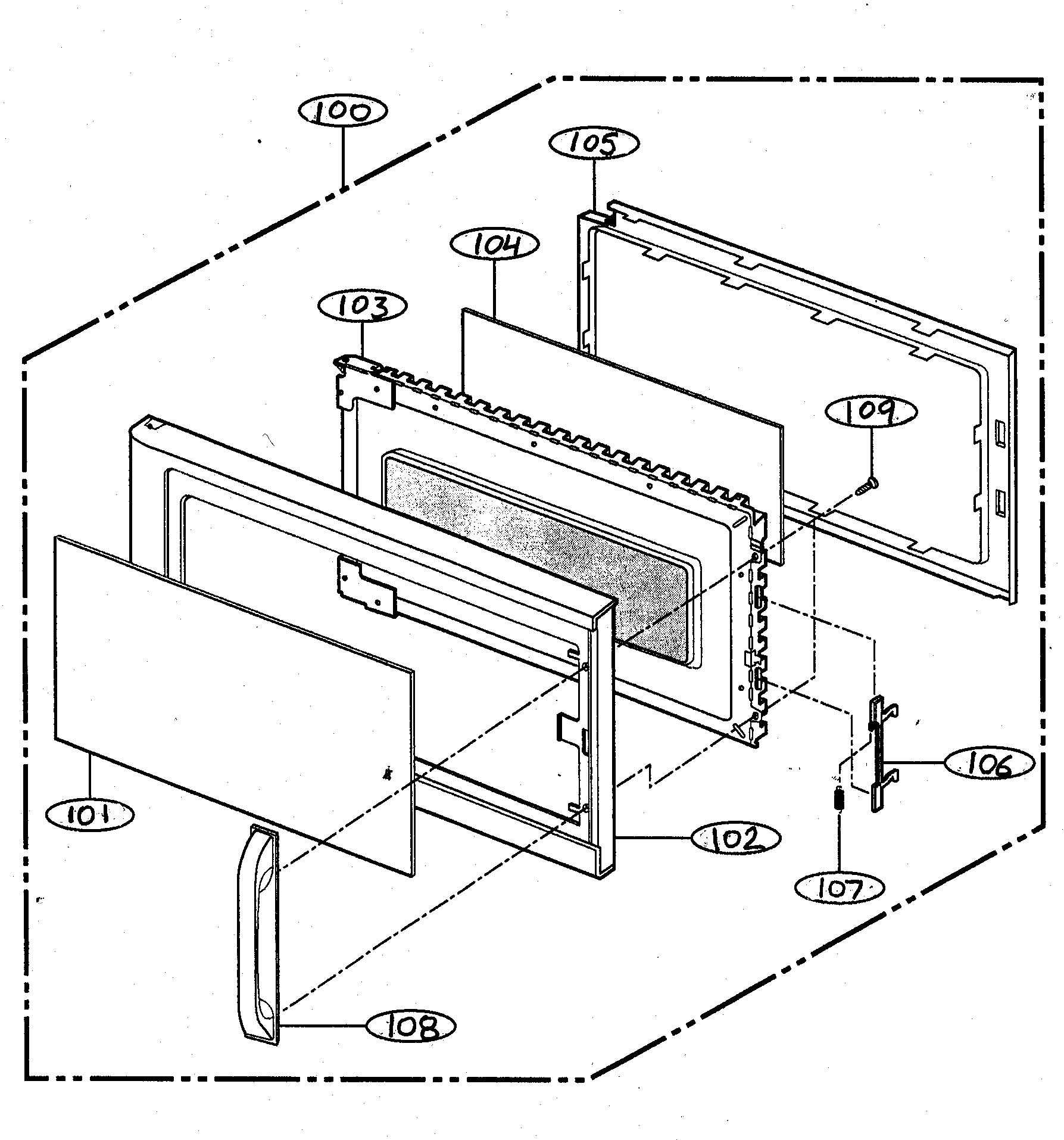

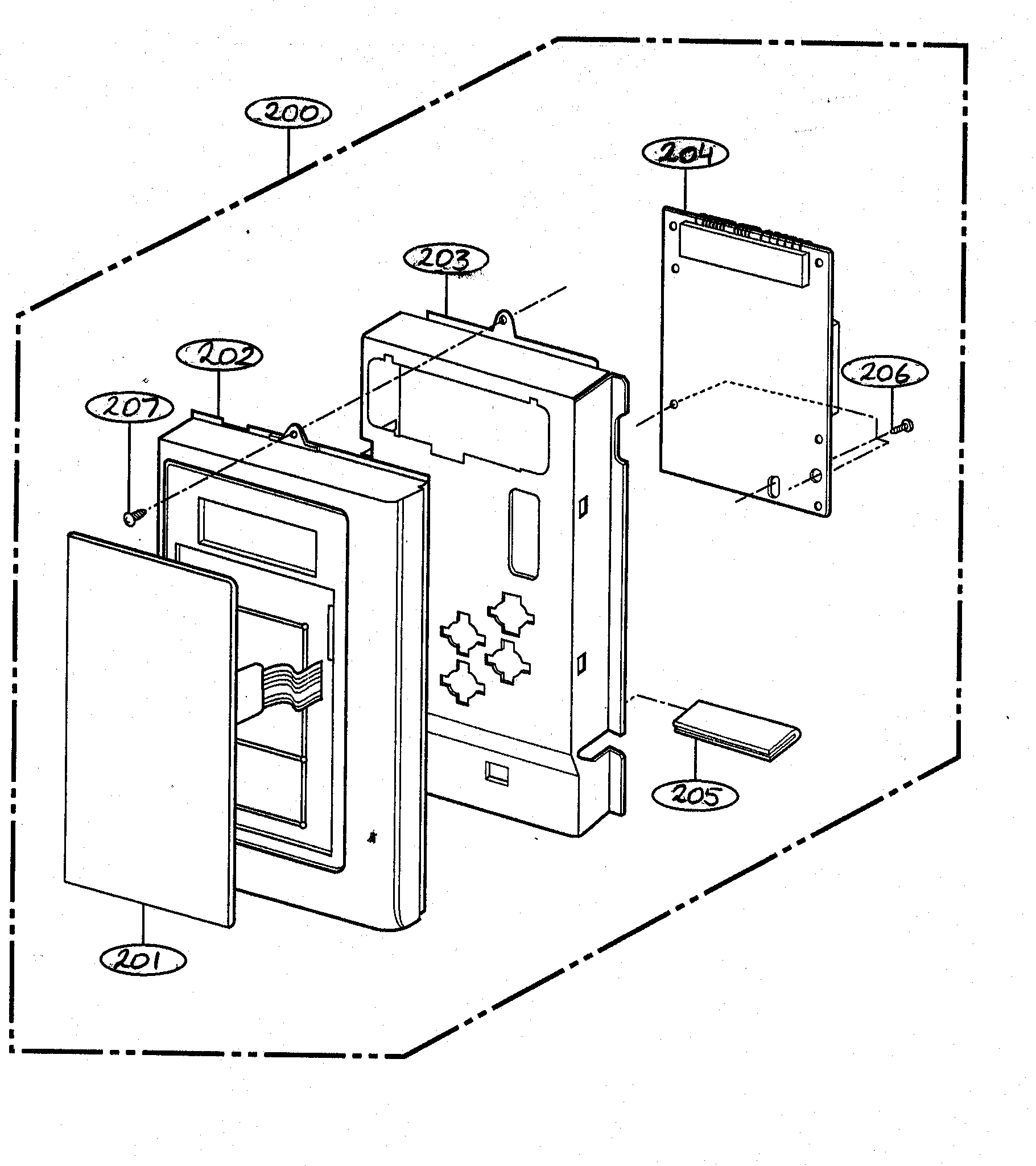

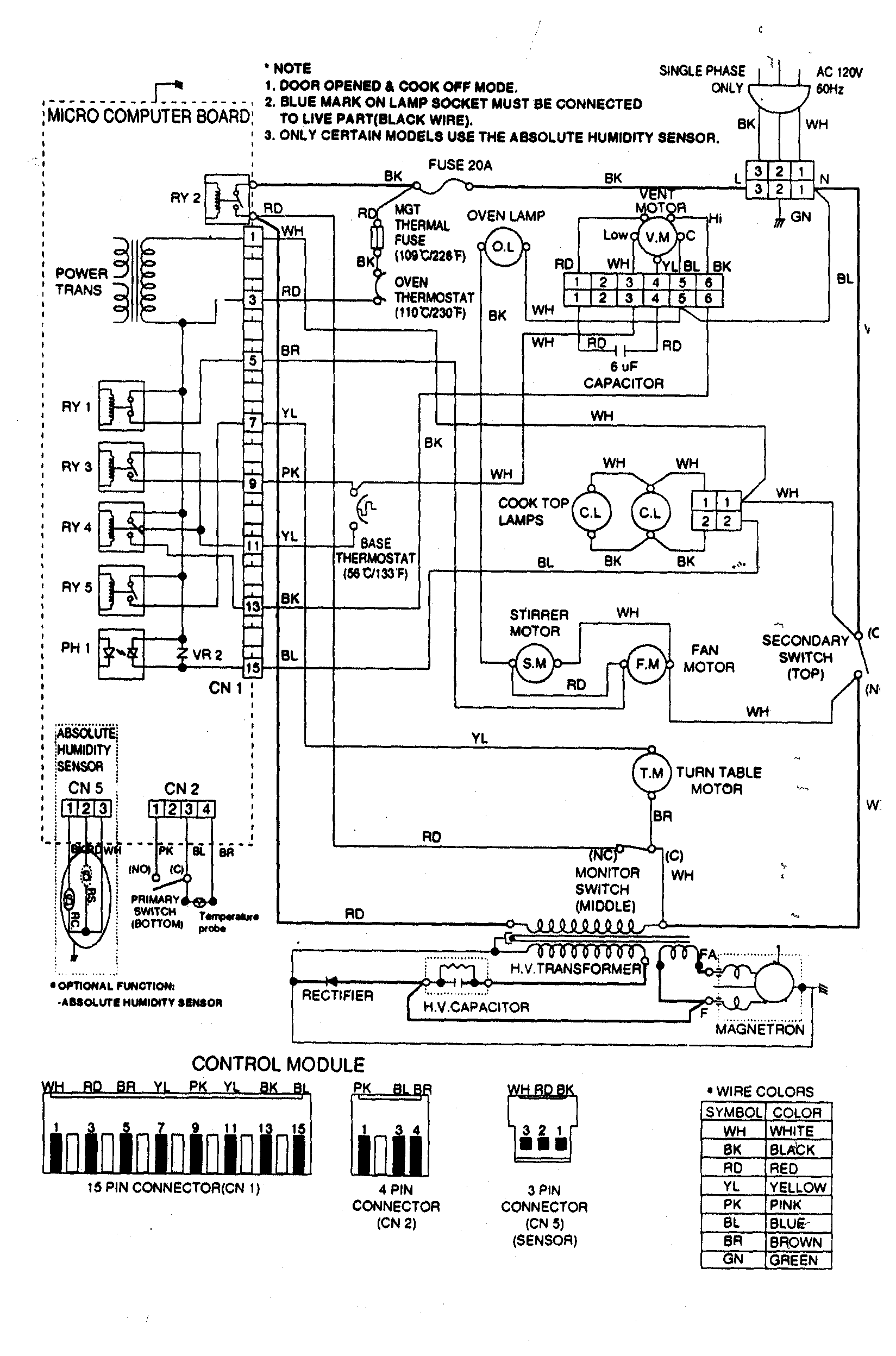

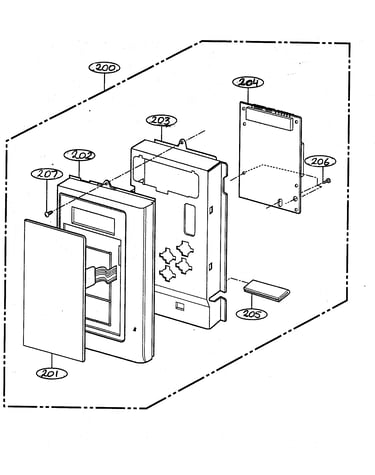

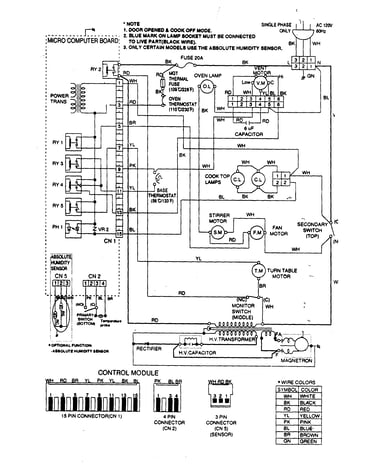

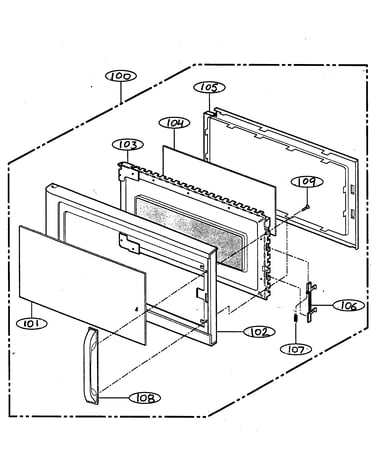

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Grease Filter 2B72705B
#315

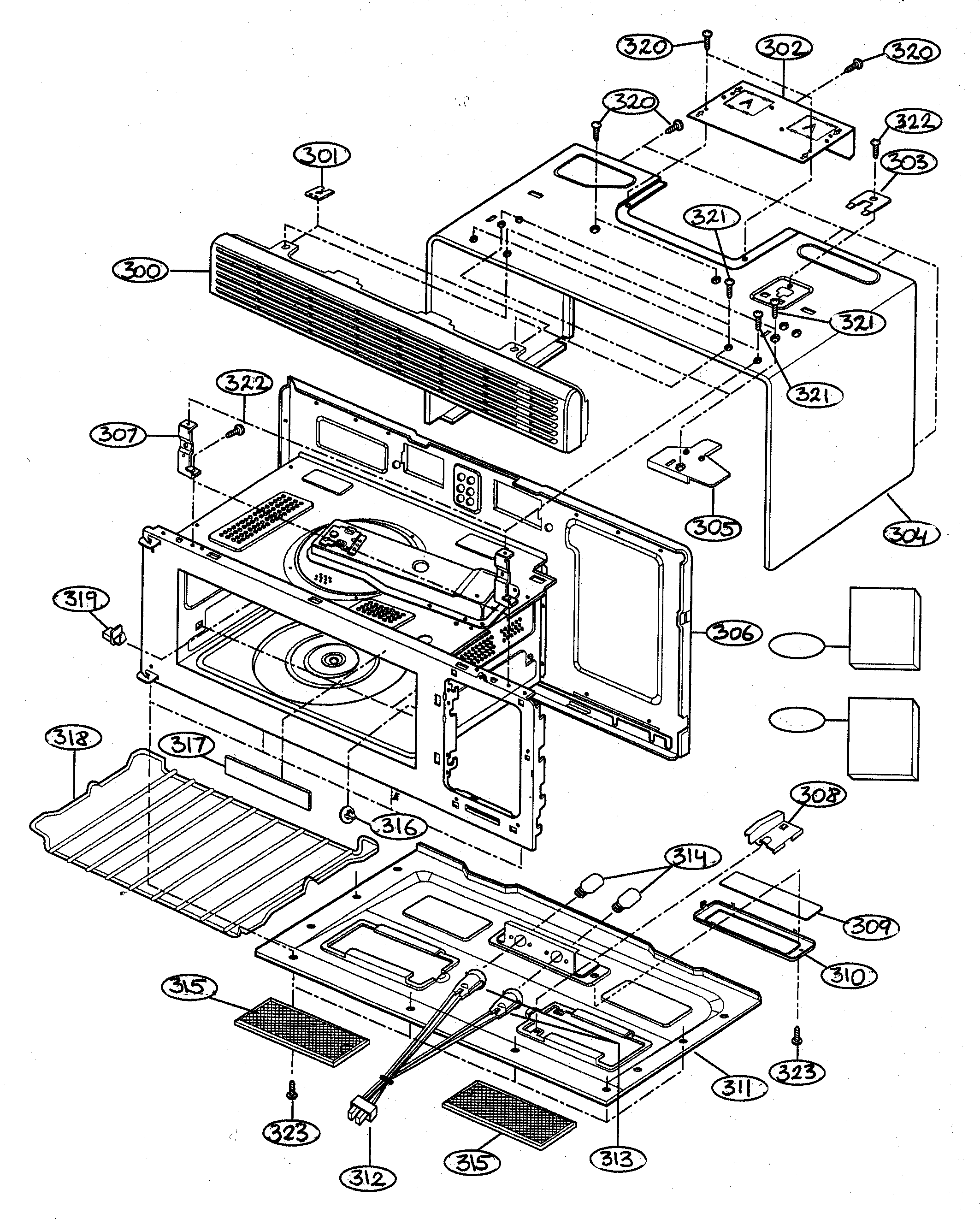

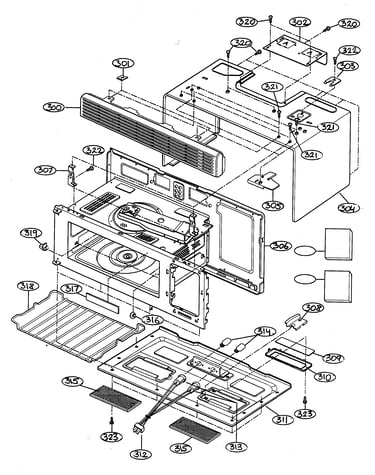

Oven cavity diagram

Grease filter

Part #2B72705B

Replaced by #5230W1A012B

?
Manufacturer substitution
This part replaces 2B72705B. Substitute parts can look different from the original.
BEST SELLER
$12.00 |
14% OFF Phone Price : $14.00
In Stock
Microwave Glass Turntable Tray 1B71961A
#500

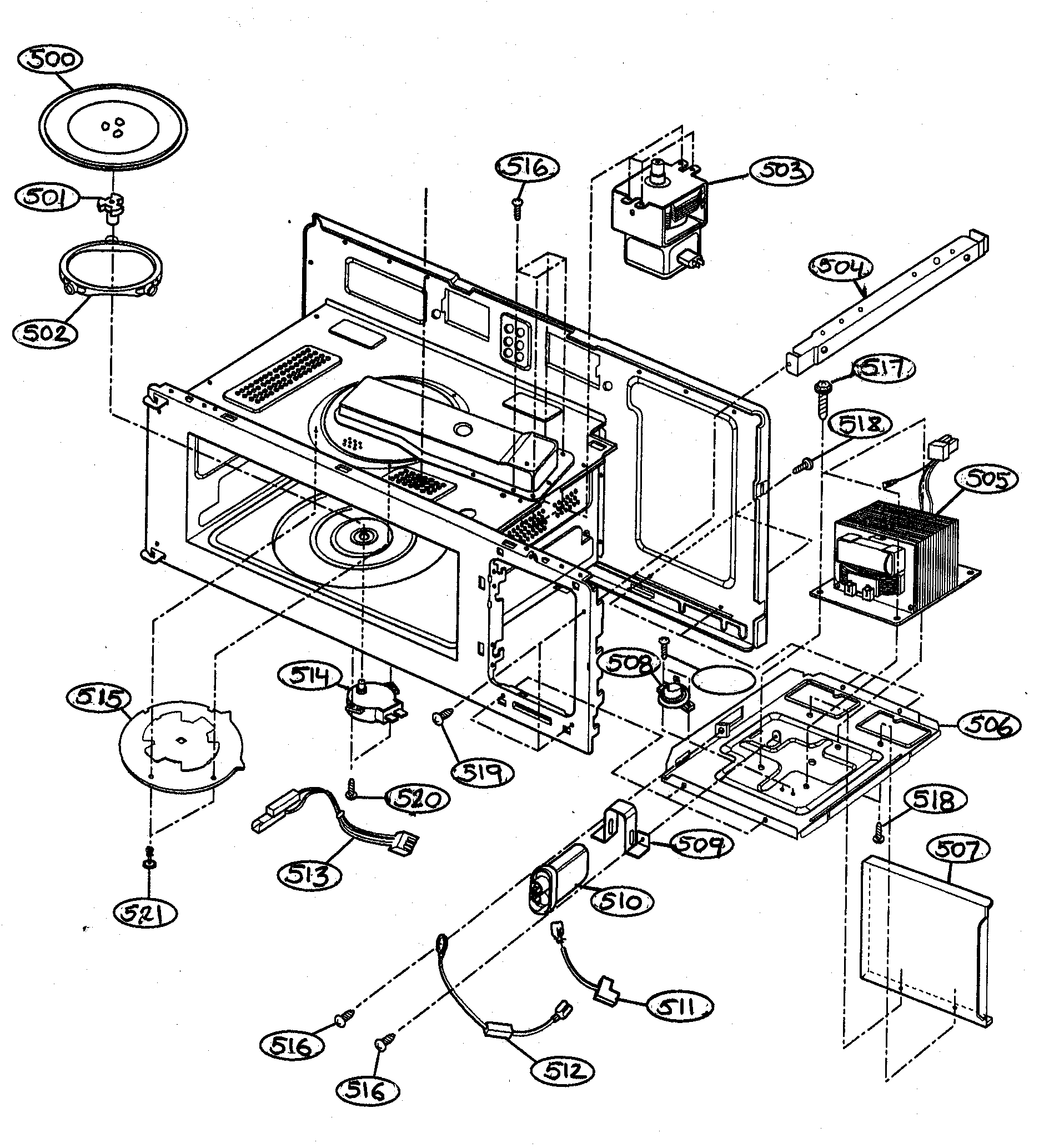

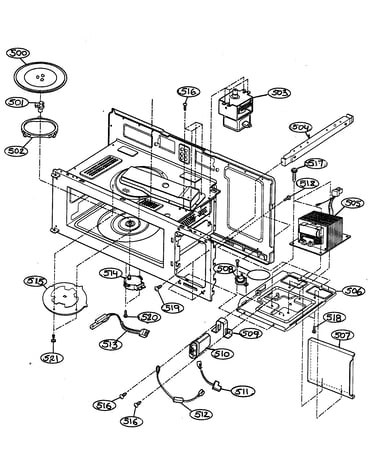

Interior parts 1 diagram

Microwave glass turntable tray

Part #1B71961A

Replaced by #1B71961H

?
Manufacturer substitution
This part replaces 1B71961A. Substitute parts can look different from the original.
BEST SELLER
$32.53 |
13% OFF Phone Price : $37.53
In Stock
Microwave Door Interlock Switch 3B73361E
#403

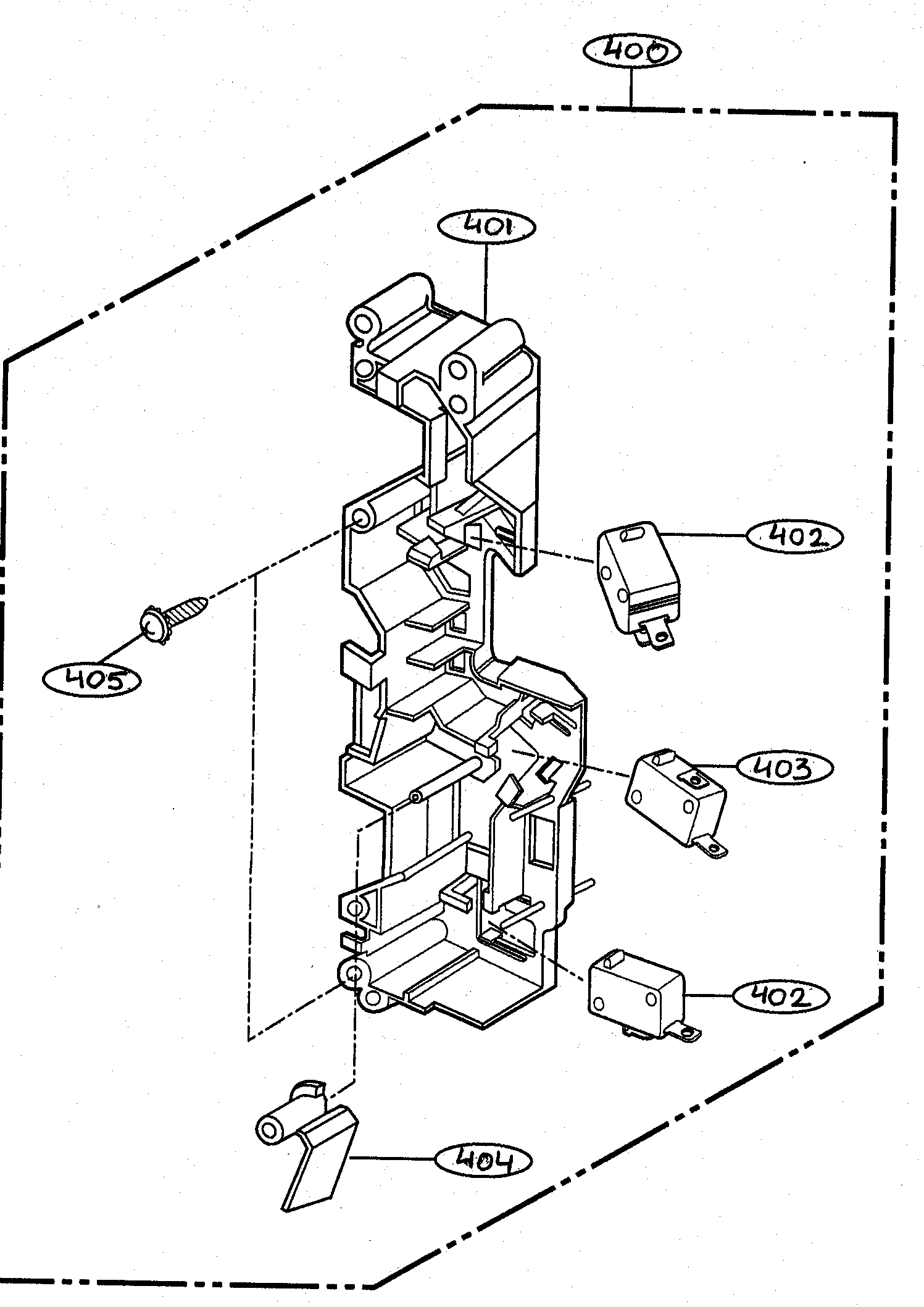

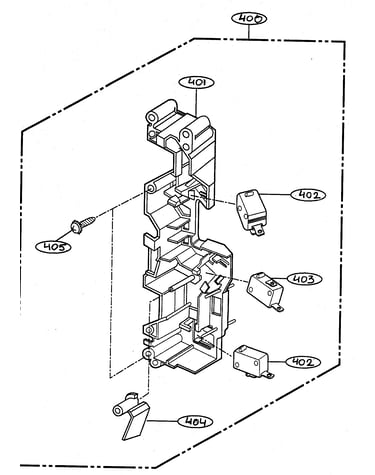

Latch board parts diagram

Microwave door interlock switch

Part #3B73361E

Replaced by #6600W1K001C

?
Manufacturer substitution
This part replaces 3B73361E. Substitute parts can look different from the original.
BEST SELLER
$12.16 |
14% OFF Phone Price : $14.16
In Stock
Microwave Fuse 3B74133K
#610

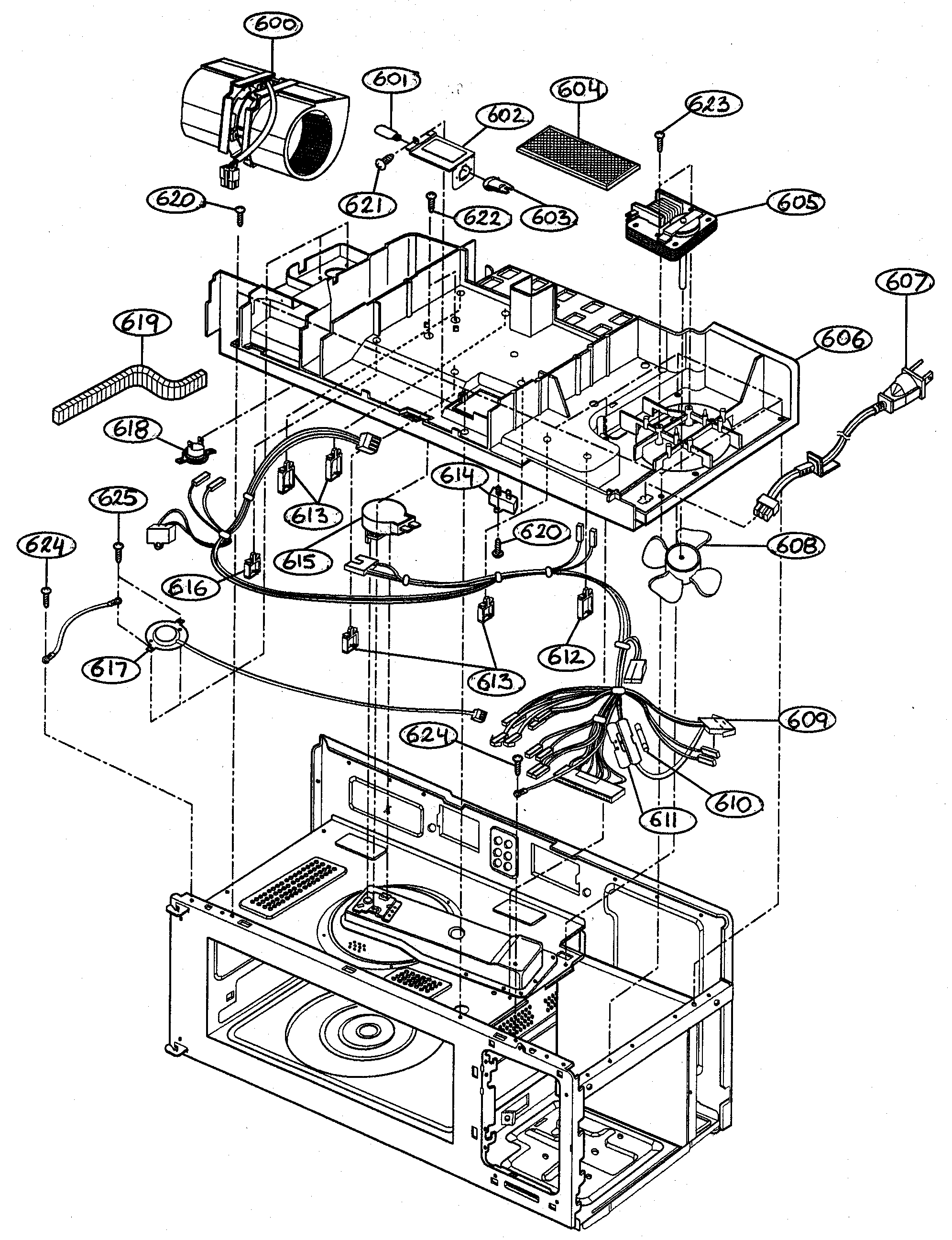

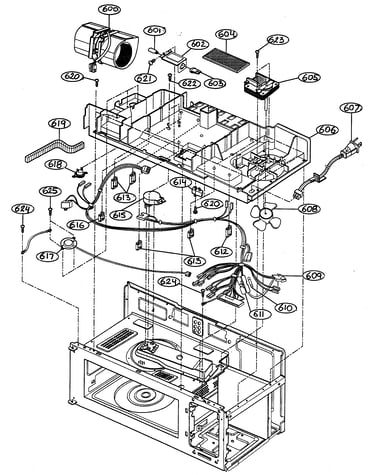

Interior parts 2 diagram

Microwave fuse

Part #3B74133K

BEST SELLER
$7.62 |
12% OFF Phone Price : $8.62
In Stock
Microwave Exhaust Damper Bracket 3B72144A
#703

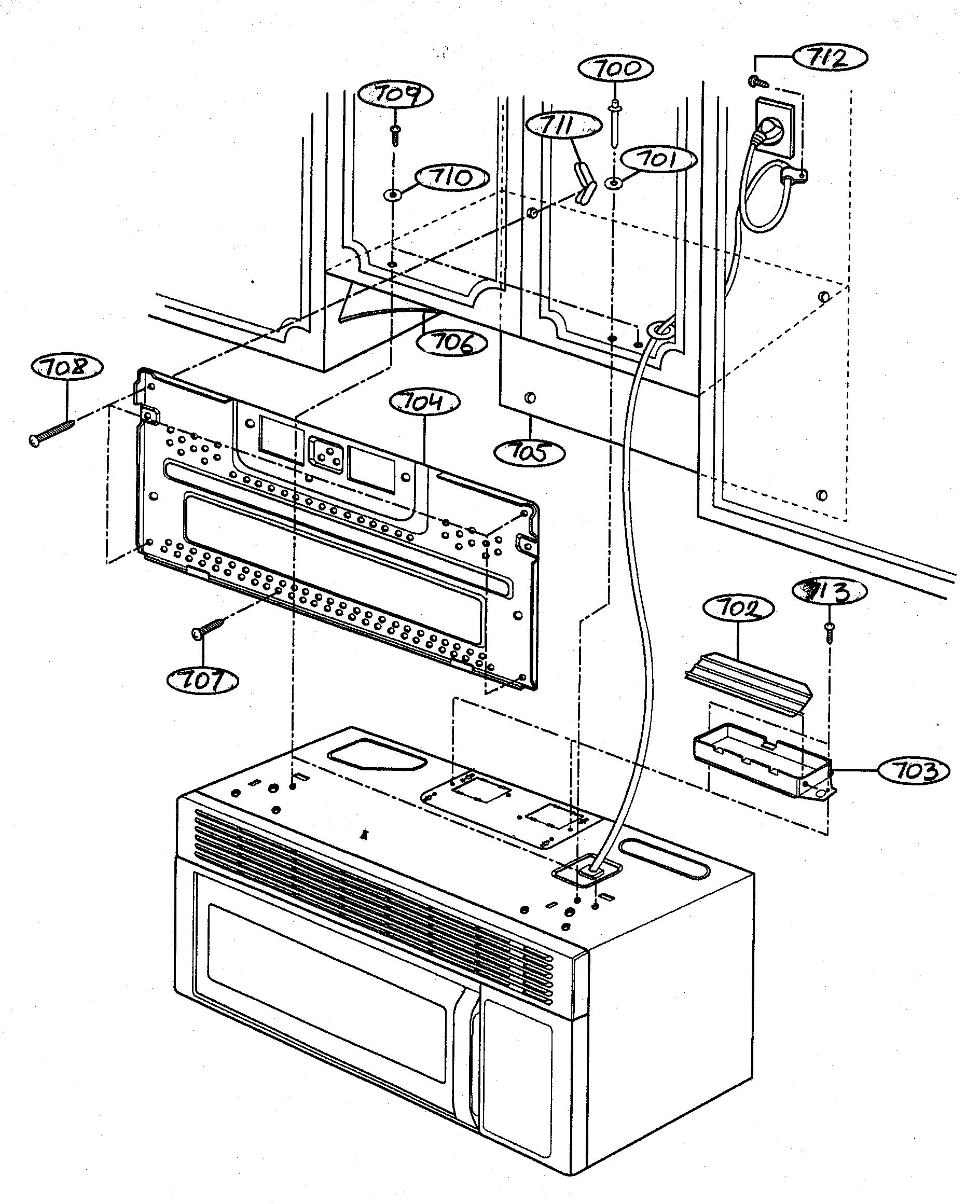

Installation parts diagram

Microwave exhaust damper bracket

Part #3B72144A

Replaced by #4810W1A151A

?
Manufacturer substitution
This part replaces 3B72144A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.43 |
14% OFF Phone Price : $14.43
In Stock
Damper 3B71432A
#702

Installation parts diagram

Damper

Part #3B71432A

Replaced by #4900W1A001B

?
Manufacturer substitution
This part replaces 3B71432A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Microwave Thermostat 6930WRT003C
#618

Interior parts 2 diagram

Microwave thermostat

Part #6930WRT003C

Replaced by #6930W1A003J

?
Manufacturer substitution
This part replaces 6930WRT003C. Substitute parts can look different from the original.
BEST SELLER
$10.03 |
17% OFF Phone Price : $12.03
In Stock
Microwave Waveguide Cover Rivet 4051W3A001A
#521

Interior parts 1 diagram

Microwave waveguide cover rivet

Part #4051W3A001A

BEST SELLER
This item is not returnable
$2.75 |
27% OFF Phone Price : $3.75
In Stock
Microwave Door Latch Lever 4510W4A005A
#404

Latch board parts diagram

Microwave door latch lever

Part #4510W4A005A

This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Microwave Screw 1TTL0402818
#713

Installation parts diagram

Microwave screw

Part #1TTL0402818

This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
