Model # 917253646 Official Craftsman 44" rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917253646 44" rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |

Spring 106734X
#62

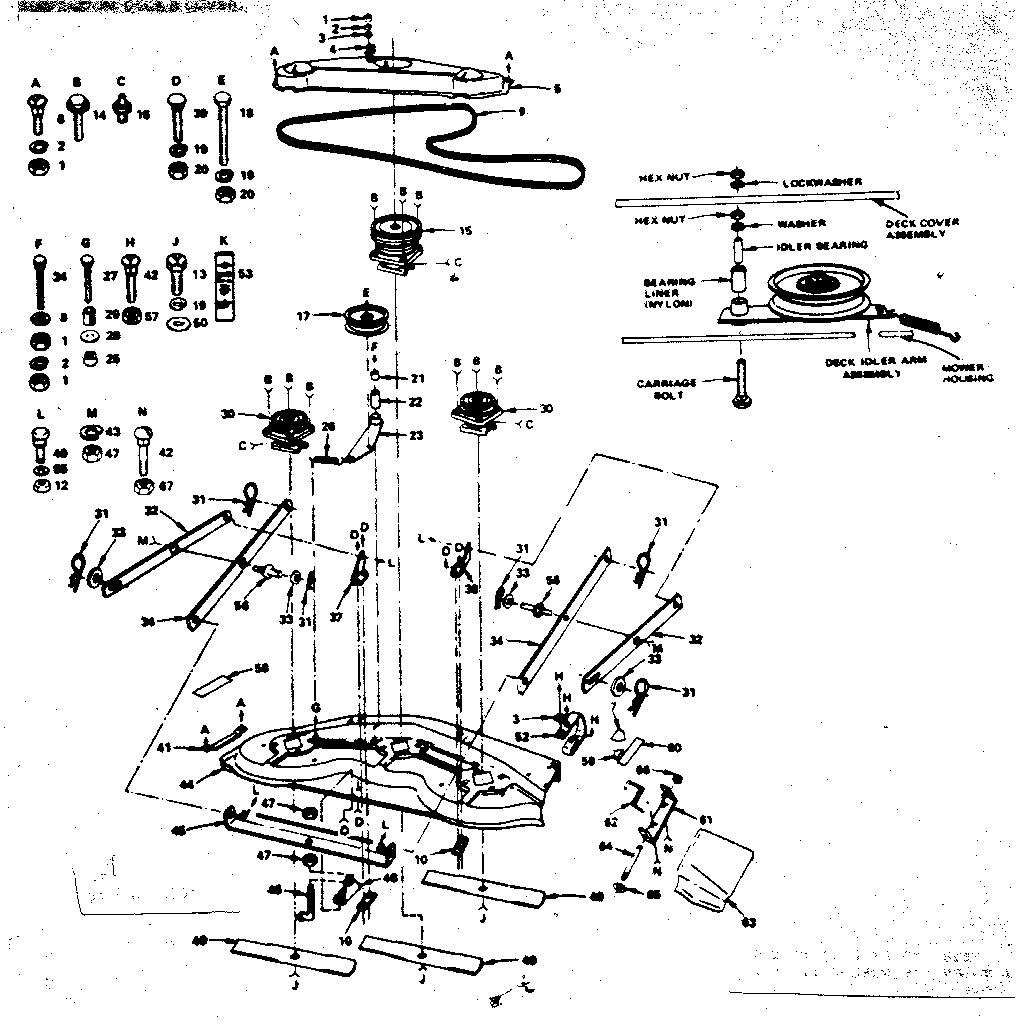

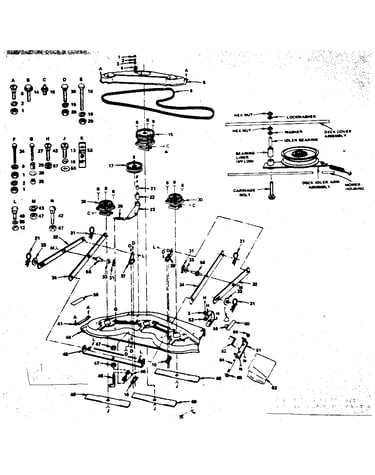

Suspension, deck & cover diagram

Spring

Part #106734X

Replaced by #123713X

?
Manufacturer substitution
This part replaces 106734X. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.80
49% OFF MSRP : $7.40
In Stock
Washer, 13/32 X 1-1/4 X 12 19132012
Washer, 13/32 x 1-1/4 x 12

Part #19132012

Replaced by #596134901

?
Manufacturer substitution
This part replaces 19132012. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Screw 17490612
#14

Suspension, deck & cover diagram

Screw

Part #17490612

Replaced by #17000612

?
Manufacturer substitution
This part replaces 17490612. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Nut 73680600
#12

Suspension, deck & cover diagram

Lawn tractor nut

Part #73680600

Replaced by #596322601

?
Manufacturer substitution
This part replaces 73680600. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
Idler 102403X
#17

Suspension, deck & cover diagram

Idler

Part #102403X

Replaced by #532102403

?
Manufacturer substitution
This part replaces 102403X. Substitute parts can look different from the original.
BEST SELLER
$24.99
22% OFF MSRP : $32.00
In Stock
Lawn Tractor Grease Fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, Lp-706) 6855M
#16

Suspension, deck & cover diagram

Lawn tractor grease fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, lp-706)

Part #6855M

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Pin 76020412
#18

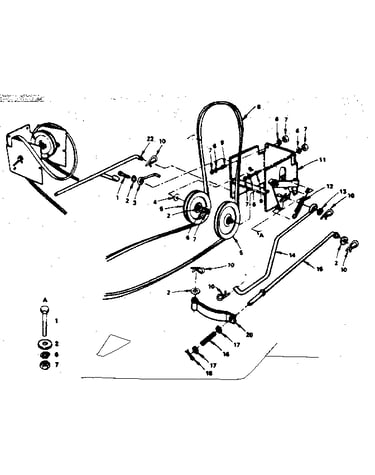

Idler box diagram

Pin

Part #76020412

Replaced by #596029501

?
Manufacturer substitution
This part replaces 76020412. Substitute parts can look different from the original.
This item is not returnable
In Stock
Lawn & Garden Equipment Washer 19111216
#28

Suspension, deck & cover diagram

Lawn & garden equipment washer

Part #19111216

This item is not returnable
$5.99
14% OFF Phone Price : $6.99
In Stock
Hex Head Bolt, 3/8-16 X 2-in STD523720
#1

Idler box diagram

Hex head bolt, 3/8-16 x 2-in

Part #STD523720

The manufacturer no longer makes this part, and there's no substitute part

Bolt 72110606
#6

Suspension, deck & cover diagram

Bolt

Part #72110606

Replaced by #596136001

?
Manufacturer substitution
This part replaces 72110606. Substitute parts can look different from the original.
This item is not returnable
In Stock
