Model # HT-ST7 Official Sony speaker system

Here are the diagrams and repair parts for Official Sony HT-ST7 speaker system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

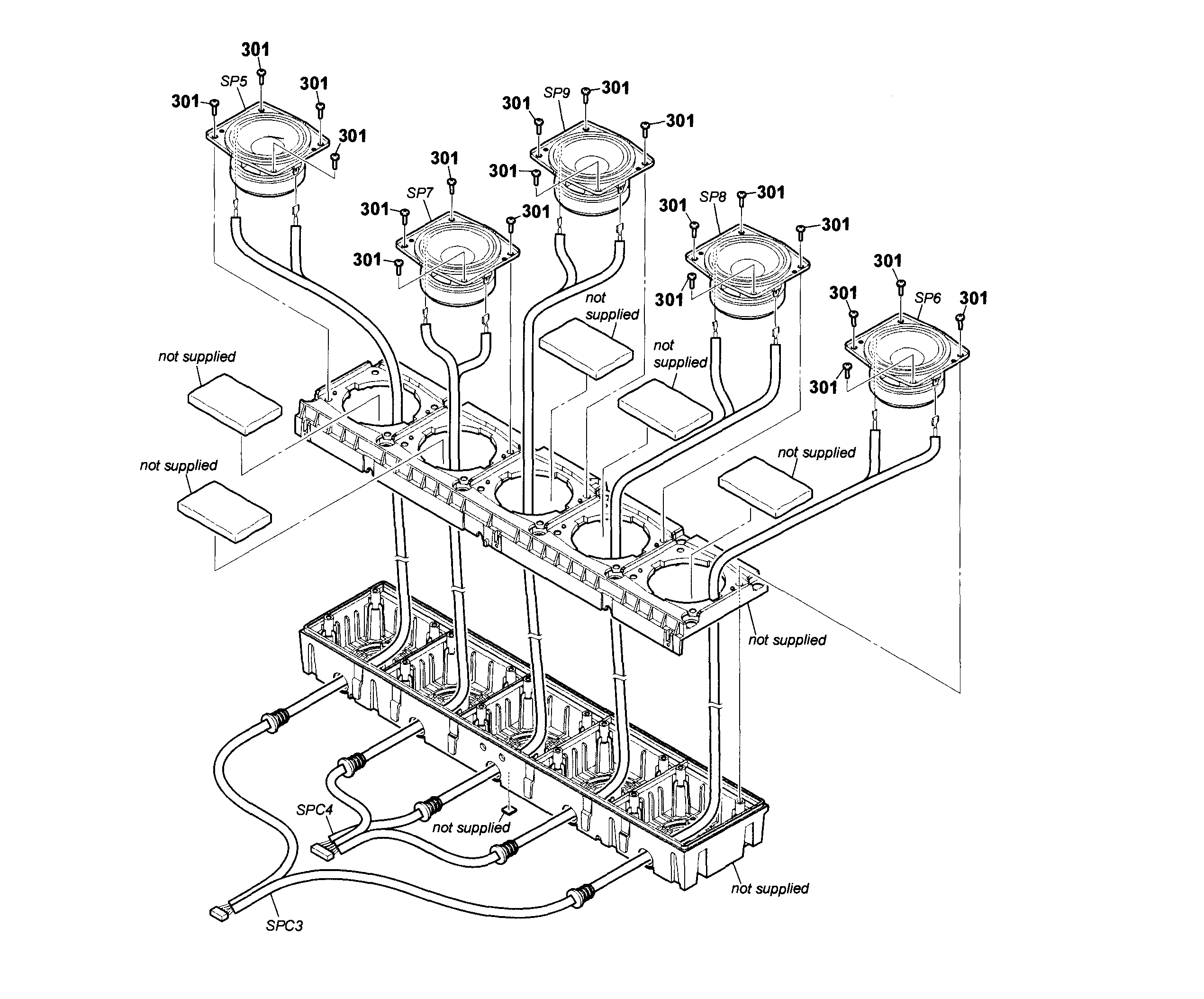

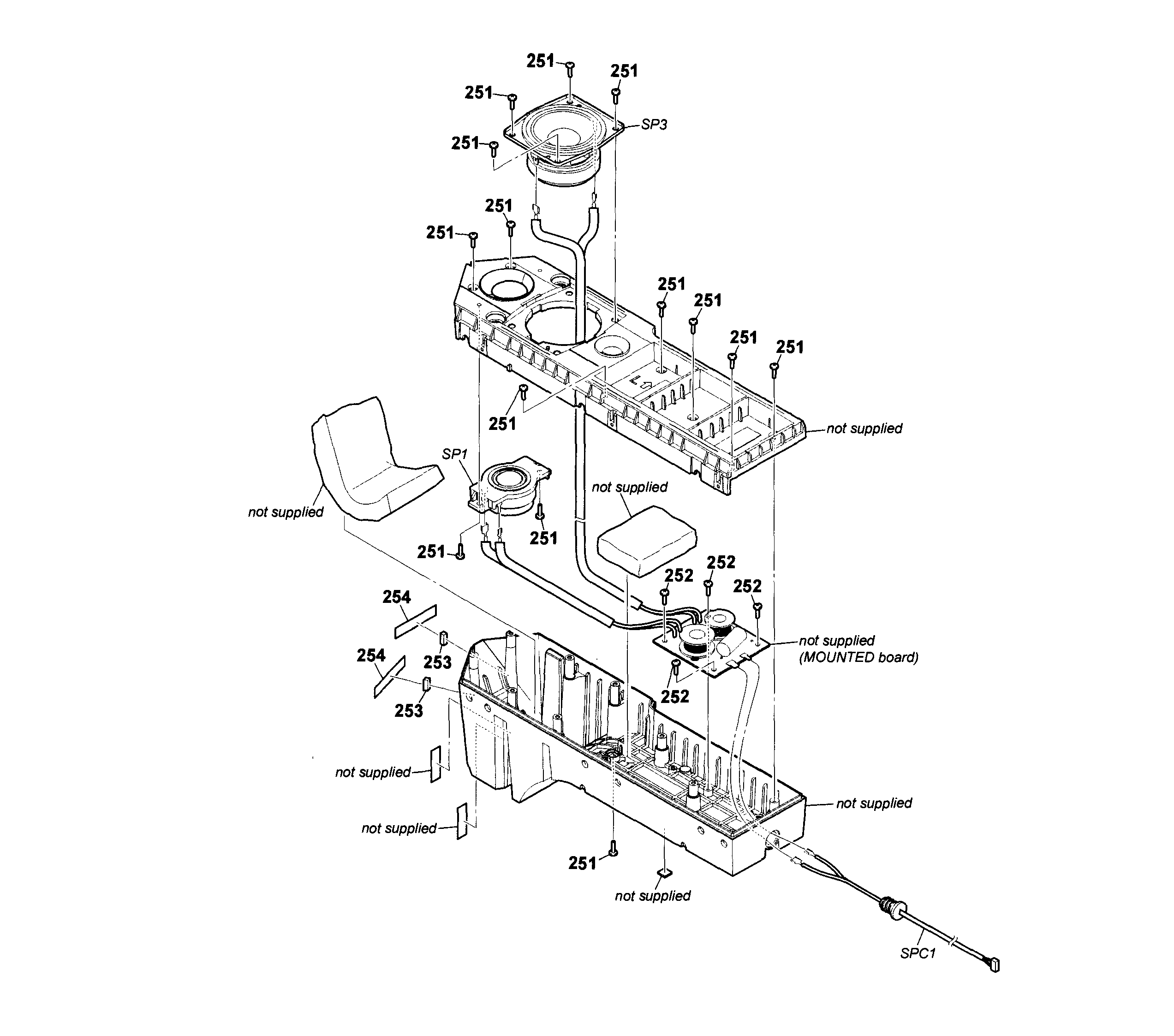

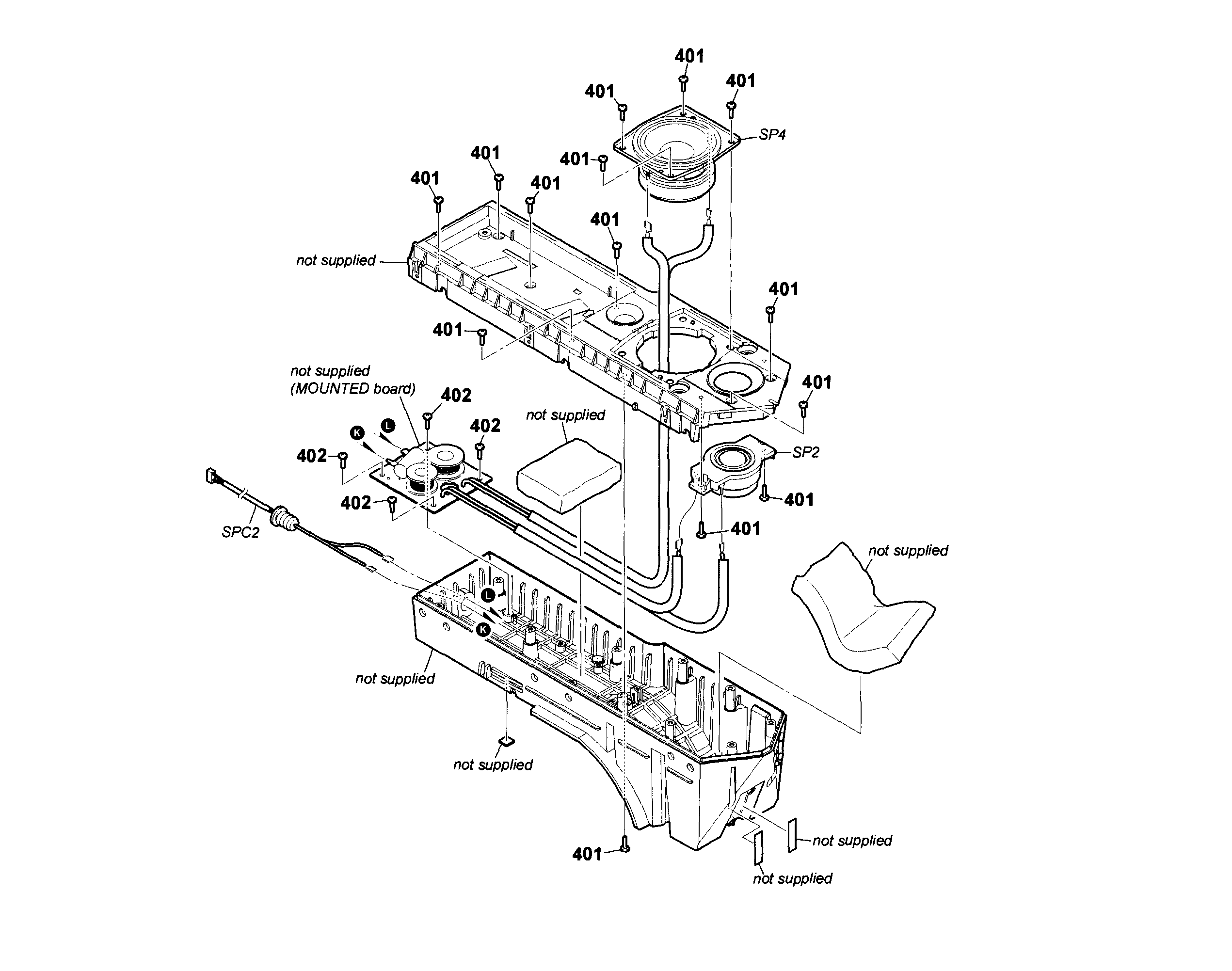

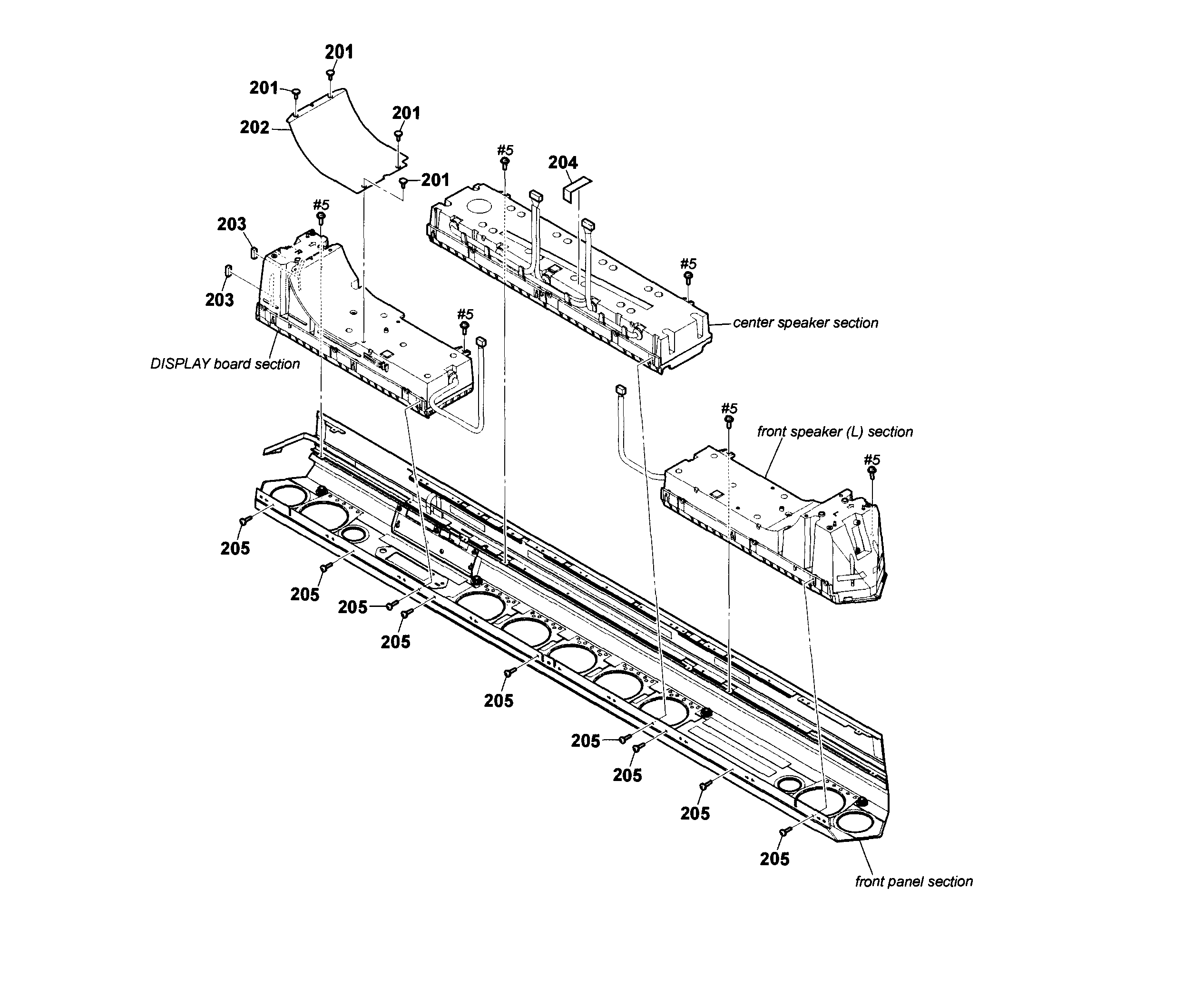

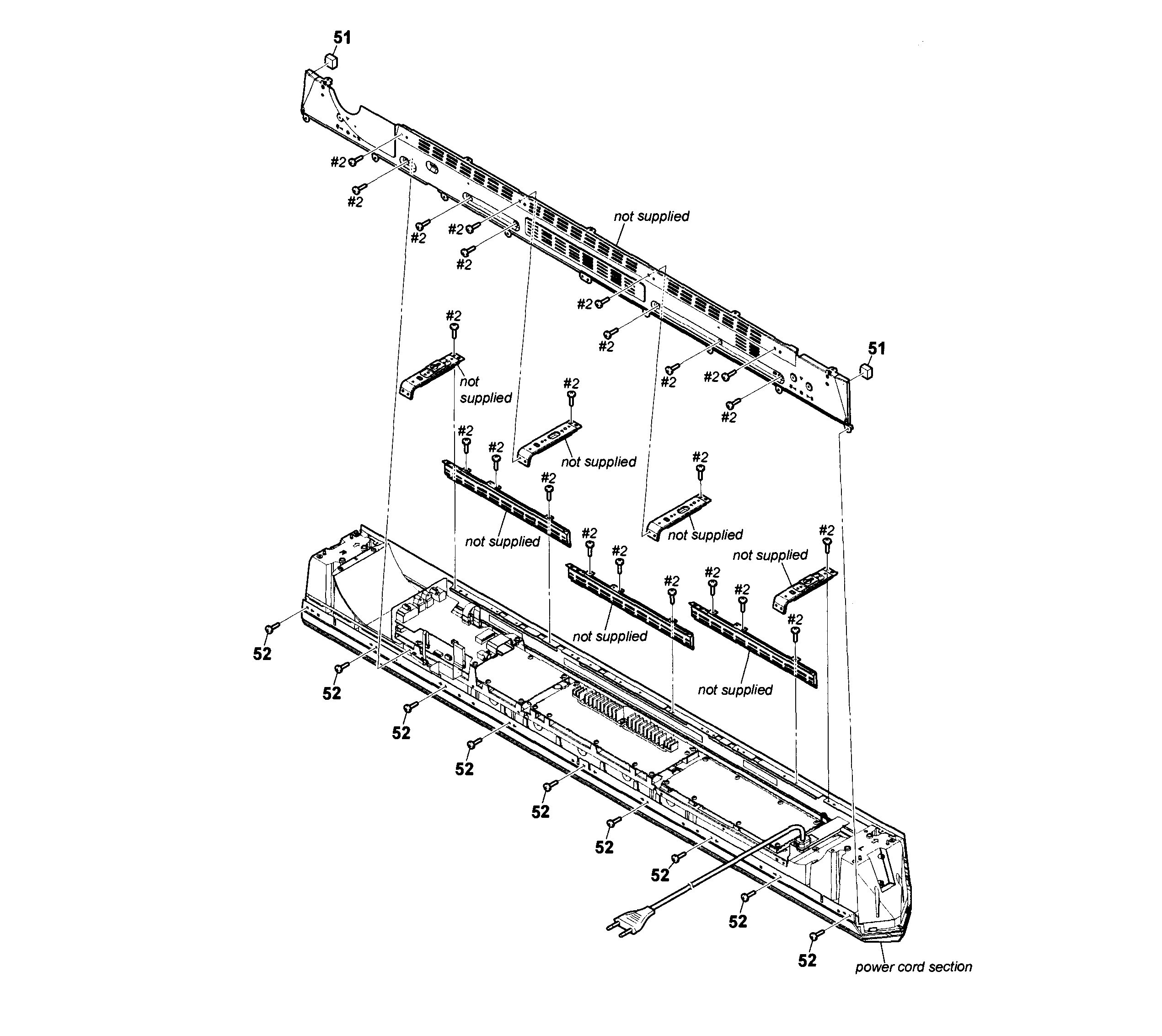

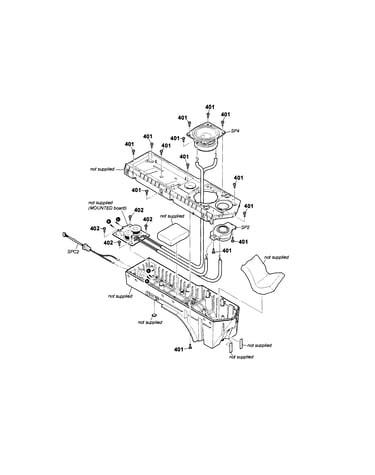

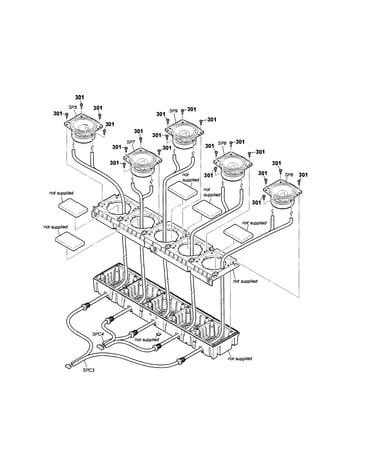

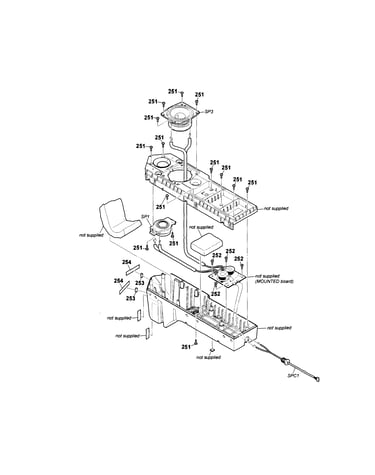

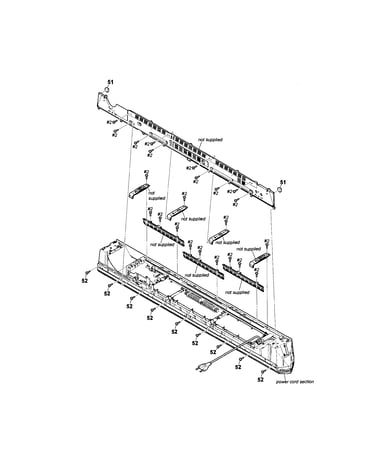

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |

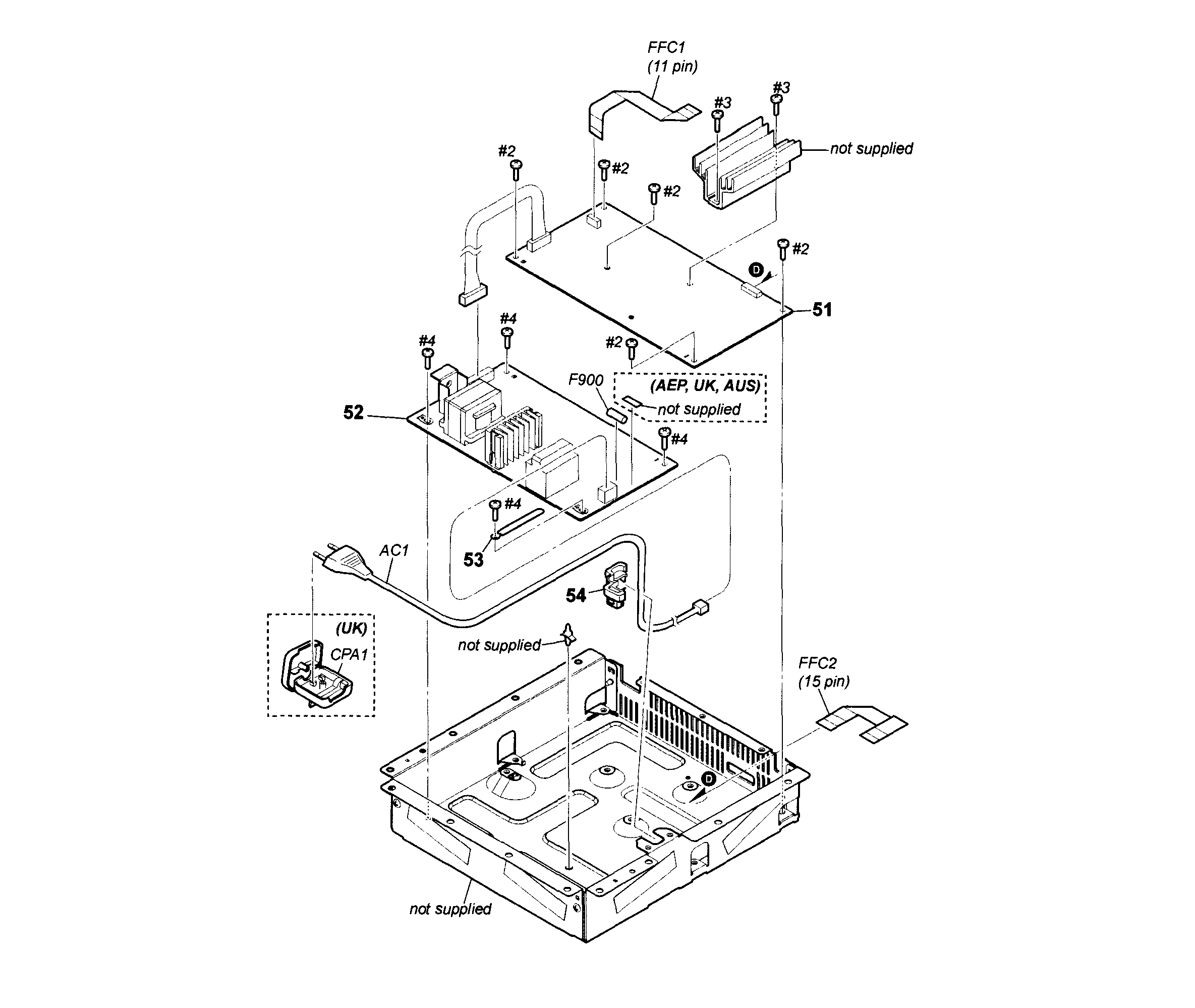

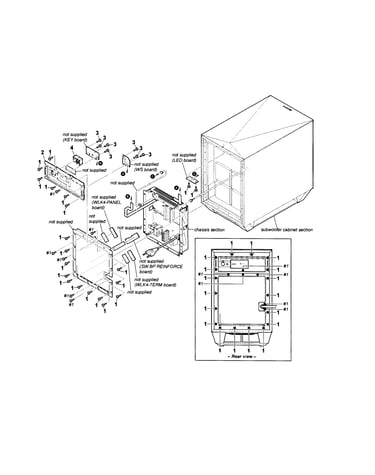

Pcb S-main A1968243A
#51

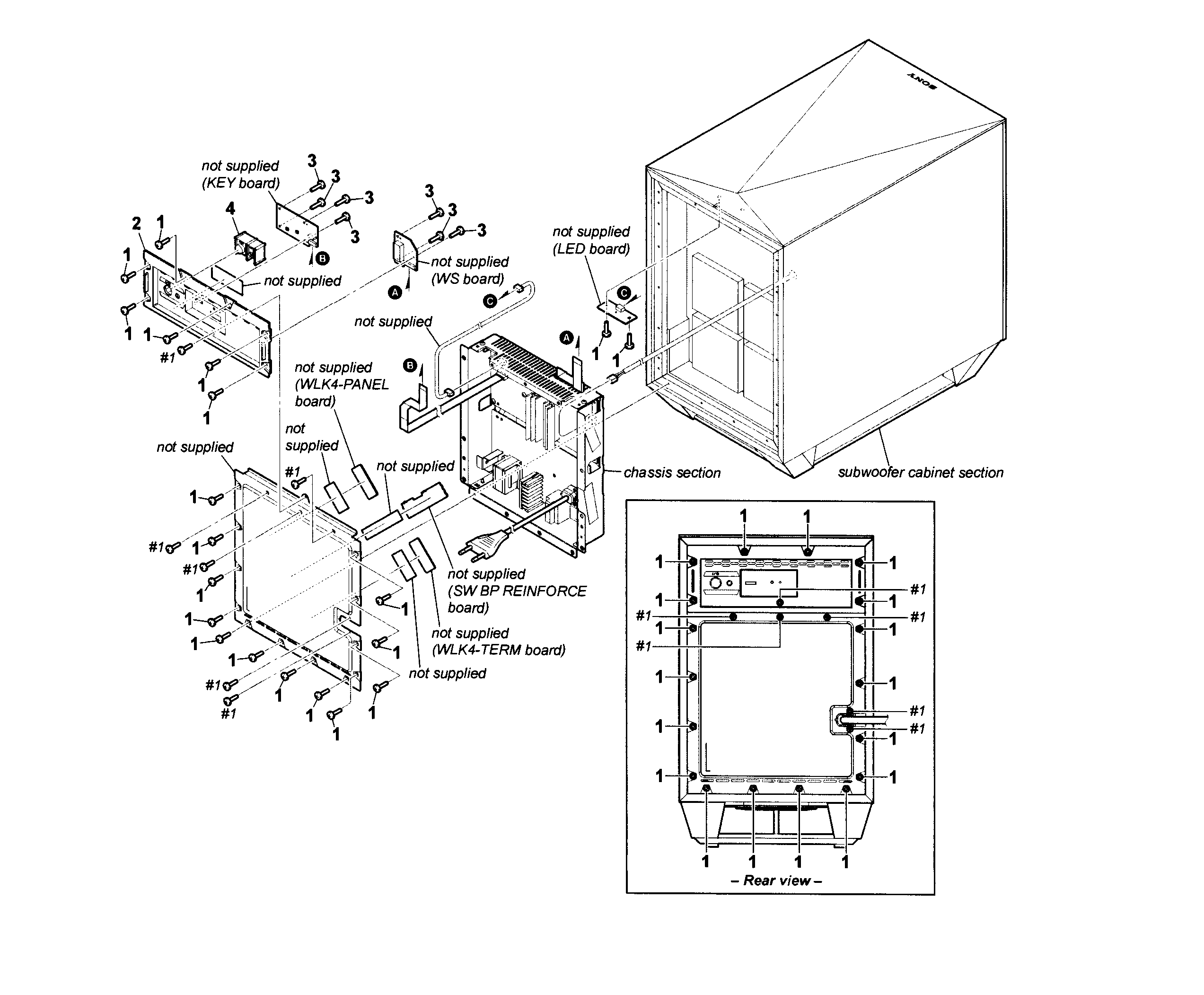

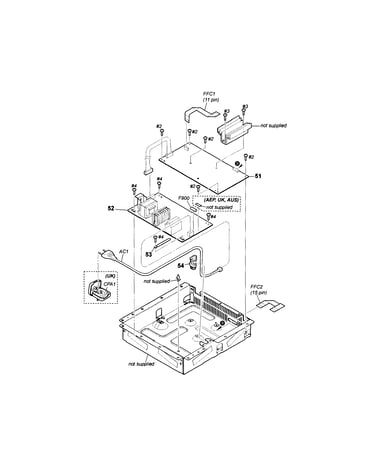

Chassis-woofer diagram

Pcb s-main

Part #A1968243A

The manufacturer no longer makes this part, and there's no substitute part

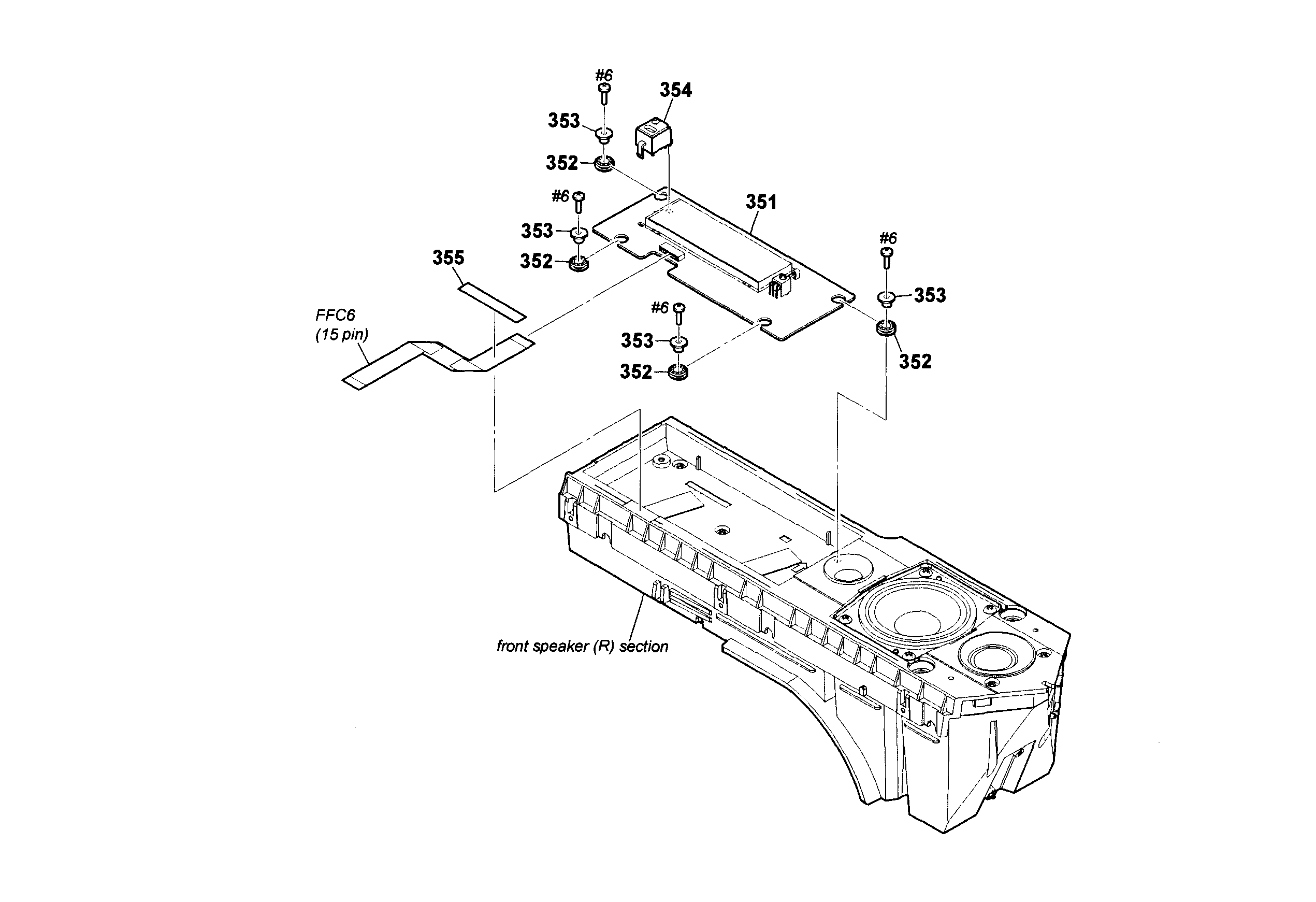

Pcb Displa A1917932A
#351

Display board diagram

Pcb displa

Part #A1917932A

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb A1968239A
#151

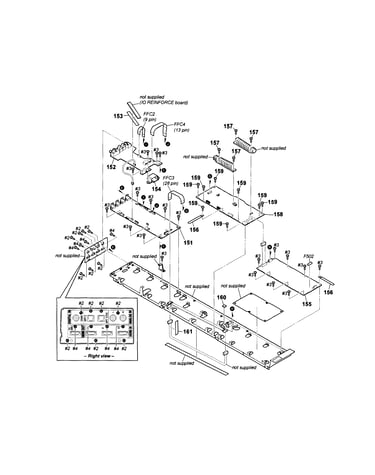

Chassis diagram

Main pcb

Part #A1968239A

The manufacturer no longer makes this part, and there's no substitute part

Leg B 445760401
#102

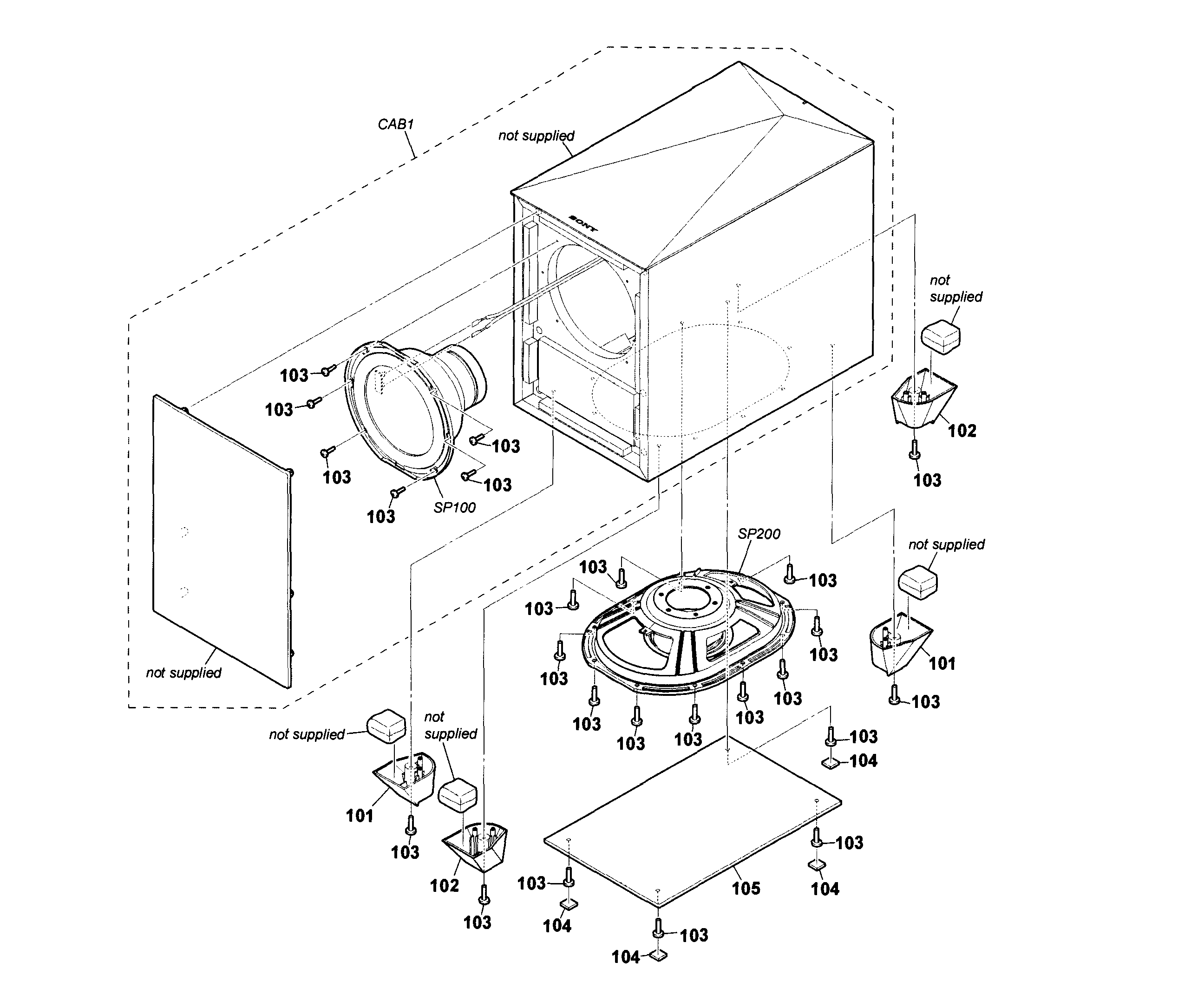

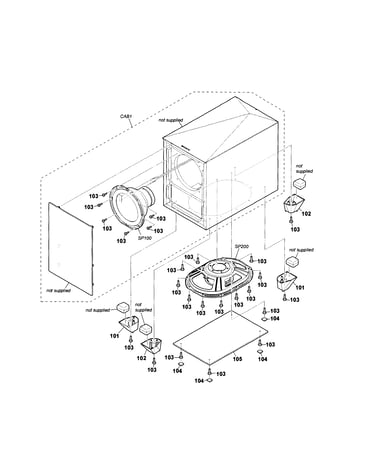

Cabinet-woofer diagram

Leg b

Part #445760401

The manufacturer no longer makes this part, and there's no substitute part

Wire Kit 983360599
#FFC1

Chassis-woofer diagram

Wire kit

Part #983360599

The manufacturer no longer makes this part, and there's no substitute part

Collar 445387801
#353

Display board diagram

Collar

Part #445387801

The manufacturer no longer makes this part, and there's no substitute part

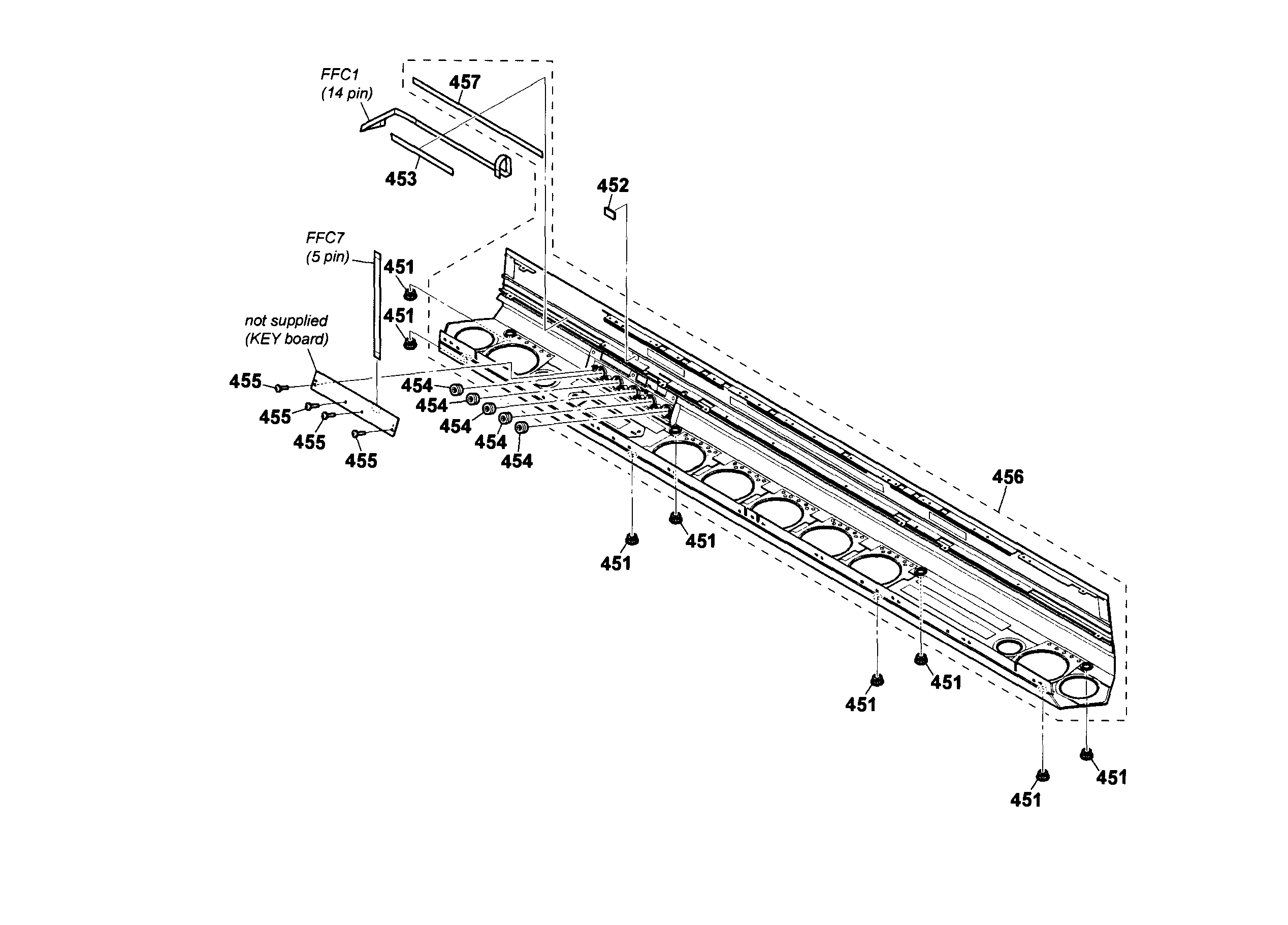

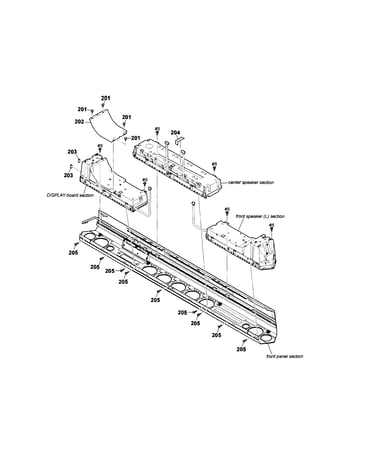

Panel Fr A1968811A
#456

Front panel diagram

Panel fr

Part #A1968811A

The manufacturer no longer makes this part, and there's no substitute part

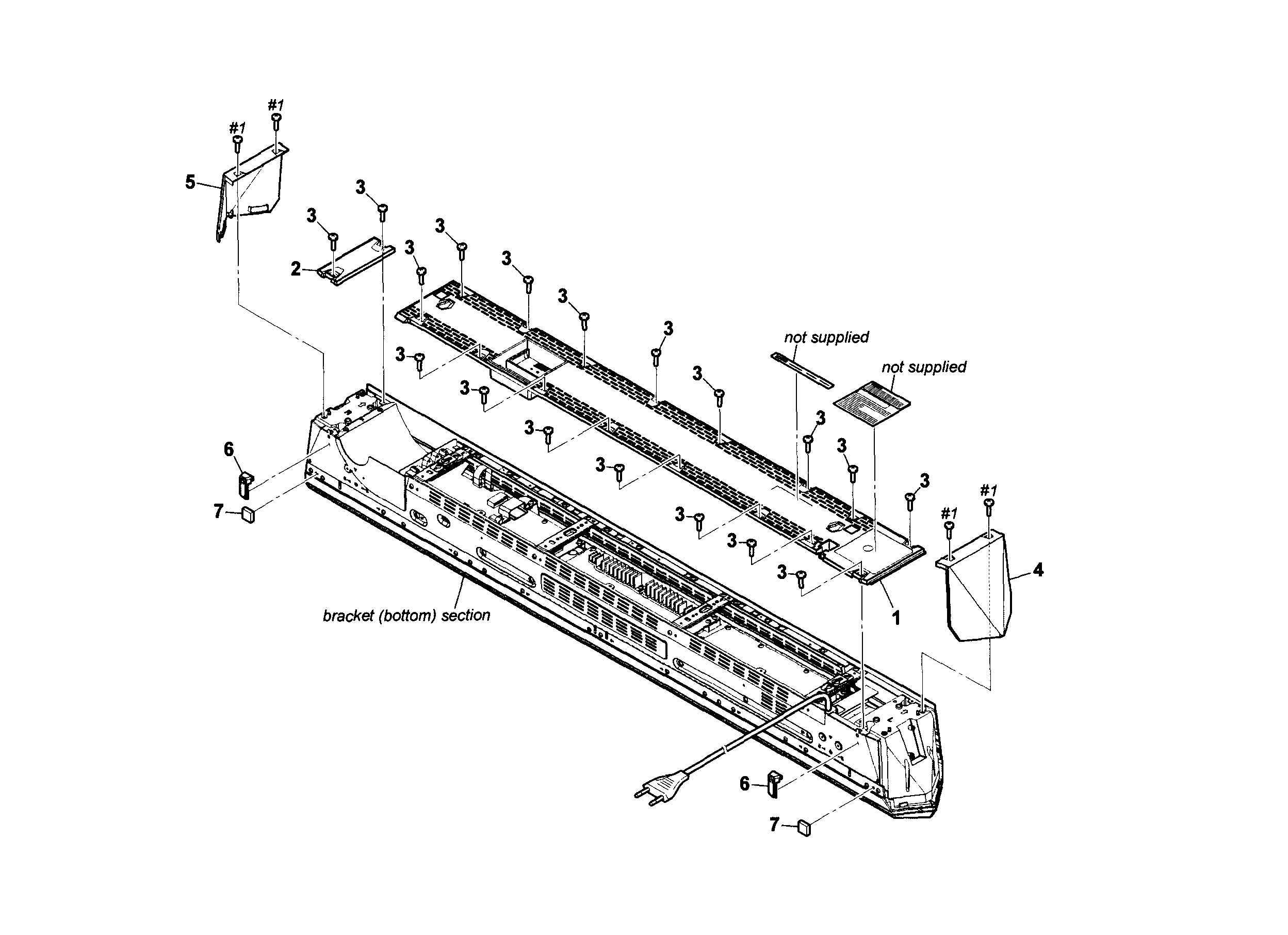

Transceive 148936011
#NI

Panel assy diagram

Transceive

Part #148936011

The manufacturer no longer makes this part, and there's no substitute part

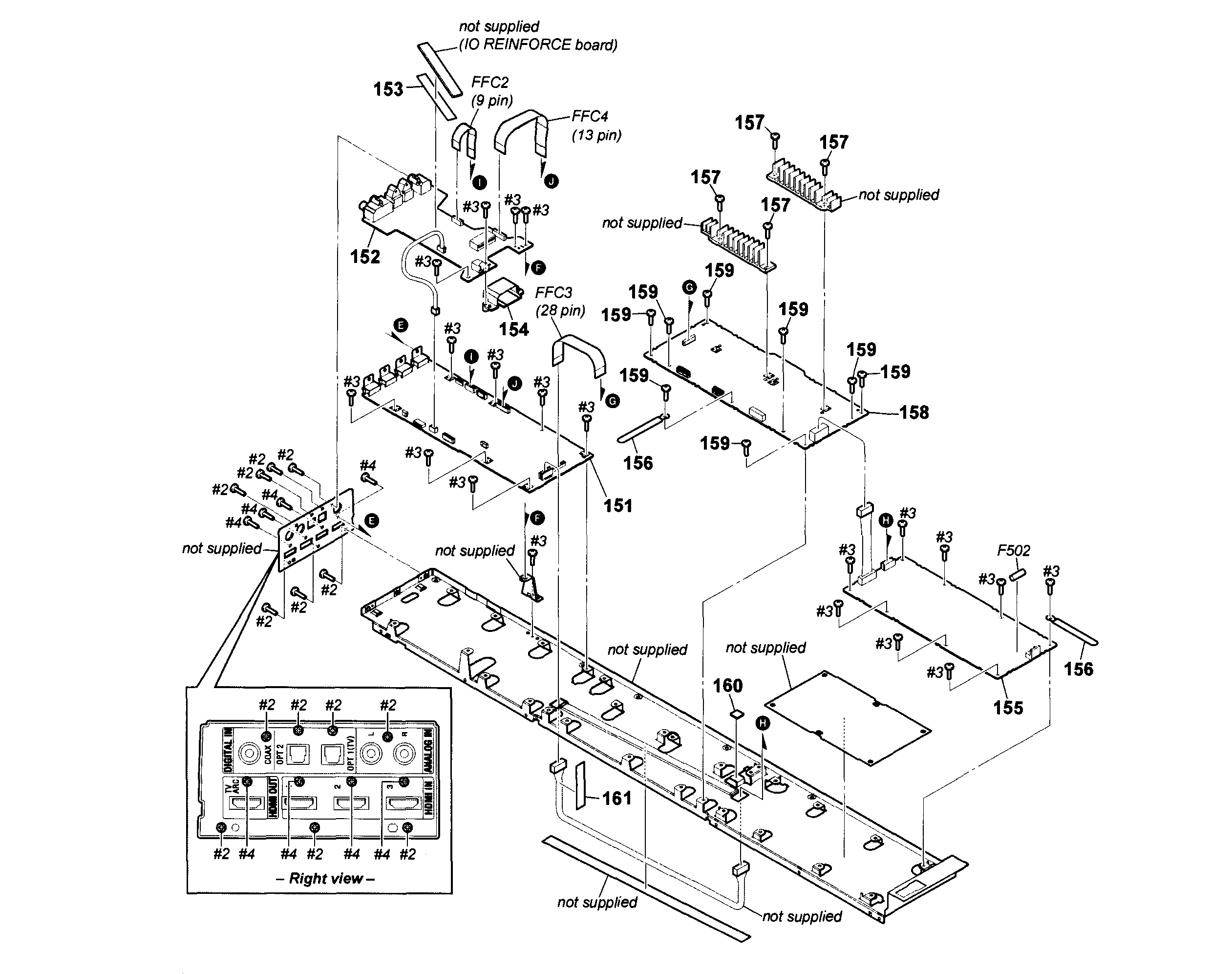

Pcb Io A1917931A
#152

Chassis diagram

Pcb io

Part #A1917931A

The manufacturer no longer makes this part, and there's no substitute part

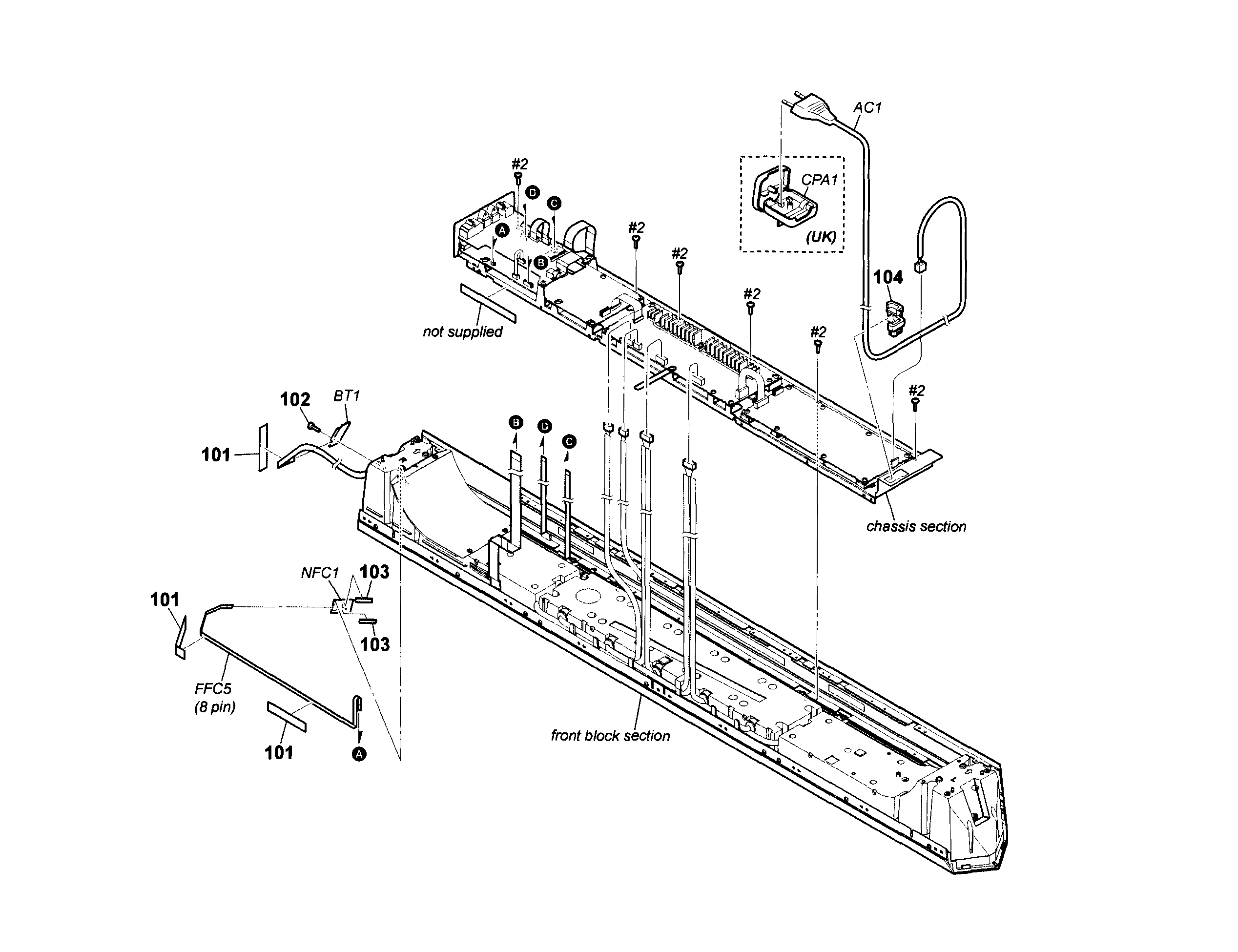

Bluetooth 149055861
#BT1

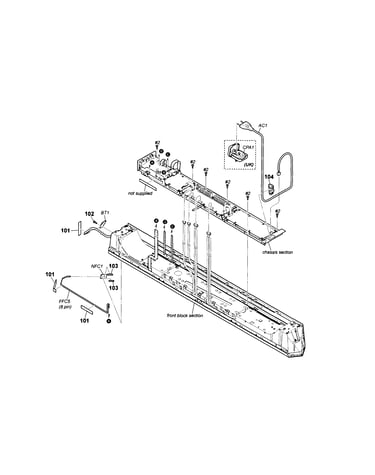

Power cord assy diagram

Bluetooth

Part #149055861

The manufacturer no longer makes this part, and there's no substitute part
