Microwave/Hood Combo

Model # PVM9179EK1ES Official GE microwave

Here are the diagrams and repair parts for Official GE PVM9179EK1ES microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

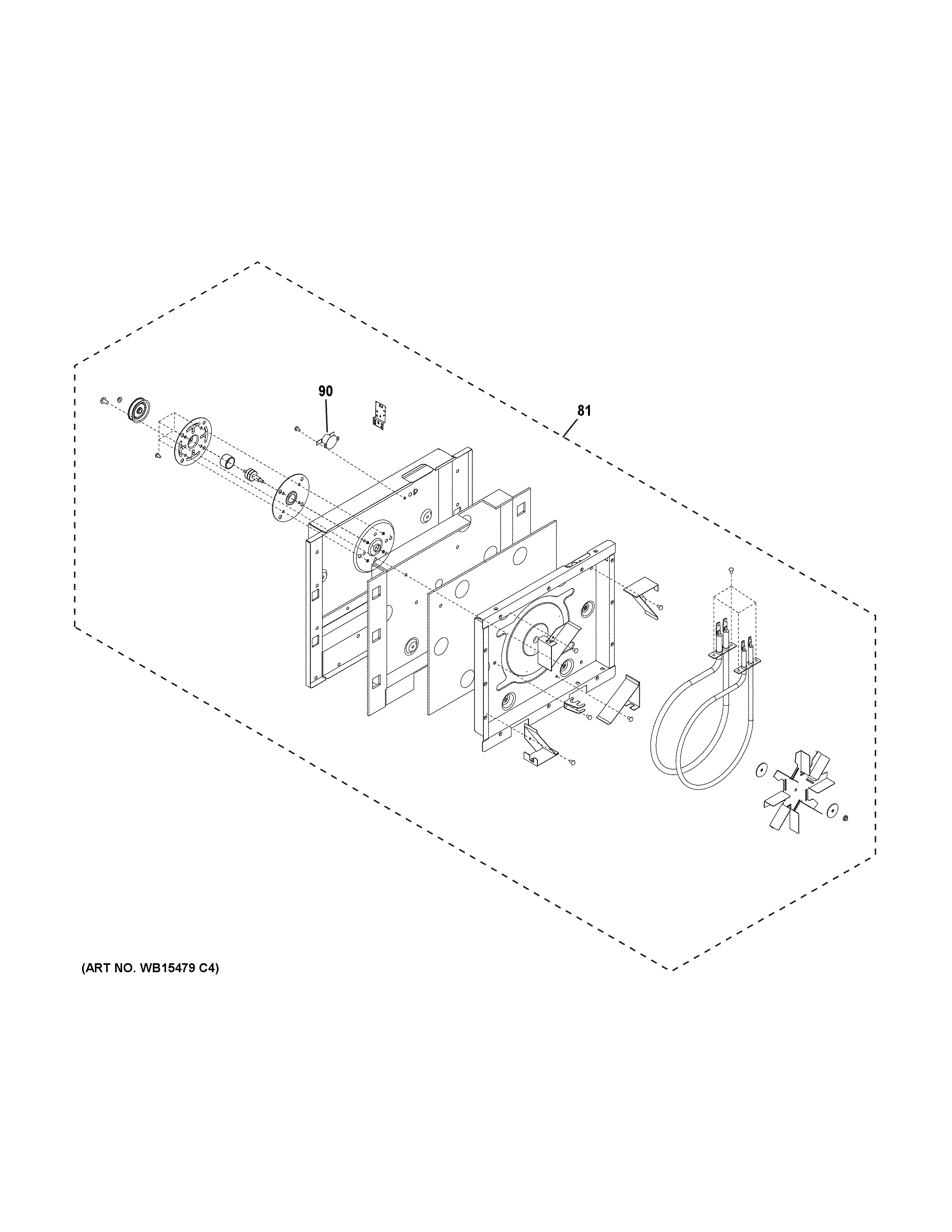

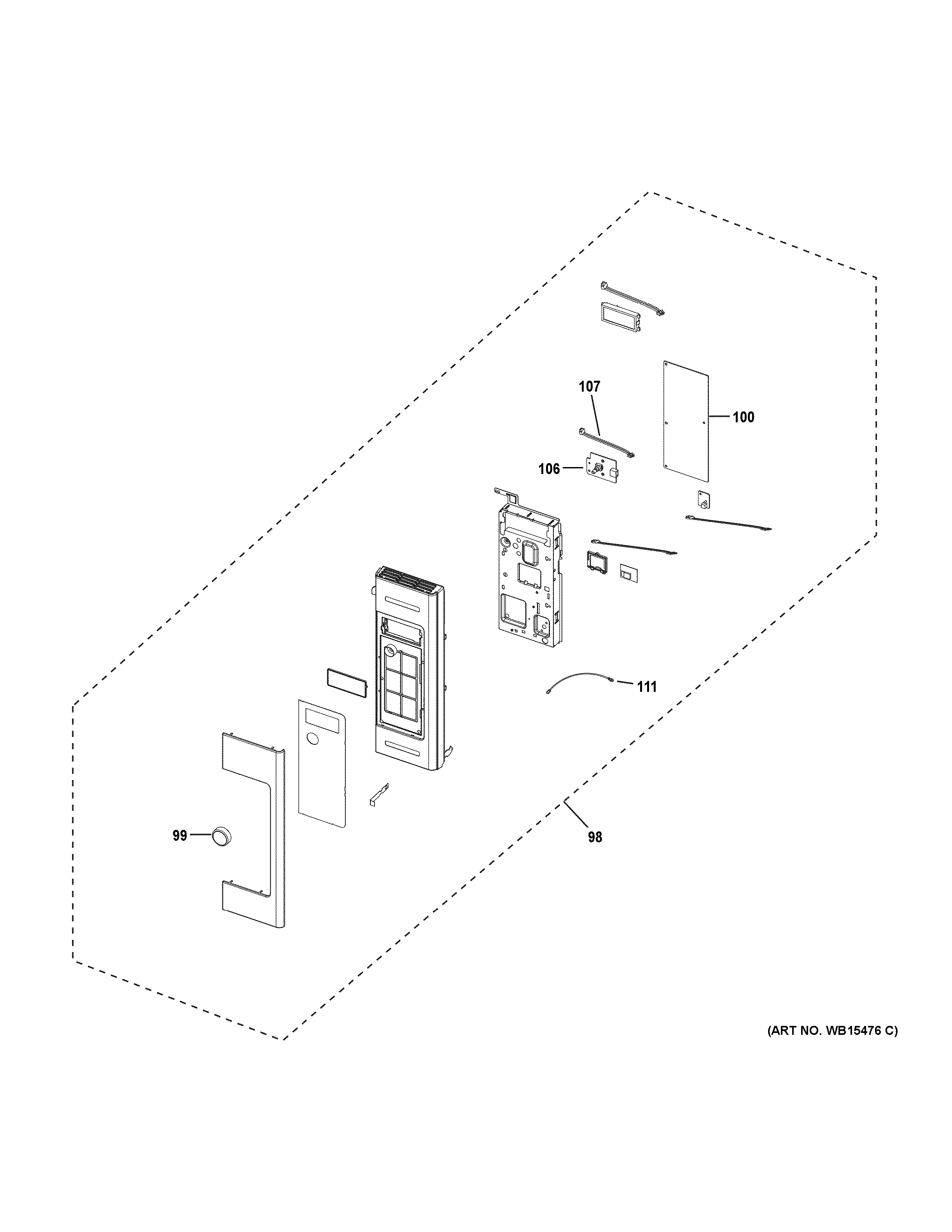

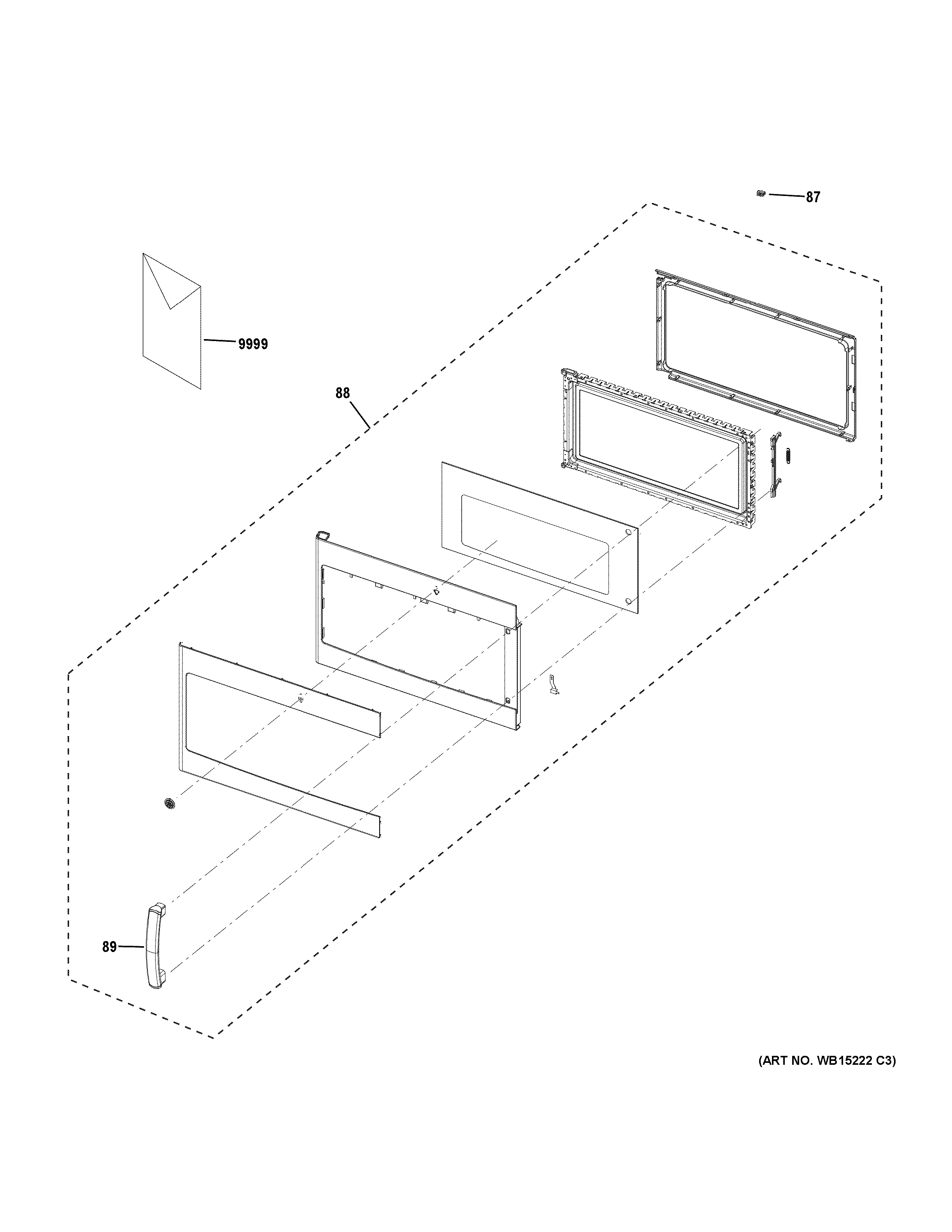

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |

Microwave Halogen Light Bulb WB36X10213
#7

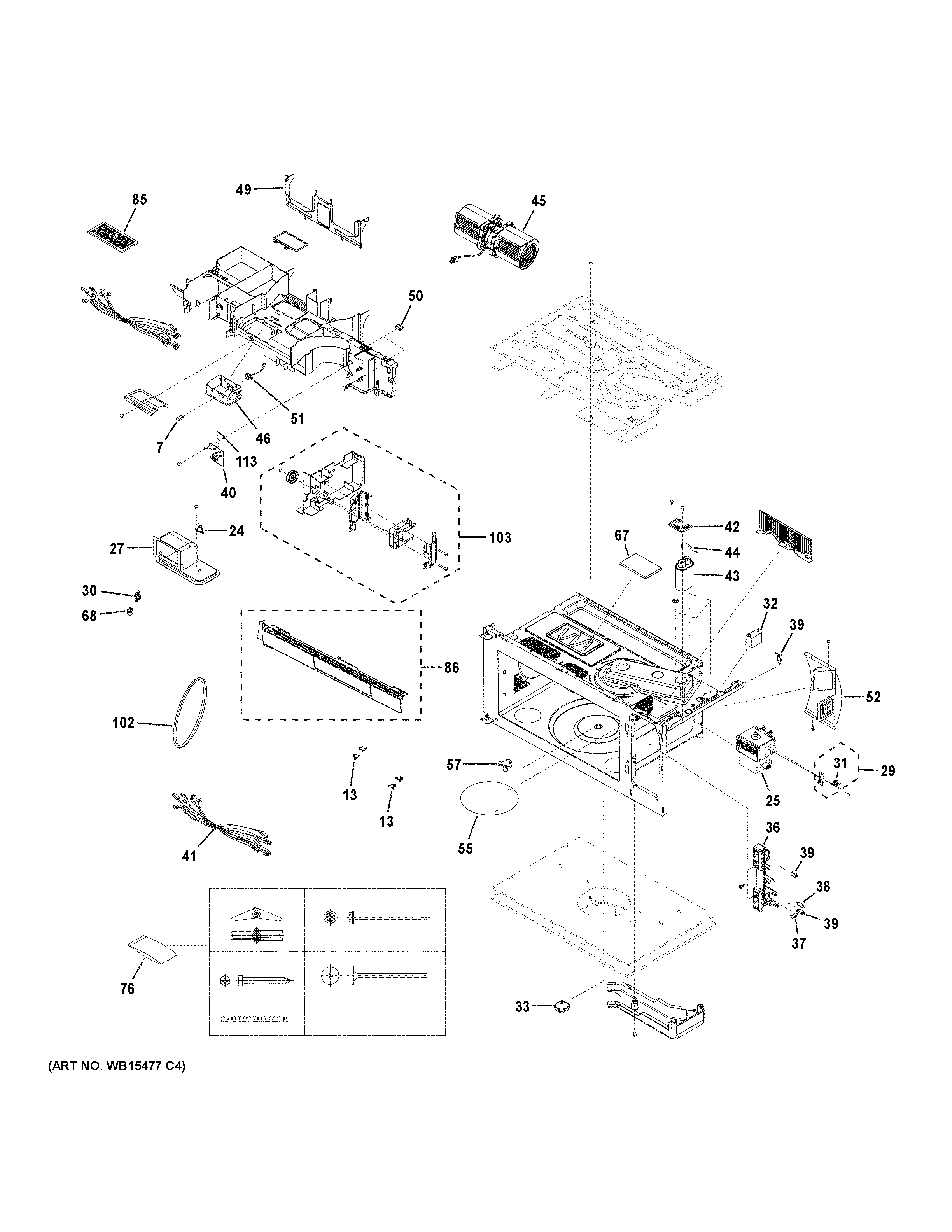

Oven cavity parts (1) diagram

Microwave halogen light bulb

Part #WB36X10213

BEST SELLER
$13.83
13% OFF Phone Price : $15.83
In Stock
Microwave Charcoal Filter (replaces Wb02x29749) WB02X11544
#85

Oven cavity parts (1) diagram

Microwave charcoal filter (replaces wb02x29749)

Part #WB02X11544

BEST SELLER
This item is not returnable
$28.28
15% OFF Phone Price : $33.28
In Stock
Fuse Cartridge WB27X10474
#113

Oven cavity parts (1) diagram

Fuse cartridge

Part #WB27X10474

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10474. Substitute parts can look different from the original.
BEST SELLER
$9.73
9% OFF Phone Price : $10.73
In Stock
Switch-micro WB24X10038
#39

Oven cavity parts (1) diagram

Switch-micro

Part #WB24X10038

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X10038. Substitute parts can look different from the original.
BEST SELLER
$33.20
13% OFF Phone Price : $38.20
In Stock
Microwave Surface Light Lens (replaces Wb36x945) WB36X10071
#9

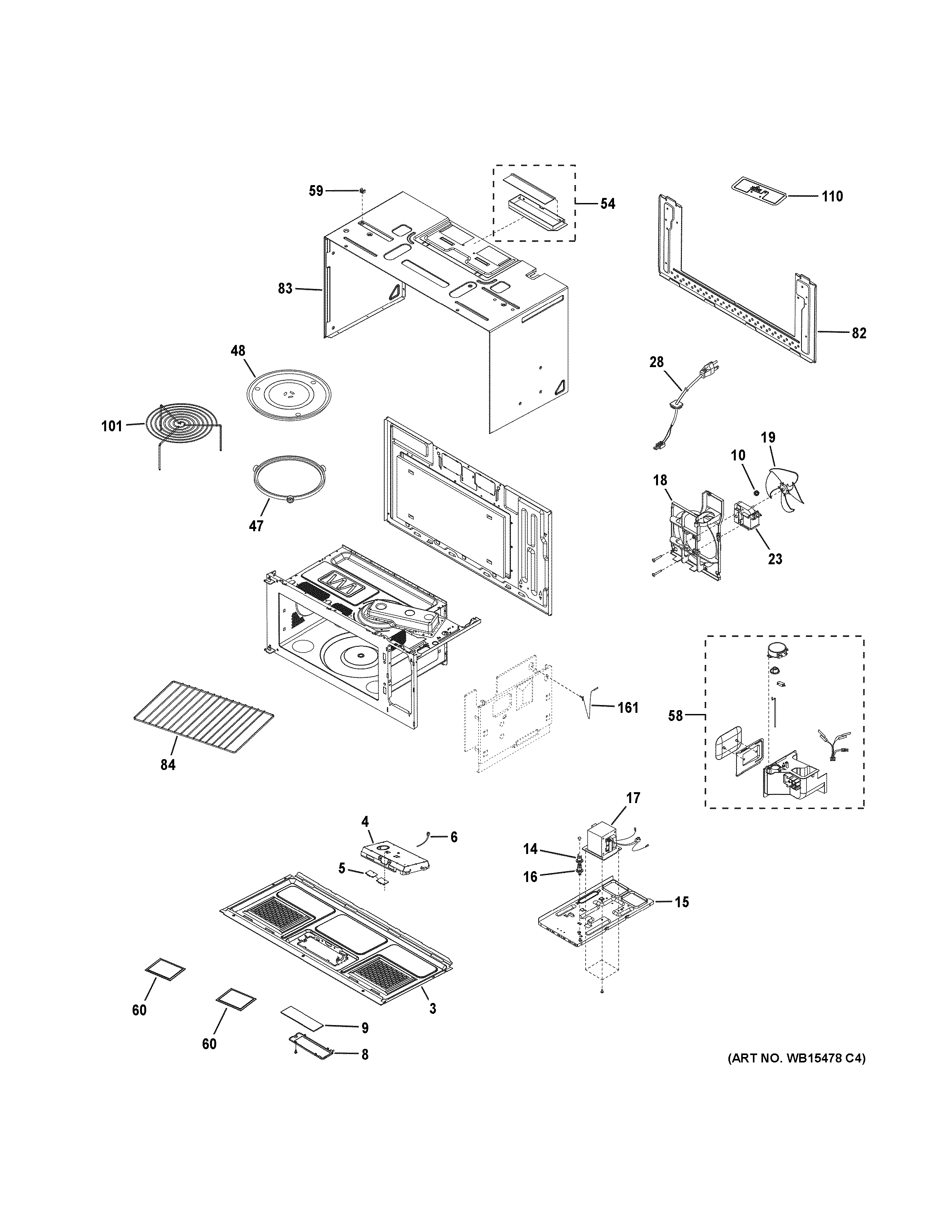

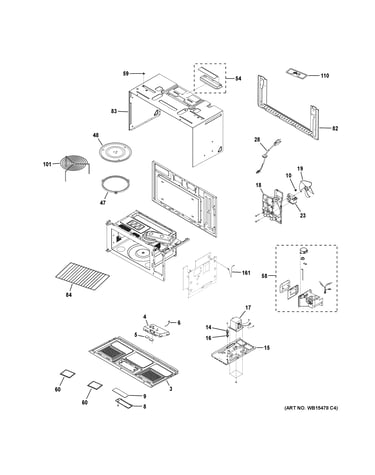

Oven cavity parts (2) diagram

Microwave surface light lens (replaces wb36x945)

Part #WB36X10071

This item is not returnable
$16.70
11% OFF Phone Price : $18.70
In Stock
Cooking Tray WB49X10002
#48

Oven cavity parts (2) diagram

Cooking tray

Part #WB49X10002

Replaced by #WB39X10003

?
Manufacturer substitution
This part replaces WB49X10002. Substitute parts can look different from the original.
$75.59
6% OFF Phone Price : $80.59
In Stock
Microwave Thermostat (replaces Wb27x0709) WB27X709
#16

Oven cavity parts (2) diagram

Microwave thermostat (replaces wb27x0709)

Part #WB27X709

This item is not returnable
$25.92
16% OFF Phone Price : $30.92
In Stock
Microwave Mounting Nut (replaces Wb1x10071) WB01X10071
#59

Oven cavity parts (2) diagram

Microwave mounting nut (replaces wb1x10071)

Part #WB01X10071

This item is not returnable
$7.06
12% OFF Phone Price : $8.06
In Stock
Microwave Thermal Cut-off WB21X10162
#14

Oven cavity parts (2) diagram

Microwave thermal cut-off

Part #WB21X10162

This item is not returnable
$9.77
9% OFF Phone Price : $10.77
In Stock
Microwave Light Lens Bracket WB36X10216
#8

Oven cavity parts (2) diagram

Microwave light lens bracket

Part #WB36X10216

$20.49
20% OFF Phone Price : $25.49
In Stock
