Craftsman
Electric Pressure Washer

Model # 580988390 Official Craftsman power washer

Here are the diagrams and repair parts for Official Craftsman 580988390 power washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |

Pressure Washer Gun 316299GS
#10

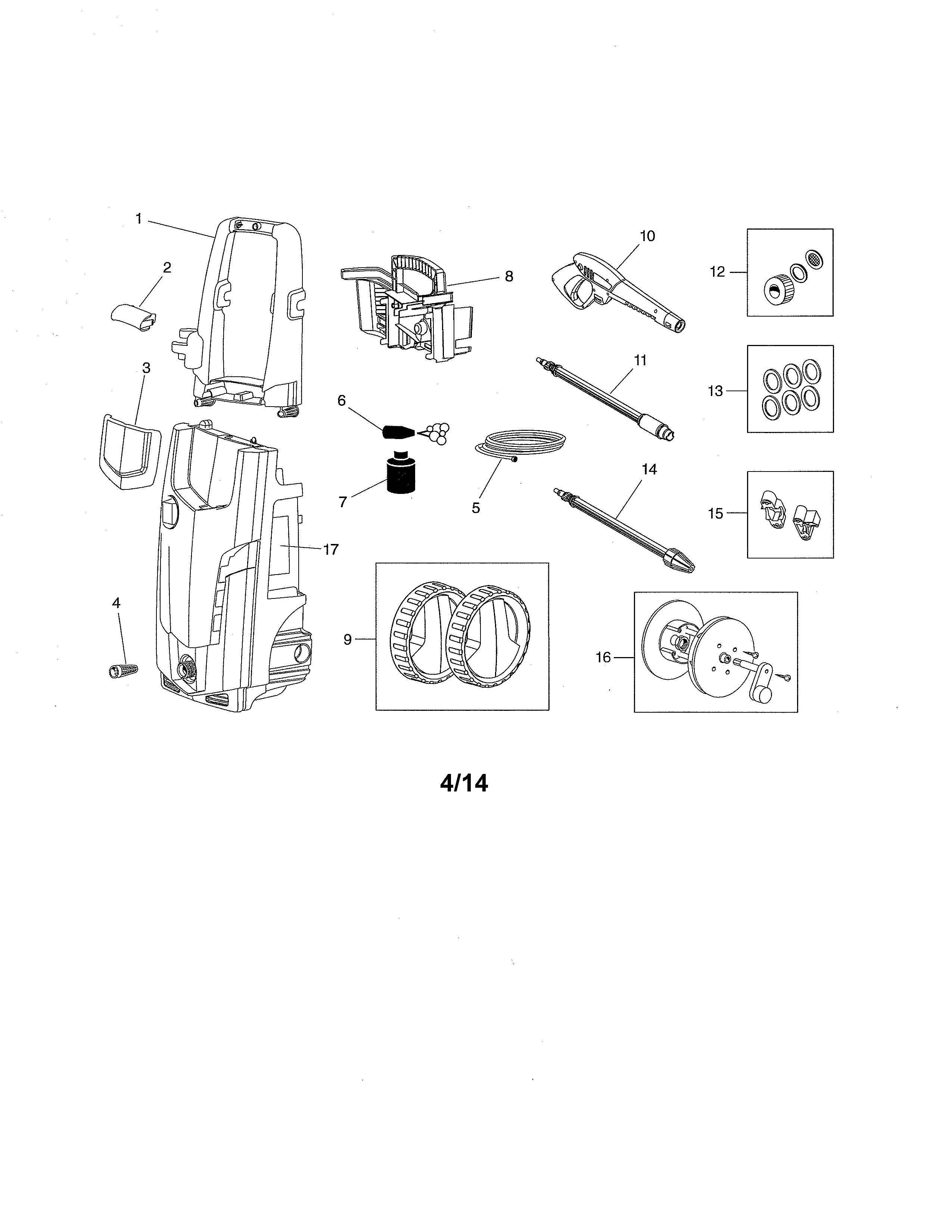

Electric pressure washer diagram

Pressure washer gun

Part #316299GS

$81.96
6% OFF Phone Price : $86.96
In Stock
Pressure Washer Hose Connector Kit 315957GS
#12

Electric pressure washer diagram

Pressure washer hose connector kit

Part #315957GS

$40.19
11% OFF Phone Price : $45.19
In Stock
Pressure Washer Wand 316044GS
#11

Electric pressure washer diagram

Pressure washer wand

Part #316044GS

$62.89
7% OFF Phone Price : $67.89
In Stock
Pressure Washer Water Inlet Screen 315963GS
#4

Electric pressure washer diagram

Pressure washer water inlet screen

Part #315963GS

$17.18
10% OFF Was : $19.09
In Stock
Hardware Kit 316397GS

#NI01

All parts diagram

Hardware kit

Part #316397GS

In Stock
Lawn Mower Handle Bracket 316245GS
#15

Electric pressure washer diagram

Lawn mower handle bracket

Part #316245GS

In Stock
Pressure Washer Handle Grip 316037GS
#2

Electric pressure washer diagram

Pressure washer handle grip

Part #316037GS

In Stock
Pressure Washer Water Hose 316034GS
#5

Electric pressure washer diagram

Pressure washer water hose

Part #316034GS

$101.39
9% OFF Phone Price : $111.39
In Stock
Pressure Washer Turbo Spray Nozzle (replaces 206371gs) 316298GS
#14

Electric pressure washer diagram

Pressure washer turbo spray nozzle (replaces 206371gs)

Part #316298GS

$60.29
8% OFF Phone Price : $65.29
In Stock
Decal 317362GS

#NI02

All parts diagram

Decal

Part #317362GS

In Stock
