Model # LC19EM82 Official Emerson lcd television

Here are the diagrams and repair parts for Official Emerson LC19EM82 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Diode QDTB00MTZJ33
#NI

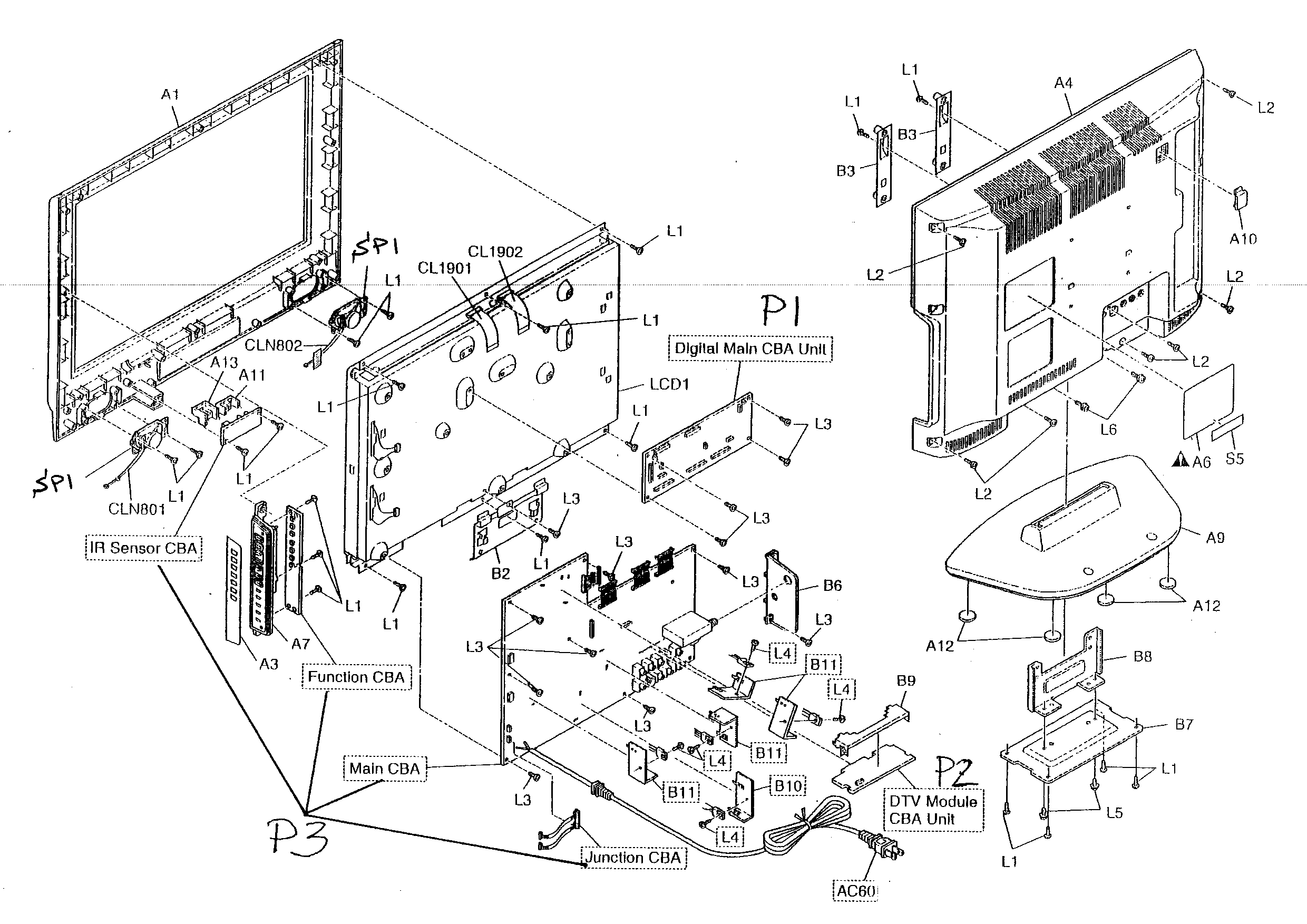

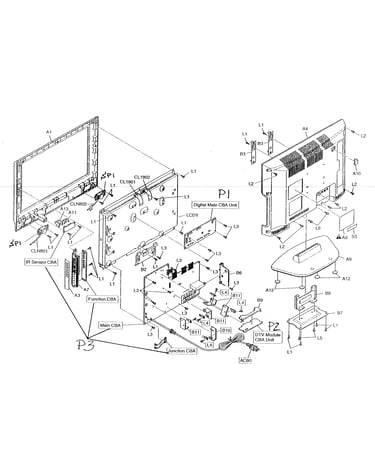

Cabinet assy diagram

Diode

Part #QDTB00MTZJ33

The manufacturer no longer makes this part, and there's no substitute part

Voltage Regulator QSZBA0SSH054
#NI

Cabinet assy diagram

Voltage regulator

Part #QSZBA0SSH054

The manufacturer no longer makes this part, and there's no substitute part

Television Ir Sensor USESJRSKK044
#NI

Cabinet assy diagram

Television ir sensor

Part #USESJRSKK044

The manufacturer no longer makes this part, and there's no substitute part

Inverter LTZ3PC0MS001
#NI

Cabinet assy diagram

Inverter

Part #LTZ3PC0MS001

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Fr 1EM021786
#A1

Cabinet assy diagram

Cabinet fr

Part #1EM021786

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit NPECLTV817MF
#NI

Cabinet assy diagram

Integrated circuit

Part #NPECLTV817MF

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Rr 1EM021787
#A4

Cabinet assy diagram

Cabinet rr

Part #1EM021787

The manufacturer no longer makes this part, and there's no substitute part

Tuner UTUNATSSP001
#NI

Cabinet assy diagram

Tuner

Part #UTUNATSSP001

The manufacturer no longer makes this part, and there's no substitute part

Lcd Module UG190XA
#LCD1

Cabinet assy diagram

Lcd module

Part #UG190XA

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit NSZBA0SJY041
#NI

Cabinet assy diagram

Integrated circuit

Part #NSZBA0SJY041

The manufacturer no longer makes this part, and there's no substitute part
