Dacor
Gas Cooktop

Model # DRT304SLP Official Dacor cooktop

Here are the diagrams and repair parts for Official Dacor DRT304SLP cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Cooking Appliance Screw 83708
#4

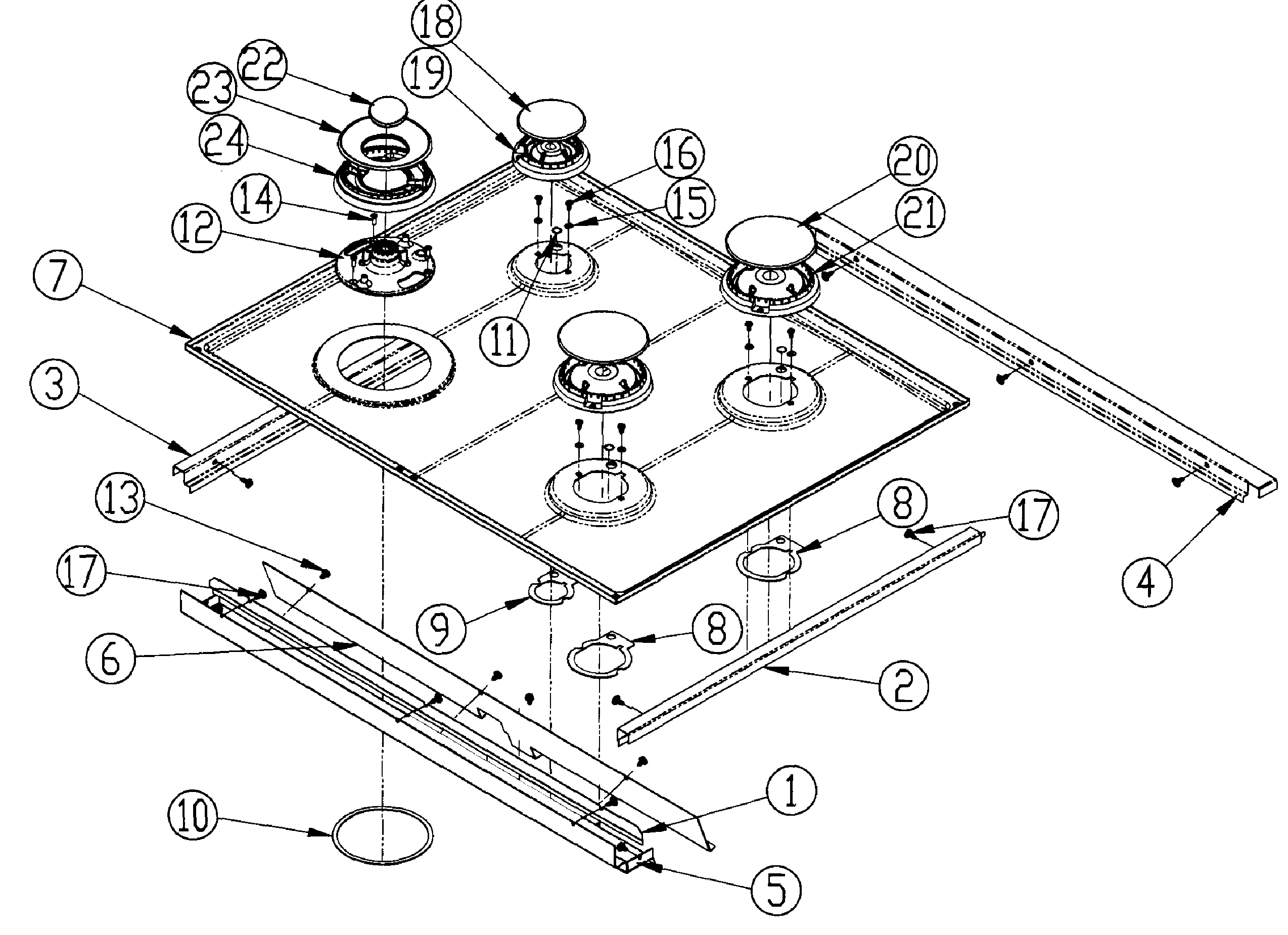

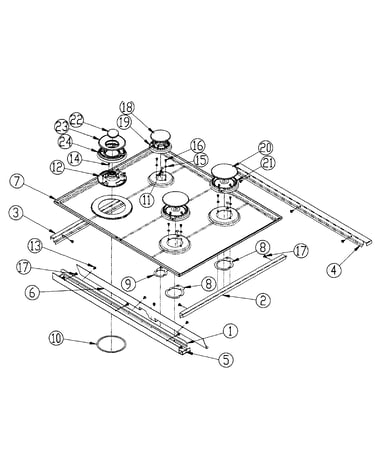

Upper cooktop diagram

Cooking appliance screw

Part #83708

This item is not returnable
$2.16
In Stock
Outer Cap 102586
#23

Upper cooktop diagram

Outer cap

Part #102586

$16.49
In Stock
Inner Cap 102585
#22

Upper cooktop diagram

Inner cap

Part #102585

This item is not returnable
$7.49
In Stock
Screw 83709
#4

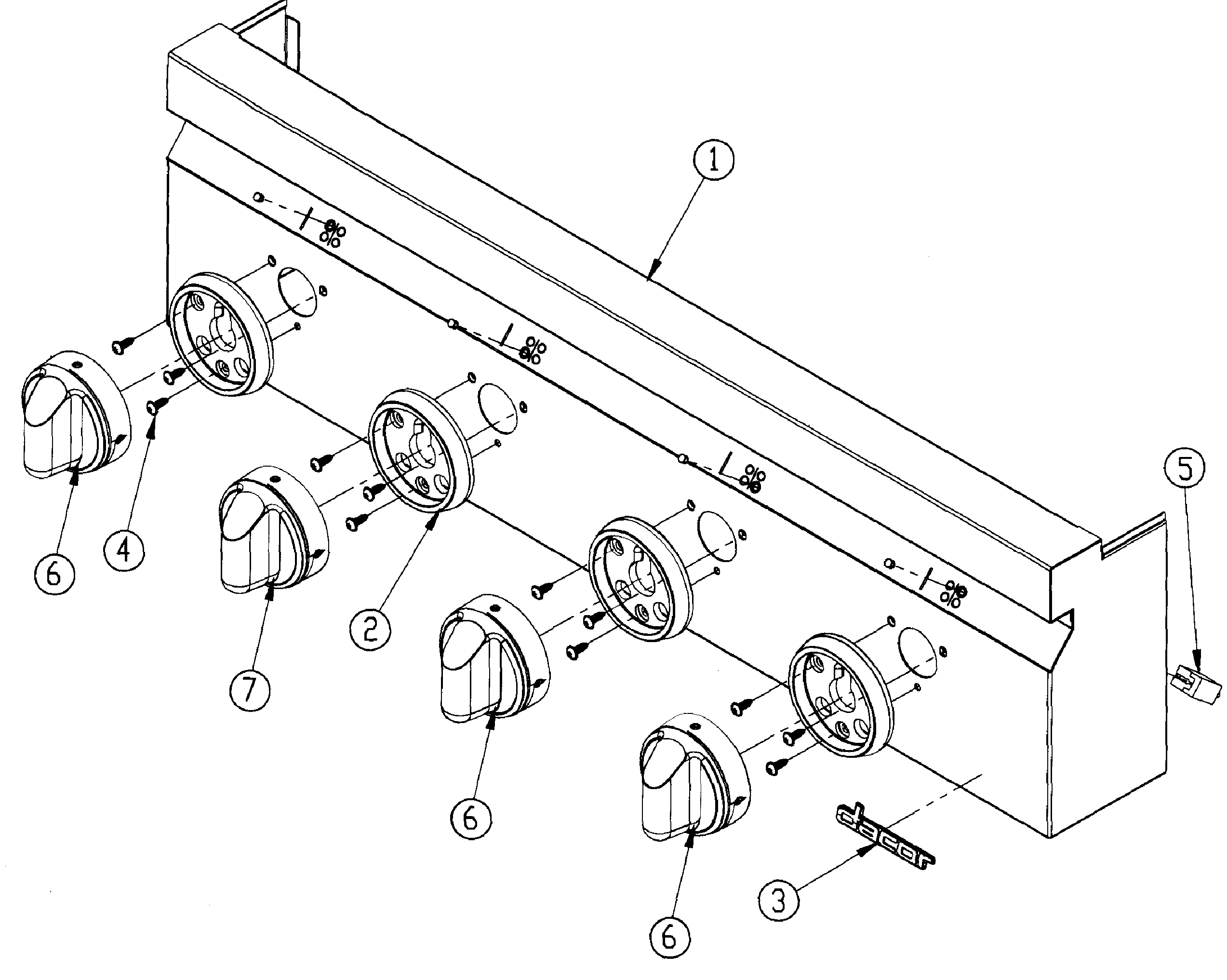

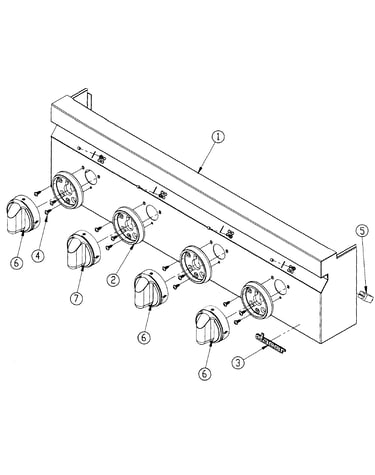

Control panel diagram

Screw

Part #83709

This item is not returnable
$2.16
In Stock
Nut 83308
#6

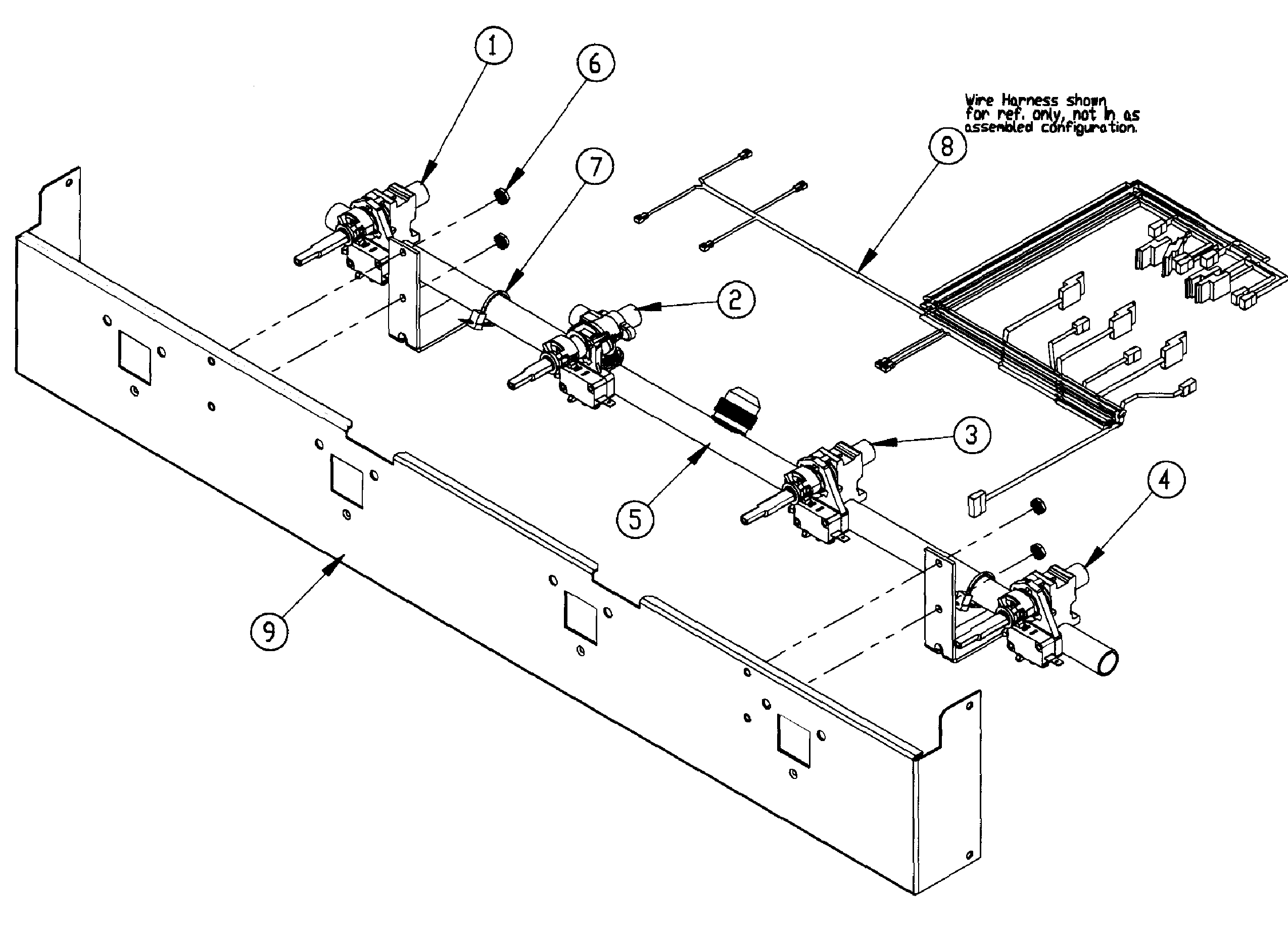

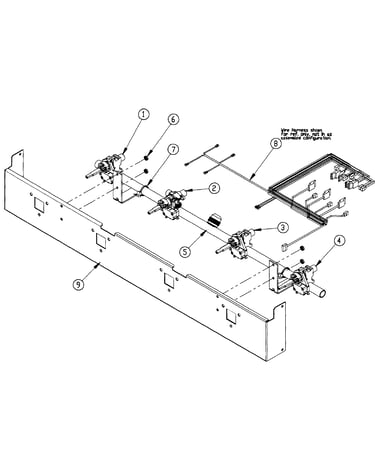

Manifold diagram

Nut

Part #83308

This item is not returnable
$2.16
In Stock
Manifold 701241-02
#5

Manifold diagram

Manifold

Part #701241-02

$323.99
In Stock
Range Surface Burner Cap 102590
#20

Upper cooktop diagram

Range surface burner cap

Part #102590

$11.99
In Stock
Support 100975
#5

Upper cooktop diagram

Support

Part #100975

$43.99
In Stock
Range Surface Burner Gasket 103552
#8

Upper cooktop diagram

Range surface burner gasket

Part #103552

This item is not returnable
$3.49
In Stock
Washer 83533
#12

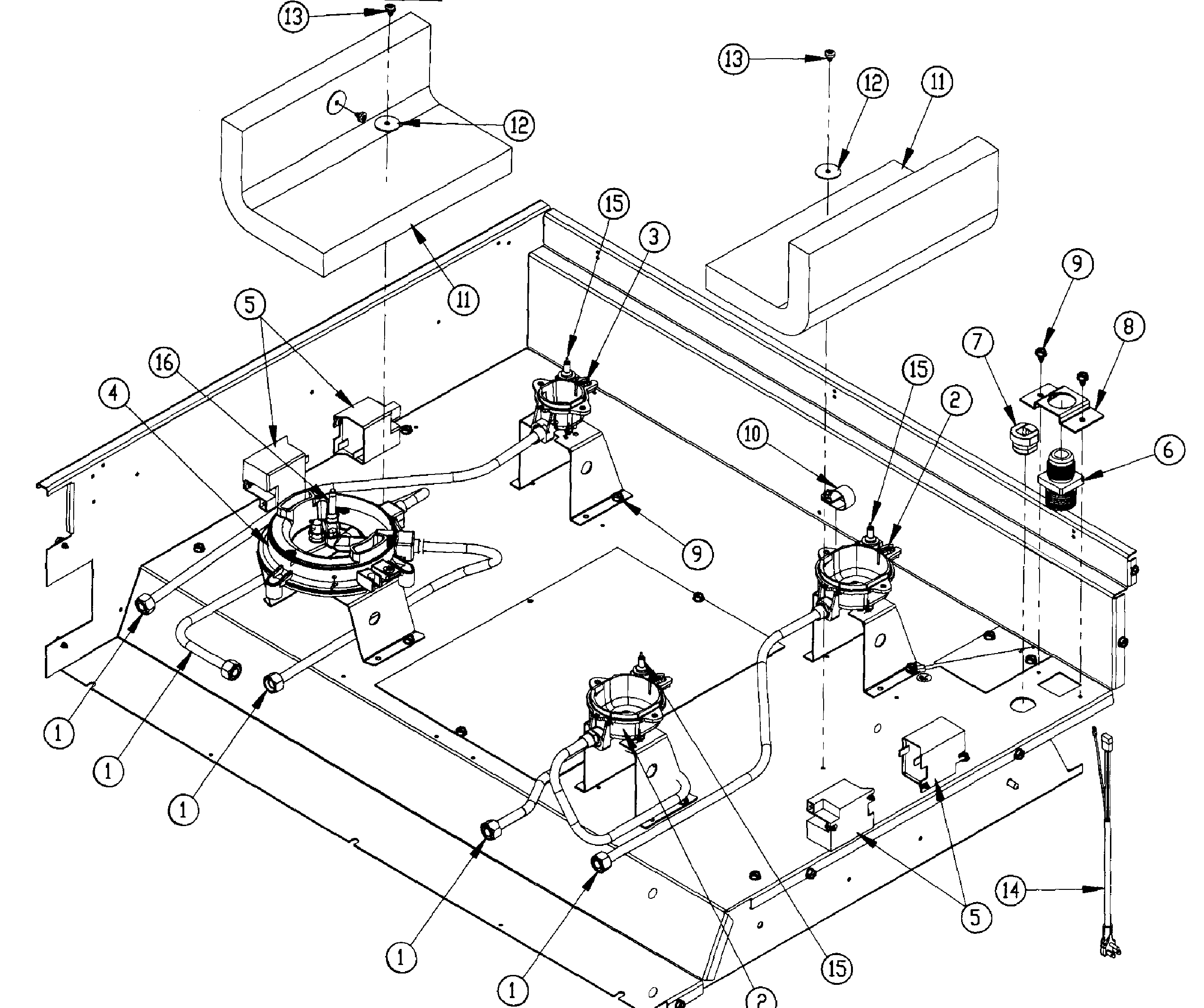

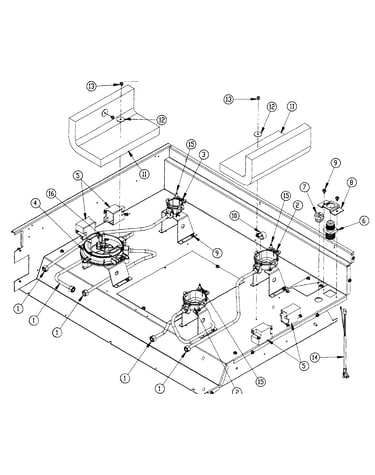

Sub cooktop diagram

Washer

Part #83533

This item is not returnable
$2.16
In Stock
