Model # 315116271 Official Craftsman palm grip finishing sander

Here are the diagrams and repair parts for Official Craftsman 315116271 palm grip finishing sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

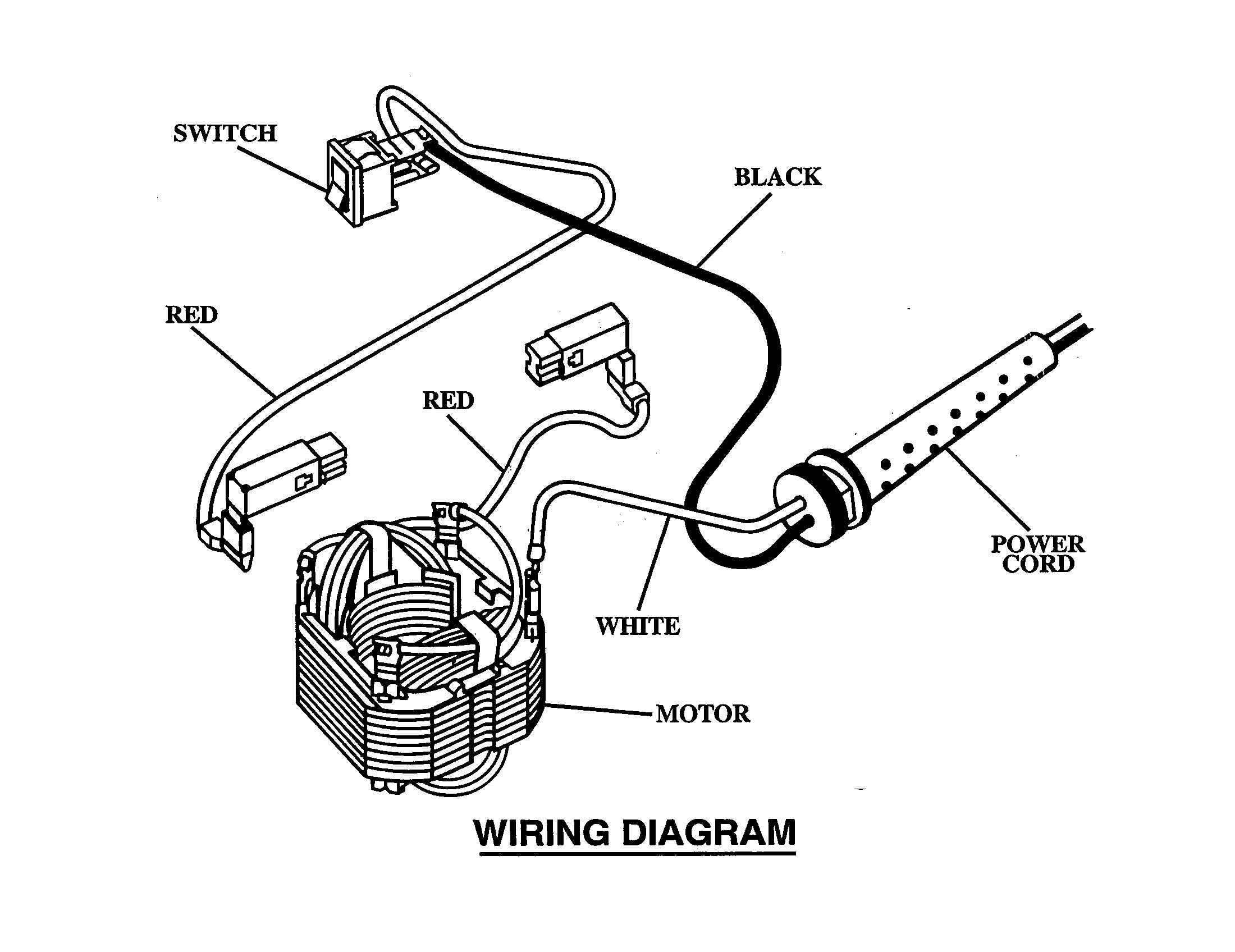

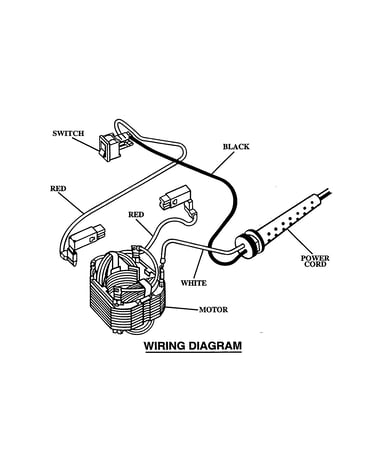

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Ball Brg 989377-004
#15

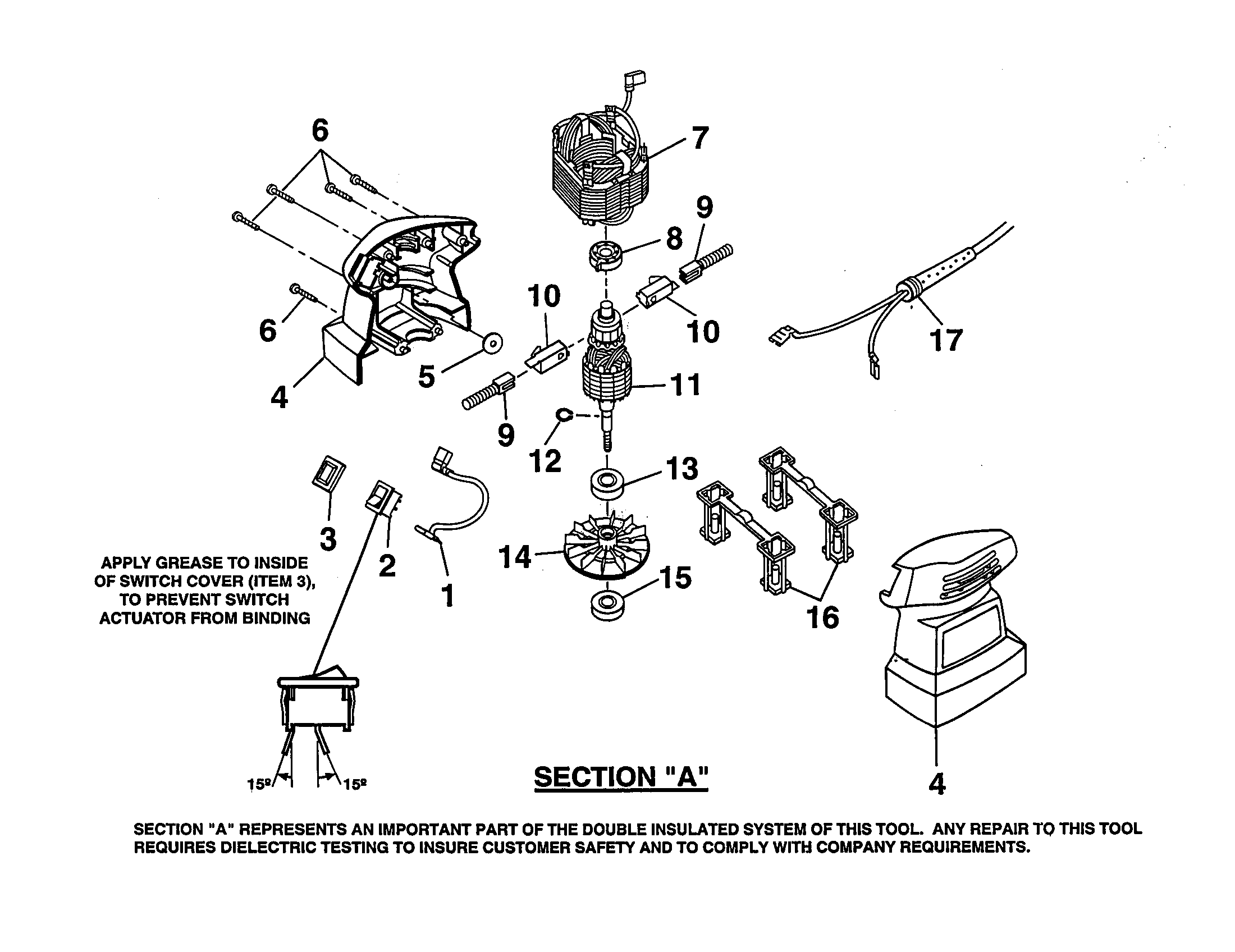

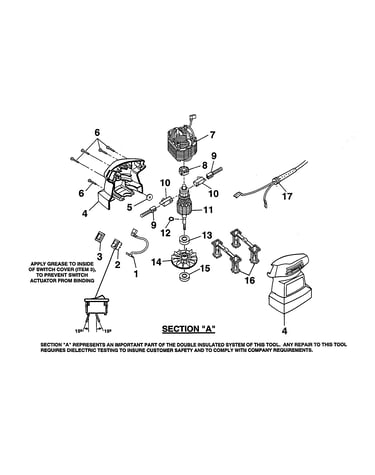

Housing and brush diagram

Ball brg

Part #989377-004

The manufacturer no longer makes this part, and there's no substitute part

Post 973731-001
#16

Housing and brush diagram

Post

Part #973731-001

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 622167-014
#12

Housing and brush diagram

Retaining ring

Part #622167-014

The manufacturer no longer makes this part, and there's no substitute part

Field 971875-002
#7

Housing and brush diagram

Field

Part #971875-002

The manufacturer no longer makes this part, and there's no substitute part

Armature 989933-038
#11

Housing and brush diagram

Armature

Part #989933-038

The manufacturer no longer makes this part, and there's no substitute part

Retainer 974485-001
#6

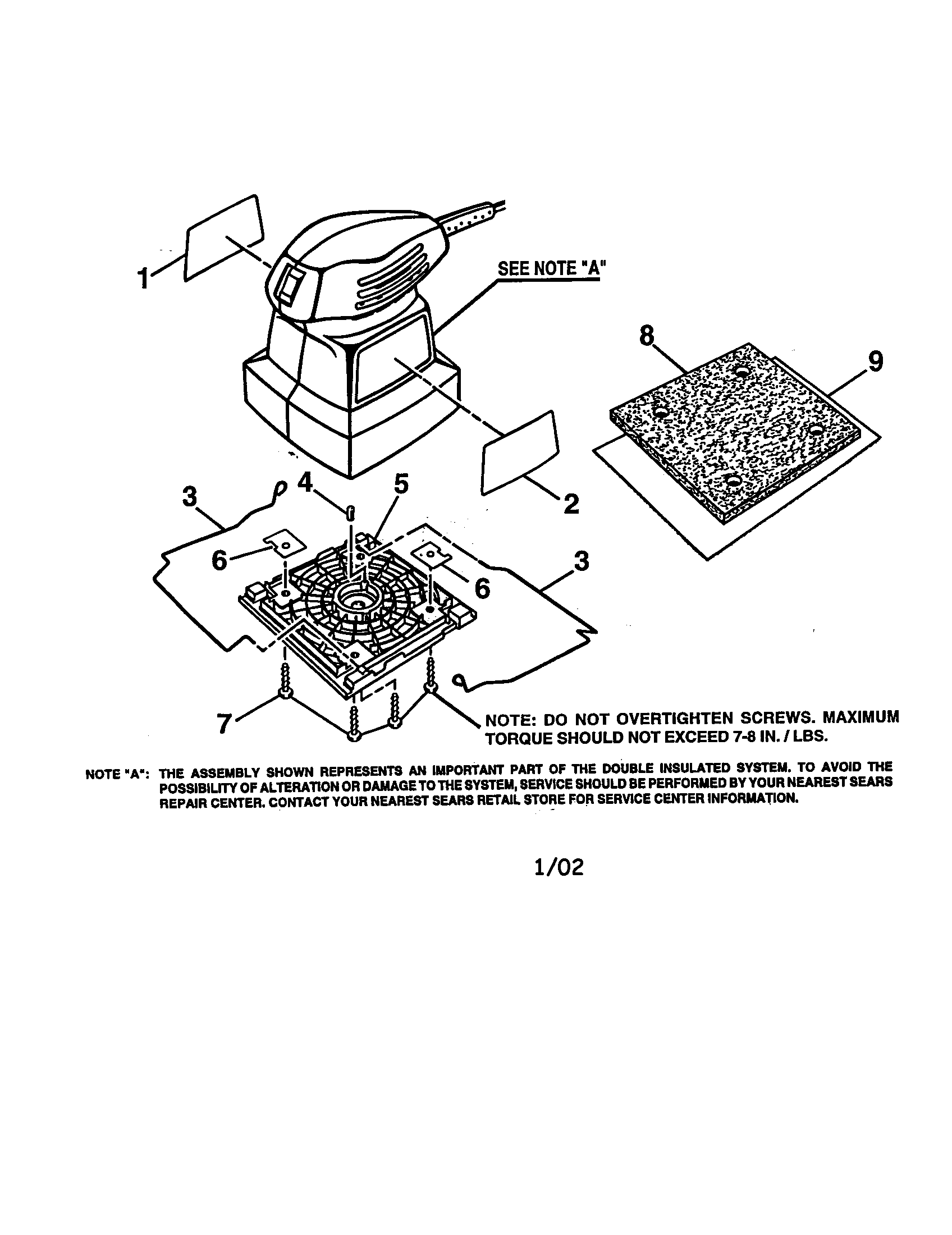

Sandpaper/cushion/paper clamp diagram

Retainer

Part #974485-001

The manufacturer no longer makes this part, and there's no substitute part

Red Lead 971785-006
#1

Housing and brush diagram

Red lead

Part #971785-006

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 980438-001
#2

Sandpaper/cushion/paper clamp diagram

Logo plate

Part #980438-001

The manufacturer no longer makes this part, and there's no substitute part

Fan 973765-001
#14

Housing and brush diagram

Fan

Part #973765-001

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 982584-001
#1

Sandpaper/cushion/paper clamp diagram

Data plate

Part #982584-001

The manufacturer no longer makes this part, and there's no substitute part
