Craftsman
Drill/Driver

Model # 315115240 Official Craftsman drill/driver

Here are the diagrams and repair parts for Official Craftsman 315115240 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

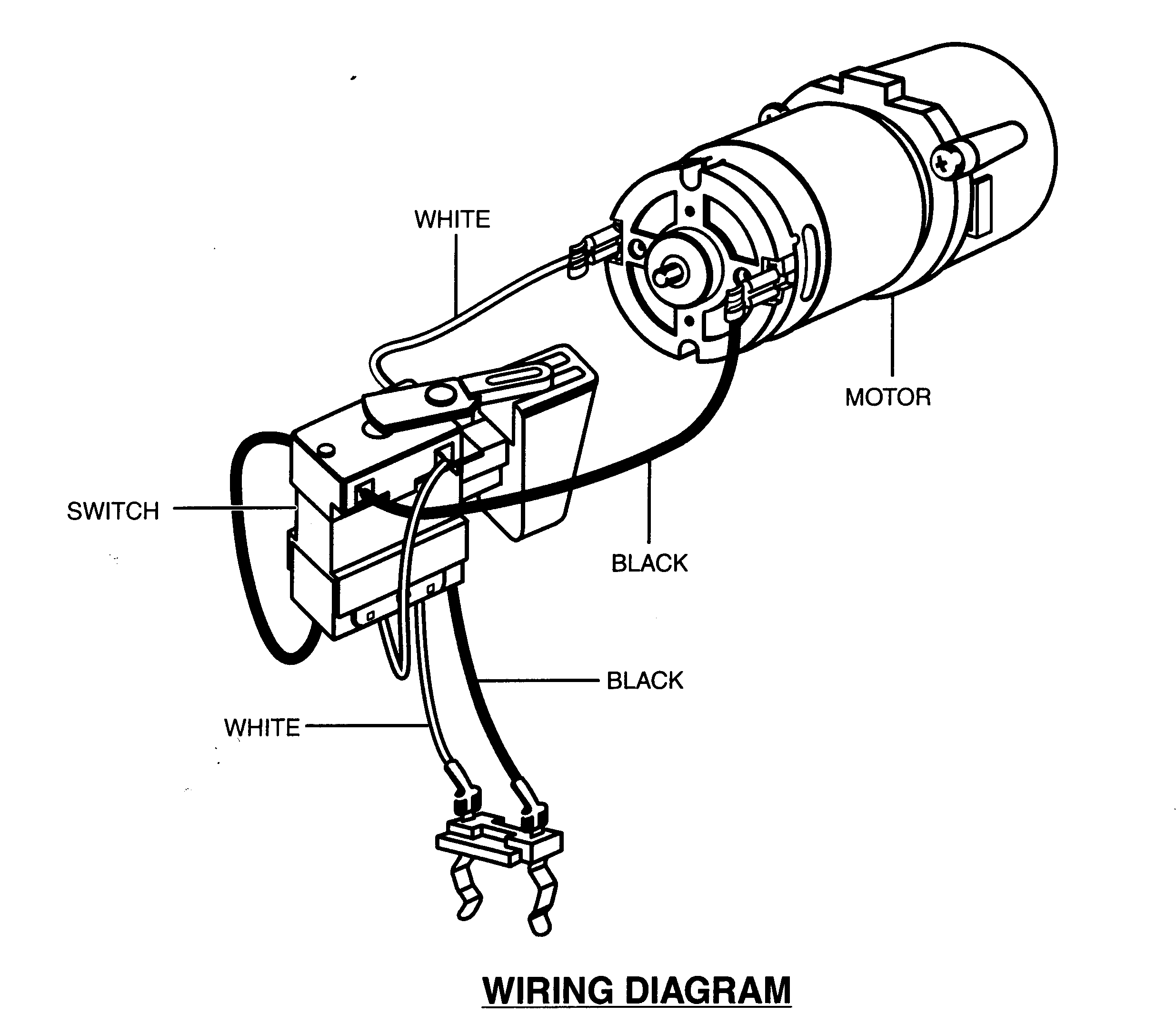

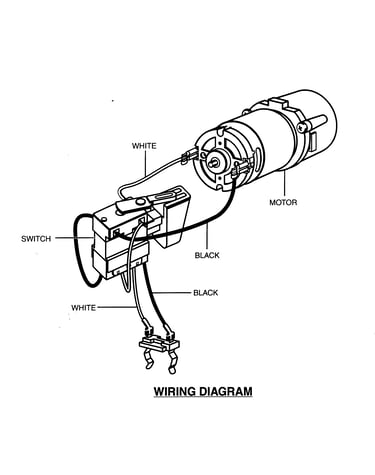

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Selector 341996001
#17

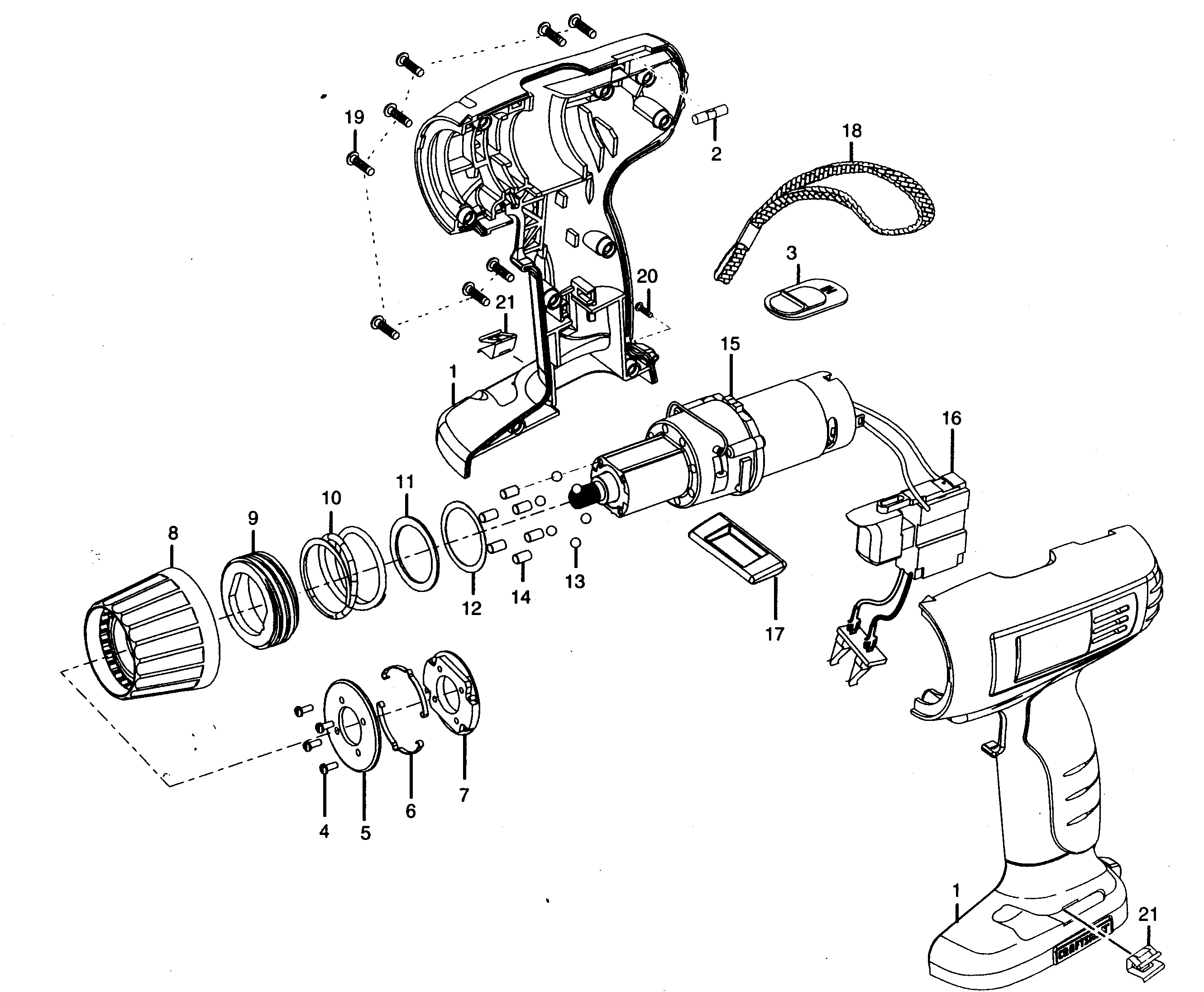

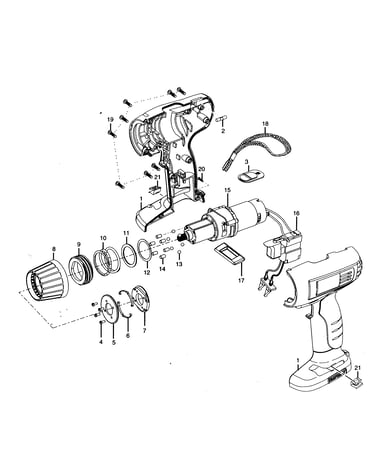

Housing assy diagram

Selector

Part #341996001

The manufacturer no longer makes this part, and there's no substitute part

Wrist Strap 900027025
#18

Housing assy diagram

Wrist strap

Part #900027025

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 5437201
#9

Housing assy diagram

Sleeve

Part #5437201

The manufacturer no longer makes this part, and there's no substitute part

Drill Chuck Screw 6613402
#1

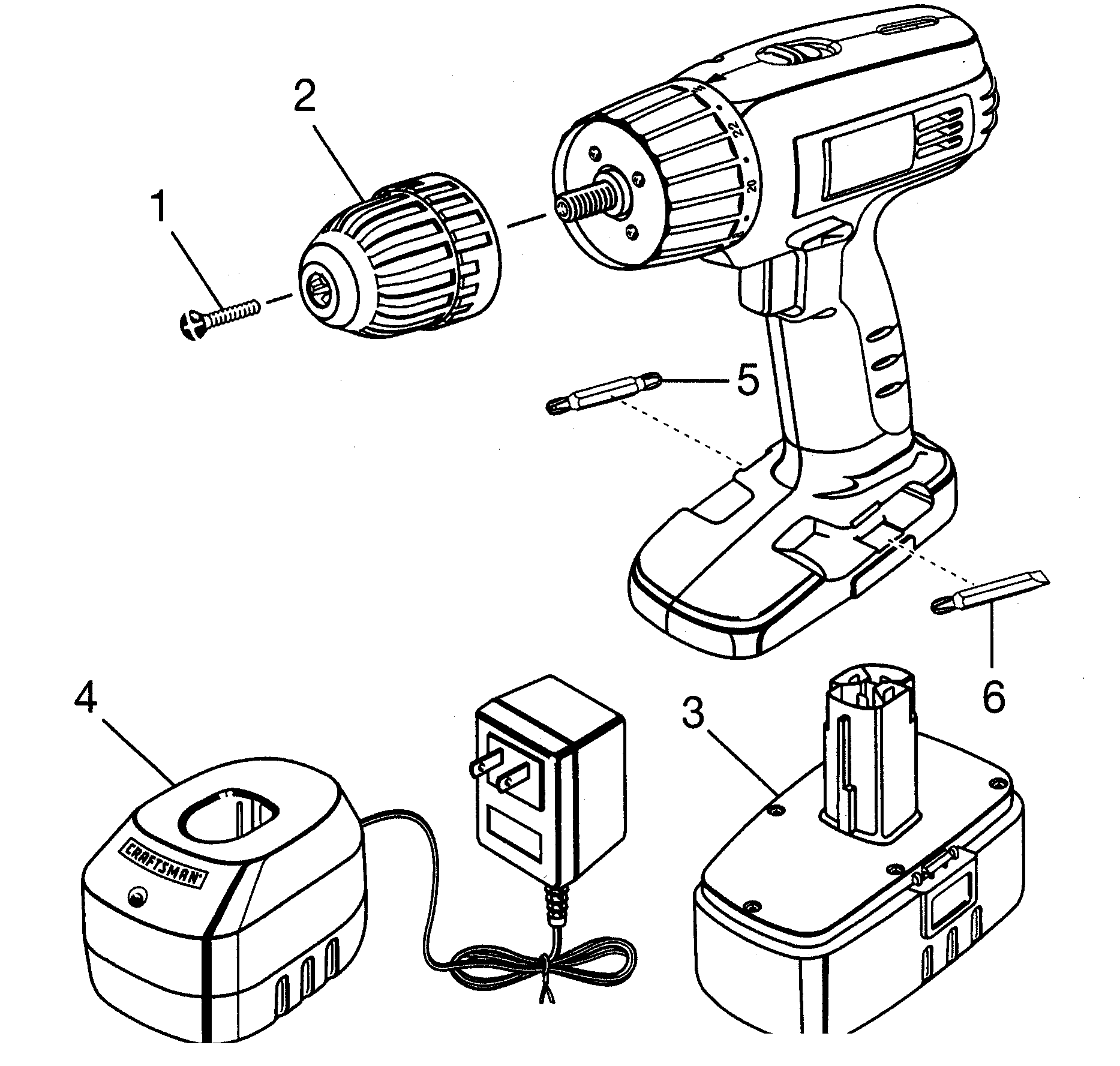

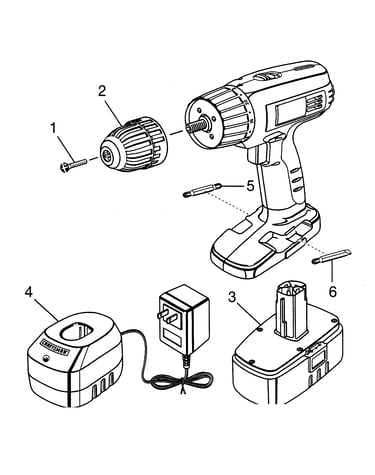

Drill diagram

Drill chuck screw

Part #6613402

The manufacturer no longer makes this part, and there's no substitute part

Screw 6620805
#19

Housing assy diagram

Screw

Part #6620805

The manufacturer no longer makes this part, and there's no substitute part

Washer 6711101
#11

Housing assy diagram

Washer

Part #6711101

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Steel Ball 6721901
#13

Housing assy diagram

Power tool steel ball

Part #6721901

The manufacturer no longer makes this part, and there's no substitute part

Drill Level 3000909
#2

Housing assy diagram

Drill level

Part #3000909

The manufacturer no longer makes this part, and there's no substitute part

Bit 6782108
#5

Drill diagram

Bit

Part #6782108

The manufacturer no longer makes this part, and there's no substitute part

Motor With Gear 200293024
#15

Housing assy diagram

Motor with gear

Part #200293024

The manufacturer no longer makes this part, and there's no substitute part
