LG LP120HED package unit Parts
Here are the diagrams and repair parts for LG LP120HED package unit, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for LP120HED Package Unit

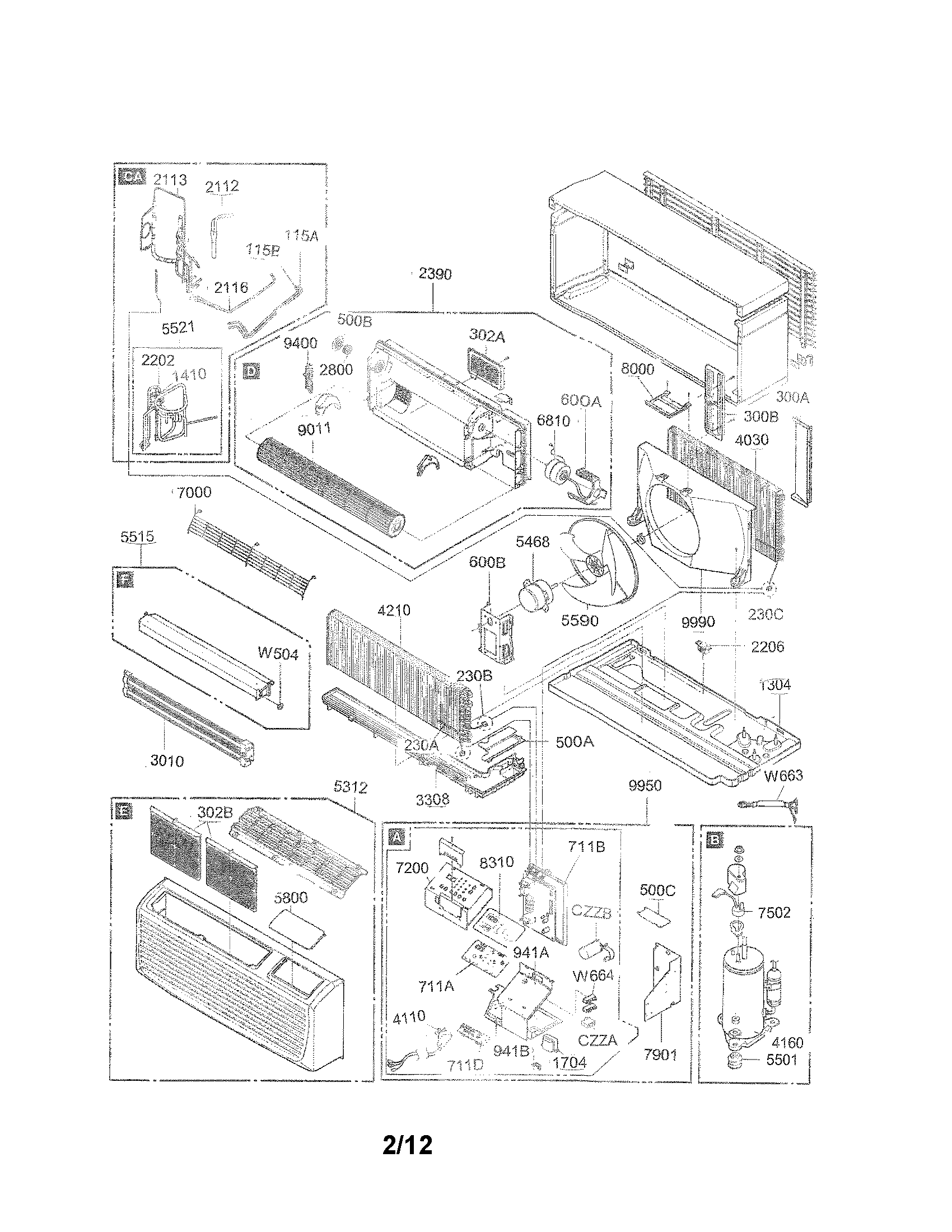

Exploded view parts diagram
Capacitor
In Stock$68.22
Qty
Exploded view parts diagram
Cover
Part #3550A30111AThis item is not returnableIn Stock$29.66QtyExploded view parts diagram
Metal Mesh
Part #3700A20009BReplaced by #3700A20009D
Manufacturer substitutionThis part replaces 3700A20009B. Substitute parts can look different from the original.In Stock$51.99QtyExploded view parts diagram
Room Air Conditioner Front Grille Assembly
Part #3531A10149DReplaced by #3531A10149J
Manufacturer substitutionThis part replaces 3531A10149D. Substitute parts can look different from the original.In Stock$198.90QtyExploded view parts diagram
Room Air Conditioner Blower Wheel Bearing
Part #4280A20004AReplaced by #4280A20004M
Manufacturer substitutionThis part replaces 4280A20004A. Substitute parts can look different from the original.This item is not returnableIn Stock$9.0210% OFF Phone Price : $10.02
QtyExploded view parts diagram
Room Air Conditioner Power Cord
Part #6411A20048MReplaced by #EAD63469601
Manufacturer substitutionThis part replaces 6411A20048M. Substitute parts can look different from the original.In Stock$159.517% OFF Phone Price : $171.51QtyExploded view parts diagram
Thermistor
Part #6323A20006CReplaced by #EBG61108912
Manufacturer substitutionThis part replaces 6323A20006C. Substitute parts can look different from the original.In Stock$38.2514% OFF Phone Price : $44.25QtyExploded view parts diagram
Friedrich Room Air Conditioner Fan Bracket
Part #4960A20005AReplaced by #4960A20005E
Manufacturer substitutionThis part replaces 4960A20005A. Substitute parts can look different from the original.In Stock$45.84QtyExploded view parts diagram
Room Air Conditioner Display Board
Part #6871A00085A
The manufacturer no longer makes this part, and there's no substitute part
Exploded view parts diagram
Shroud
Part #4999A20004A
The manufacturer no longer makes this part, and there's no substitute part
