Sharp R-23ES microwave Parts
Here are the diagrams and repair parts for Sharp R-23ES microwave, as well as links to manuals and error code tables, if available.

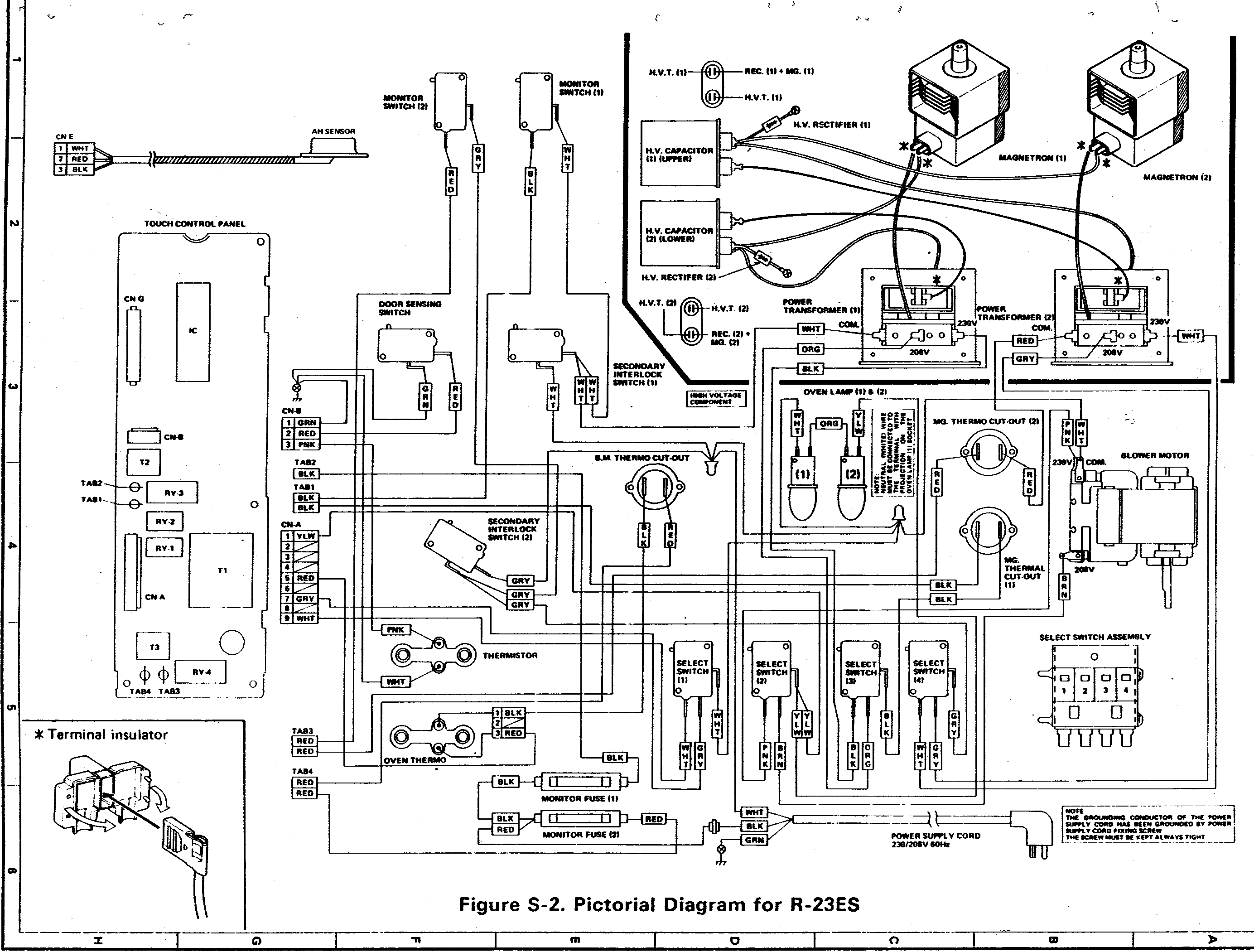

By Schematic
SELECT DIAGRAM
Browse Parts for R-23ES Microwave

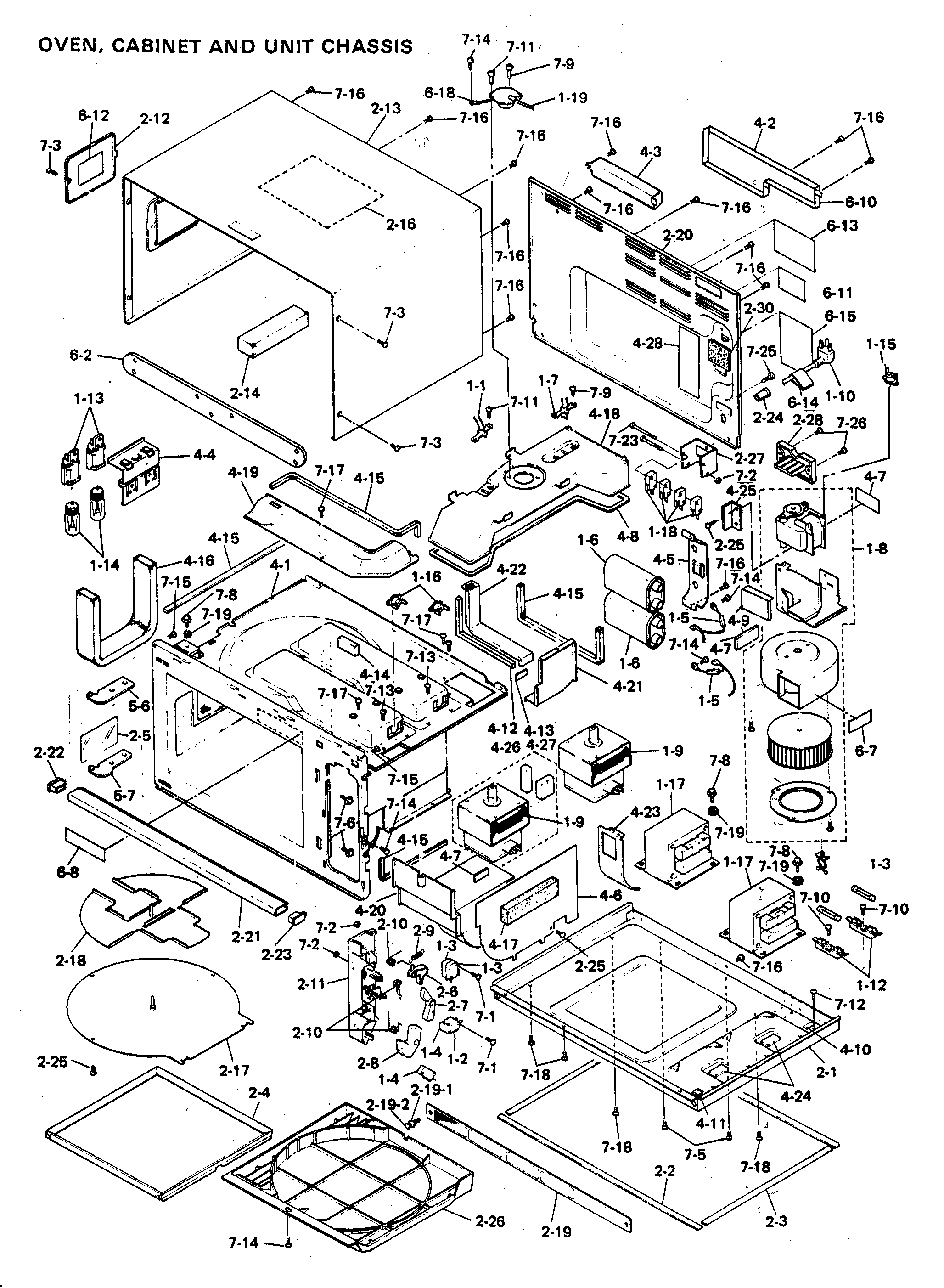

Oven/cabinet/unit chassis diagram
Transformer
Part #RTRN-A271WRE0
The manufacturer no longer makes this part, and there's no substitute part
Oven/cabinet/unit chassis diagram
Microwave Lamp
Part #RLMPT0003YBE0
The manufacturer no longer makes this part, and there's no substitute part
Oven/cabinet/unit chassis diagram
Monitor Caution Label
Part #TCAUAA118WRR0
The manufacturer no longer makes this part, and there's no substitute part
Oven/cabinet/unit chassis diagram
Outer Case Cabinet
Part #GCABUA292WRP0
The manufacturer no longer makes this part, and there's no substitute part
Oven/cabinet/unit chassis diagram
Blower Mtr Assy (r22es)
Part #FMOTEA202WRK0
The manufacturer no longer makes this part, and there's no substitute part

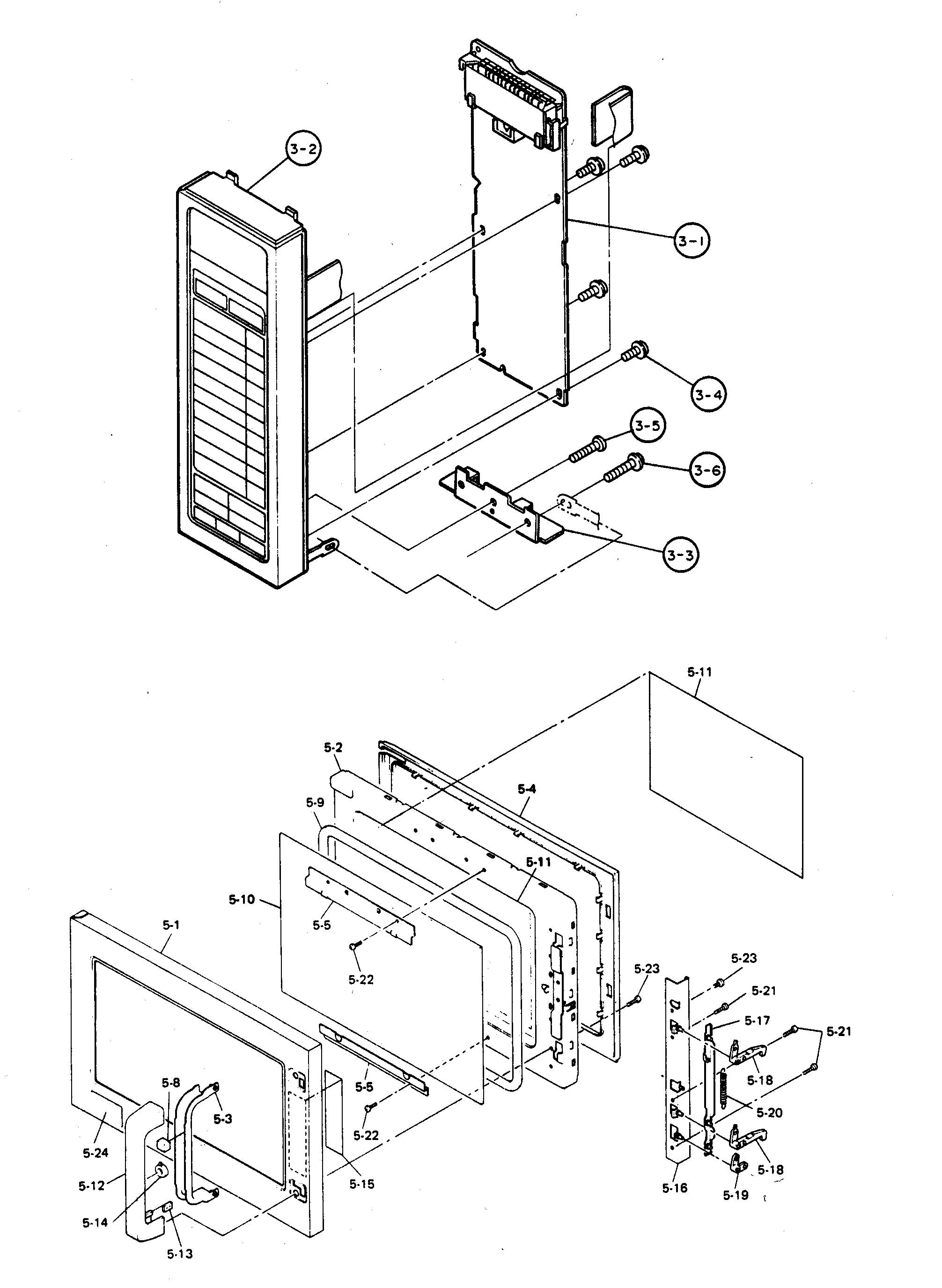

Control panel/door parts diagram
Control Panel Frame /key Unit Assy
Part #FPNLCA832WRK0
The manufacturer no longer makes this part, and there's no substitute part
Oven/cabinet/unit chassis diagram
Air Guide B
Part #PGIDHA039WRP0
The manufacturer no longer makes this part, and there's no substitute part
Oven/cabinet/unit chassis diagram
Name Plate (r23es)
Part #TSPCNB385WRR0
The manufacturer no longer makes this part, and there's no substitute part
Oven/cabinet/unit chassis diagram
Service Caution Label 2
Part #TCAUA0163WRR0
The manufacturer no longer makes this part, and there's no substitute part
Oven/cabinet/unit chassis diagram
Rubber Sheet B
Part #PSHEGA002WRE0
The manufacturer no longer makes this part, and there's no substitute part
