Model # 70645290 Official Craftsman tool chest

Here are the diagrams and repair parts for Official Craftsman 70645290 tool chest, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Bracket T19138-ENCS
#24

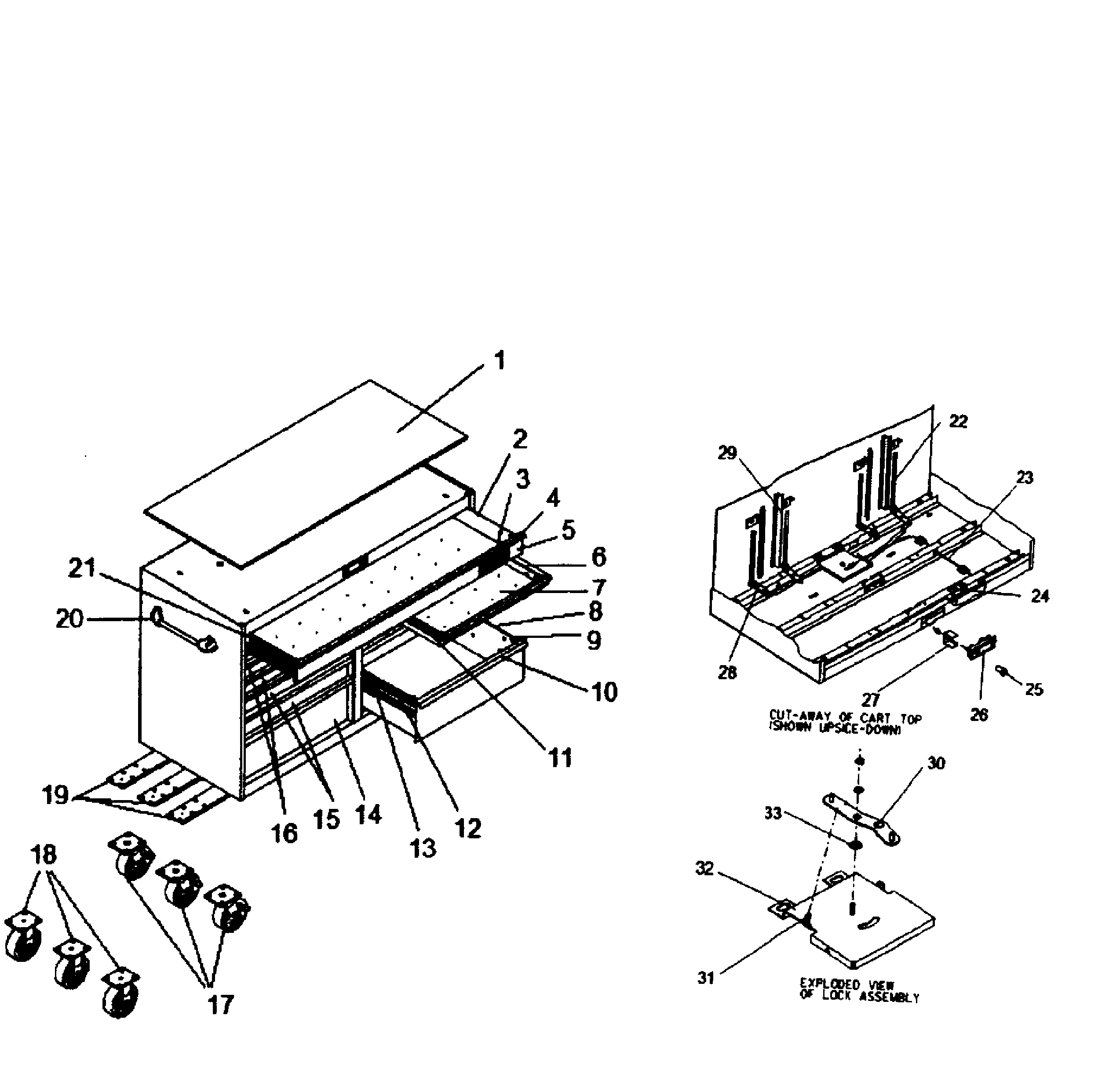

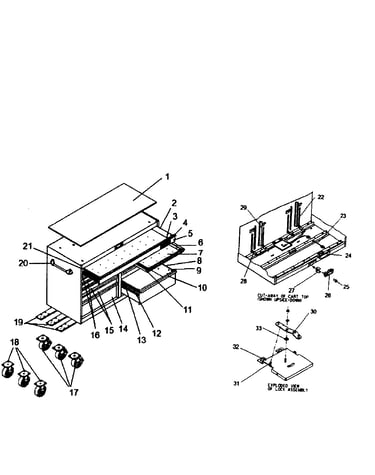

Tool chest diagram

Bracket

Part #T19138-ENCS

The manufacturer no longer makes this part, and there's no substitute part

Drawer, 3-in A26255A1-DR9
#16

Tool chest diagram

Drawer, 3-in

Part #A26255A1-DR9

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer Divider Set M11955A4
#NI

Tool chest diagram

Tool chest drawer divider set

Part #M11955A4

The manufacturer no longer makes this part, and there's no substitute part

Bushing M12604
#28

Tool chest diagram

Bushing

Part #M12604

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Rigid Caster 1003173
#18

Tool chest diagram

Tool chest rigid caster

Part #1003173

The manufacturer no longer makes this part, and there's no substitute part

Drawer, 4-in A26256-DR9
#15

Tool chest diagram

Drawer, 4-in

Part #A26256-DR9

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Lock M11080A5-PN
#25

Tool chest diagram

Tool chest lock

Part #M11080A5-PN

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Radial Bearing Cable M11639
#23

Tool chest diagram

Tool chest radial bearing cable

Part #M11639

The manufacturer no longer makes this part, and there's no substitute part

Wrench Hol 20033-RB1
#NI

Tool chest diagram

Wrench hol

Part #20033-RB1

The manufacturer no longer makes this part, and there's no substitute part

Bumper M11798A7
#29

Tool chest diagram

Bumper

Part #M11798A7

The manufacturer no longer makes this part, and there's no substitute part
