Model # KC50XBZRZU01 Official Whirlpool powermate vacuum attachment

Here are the diagrams and repair parts for Official Whirlpool KC50XBZRZU01 powermate vacuum attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |

Vacuum Beater Bar 8192535
#5

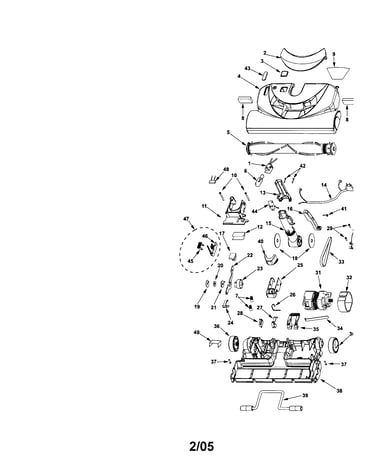

Power mate diagram

Vacuum beater bar

Part #8192535

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Foam Filter 4370713
#8

Power mate diagram

Vacuum foam filter

Part #4370713

This item is not returnable

Get free shipping with Automatic Reorder

In Stock
Vacuum Beater Bar Belt KC28SBZTZ000
#33

Power mate diagram

Vacuum beater bar belt

Part #KC28SBZTZ000

$14.89
12% OFF Phone Price : $16.89
In Stock
Vacuum Screw 4368563
#37

Power mate diagram

Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Swivel Seal KS742019
#18

Power mate diagram

Vacuum powermate swivel seal

Part #KS742019

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Release Pedal KC47AGJ3V06
#35

Power mate diagram

Vacuum handle release pedal

Part #KC47AGJ3V06

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 4368551
#42

Power mate diagram

Vacuum screw

Part #4368551

The manufacturer no longer makes this part, and there's no substitute part

Spring Assist 72577
#26

Power mate diagram

Spring assist

Part #72577

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw KS681297
#29

Power mate diagram

Vacuum screw

Part #KS681297

The manufacturer no longer makes this part, and there's no substitute part

Swivel Cap KC25QAKTZV07
#11

Power mate diagram

Swivel cap

Part #KC25QAKTZV07

The manufacturer no longer makes this part, and there's no substitute part
