GE AEC08LYL2 room air conditioner

GE AEC08LYL2 room air conditioner Parts

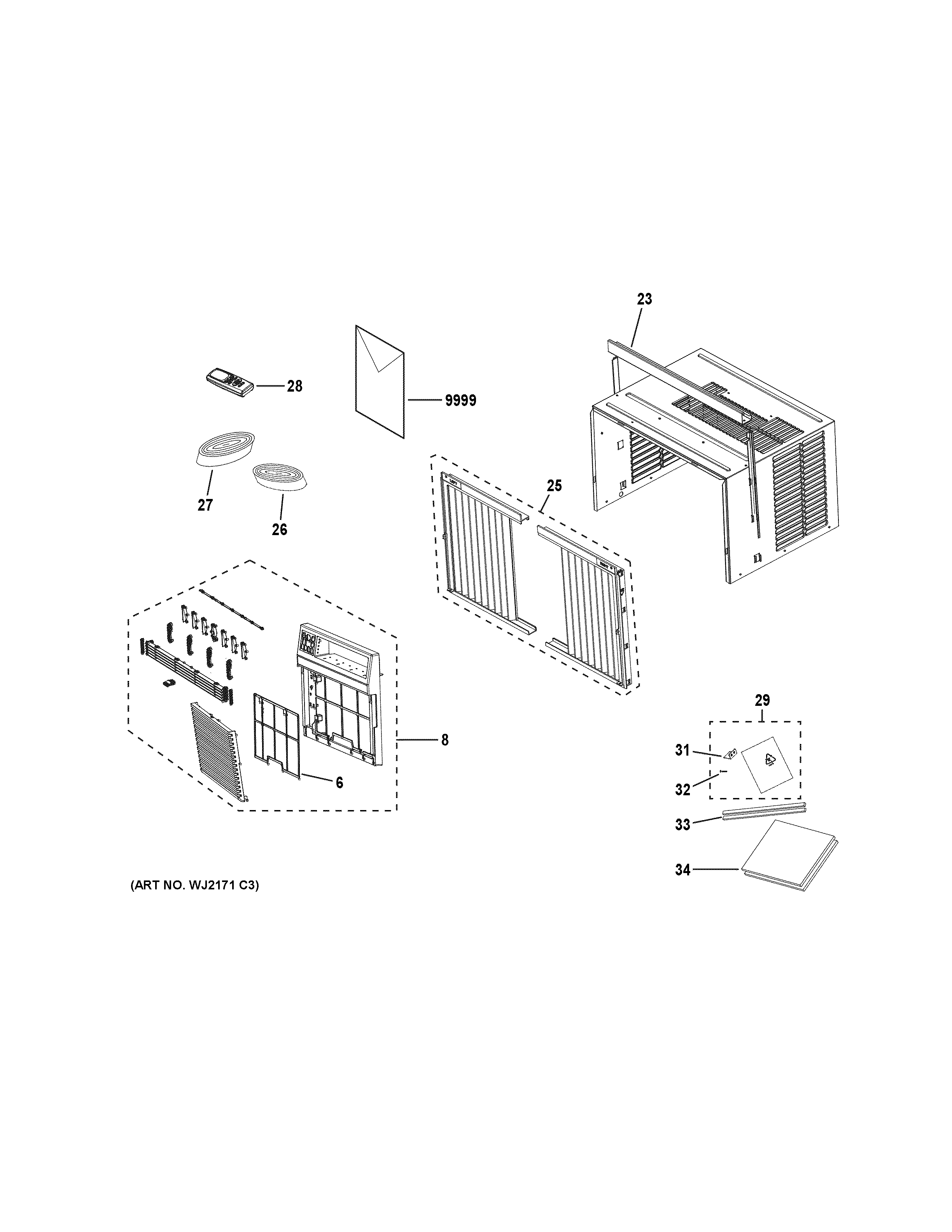

Here are the diagrams and repair parts for GE AEC08LYL2 room air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for AEC08LYL2 Room Air Conditioner

GE Room Air Conditioner AEC08LYL2 FAQs

A GE window air conditioner like model AEC08LYL2 typically lasts about 10 years with normal use and consistent maintenance. Keeping airflow unrestricted, cleaning the filter regularly, and correcting drainage or icing issues early are the biggest factors that extend service life.

Typical lifespan and what affects it

Most room (window) air conditioners fall into a similar lifespan range, but real-world life depends on operating conditions.

  • Maintenance frequency (filter cleaning, coil cleaning)
  • Run time (all-day use vs. occasional use)
  • Installation quality (level unit, good seal, correct support)
  • Environment (coastal salt air, dust, pets, smoke)
  • Electrical stability (proper outlet, no overheating cords)

Maintenance that helps you reach (or beat) 10 years

For AEC08LYL2, the simplest high-impact maintenance is keeping the air filter clean and the unit breathing freely.

  • Clean or replace the air filter; use the correct filter WJ85X23442
  • Vacuum dust from the front grille and intake area
  • Keep curtains, furniture, and blinds from blocking airflow
  • Confirm the unit tilts slightly outward so condensate drains correctly
  • At season start, run the unit and listen for fan rubbing or unusual vibration

Quick “replace vs. repair” guide

What you’re seeing What it usually means What we recommend
Weak airflow but fan runs Dirty filter or blocked intake Clean/replace filter first
Runs but not cooling Airflow issue or sealed-system problem Check filter and coils; then diagnose
Icing on the front/coil Low airflow or low refrigerant Fix airflow first; service if it returns
Water leaking inside Drainage/leveling issue Re-level and clear drain path

Why it matters

A clogged filter and poor airflow make the compressor and fan work harder, which increases wear, raises energy use, and can lead to icing or poor cooling. Simple upkeep is the most reliable way to get full life from a GE room air conditioner.

For troubleshooting patterns (including display codes), use our GE error codes resource.

Last updated: February 2026

On the GE AEC08LYL2 room air conditioner, an E8 code points to a temperature-sensing problem (commonly the room temperature sensor or thermistor circuit). When the control can’t read temperature correctly, it may stop cooling normally or run erratically until the sensing issue is corrected.

What to check first (quick fixes)

  • Turn the unit OFF, unplug it for 2 to 5 minutes, then restore power (clears a temporary control glitch).
  • Make sure the air filter is clean; a clogged filter can cause abnormal temperatures and icing that trigger sensor-related faults.
  • Confirm the front grille and intake are not blocked by curtains, furniture, or dust buildup.
  • Let the unit run in Fan Only for 15 to 30 minutes if you see ice, then retry cooling.
  • If the code returns quickly, focus on the sensor wiring and control inputs.

Helpful part to start with: a clean, properly seated filter WJ85X23442.

How E8 affects performance

E8 usually shows up with one or more of these symptoms:

  • Runs but doesn’t cool consistently
  • Short-cycles (turns on and off too often)
  • Fan runs but compressor behavior seems abnormal
  • Temperature display doesn’t match room conditions

Symptom-to-check table

What you notice Most likely check What we do next
Weak airflow, musty dust Dirty filter Clean/replace filter WJ85X23442
Ice on front coil Restricted airflow or low load Thaw, improve airflow, re-test
E8 returns after reset Sensor circuit or control issue Use GE error codes to narrow the fault

Why it matters

The control board relies on accurate temperature feedback to decide when to run the compressor and fan. If the sensor signal is wrong, the unit can overcool and ice up, or undercool and never reach set temperature, which wastes energy and stresses components.

Last updated: February 2026

On a GE room air conditioner like model AEC08LYL2, the model number is printed on the appliance data label. We typically see that label on the side of the unit behind the front grille, or along the cabinet near the air filter area.

Where to look on a GE room air conditioner

Check these common label locations (use a flashlight):

  • Behind the front panel or front grille (often near the filter)
  • On the left or right side of the cabinet (visible when you slide the unit out slightly)
  • Along the top edge or inner frame behind the front cover
  • Near the control panel area (inside the front cover)

If you remove the front panel to look, handle it gently so the tabs do not crack.

What the label looks like

Most room air conditioner data labels include several identifiers. Use the model number line for parts lookup.

Label item What it’s used for Example format
Model number Matching diagrams and parts AEC08LYL2
Serial number Manufacturing ID Letters and numbers
Electrical ratings Power requirements Volts, amps

Why it matters for ordering parts

Even small model number differences can change the correct filter, front panel, or gasket seal. Once you confirm the exact model number, you can match parts confidently, such as the filter WJ85X23442 for this model.

Quick tips if the label is hard to read

  • Wipe dust off the label with a dry cloth
  • Take a close-up photo and zoom in
  • Copy the model number exactly, including all letters and numbers

Last updated: March 2026

Most common symptoms to help you fix your room air conditioners

Main causes: clogged condensate drain, air conditioner not leveled properly, leaky window air seals …

Main causes: bad compressor, lack of refrigerant, bad compressor start relay, electronic control board failure…

Main causes: lack of electrical power, bad electronic control board, wiring failure, bad temperature sensor…

Thermostat problems, bad compressor/condenser fan capacitor, lack of refrigerant, failed compressor…

Dirty air filter, clogged condenser coils, low refrigerant charge, faulty compressor…

Main causes: turning the air conditioner off and the back on too quickly, dirty or restricted condenser coil, compressor…

Main causes: errant thermostat settings, lack of electrical power, clogged drain line, wiring failure, control failure.…

Main causes: dirty air filter, air conditioner is too small for the room, temperature set too cold, control failure…

Main causes: clogged drain hole, air conditioner not leveled properly…
