Model # 867823031 Official Kenmore evaporator blower coil

Here are the diagrams and repair parts for Official Kenmore 867823031 evaporator blower coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Capacitor 707211
#55

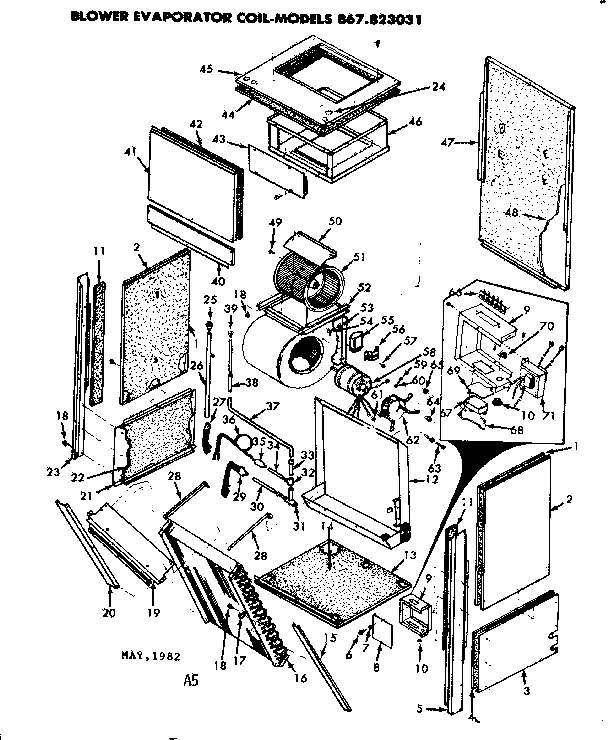

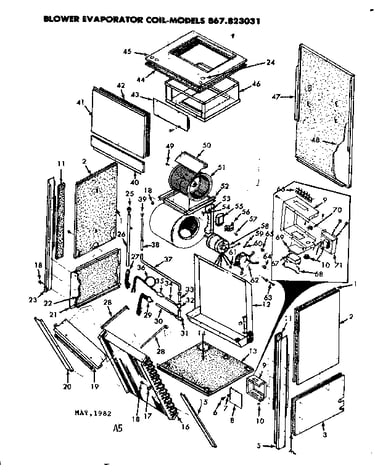

Unit parts diagram

Capacitor

Part #707211

Replaced by #PAKTRCF10

?
Manufacturer substitution
This part replaces 707211. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Furnace Blower Fan Wheel 600586
#51

Unit parts diagram

Furnace blower fan wheel

Part #600586

$127.13 |
7% OFF Phone Price : $137.13
In Stock
Relay 709376
#67

Unit parts diagram

Relay

Part #709376

The manufacturer no longer makes this part, and there's no substitute part

Motor 3/4 Hp 707102
#58

Unit parts diagram

Motor 3/4 hp

Part #707102

Replaced by #45461

?
Manufacturer substitution
This part replaces 707102. Substitute parts can look different from the original.
$239.49
In Stock
Transformer 704446
#71

Unit parts diagram

Transformer

Part #704446

The manufacturer no longer makes this part, and there's no substitute part

Washer 106261
#53

Unit parts diagram

Washer

Part #106261

The manufacturer no longer makes this part, and there's no substitute part

Valve Check 709749
#31

Unit parts diagram

Valve check

Part #709749

Replaced by #1052910

?
Manufacturer substitution
This part replaces 709749. Substitute parts can look different from the original.
$84.67
In Stock
Screw 85790
#18

Unit parts diagram

Screw

Part #85790

The manufacturer no longer makes this part, and there's no substitute part

Screw 92637
#57

Unit parts diagram

Screw

Part #92637

The manufacturer no longer makes this part, and there's no substitute part

Insulation 707025
#42

Unit parts diagram

Insulation

Part #707025

The manufacturer no longer makes this part, and there's no substitute part
