Model # DSC-TX20/D Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-TX20-D digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

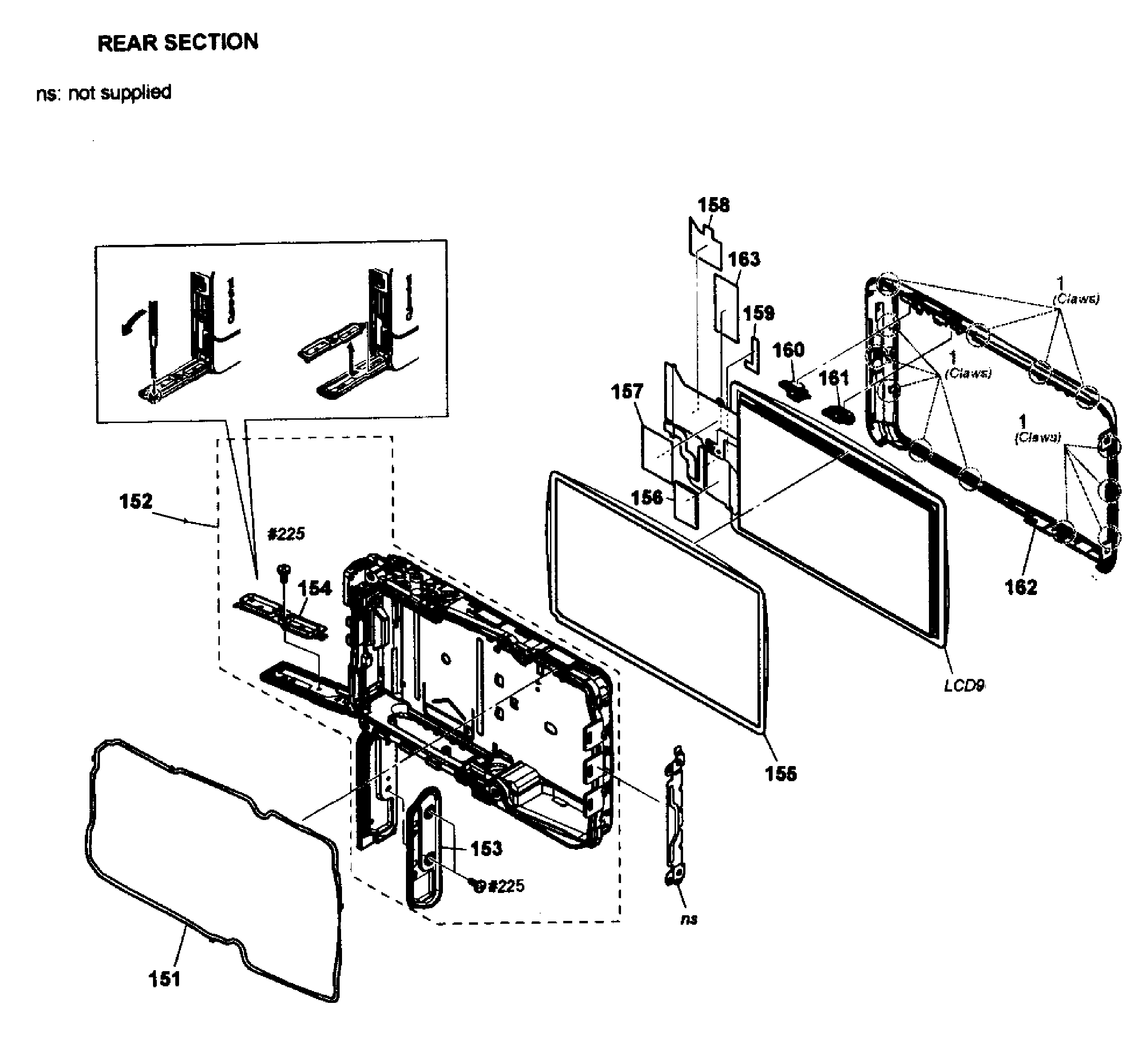

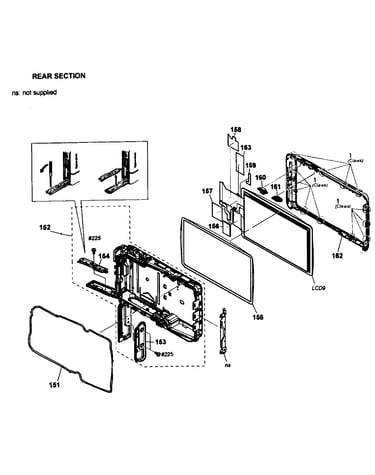

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 74 parts |

#NI

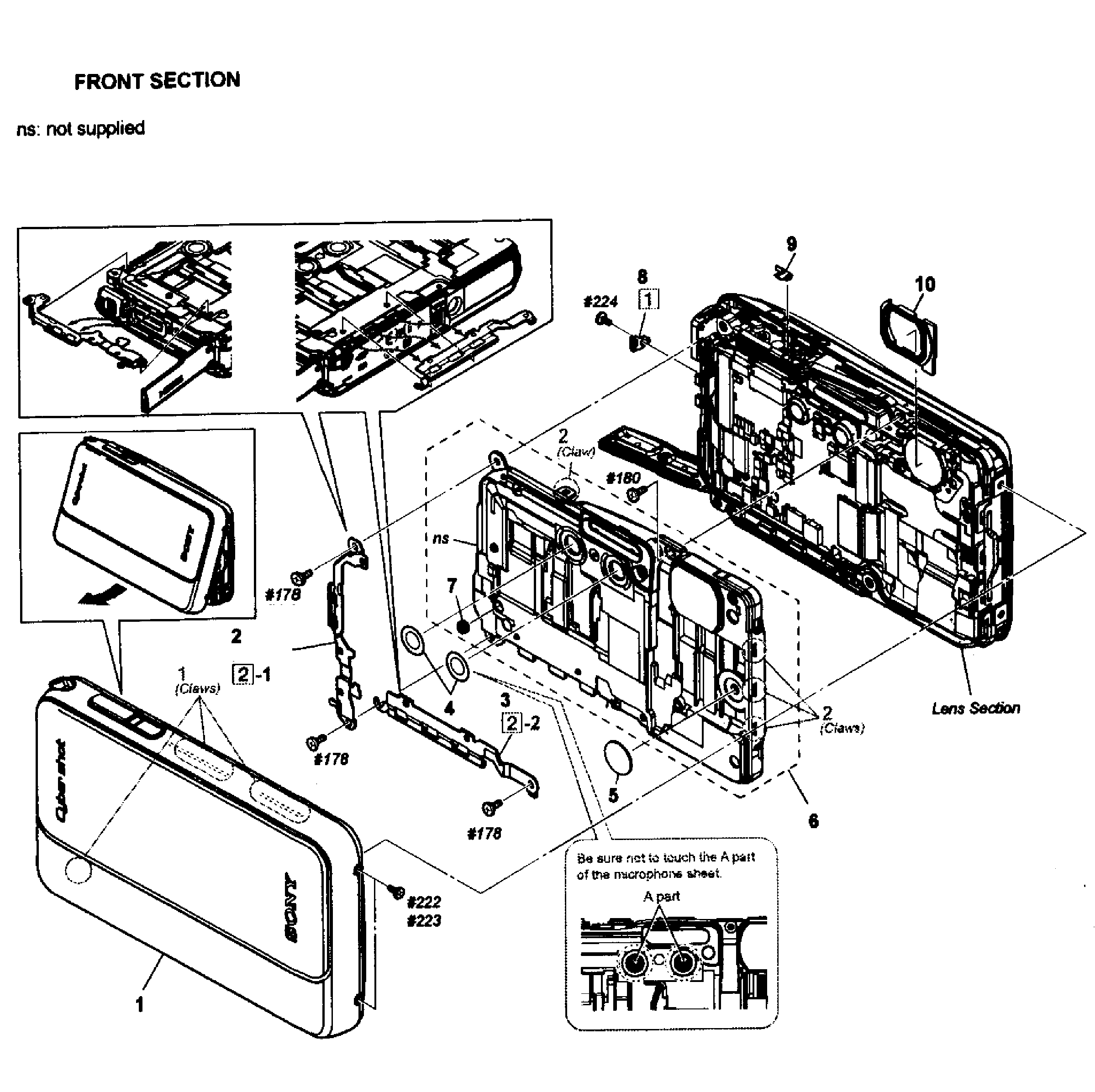

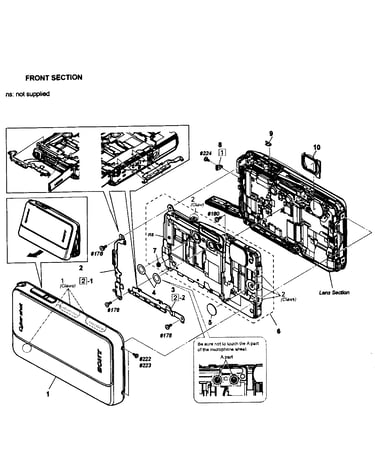

Front assy diagram

Paint pen

Part #427987601

$9.89

In Stock

Qty

#59

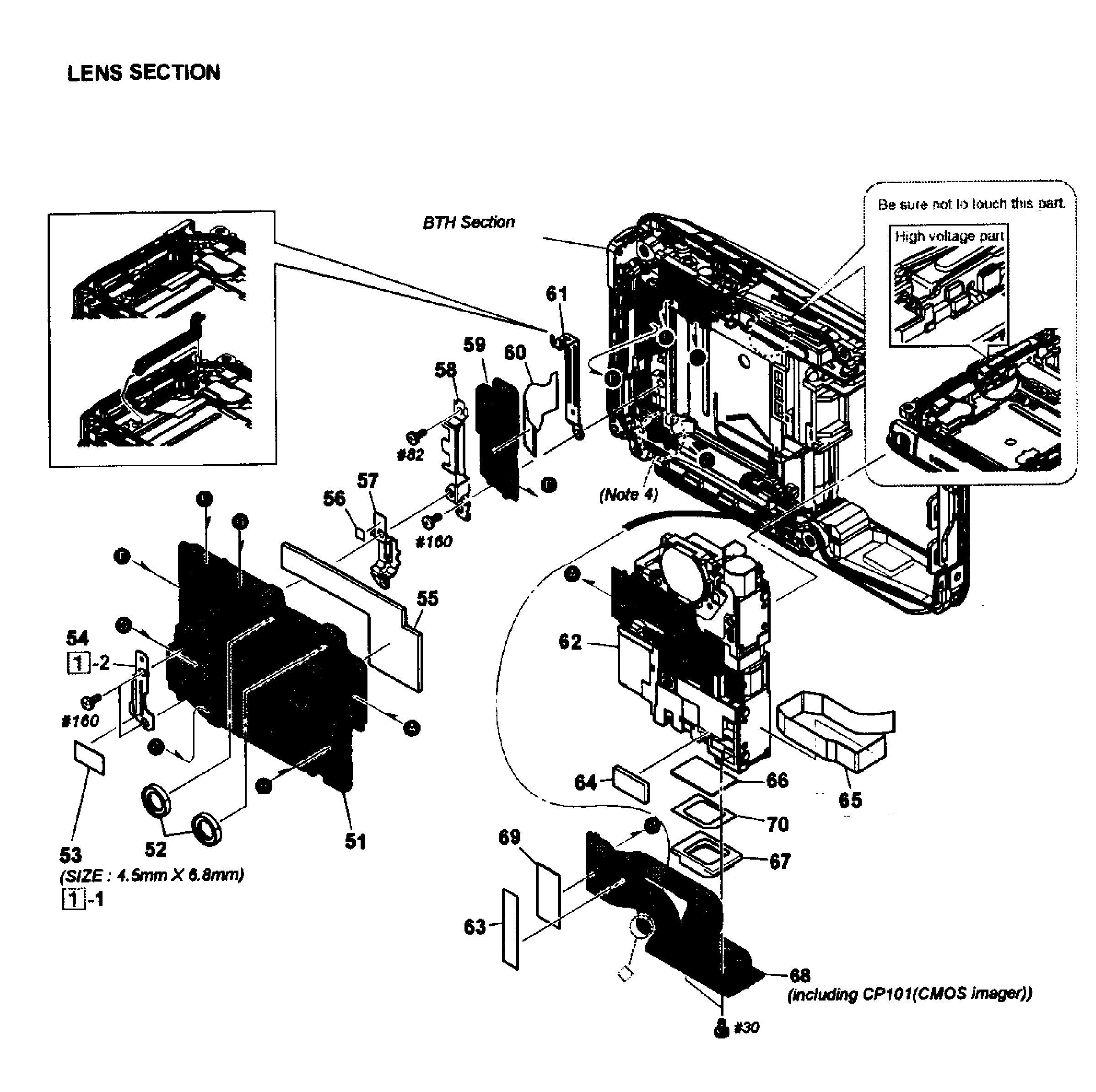

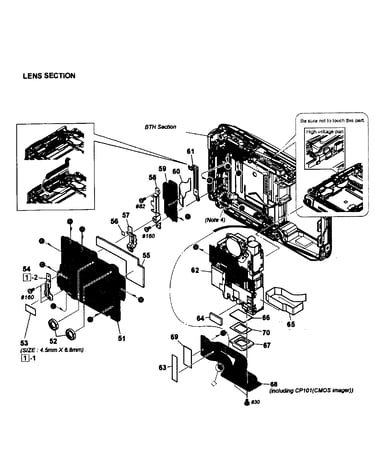

Lens assy diagram

Board

Part #A1814469A

$17.26

In Stock

Qty

#10

Front assy diagram

Lens

Part #427577801

This item is not returnable

$3.93

In Stock

Qty

#SP90

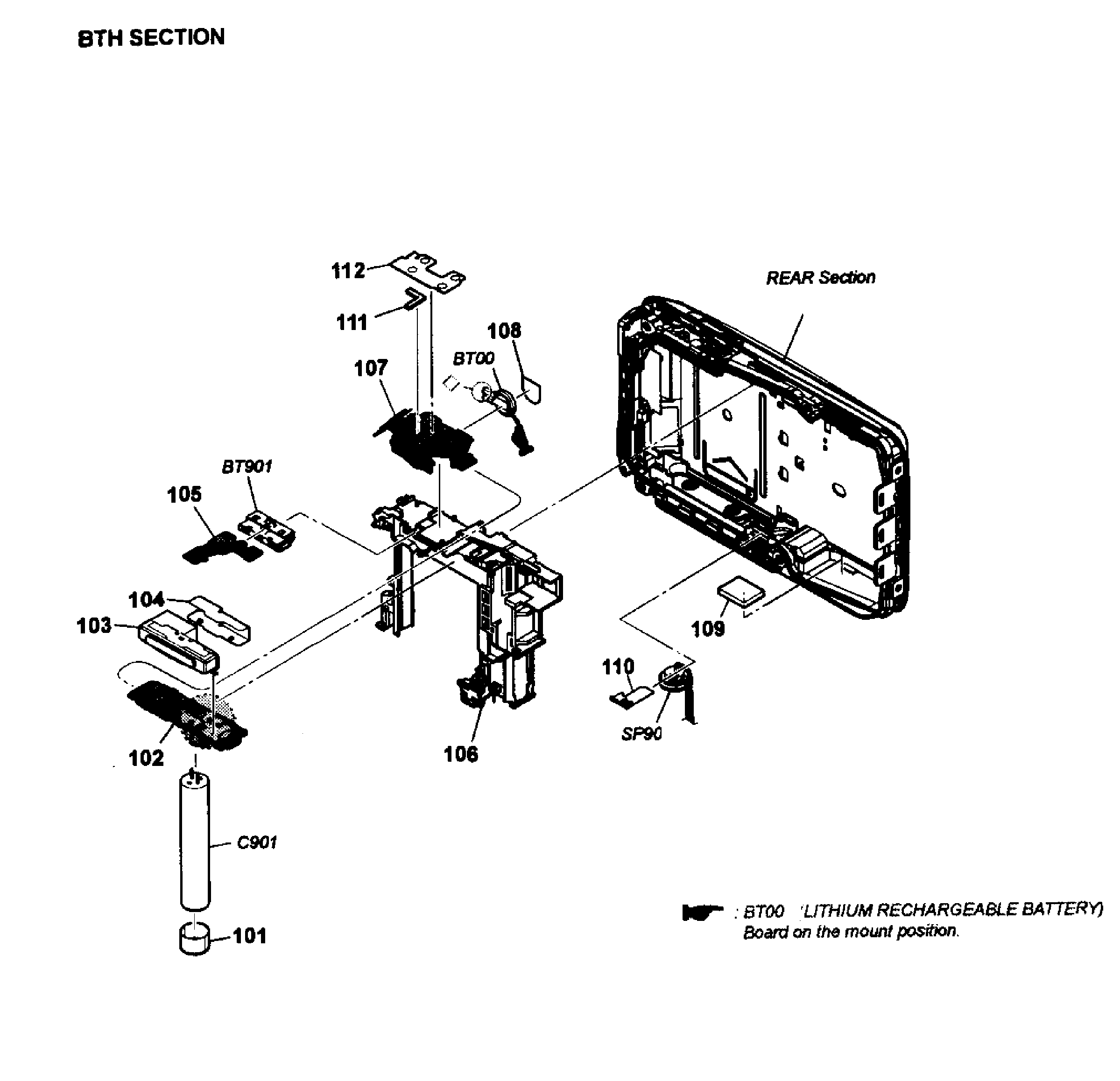

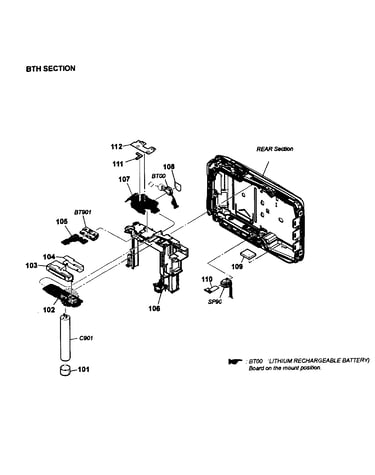

Bth assy diagram

Loudspeaker

Part #185830281

$11.75

In Stock

Qty

Front assy diagram

Plate

Part #427577001

This item is not returnable

$3.93

In Stock

Qty

#64

Lens assy diagram

Cushion (cd)

Part #427579311

This item is not returnable

$5.26

In Stock

Qty

#103

Bth assy diagram

Flash unit

Part #148964211

$35.98

In Stock

Qty

#67

Lens assy diagram

Seal

Part #415362901

This item is not returnable

$2.30

In Stock

Qty

#180

Front assy diagram

Screw,tapp

Part #417931901

This item is not returnable

$2.30

In Stock

Qty

#68

Lens assy diagram

Cd843 pcb

Part #A1871437A

$164.49

In Stock

Qty
