Kenmore 76981108 condensing unit & evaporator Parts
Here are the diagrams and repair parts for Kenmore 76981108 condensing unit & evaporator, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for 76981108 Condensing Unit & Evaporator

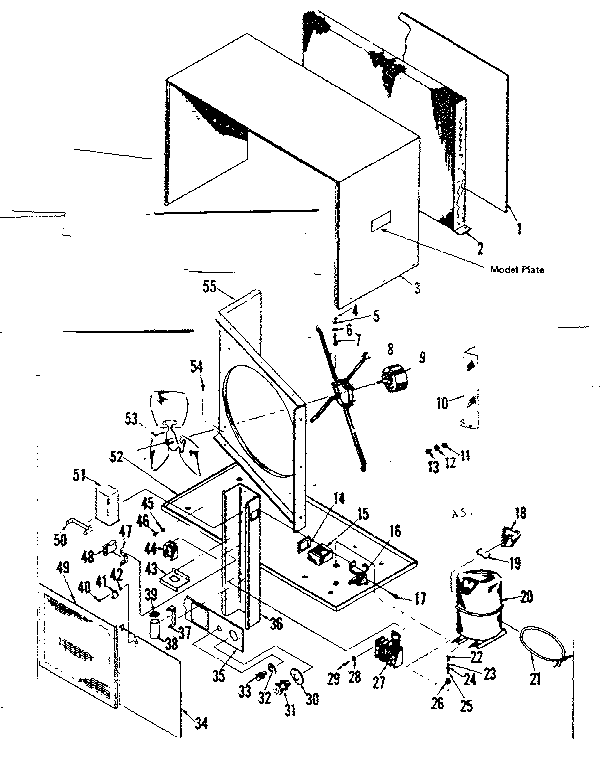

Condensing unit diagram
Fan Motor
Part #8101-193Replaced by #45461
Manufacturer substitutionThis part replaces 8101-193. Substitute parts can look different from the original.In Stock$301.96
Qty

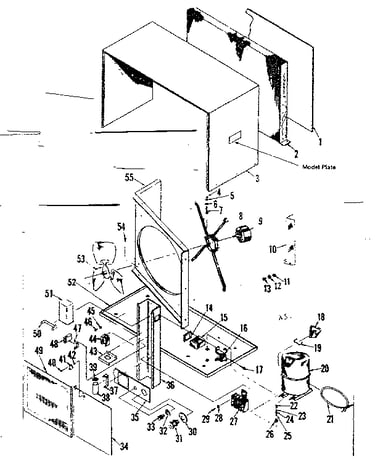

Condensing unit diagram
Contactor
Part #8401-243Replaced by #90-244
Manufacturer substitutionThis part replaces 8401-243. Substitute parts can look different from the original.In Stock$31.2316% OFF Phone Price : $37.23
Qty#NI
All parts diagram
Starting Kit
Part #7600-161
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit diagram
Run Cap
Part #8552-55
The manufacturer no longer makes this part, and there's no substitute part
"s" Clip
Part #N/P
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit diagram
Lock Nut
Part #274205
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit diagram
Capacitor
Part #8552-10
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit diagram
Condenser
Part #5051-246
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit diagram
Clip
Part #7951-150
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit diagram
Strap
Part #7071-22
The manufacturer no longer makes this part, and there's no substitute part
