Tappan
Wall Oven/Microwave Combo

Model # 57-2709-10-05 Official Tappan wall oven - 5995215323

Here are the diagrams and repair parts for Official Tappan 57-2709-10-05 wall oven - 5995215323, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

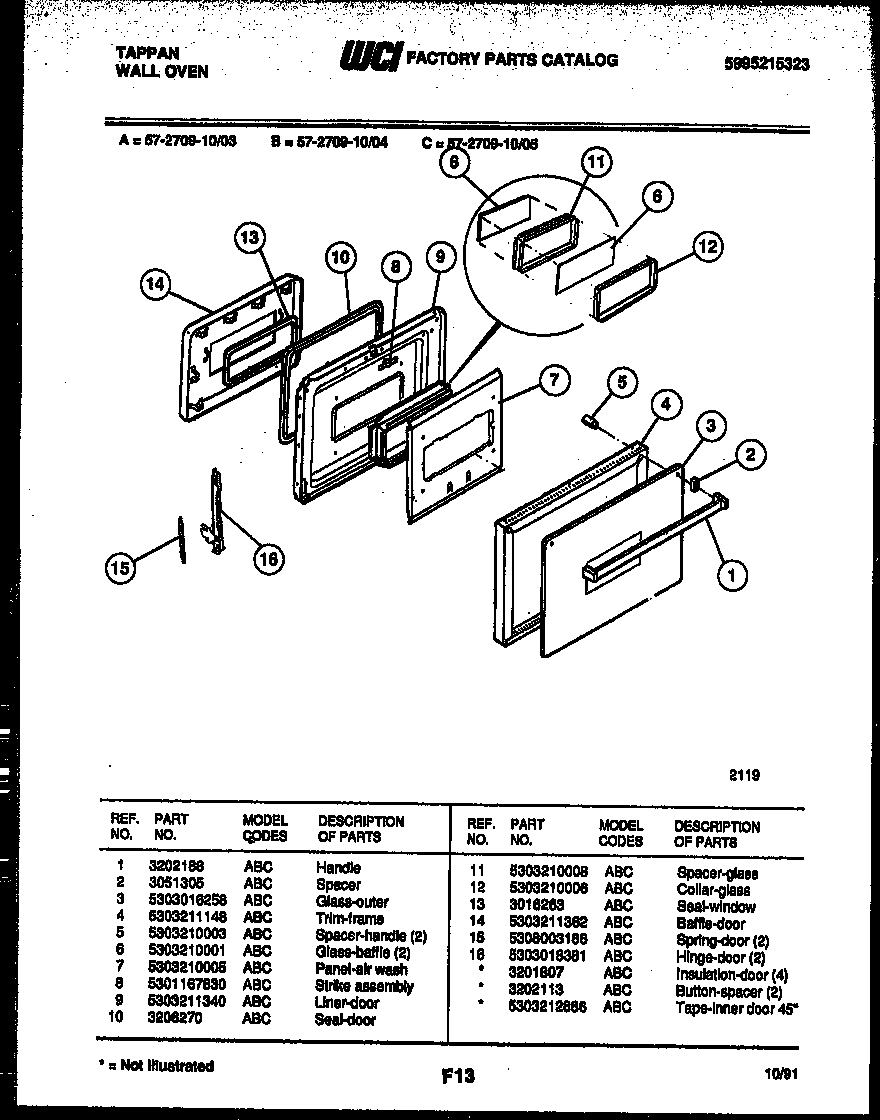

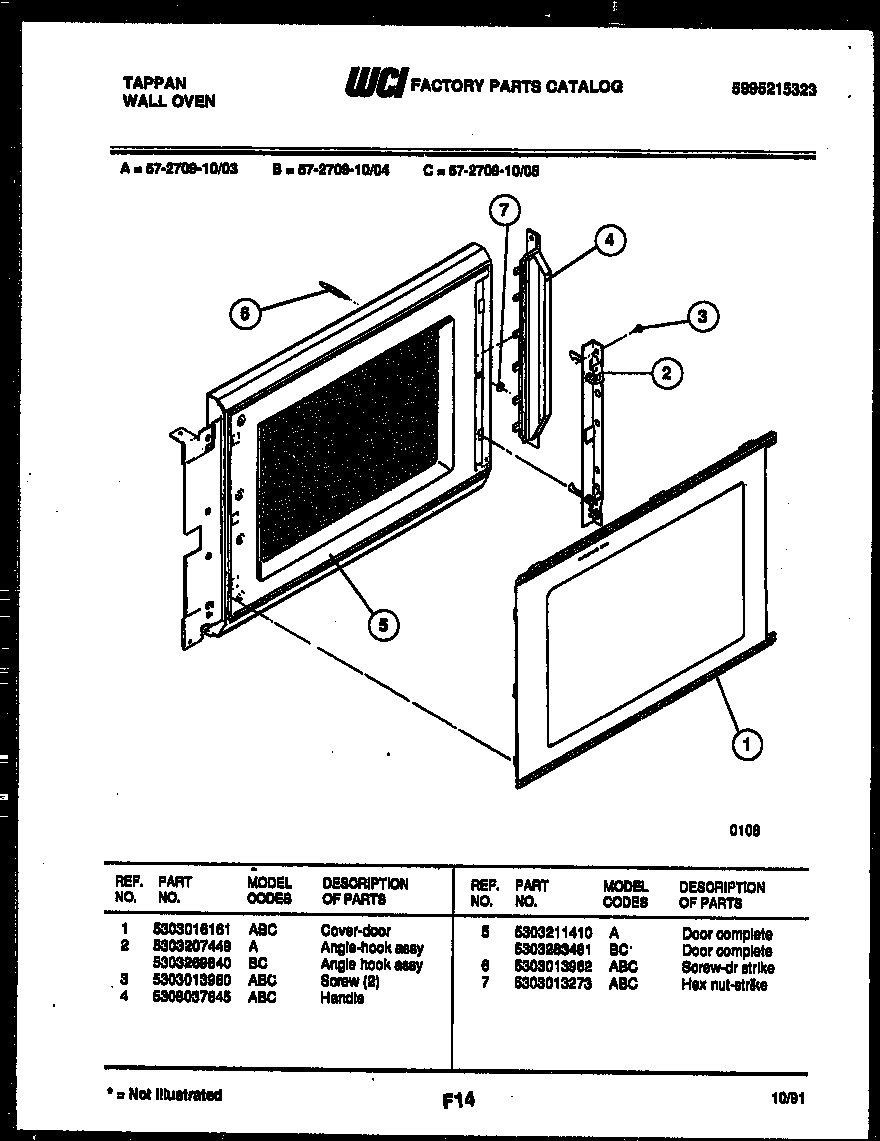

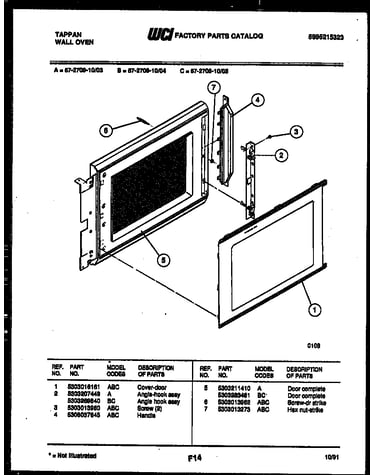

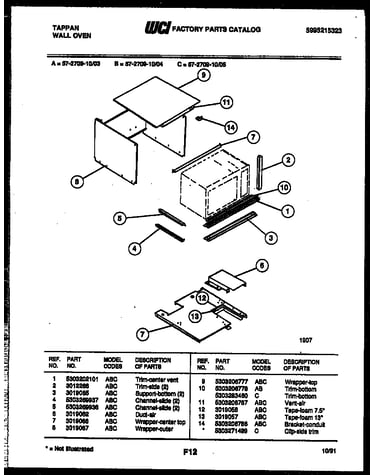

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 173 parts  |
Sensor Probe 5303208888
#37

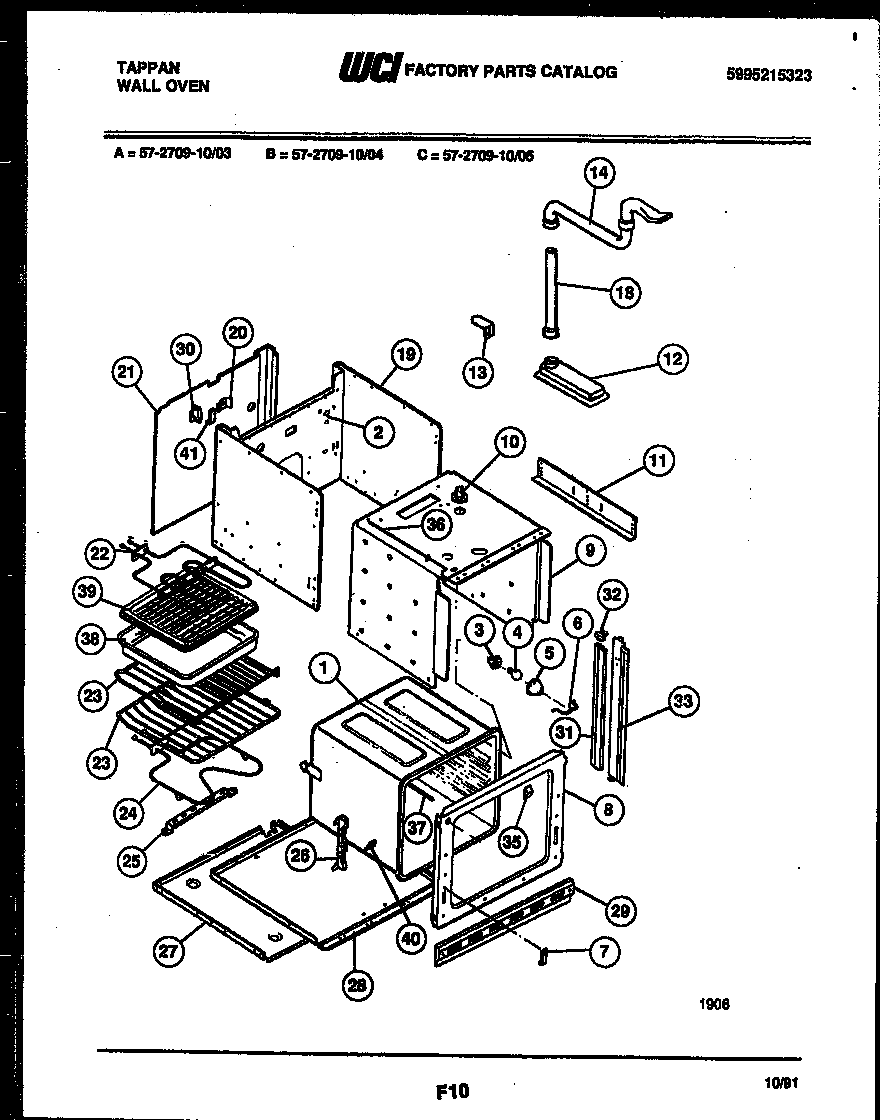

Lower body parts diagram

Sensor probe

Part #5303208888

Replaced by #316217002

?
Manufacturer substitution
This part replaces 5303208888. Substitute parts can look different from the original.
BEST SELLER
$45.69 |
10% OFF Phone Price : $50.69
In Stock
Range Oven Light Bulb 5303013071
#4

Lower body parts diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.31 |
12% OFF Phone Price : $17.31
In Stock
Block 5306563359
#9

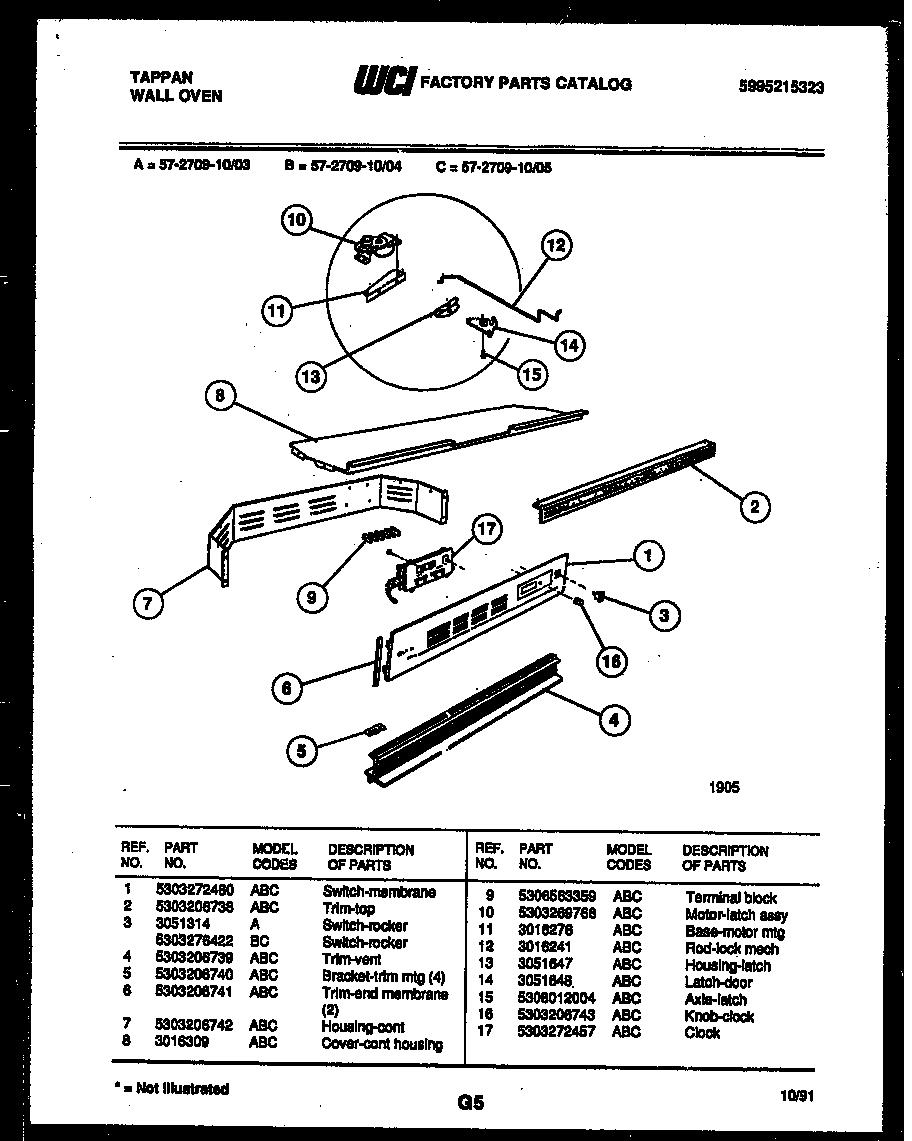

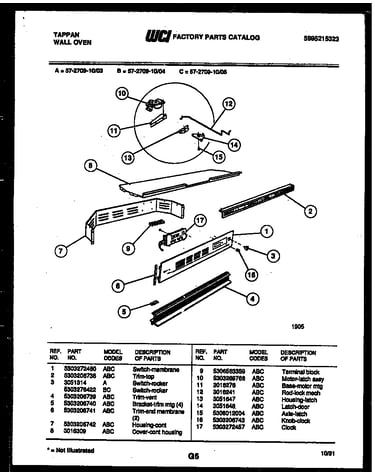

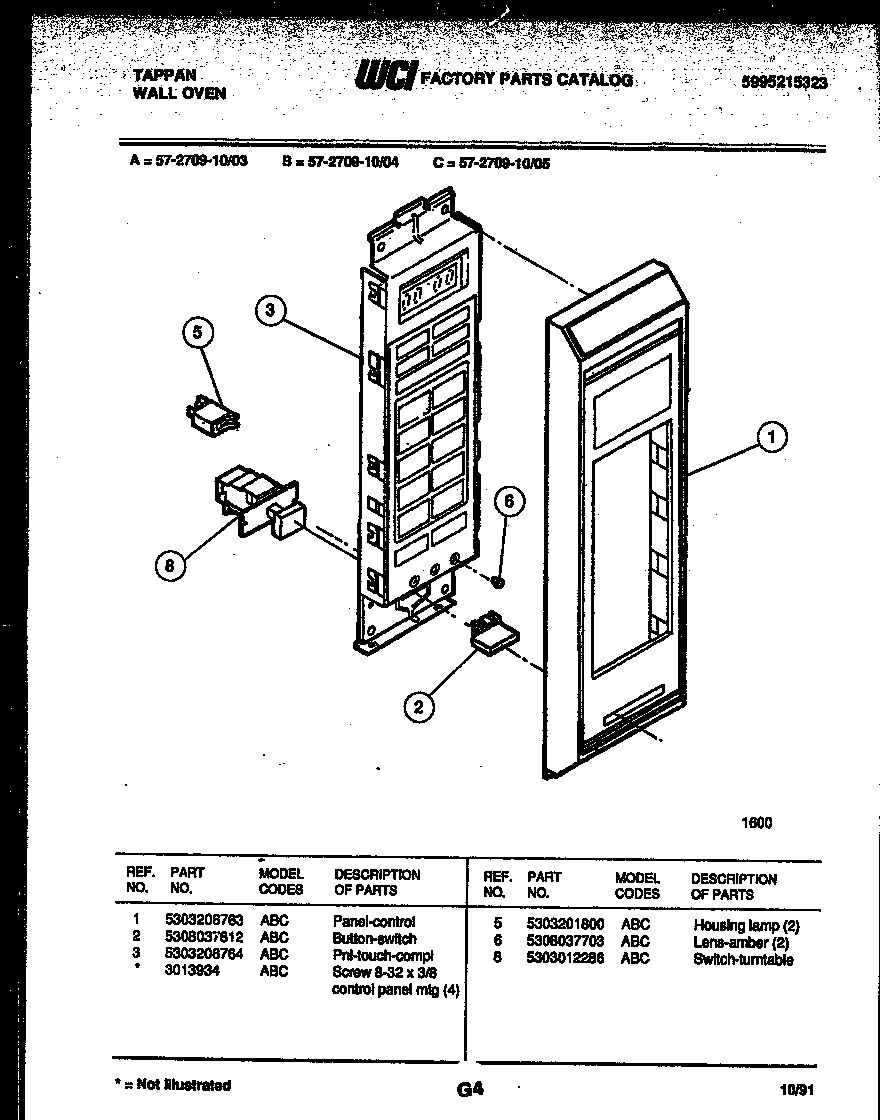

Control panel diagram

Block

Part #5306563359

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5306563359. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Receptacle 5308011085
#3

Lower body parts diagram

Receptacle

Part #5308011085

Replaced by #316116400

?
Manufacturer substitution
This part replaces 5308011085. Substitute parts can look different from the original.
$42.01 |
11% OFF Phone Price : $47.01
In Stock
Insert Broil 3205234
#39

Lower body parts diagram

Insert broil

Part #3205234

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 3205234. Substitute parts can look different from the original.
$59.77 |
8% OFF Phone Price : $64.77
In Stock
Rack 3016282
#23A

Lower body parts diagram

Rack

Part #3016282

Replaced by #5304526378

?
Manufacturer substitution
This part replaces 3016282. Substitute parts can look different from the original.
$36.71 |
12% OFF Phone Price : $41.71
In Stock
Range Broil Element 5303016247
#22

Lower body parts diagram

Range broil element

Part #5303016247

$163.62 |
6% OFF Phone Price : $173.62
In Stock
Angle 3091058
#39

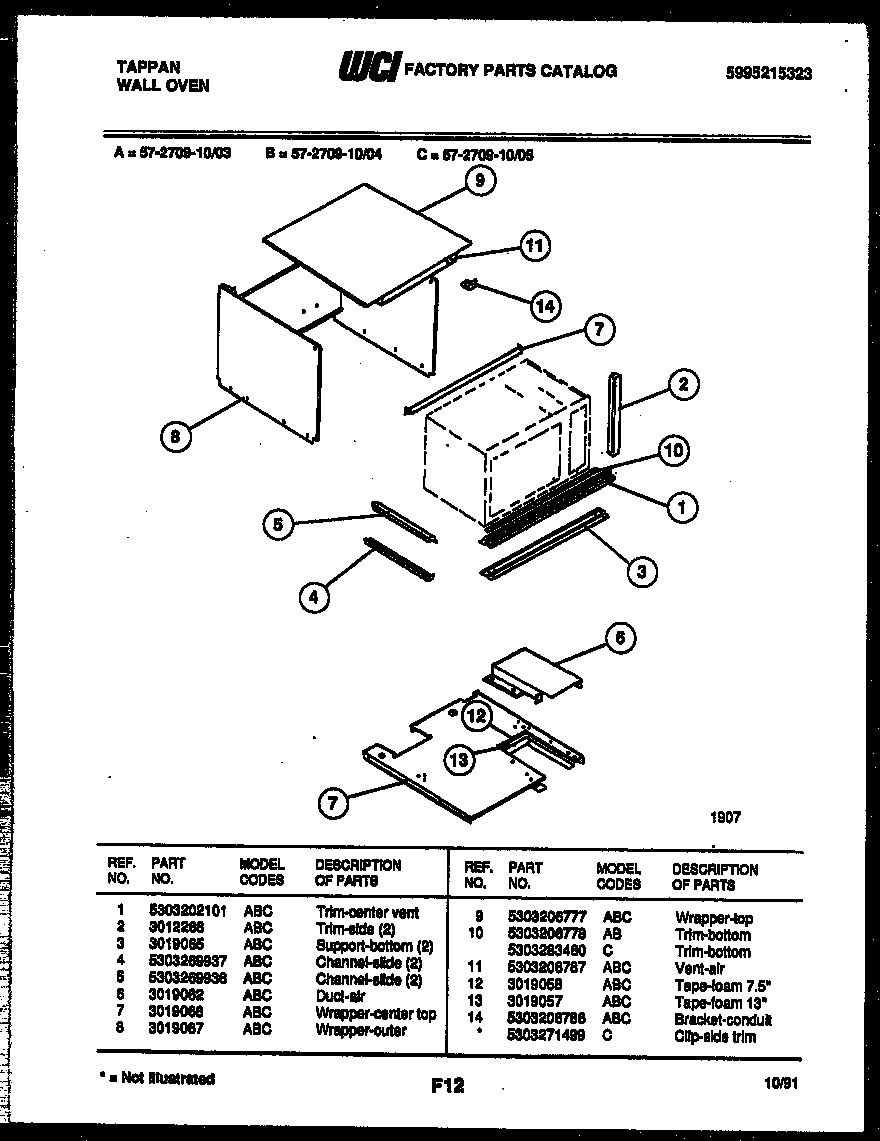

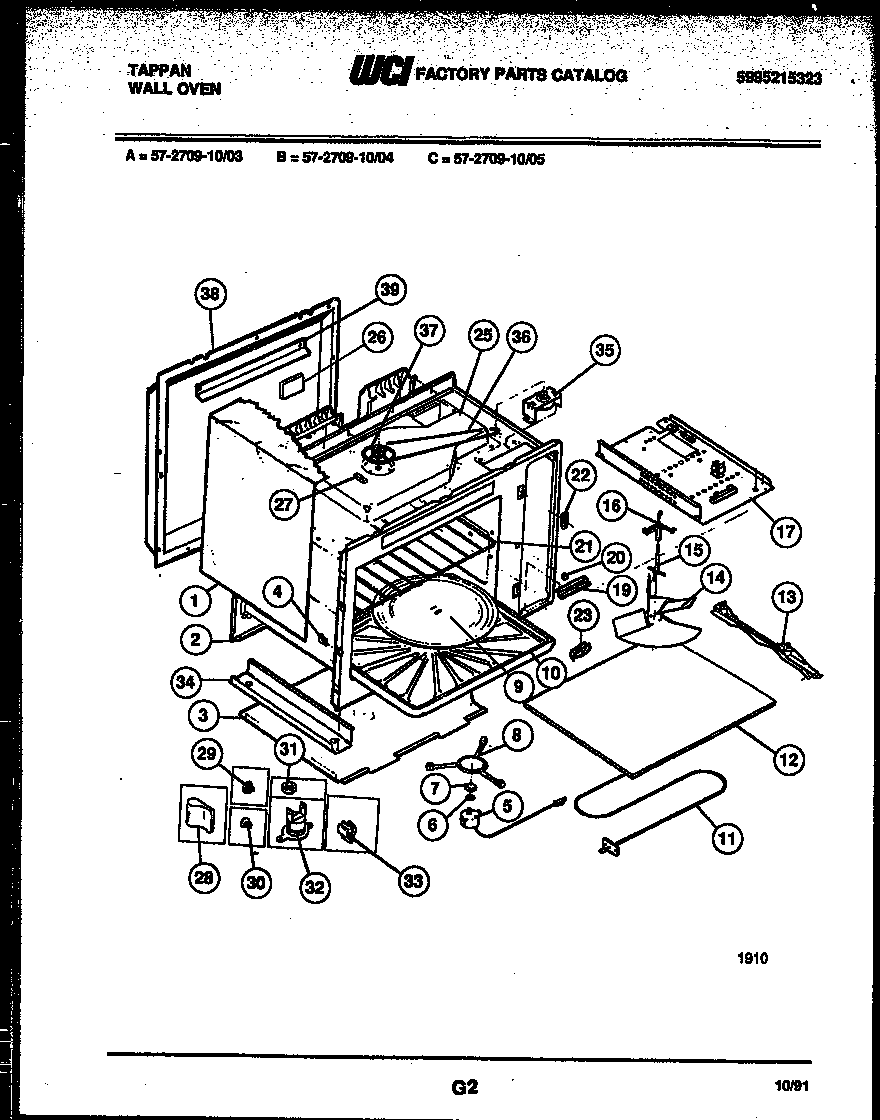

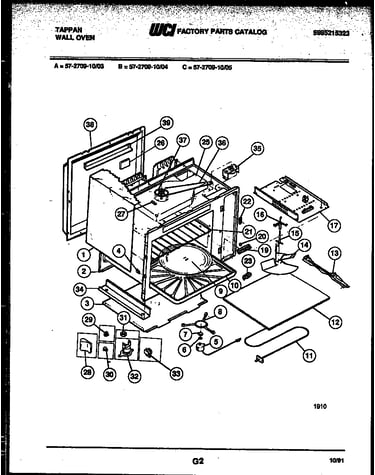

Wrapper and body parts diagram

Angle

Part #3091058

$8.60
In Stock
Screw 5308014502
#7A

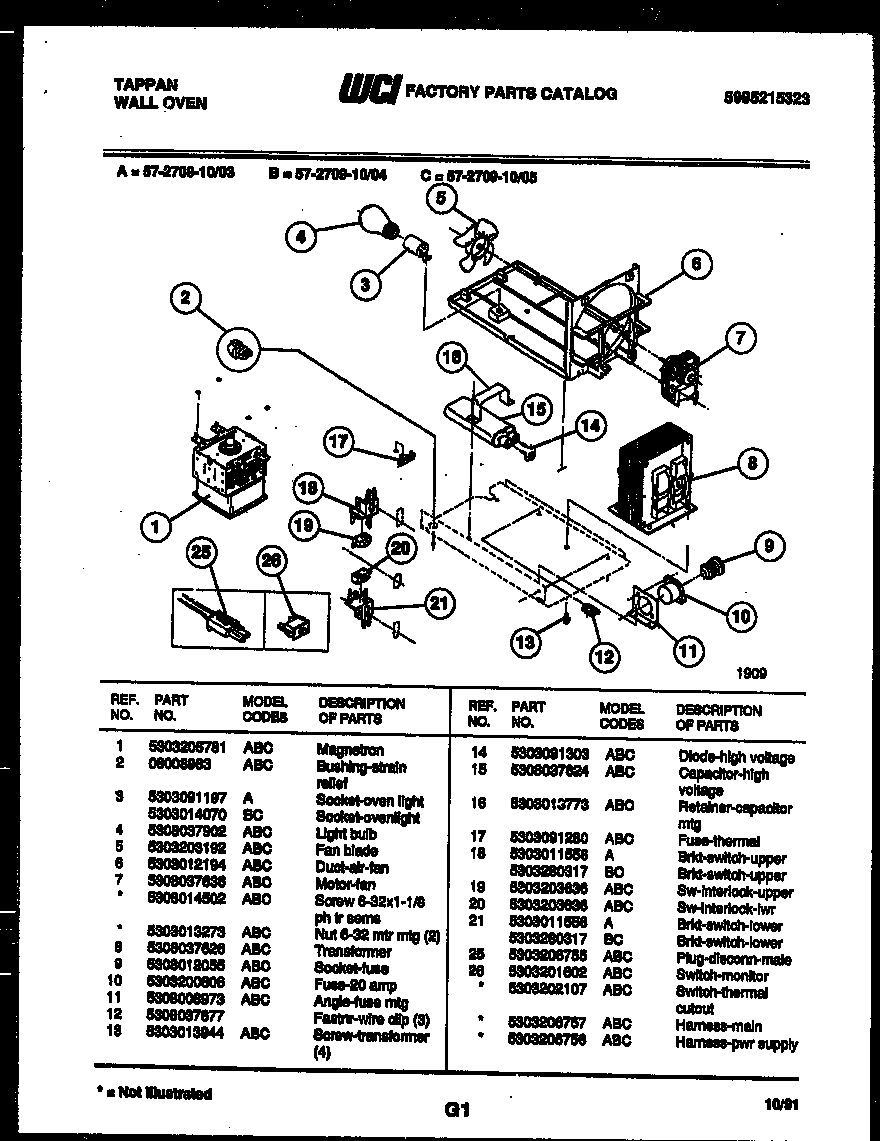

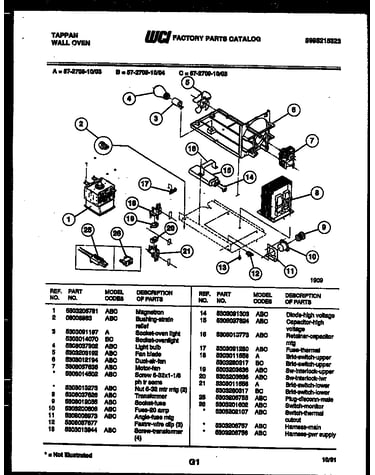

Power control diagram

Screw

Part #5308014502

This item is not returnable
$2.16
In Stock
Shield 5303203692
#38

Wrapper and body parts diagram

Shield

Part #5303203692

$67.30
In Stock
