Craftsman
Air Compressor

Model #106152680 Official Craftsman twin-cylinder tank-type paint sprayer

Here are the diagrams and repair parts for Craftsman 106152680 twin-cylinder tank-type paint sprayer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

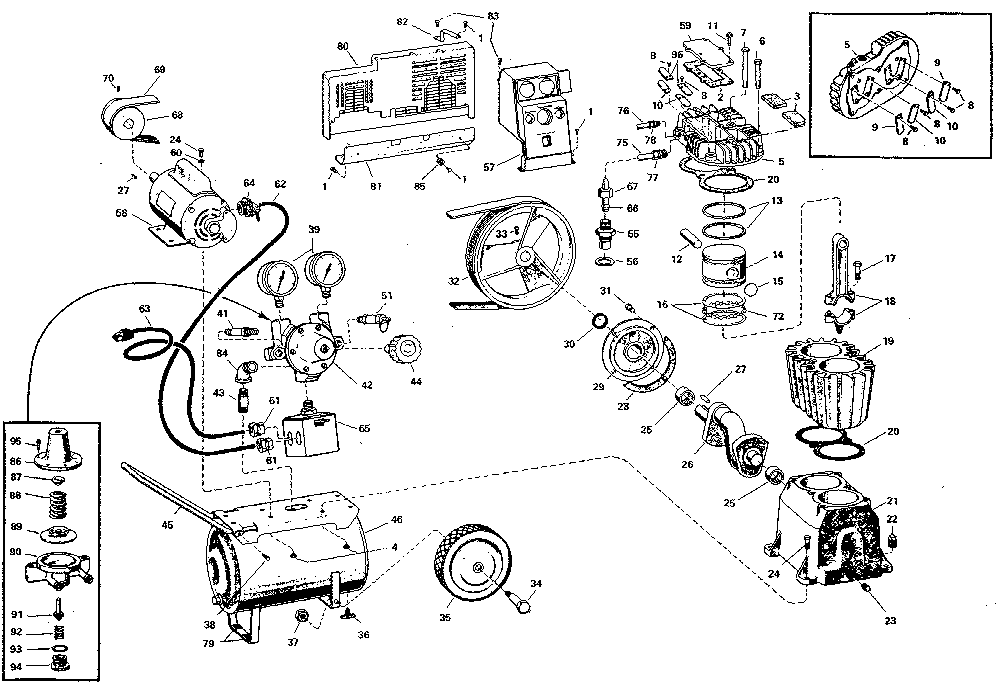

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 105 parts

Filler Plug#22

Unit Diagram

Filler plug

Part #STD-220

The manufacturer no longer makes this part, and there's no substitute part

Set Screw#38

Unit Diagram

Set screw

Part #STD-122

The manufacturer no longer makes this part, and there's no substitute part

Screw#31

Unit Diagram

Screw

Part #STD-242

The manufacturer no longer makes this part, and there's no substitute part

Drain Cock#36

Unit Diagram

Drain cock

Part #STD-301

The manufacturer no longer makes this part, and there's no substitute part

Motor#58

Unit Diagram

Motor

Part #MC-56

The manufacturer no longer makes this part, and there's no substitute part

Cord Grip#64

Unit Diagram

Cord grip

Part #STD-129

The manufacturer no longer makes this part, and there's no substitute part

Comp Block

#NI

All parts Diagram

Comp block

Part #VT-2200

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw#17

Unit Diagram

Cap screw

Part #STD-501

The manufacturer no longer makes this part, and there's no substitute part

Con Rod#18

Unit Diagram

Con rod

Part #VT-1

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw#6

Unit Diagram

Cap screw

Part #STD-218

The manufacturer no longer makes this part, and there's no substitute part
