Model # 234795521 Official Craftsman line trimmer

Here are the diagrams and repair parts for Official Craftsman 234795521 line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

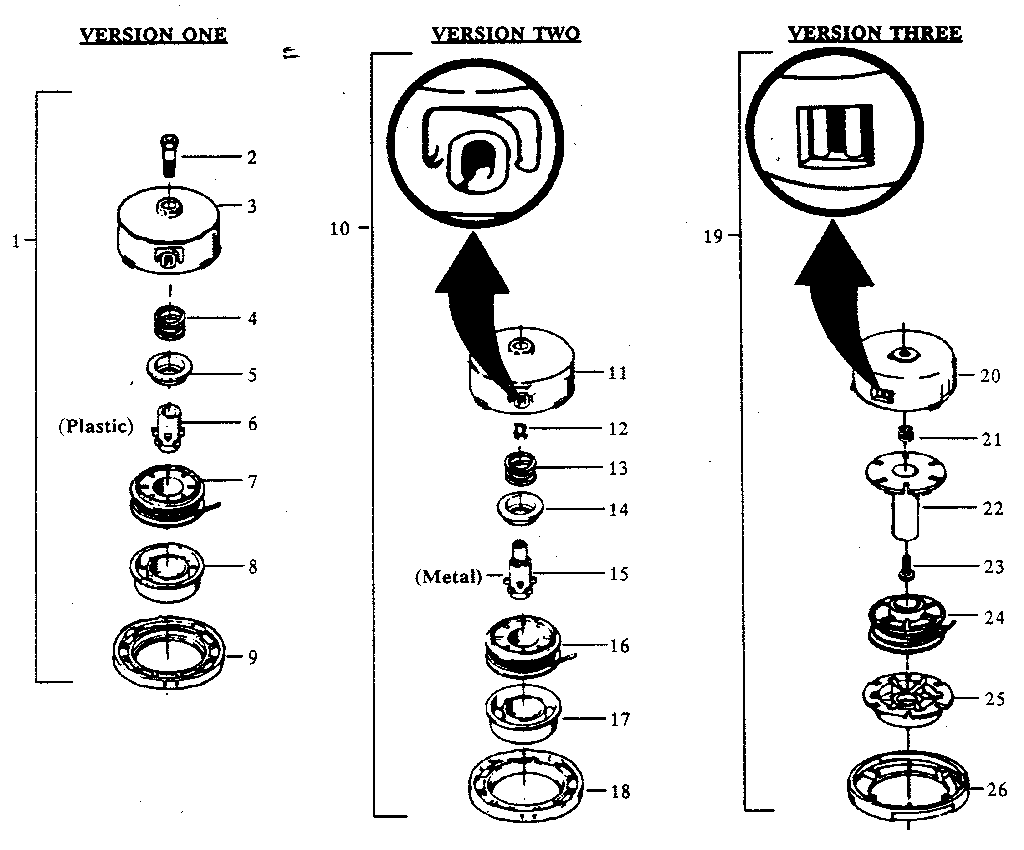

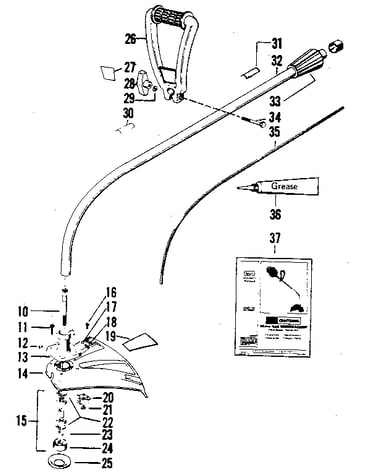

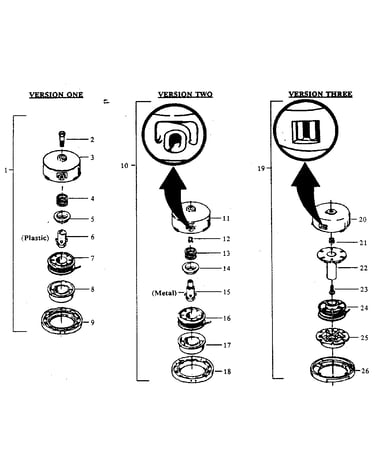

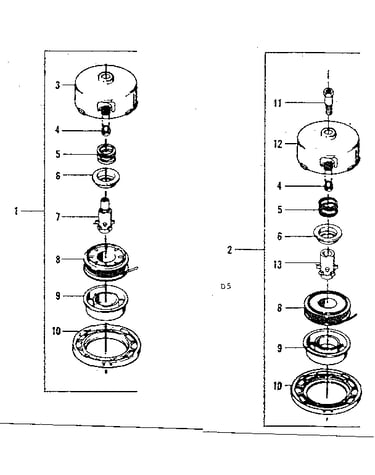

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 190 parts  |

Fuel Line 21042
#43

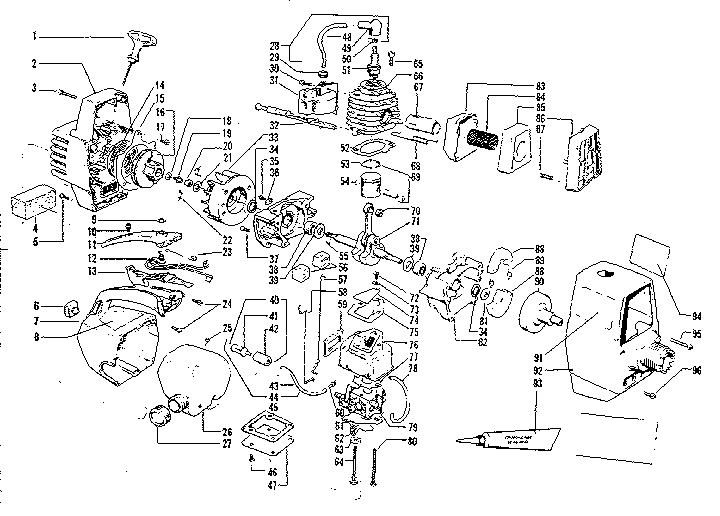

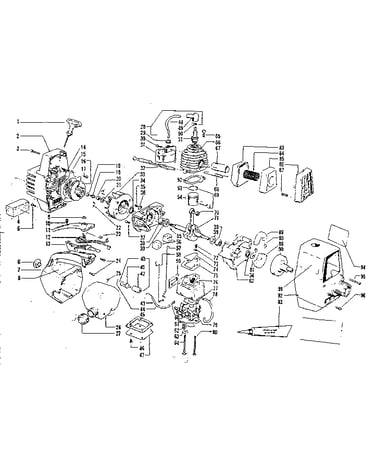

Engine diagram

Fuel line

Part #21042

Replaced by #530069216

?
Manufacturer substitution
This part replaces 21042. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.41
13% OFF Phone Price : $7.41
In Stock
Gasket Kit 35186

#NI

All parts diagram

Gasket kit

Part #35186

Replaced by #530069844

?
Manufacturer substitution
This part replaces 35186. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$14.37
12% OFF Phone Price : $16.37
Back Order
Check Valve 23166
#25

Engine diagram

Check valve

Part #23166

Replaced by #530026119

?
Manufacturer substitution
This part replaces 23166. Substitute parts can look different from the original.
This item is not returnable
Back Order
Fuel Line 21043
#78

Engine diagram

Fuel line

Part #21043

Replaced by #530069571

?
Manufacturer substitution
This part replaces 21043. Substitute parts can look different from the original.
This item is not returnable
In Stock
Gasket 35164
#5B

Carburetor diagram

Gasket

Part #35164

Replaced by #530035164

?
Manufacturer substitution
This part replaces 35164. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 15367
#24

Engine diagram

Screw

Part #15367

Replaced by #503210619

?
Manufacturer substitution
This part replaces 15367. Substitute parts can look different from the original.
This item is not returnable
$2.80
26% OFF Phone Price : $3.80
Back Order
Retainer Ring 15162
#54

Engine diagram

Retainer ring

Part #15162

Replaced by #530015162

?
Manufacturer substitution
This part replaces 15162. Substitute parts can look different from the original.
This item is not returnable
In Stock
Air Filter 24371
#4

Engine diagram

Air filter

Part #24371

Replaced by #530024371

?
Manufacturer substitution
This part replaces 24371. Substitute parts can look different from the original.
This item is not returnable
$4.09
20% OFF Phone Price : $5.09
In Stock
Diaphragm 35166
#7B

Carburetor diagram

Diaphragm

Part #35166

Replaced by #504130807

?
Manufacturer substitution
This part replaces 35166. Substitute parts can look different from the original.
This item is not returnable
$4.09
20% OFF Phone Price : $5.09
Back Order
Valve 35106
#16

Carburetor diagram

Valve

Part #35106

Replaced by #530035106

?
Manufacturer substitution
This part replaces 35106. Substitute parts can look different from the original.
This item is not returnable
In Stock
