Model # AT505FTN2 Official GE air conditioner

Here are the diagrams and repair parts for Official GE AT505FTN2 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Thermostat WJ28X509
Thermostat

Part #WJ28X509

$82.99
In Stock
Screw WZ4X362
#994

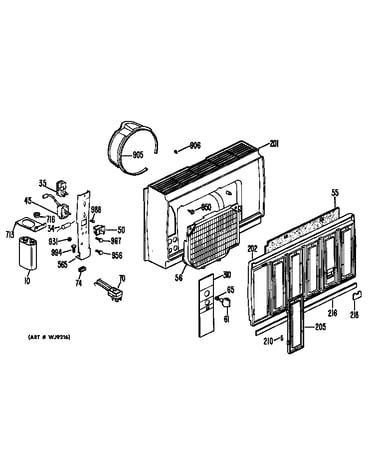

Grille diagram

Screw

Part #WZ4X362

This item is not returnable
$4.99
In Stock
Screw WZ4X392

#NI

All parts diagram

Screw

Part #WZ4X392

This item is not returnable
$3.99
In Stock
Screw WZ4X342
#194

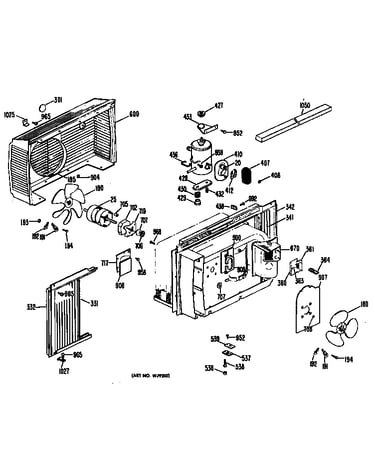

Chassis diagram

Screw

Part #WZ4X342

$10.99
In Stock
Switch WJ26X173
#45

Grille diagram

Switch

Part #WJ26X173

Replaced by #WJ26X247

?
Manufacturer substitution
This part replaces WJ26X173. Substitute parts can look different from the original.
$19.99
In Stock
Id Fan WJ1X617
#191

Chassis diagram

Id fan

Part #WJ1X617

The manufacturer no longer makes this part, and there's no substitute part

Clamp WJ3X296
#1027

Chassis diagram

Clamp

Part #WJ3X296

The manufacturer no longer makes this part, and there's no substitute part

Capacitor Fan And Run WJ20X301
#10

Grille diagram

Capacitor fan and run

Part #WJ20X301

The manufacturer no longer makes this part, and there's no substitute part

Nameplate WJ7X694
#216

Grille diagram

Nameplate

Part #WJ7X694

The manufacturer no longer makes this part, and there's no substitute part

Terminal WJ2X216

#NI

All parts diagram

Terminal

Part #WJ2X216

The manufacturer no longer makes this part, and there's no substitute part
