GE AED22DBR1 air conditioner Parts

Here are the diagrams and repair parts for GE AED22DBR1 air conditioner, as well as links to manuals and error code tables, if available.

GE AED22DBR1 air conditioner

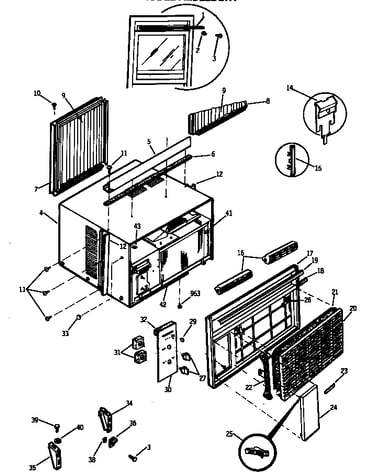

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for AED22DBR1 Air Conditioner

  • Aem14 - Aem2 for GE AED22DBR1 - Part 49-7290

    #NI

    All parts diagram

    Aem14 - Aem2

    Part #49-7290
    In Stock
    $9.24
    10% OFF Phone Price : $10.24Info Icon
    Minus Item
    Qty
    Plus Item
  • Temperature Control for GE AED22DBR1 - Part WJ26X292

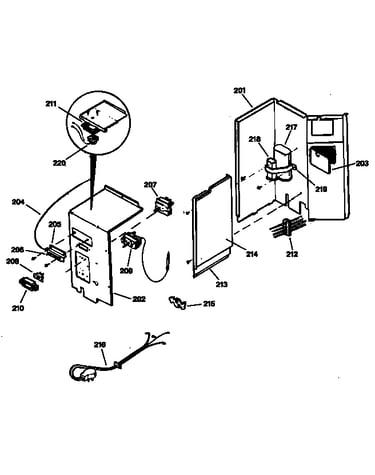

    Interior diagram

    Temperature Control

    Part #WJ26X292
    In Stock
    $283.23
    Minus Item
    Qty
    Plus Item
  • Circuit Switch for GE AED22DBR1 - Part WJ26X271

    Interior diagram

    Circuit Switch

    Part #WJ26X271
    In Stock
    $101.92
    Minus Item
    Qty
    Plus Item
  • Switch for GE AED22DBR1 - Part WJ26X270

    Interior diagram

    Switch

    Part #WJ26X270
    In Stock
    $112.88
    Minus Item
    Qty
    Plus Item
  • Motor for GE AED22DBR1 - Part WJ94X593

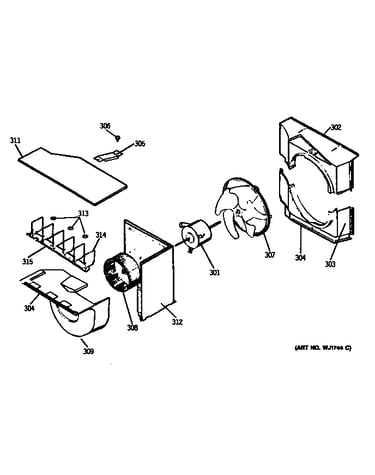

    Fan diagram

    Motor

    Part #WJ94X614

    Replaced by #WJ94X593

    Info Icon
    Manufacturer substitution
    This part replaces WJ94X614. Substitute parts can look different from the original.
    In Stock
    $354.32
    Minus Item
    Qty
    Plus Item
  • Mini Package Rack for GE AED22DBR1 - Part 31-8818

    #NI

    All parts diagram

    Mini Package Rack

    Part #31-8858

    Replaced by #31-8818

    Info Icon
    Manufacturer substitution
    This part replaces 31-8858. Substitute parts can look different from the original.
    In Stock
    $66.05
    Minus Item
    Qty
    Plus Item
  • Terminal Cover for GE AED22DBR1 - Part WJ79X539

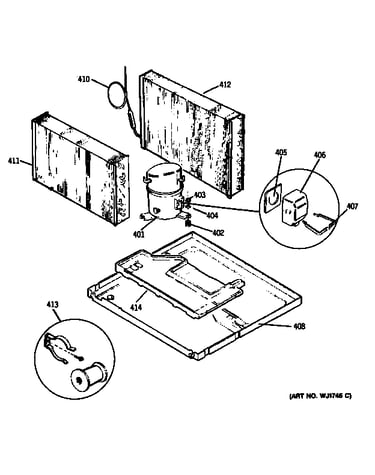

    Compressor diagram

    Terminal Cover

    Part #WJ79X539

    The manufacturer no longer makes this part, and there's no substitute part

  • Capctr Cl for GE AED22DBR1 - Part WJ3X352

    Interior diagram

    Capctr Cl

    Part #WJ3X352

    The manufacturer no longer makes this part, and there's no substitute part

  • Air Bulkhead for GE AED22DBR1 - Part WJ76X338

    Fan diagram

    Air Bulkhead

    Part #WJ76X338

    The manufacturer no longer makes this part, and there's no substitute part

  • Blower Indor for GE AED22DBR1 - Part WJ74X156

    Fan diagram

    Blower Indor

    Part #WJ74X156

    The manufacturer no longer makes this part, and there's no substitute part
