Model # DW887 TYPE4 Official DeWalt die grinder

Here are the diagrams and repair parts for Official DeWalt DW887-TYPE4 die grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |

Screw 445880-00
#13

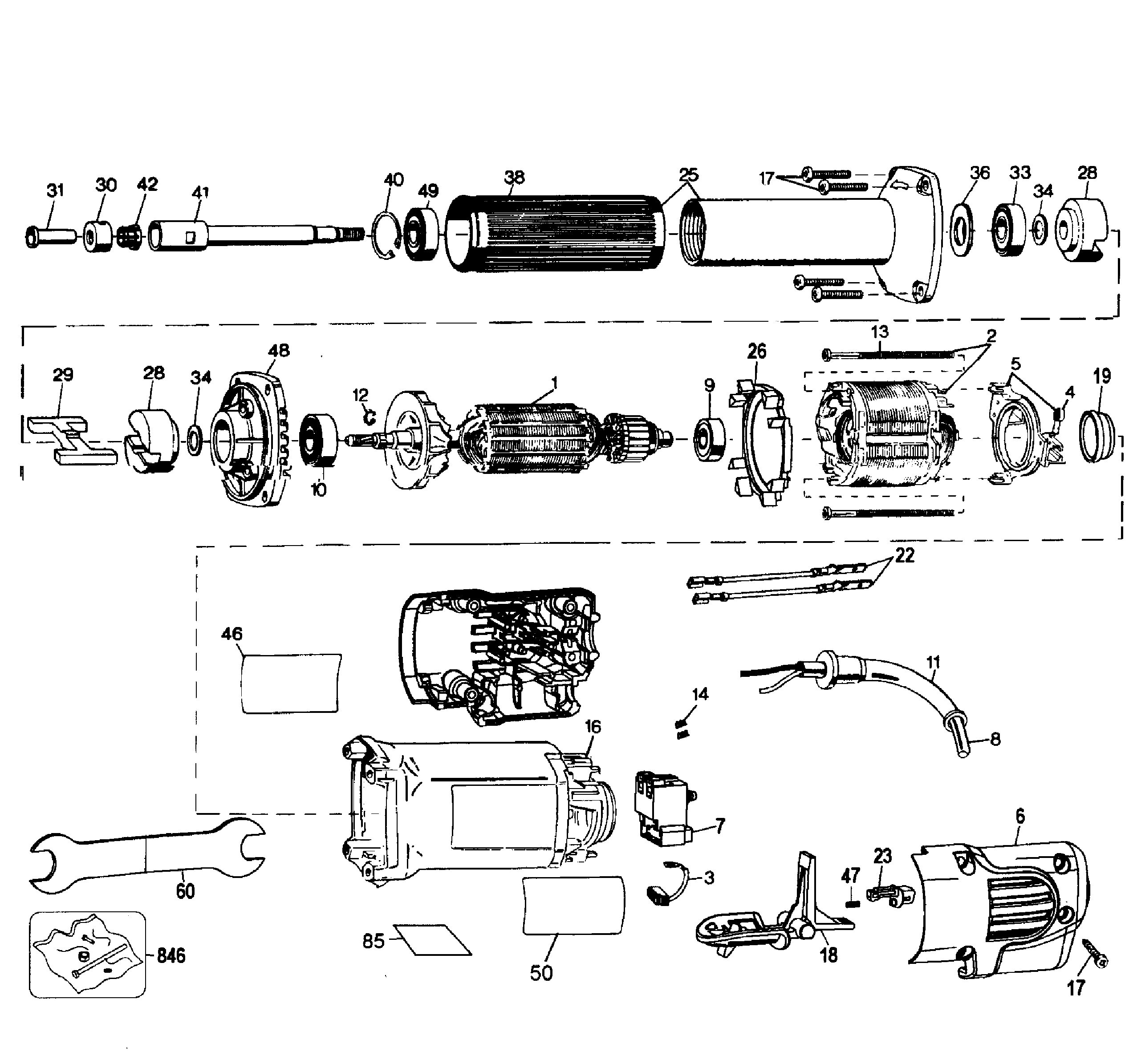

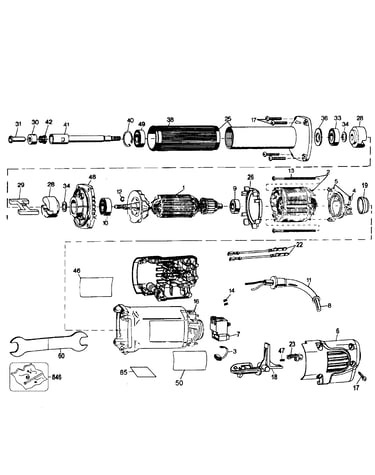

Die grinder diagram

Screw

Part #445880-00

The manufacturer no longer makes this part, and there's no substitute part

Cover 380722-00
#48

Die grinder diagram

Cover

Part #380722-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord 330072-98
#8

Die grinder diagram

Power tool power cord

Part #330072-98

The manufacturer no longer makes this part, and there's no substitute part

Spindle N115813
#41

Die grinder diagram

Spindle

Part #N115813

The manufacturer no longer makes this part, and there's no substitute part

Grinder Motor Brush 445861-25
#3

Die grinder diagram

Grinder motor brush

Part #445861-25

The manufacturer no longer makes this part, and there's no substitute part

Switch 625238-00
#7

Die grinder diagram

Switch

Part #625238-00

The manufacturer no longer makes this part, and there's no substitute part

Warning La N114764
#85

Die grinder diagram

Warning la

Part #N114764

The manufacturer no longer makes this part, and there's no substitute part

Fan Baffle 445876-00
#26

Die grinder diagram

Fan baffle

Part #445876-00

The manufacturer no longer makes this part, and there's no substitute part

Collet 045488-00
#42

Die grinder diagram

Collet

Part #045488-00

The manufacturer no longer makes this part, and there's no substitute part

Paddle Assembly 397655-00SV
#18

Die grinder diagram

Paddle assembly

Part #397655-00SV

The manufacturer no longer makes this part, and there's no substitute part
