GE
Electric Cooktop

Model # JP676*01 Official GE built-in cooktop

Here are the diagrams and repair parts for Official GE JP67601 built-in cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

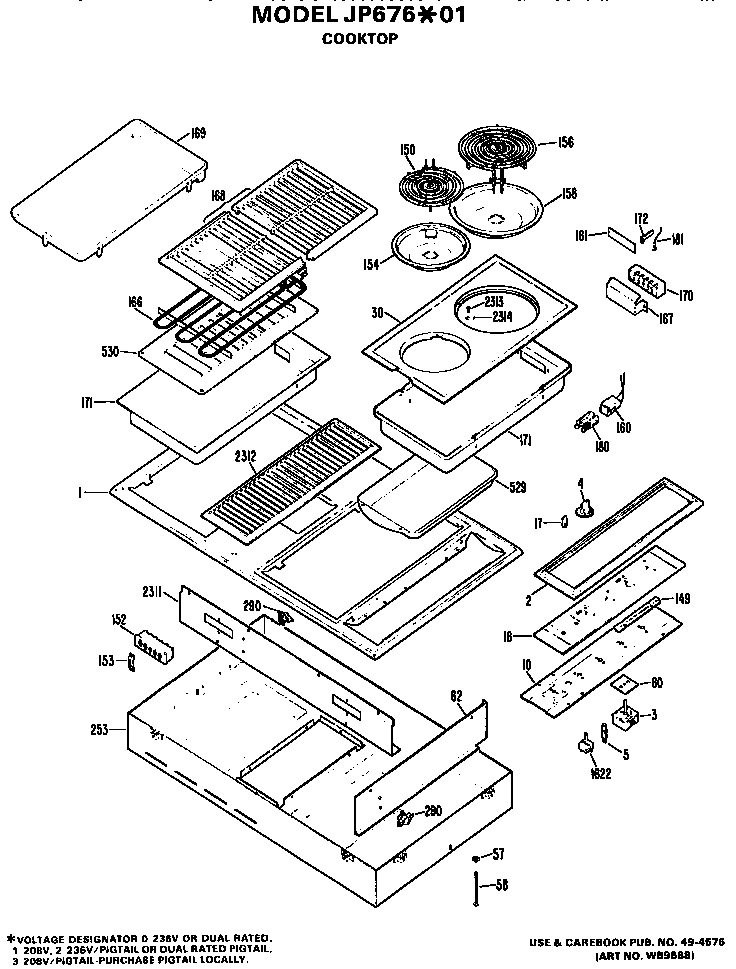

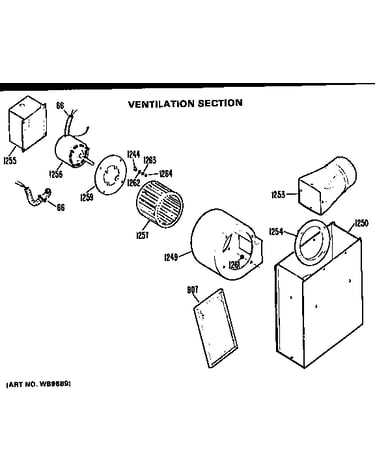

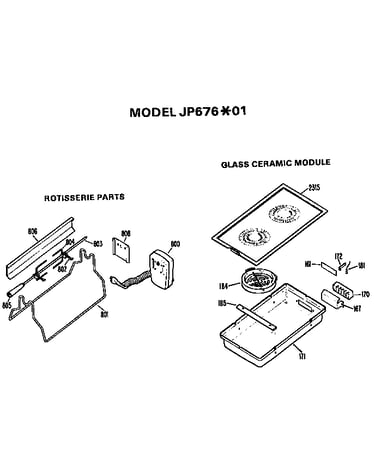

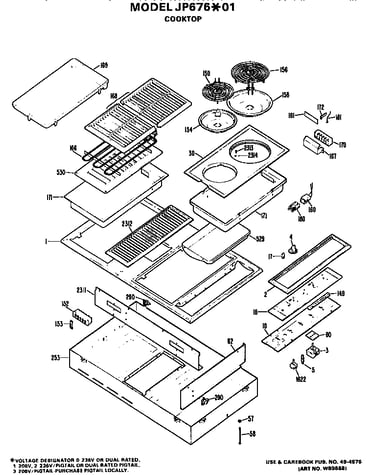

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Unit Pi82e WB30X5060

#156

All parts diagram

Unit pi82e

Part #WB30X5060

Replaced by #WB30X253

?
Manufacturer substitution
This part replaces WB30X5060. Substitute parts can look different from the original.
BEST SELLER
$57.45 |
8% OFF Phone Price : $62.45
In Stock
Range Surface Element Control Switch WB21X5243

#3

All parts diagram

Range surface element control switch

Part #WB21X5243

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces WB21X5243. Substitute parts can look different from the original.
BEST SELLER
$68.34 |
7% OFF Phone Price : $73.34
In Stock
Drip Pan 6" WB32X5037

#154

All parts diagram

Drip pan 6"

Part #WB32X5037

Replaced by #WB32X107

?
Manufacturer substitution
This part replaces WB32X5037. Substitute parts can look different from the original.
$9.80 |
10% OFF Was : $10.89
In Stock
Control Trim WB7X6815

#2

All parts diagram

Control trim

Part #WB7X6815

$91.99
In Stock
Pan Grille WB49X5304

#171

All parts diagram

Pan grille

Part #WB49X5304

$99.49
In Stock
Use And Care Guide 49-4576

#9999

All parts diagram

Use and care guide

Part #49-4576

Replaced by #49-4576-2

?
Manufacturer substitution
This part replaces 49-4576. Substitute parts can look different from the original.
$8.49
In Stock
Unit Pi62e WB30X5061

#150

All parts diagram

Unit pi62e

Part #WB30X5061

Replaced by #WB30X254

?
Manufacturer substitution
This part replaces WB30X5061. Substitute parts can look different from the original.
$44.92 |
10% OFF Phone Price : $49.92
In Stock
Drip Pan 8" WB32X5038

#158

All parts diagram

Drip pan 8"

Part #WB32X5038

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces WB32X5038. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Fan Wheel WB2X7275

#1257

All parts diagram

Fan wheel

Part #WB2X7275

The manufacturer no longer makes this part, and there's no substitute part

Unit Htg WB30X5076

#184

All parts diagram

Unit htg

Part #WB30X5076

The manufacturer no longer makes this part, and there's no substitute part
