Model # 580327201 Official Craftsman generator

Here are the diagrams and repair parts for Official Craftsman 580327201 generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |

O-ring B3065
#20

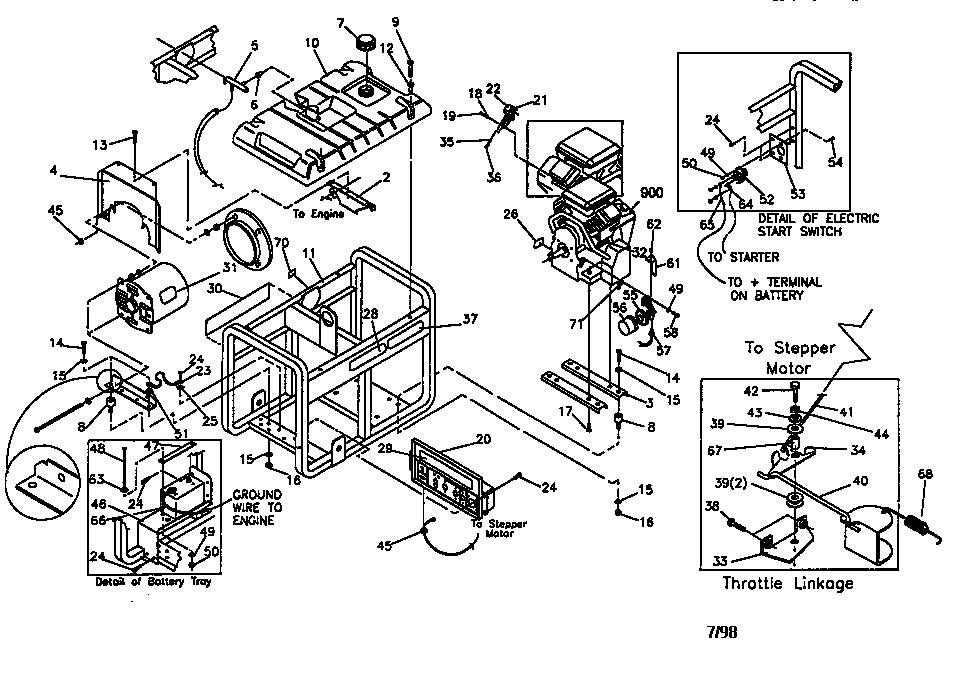

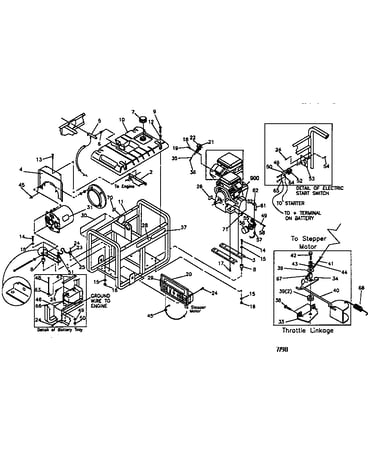

Craftsman 10,000w ac generator diagram

O-ring

Part #B3065

Replaced by #705001

?
Manufacturer substitution
This part replaces B3065. Substitute parts can look different from the original.
BEST SELLER
$26.82
16% OFF Phone Price : $31.82
In Stock
Valve 80270
#5

Craftsman 10,000w ac generator diagram

Valve

Part #80270

Replaced by #192980GS

?
Manufacturer substitution
This part replaces 80270. Substitute parts can look different from the original.
BEST SELLER
$25.94
16% OFF Phone Price : $30.94
In Stock
Rushing 78299
#6

Craftsman 10,000w ac generator diagram

Rushing

Part #78299

Replaced by #192980GS

?
Manufacturer substitution
This part replaces 78299. Substitute parts can look different from the original.
BEST SELLER
$25.94
16% OFF Phone Price : $30.94
In Stock
Switch 60108
#57

Craftsman 10,000w ac generator diagram

Switch

Part #60108

Replaced by #0D9235BSRV

?
Manufacturer substitution
This part replaces 60108. Substitute parts can look different from the original.
$63.02
7% OFF Phone Price : $68.02
In Stock
Screw 75246
#17

Craftsman 10,000w ac generator diagram

Screw

Part #75246

Replaced by #75246GS

?
Manufacturer substitution
This part replaces 75246. Substitute parts can look different from the original.
This item is not returnable
In Stock
Brush Assembly 66386
#5

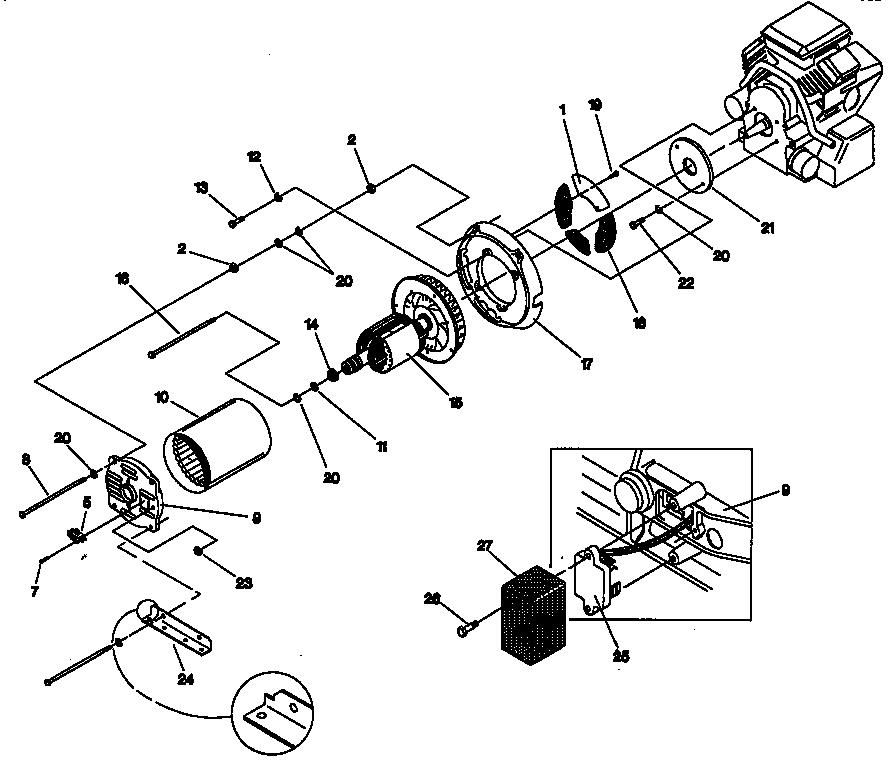

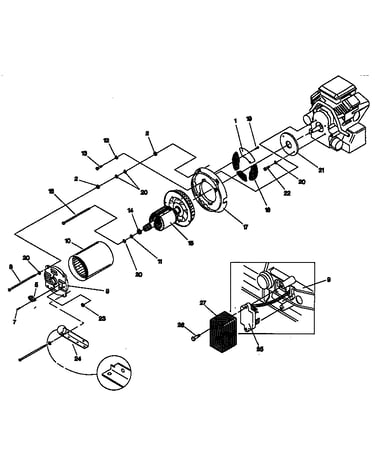

Stator assembly diagram

Brush assembly

Part #66386

Replaced by #66386GS

?
Manufacturer substitution
This part replaces 66386. Substitute parts can look different from the original.
This item is not returnable
$29.69
14% OFF Phone Price : $34.69
In Stock
Fuel Cap 90878
#7

Craftsman 10,000w ac generator diagram

Fuel cap

Part #90878

Replaced by #846987

?
Manufacturer substitution
This part replaces 90878. Substitute parts can look different from the original.
In Stock
Cable 65787

#NI

All parts diagram

Cable

Part #65787

Replaced by #65787GS

?
Manufacturer substitution
This part replaces 65787. Substitute parts can look different from the original.
This item is not returnable
$18.00
10% OFF Phone Price : $20.00
In Stock
Grommet 62265
#45

Craftsman 10,000w ac generator diagram

Grommet

Part #62265

Replaced by #62265GS

?
Manufacturer substitution
This part replaces 62265. Substitute parts can look different from the original.
In Stock
Cap Screw 40945
#58

Craftsman 10,000w ac generator diagram

Cap screw

Part #40945

Replaced by #40945GS

?
Manufacturer substitution
This part replaces 40945. Substitute parts can look different from the original.
This item is not returnable
In Stock
