Craftsman 315269230 drill Parts

Here are the diagrams and repair parts for Craftsman 315269230 drill, as well as links to manuals and error code tables, if available.

Craftsman 315269230 drill
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for315269230 Power Tools

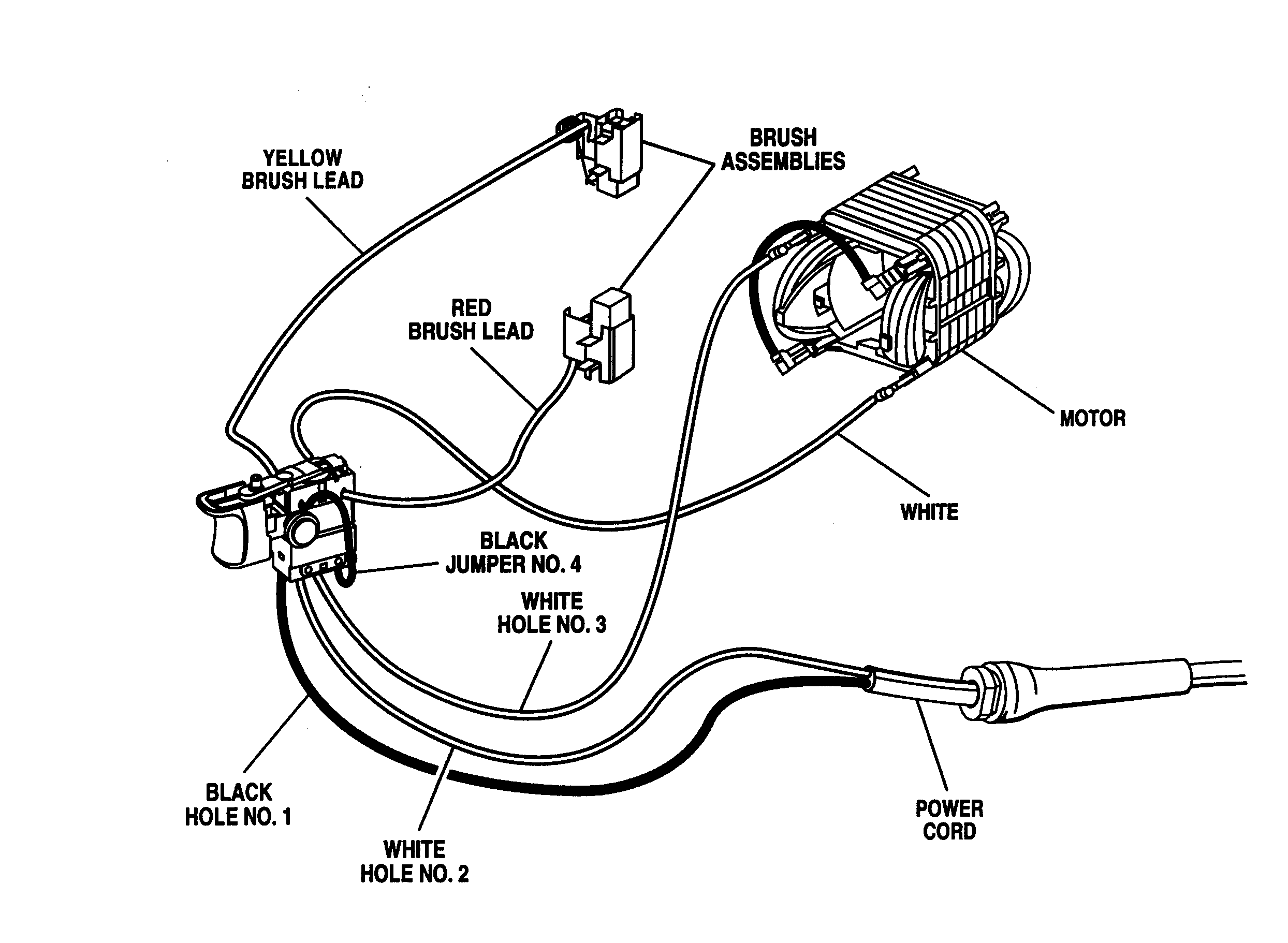

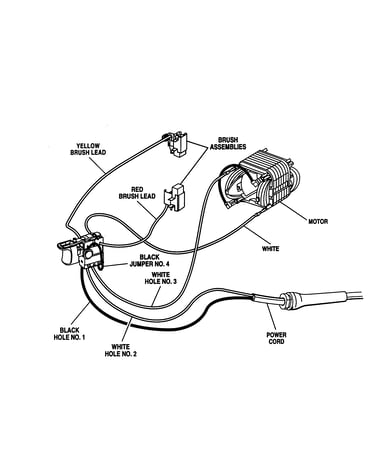

  • Switch for Craftsman 315269230 - Part 7619705

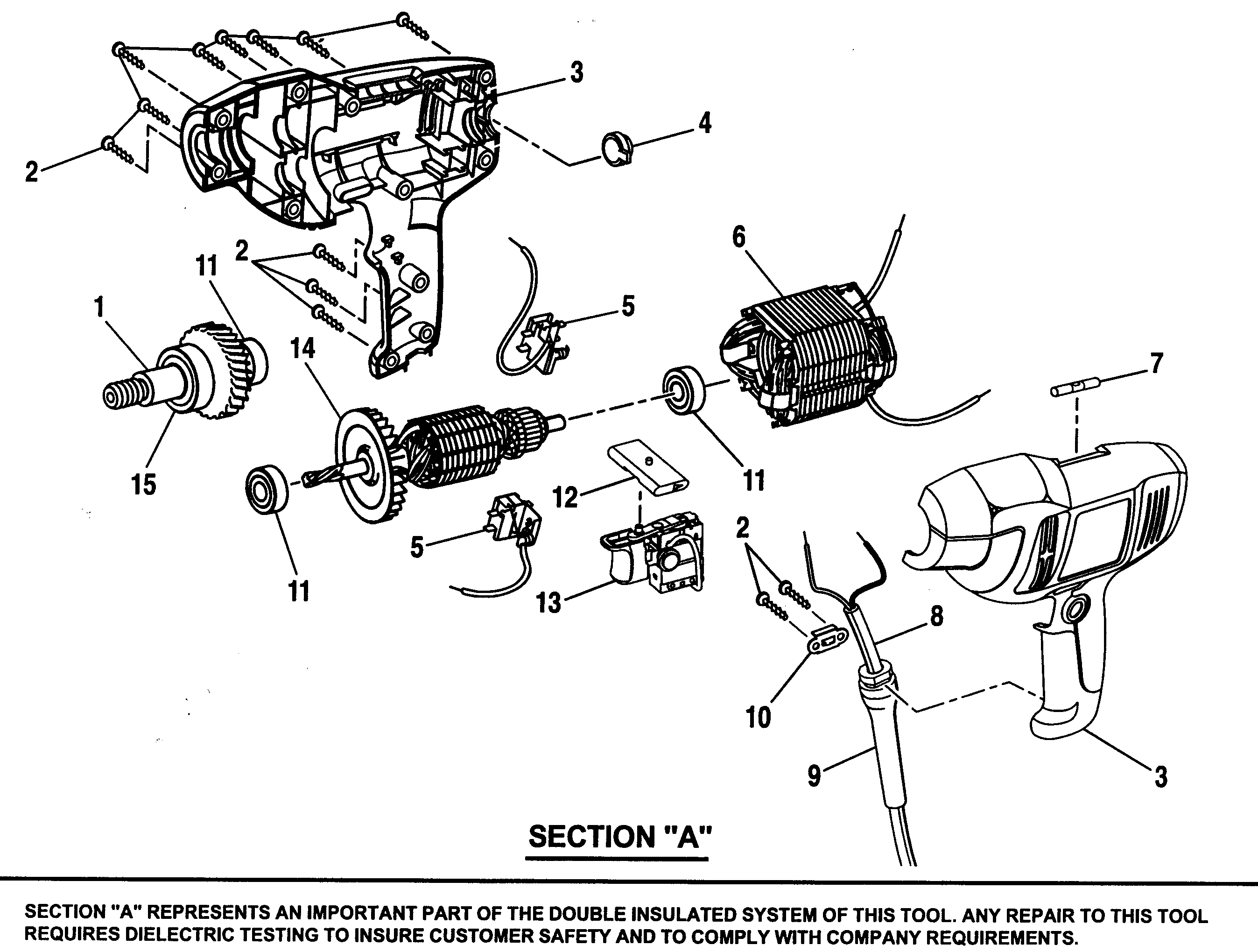

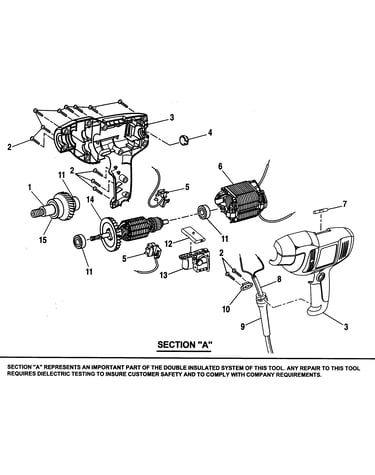

    Motor assy diagram

    Switch

    Part #7619705

    The manufacturer no longer makes this part, and there's no substitute part

  • Armature for Craftsman 315269230 - Part 984599-001

    Motor assy diagram

    Armature

    Part #984599-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Drill Level for Craftsman 315269230 - Part 3000907

    Motor assy diagram

    Drill Level

    Part #3000907

    The manufacturer no longer makes this part, and there's no substitute part

  • Data Plate for Craftsman 315269230 - Part 9423711

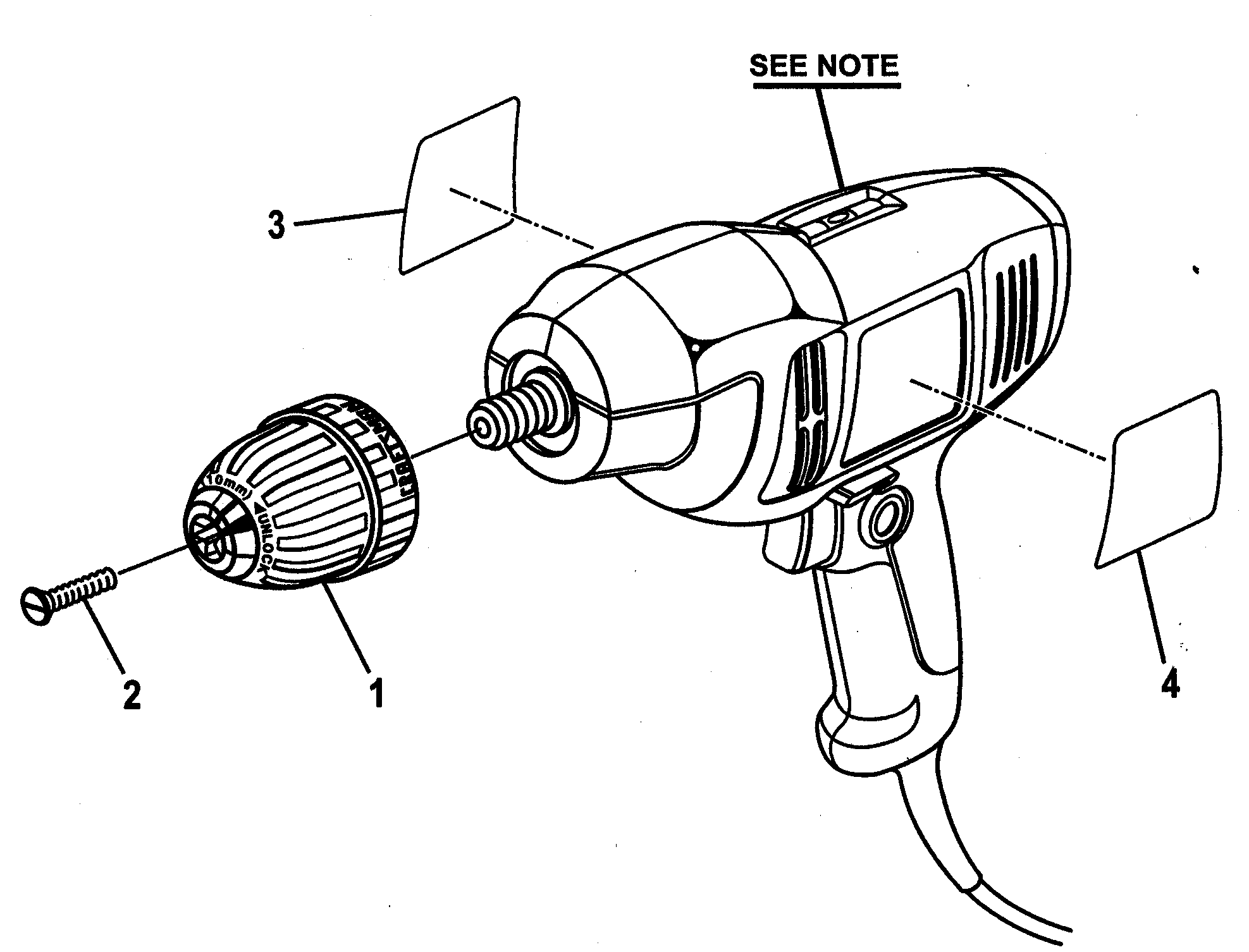

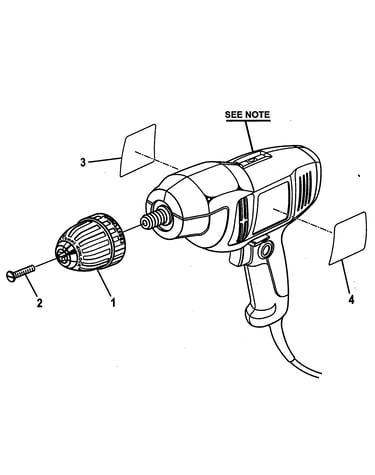

    Drill diagram

    Data Plate

    Part #9423711

    The manufacturer no longer makes this part, and there's no substitute part

  • Brush Assembly for Craftsman 315269230 - Part 984511-001

    Motor assy diagram

    Brush Assembly

    Part #984511-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Bend Rlief for Craftsman 315269230 - Part 5927402

    Motor assy diagram

    Bend Rlief

    Part #5927402

    The manufacturer no longer makes this part, and there's no substitute part

  • Selector for Craftsman 315269230 - Part 3878701

    Motor assy diagram

    Selector

    Part #3878701

    The manufacturer no longer makes this part, and there's no substitute part

  • Logo Plate for Craftsman 315269230 - Part 9420309

    Drill diagram

    Logo Plate

    Part #9420309

    The manufacturer no longer makes this part, and there's no substitute part

  • 608llt for Craftsman 315269230 - Part 6814104

    Motor assy diagram

    608llt

    Part #6814104

    The manufacturer no longer makes this part, and there's no substitute part

  • Field Assembly for Craftsman 315269230 - Part 984567-001

    Motor assy diagram

    Field Assembly

    Part #984567-001

    The manufacturer no longer makes this part, and there's no substitute part
