Sharp R-430AK microwave

Sharp R-430AK microwave Parts

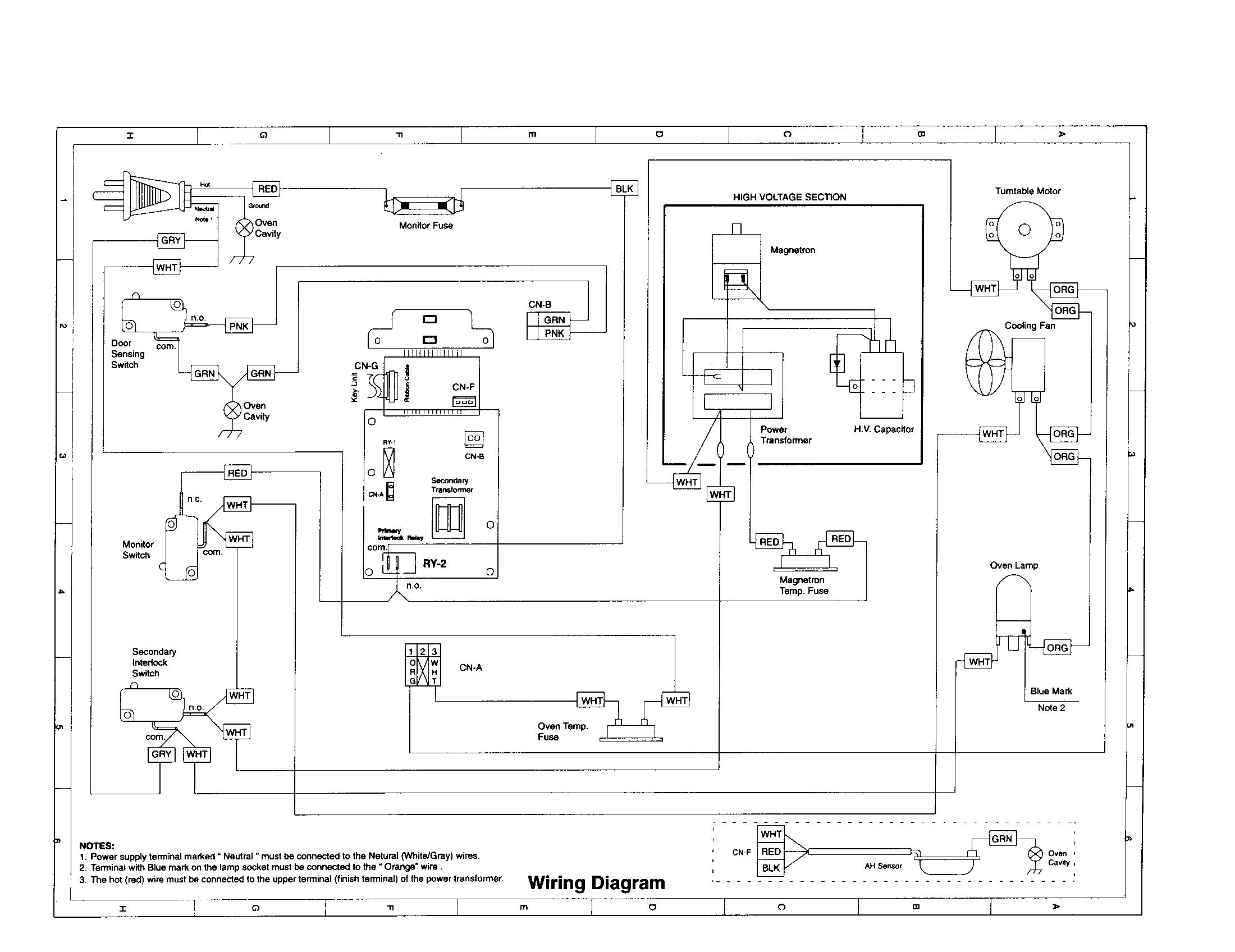

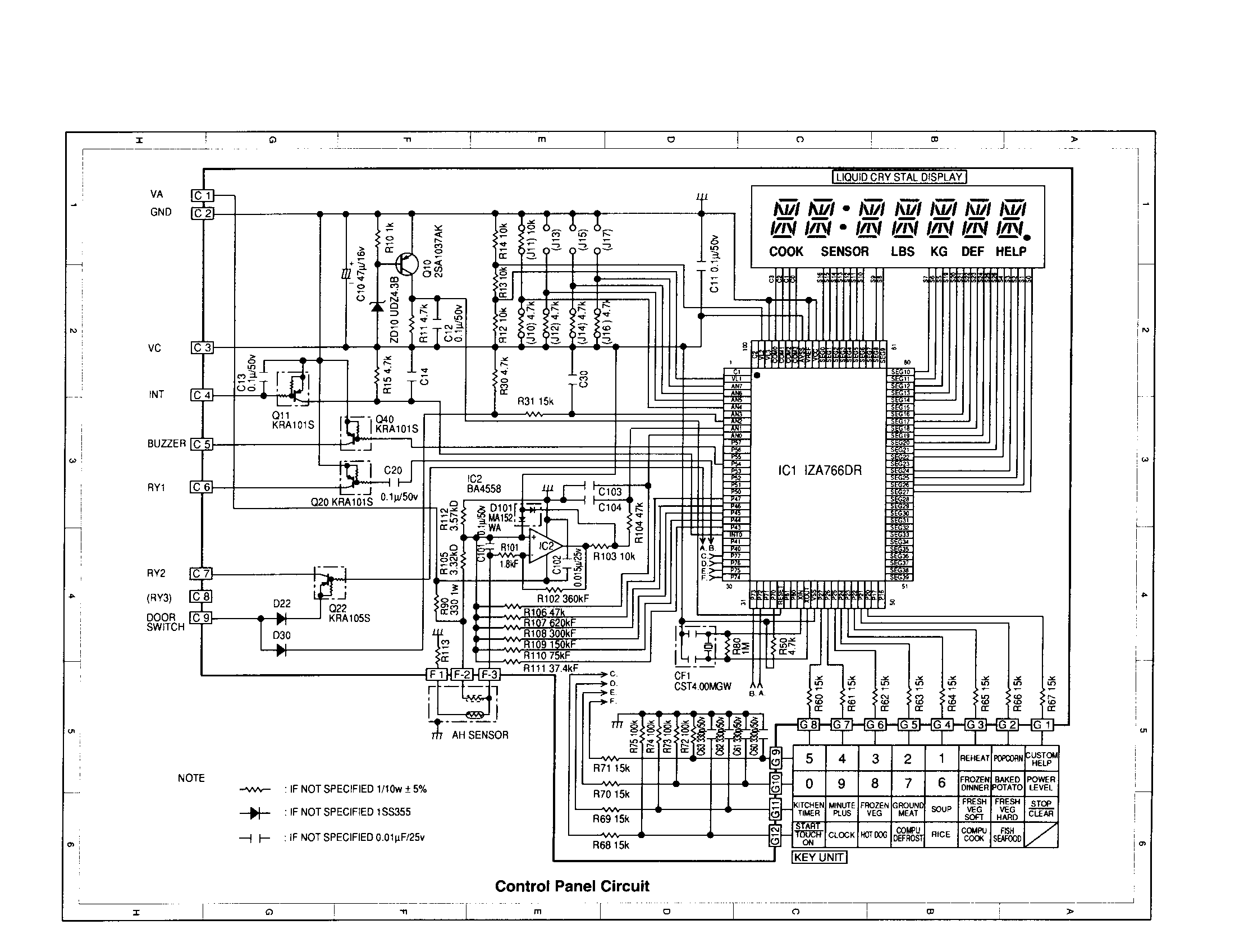

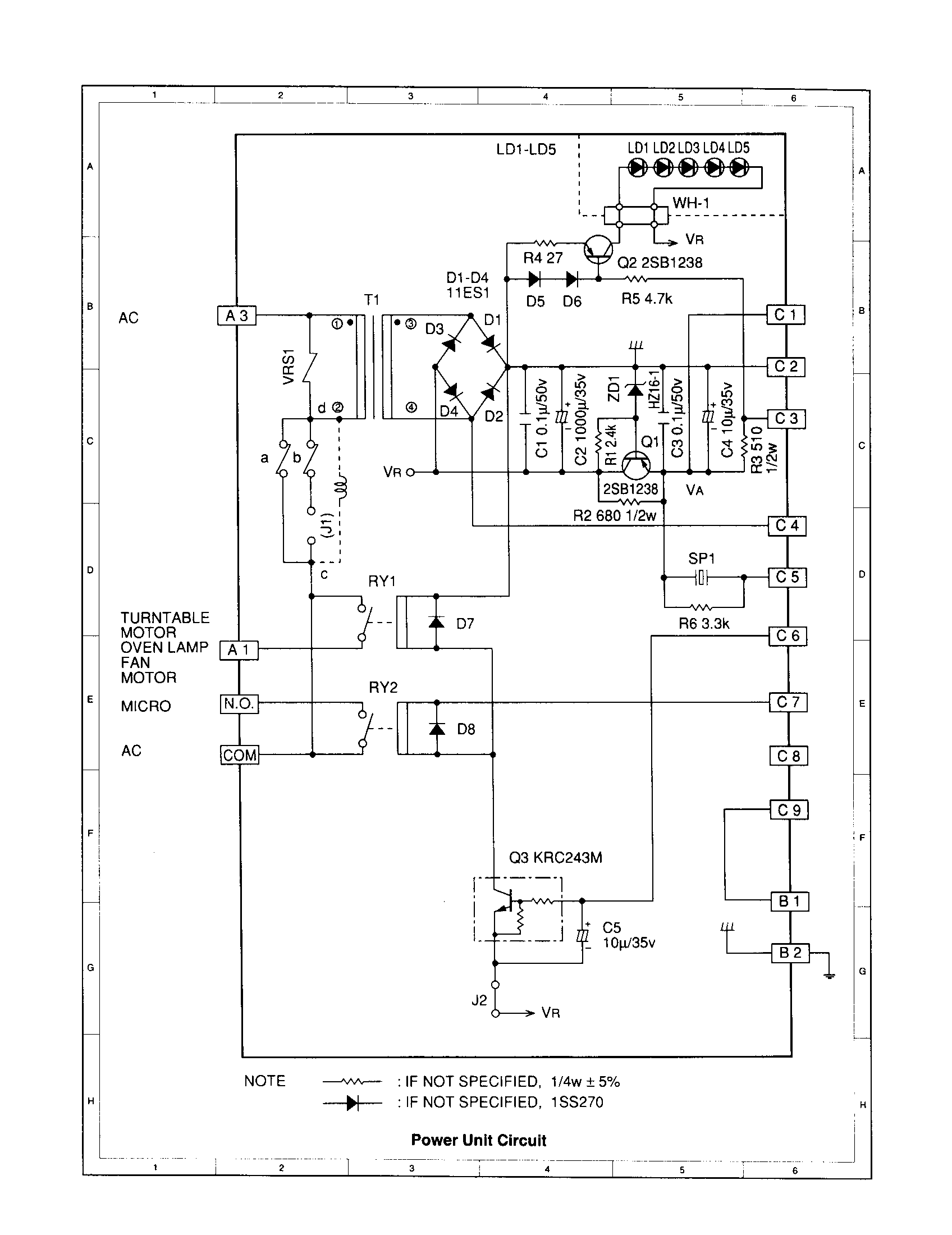

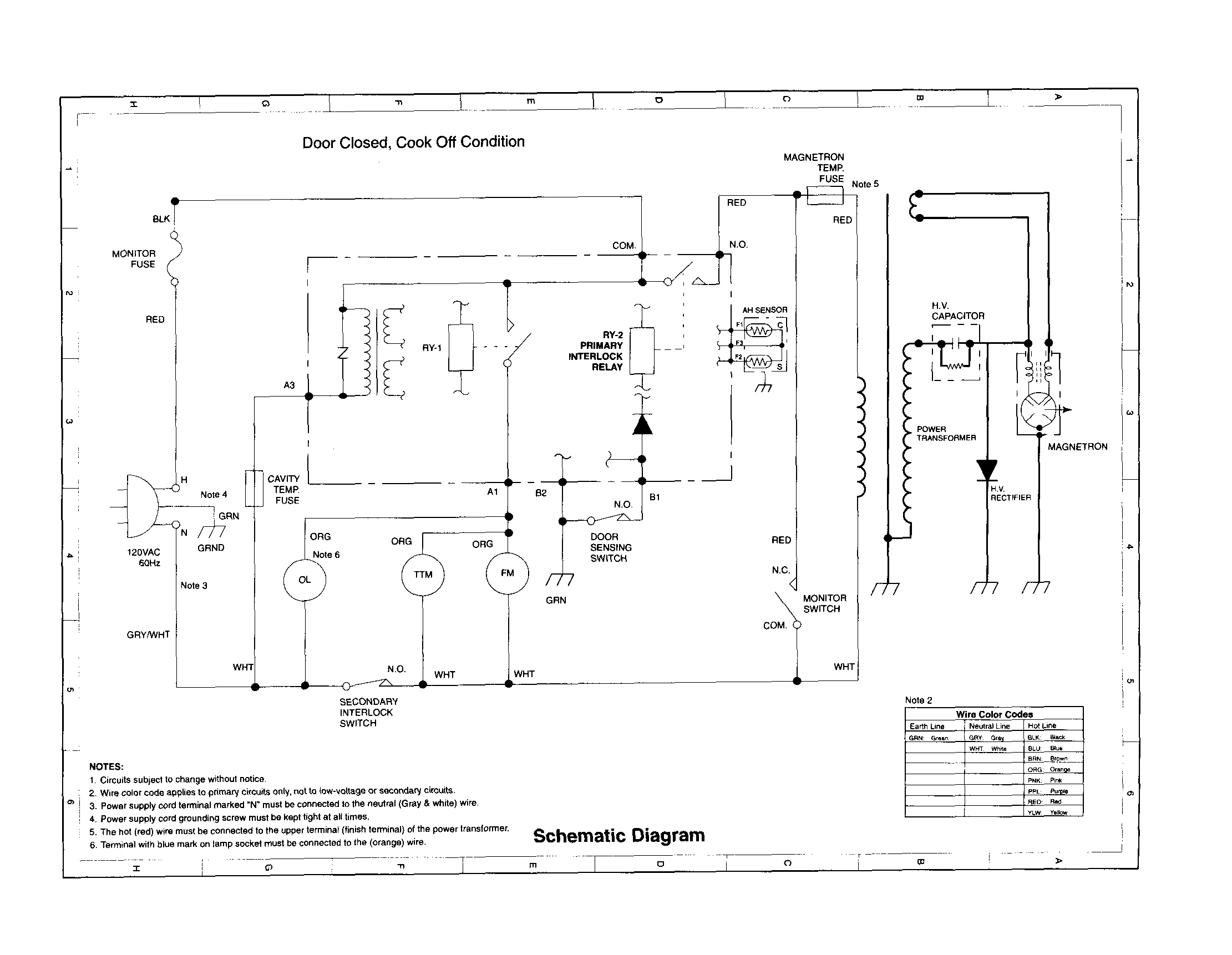

Here are the diagrams and repair parts for Sharp R-430AK microwave, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for R-430AK Microwaves

  • Led for Sharp R-430AK - Part VHPSLZ381A9-3

    #NI

    All parts diagram

    Led

    Part #VHPSLZ381A9-3

    The manufacturer no longer makes this part, and there's no substitute part

  • Sensor for Sharp R-430AK - Part FDTCTA177WRK0

    #1-17

    All parts diagram

    Sensor

    Part #FDTCTA177WRK0

    The manufacturer no longer makes this part, and there's no substitute part

  • Menu Label for Sharp R-430AK - Part TLAB-B031MRR0

    #5-04

    All parts diagram

    Menu Label

    Part #TLAB-B031MRR0

    The manufacturer no longer makes this part, and there's no substitute part

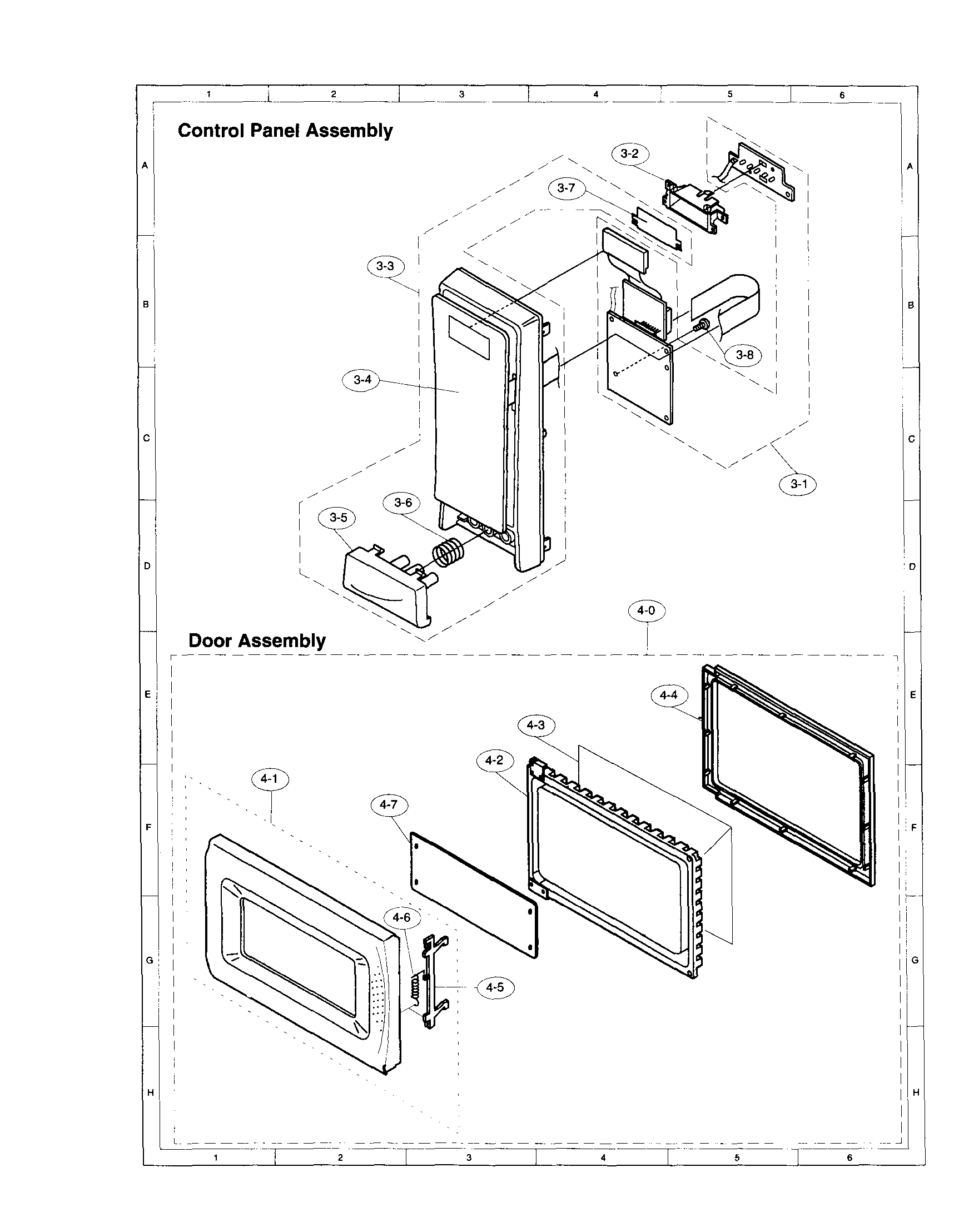

  • Keypad for Sharp R-430AK - Part FUNTKB137MRE0

    #3-04B

    All parts diagram

    Keypad

    Part #FUNTKB137MRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Door Scree for Sharp R-430AK - Part FCOV-B116MRK0

    #4-01A

    All parts diagram

    Door Scree

    Part #FCOV-B116MRK0

    The manufacturer no longer makes this part, and there's no substitute part

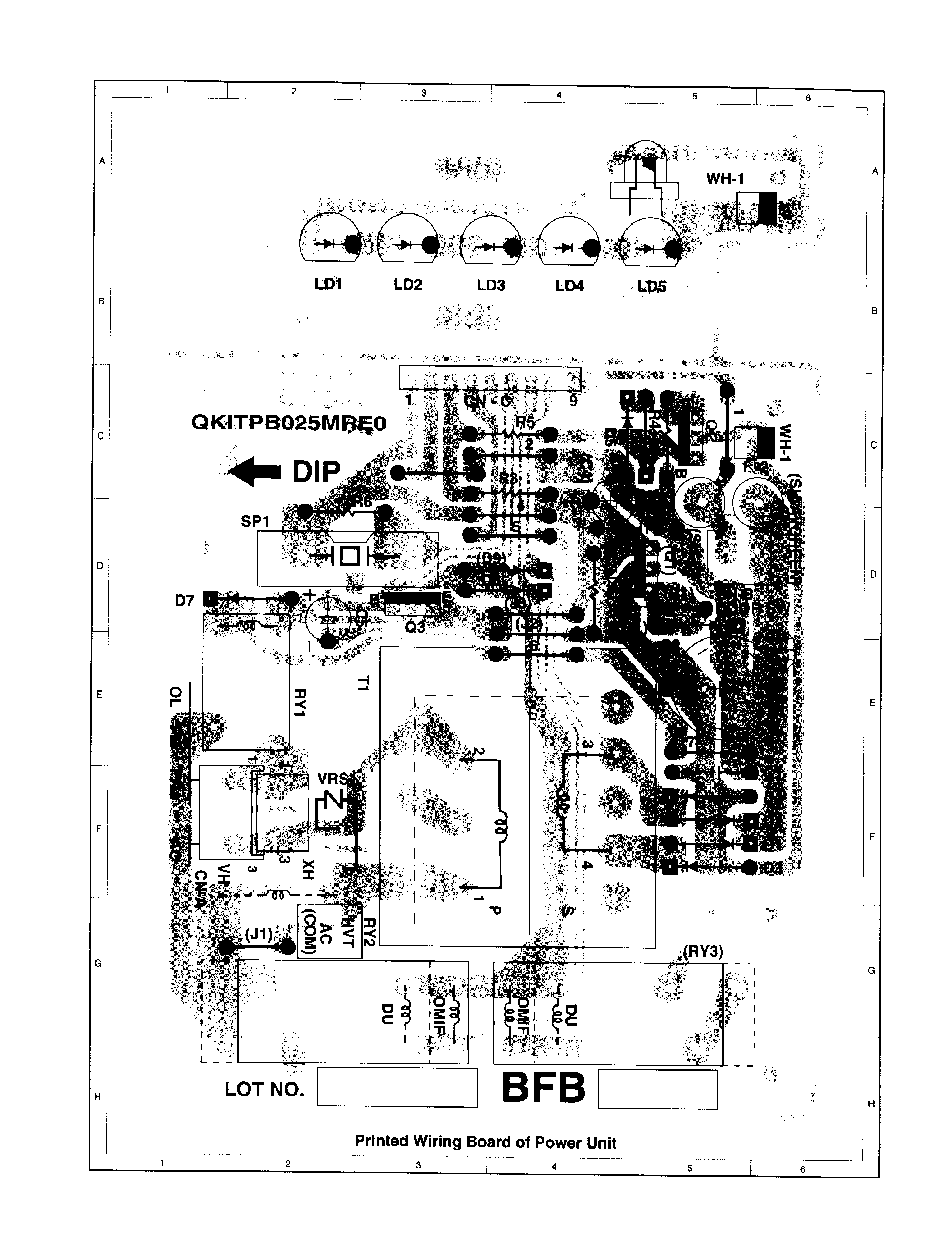

  • Control Unit for Sharp R-430AK - Part CPWBFB004MRU0

    #3-01

    All parts diagram

    Control Unit

    Part #CPWBFB004MRU0

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Sharp R-430AK - Part XOTSD40P12000

    #6-05

    All parts diagram

    Screw

    Part #XOTSD40P12000

    The manufacturer no longer makes this part, and there's no substitute part

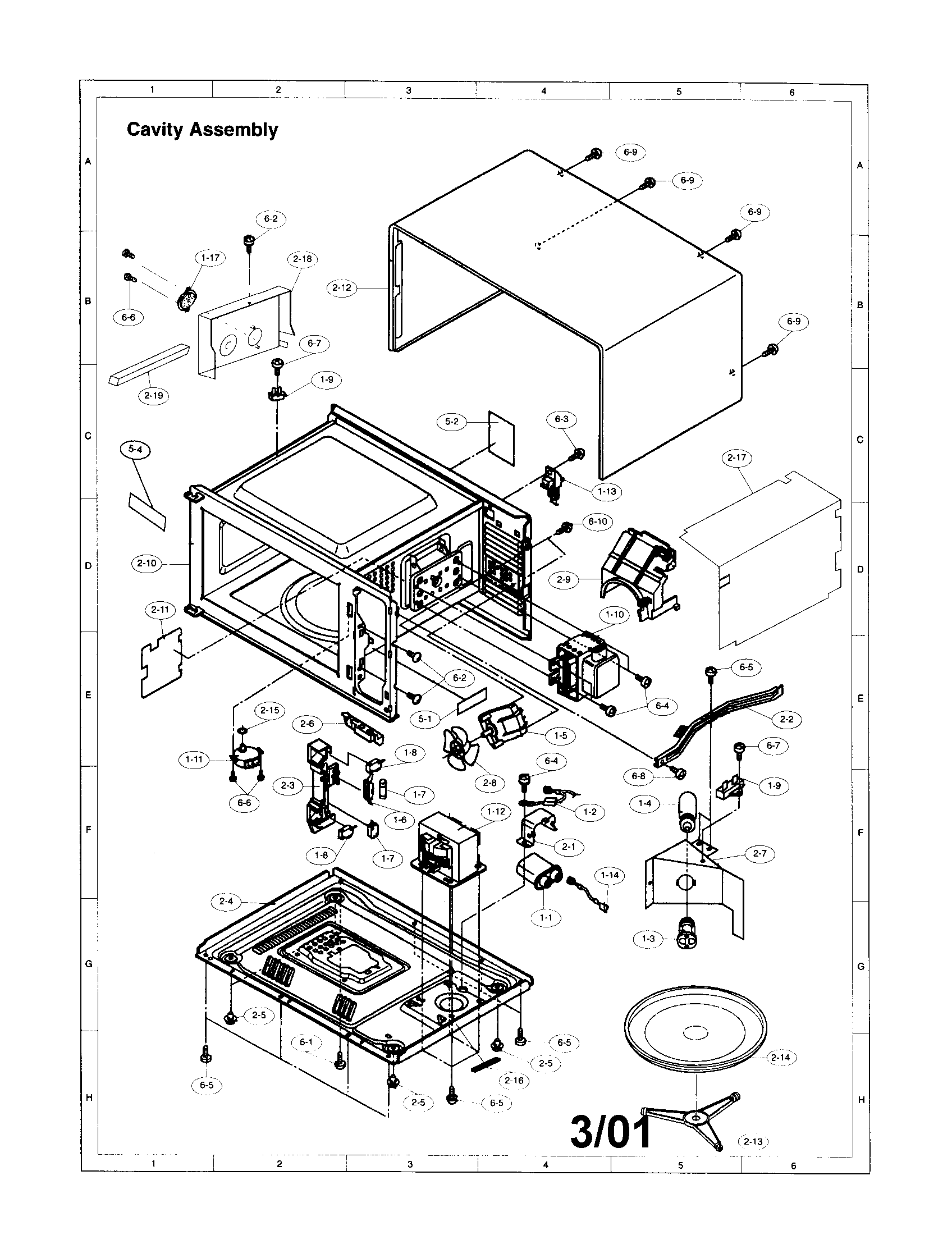

  • Tray for Sharp R-430AK - Part NTNT-A036WRE0

    #2-14

    All parts diagram

    Tray

    Part #NTNT-A036WRE0

    The manufacturer no longer makes this part, and there's no substitute part

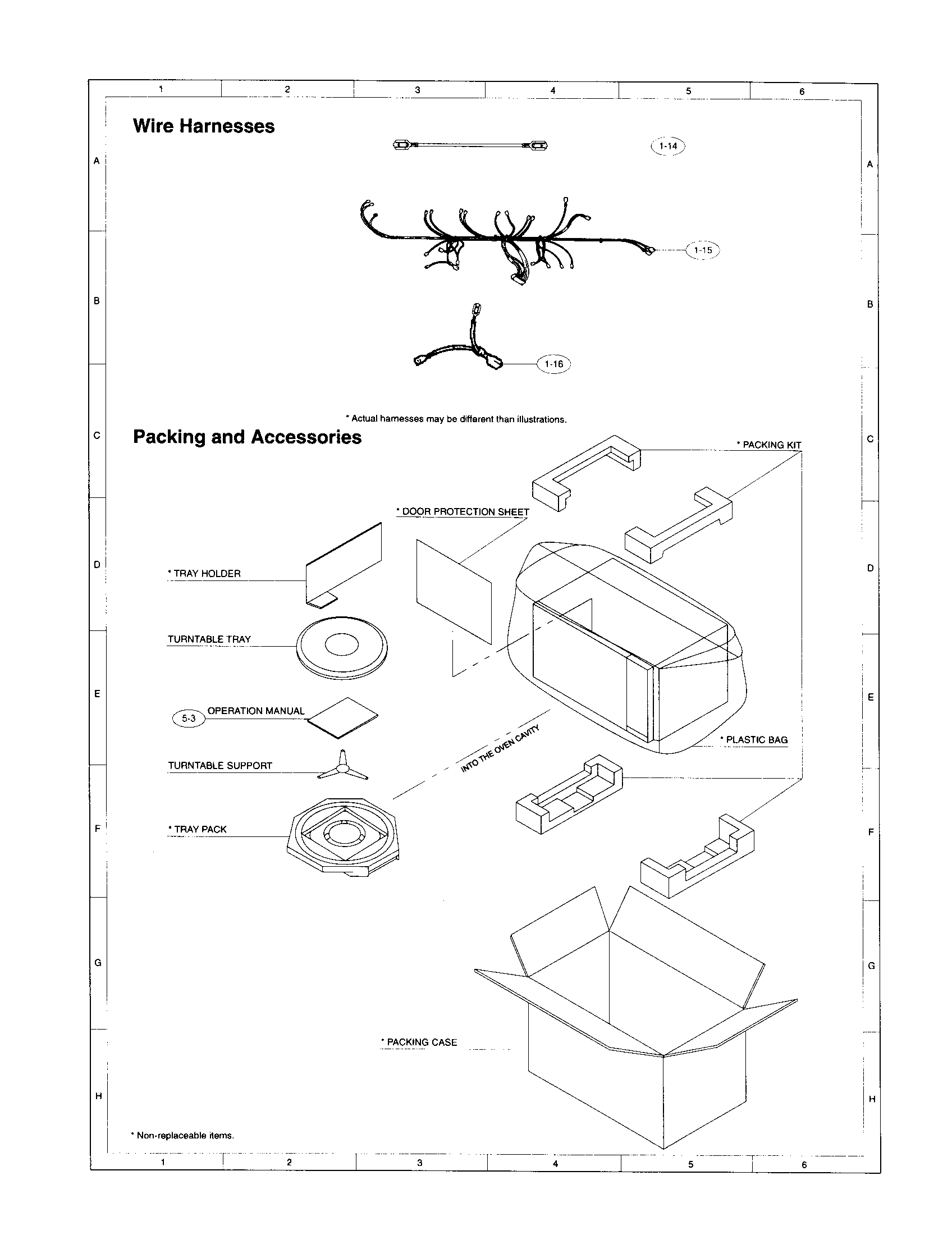

  • Connector for Sharp R-430AK - Part QCNCMA422DRE0

    #3-01C

    All parts diagram

    Connector

    Part #QCNCMA422DRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Diode for Sharp R-430AK - Part VHD1SS270A/-1

    #NI

    All parts diagram

    Diode

    Part #VHD1SS270A/-1

    The manufacturer no longer makes this part, and there's no substitute part
