Model # MICROLINE 83A Official OKI Data dot matrix microline printer

Here are the diagrams and repair parts for Official OKI Data MICROLINE-83A dot matrix microline printer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

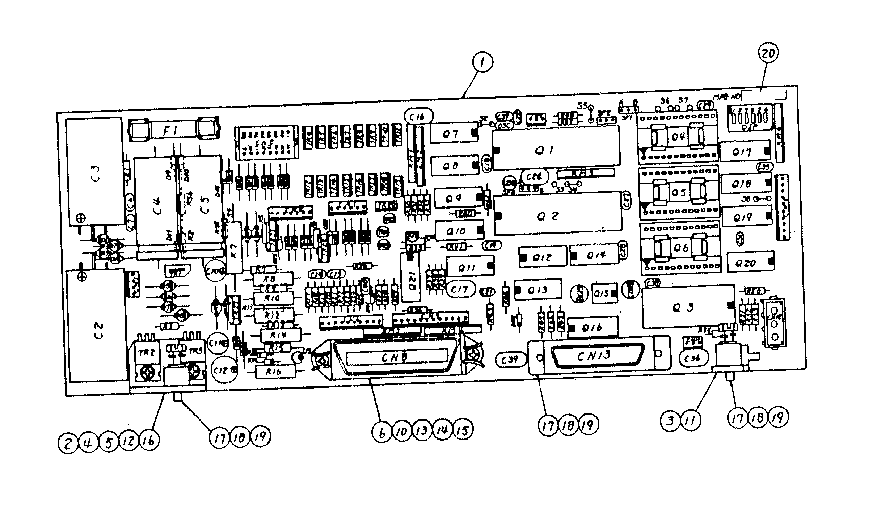

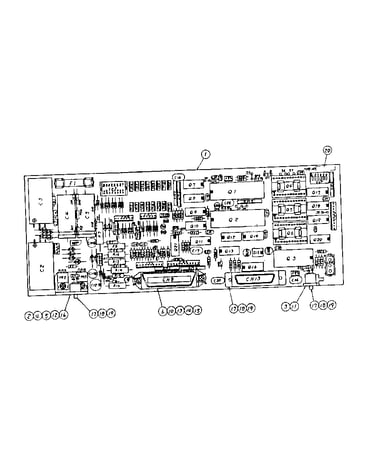

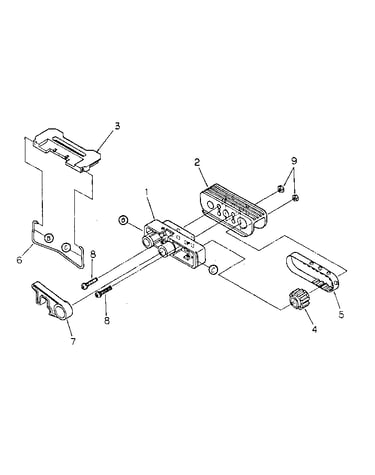

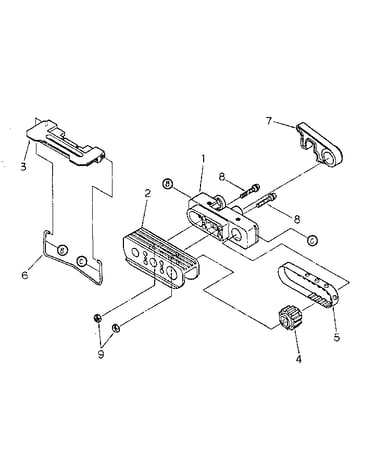

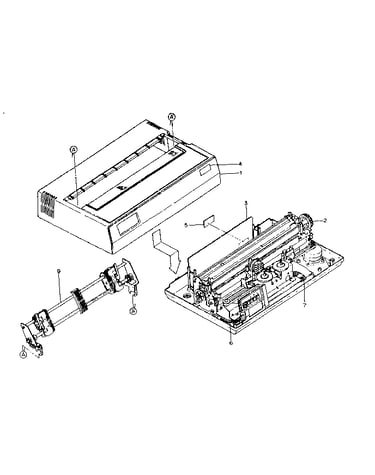

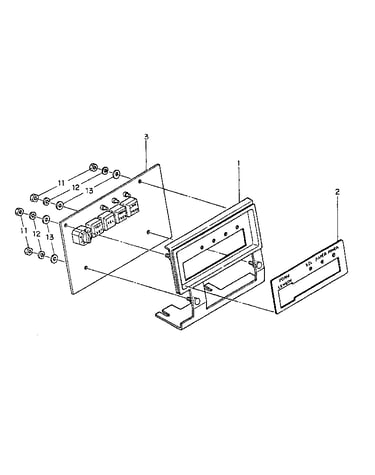

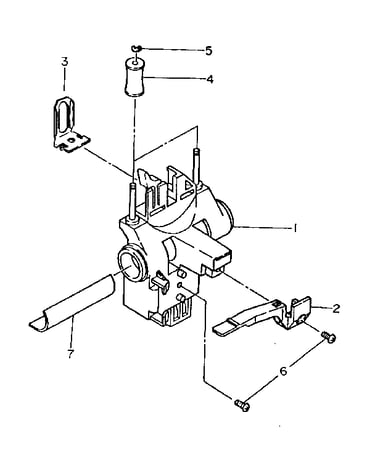

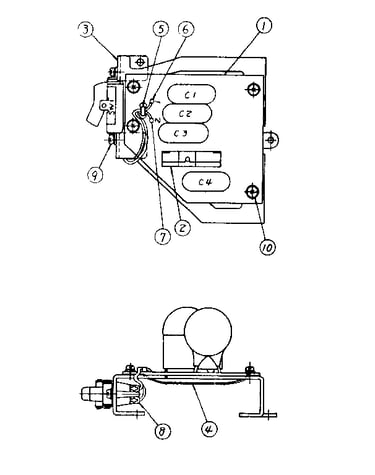

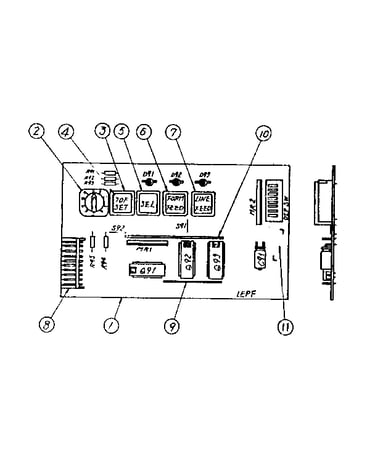

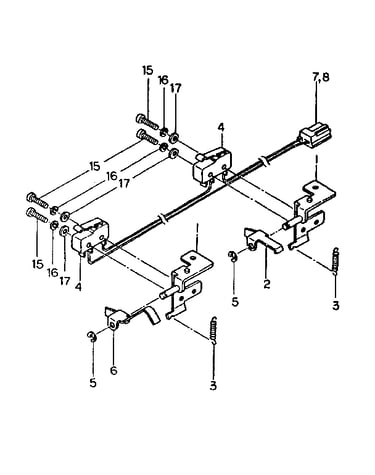

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 201 parts  |
Synchronous Belt 4LP-1420-5
#10

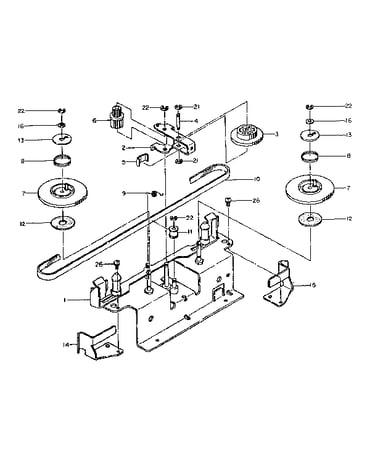

Ribbon assembly (3lr-132510-3) diagram

Synchronous belt

Part #4LP-1420-5

The manufacturer no longer makes this part, and there's no substitute part

Idle Pulley Bracket 4LR-132488-2
#16

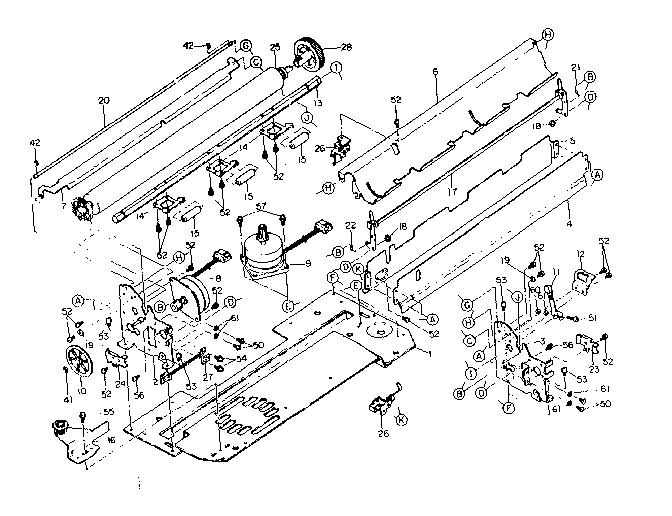

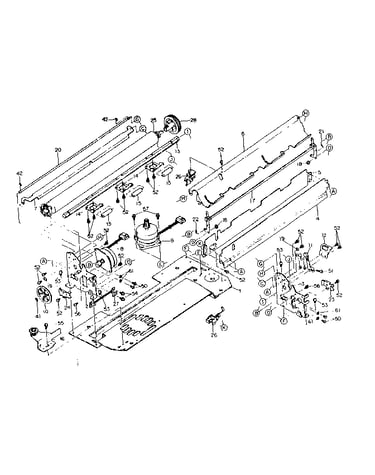

Base unit (1lr-191850) diagram

Idle pulley bracket

Part #4LR-132488-2

The manufacturer no longer makes this part, and there's no substitute part

Ribbon Drive Gear 4LR-191858
#6

Ribbon assembly (3lr-132510-3) diagram

Ribbon drive gear

Part #4LR-191858

The manufacturer no longer makes this part, and there's no substitute part

Tractor Unit LY-39702
Tractor unit

Part #LY-39702

The manufacturer no longer makes this part, and there's no substitute part

Transformer 4LP-45191-113
#2

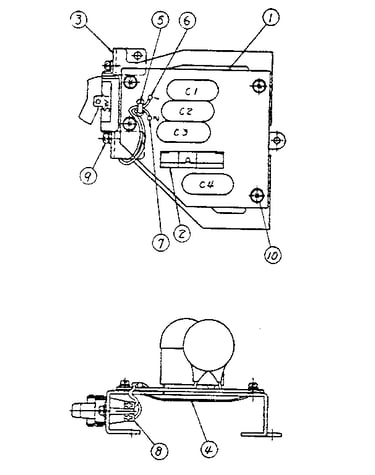

Power source assembly (2lr-104073-6) (for 220/240 v) diagram

Transformer

Part #4LP-45191-113

The manufacturer no longer makes this part, and there's no substitute part

Ribbon Guide Plate (l) 5LR-132514
#14

Ribbon assembly (3lr-132510-3) diagram

Ribbon guide plate (l)

Part #5LR-132514

The manufacturer no longer makes this part, and there's no substitute part

Adjusting Lever (adhered) 5LR-132115
#8

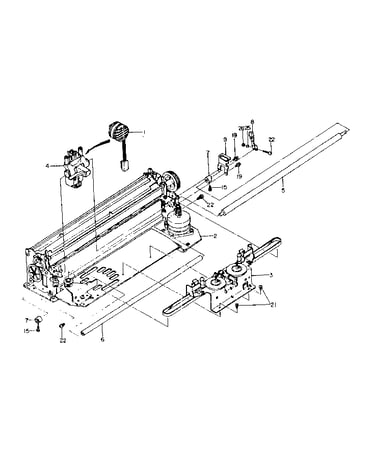

Printer unit (1lr-1180) diagram

Adjusting lever (adhered)

Part #5LR-132115

The manufacturer no longer makes this part, and there's no substitute part

Idle Gear 4LR-129890
#7

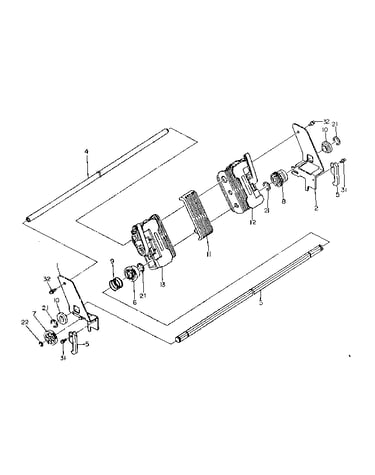

Tractor unit (ly-39702) diagram

Idle gear

Part #4LR-129890

The manufacturer no longer makes this part, and there's no substitute part

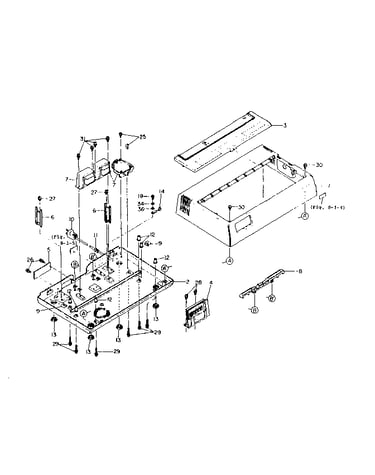

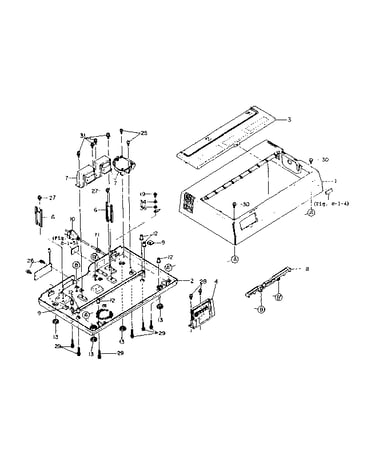

Cover Unit 1LM-60621-3
#1

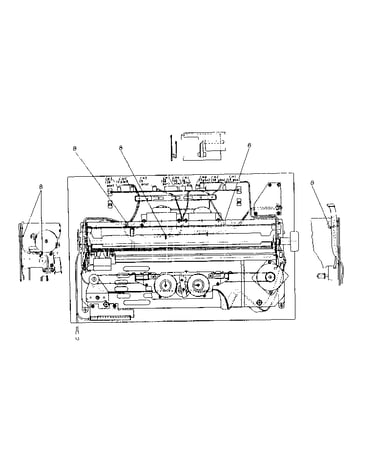

Tie wrap diagram

Cover unit

Part #1LM-60621-3

The manufacturer no longer makes this part, and there's no substitute part

E-snap Ring 5KD-50242
#21

Tractor unit (ly-39702) diagram

E-snap ring

Part #5KD-50242

The manufacturer no longer makes this part, and there's no substitute part
