Model # 143591122 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143591122 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 173 parts  |
Starter Rope 590386
#9

Rewind starter diagram

Starter rope

Part #590386

Replaced by #590535

?
Manufacturer substitution
This part replaces 590386. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Fuel Line 29774
#118

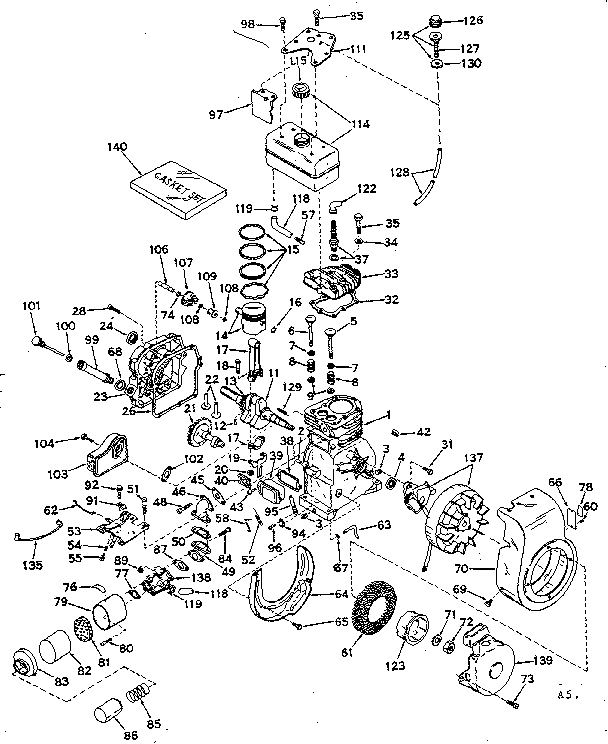

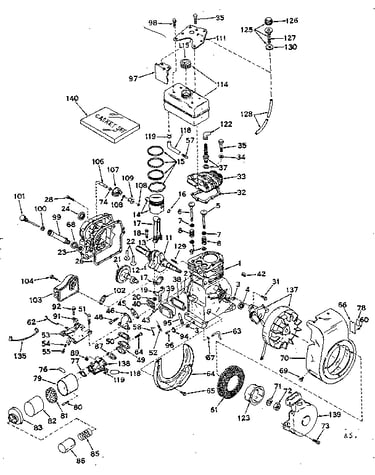

Basic engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Repair Kit 630974
#25

Replacement parts diagram

Repair kit

Part #630974

Replaced by #631893A

?
Manufacturer substitution
This part replaces 630974. Substitute parts can look different from the original.
$16.84
In Stock
Primer Assembly 32182
#125

Basic engine diagram

Primer assembly

Part #32182

The manufacturer no longer makes this part, and there's no substitute part

Retainer 32312
#130

Basic engine diagram

Retainer

Part #32312

The manufacturer no longer makes this part, and there's no substitute part

Primer Bulb 32183
#126

Basic engine diagram

Primer bulb

Part #32183

The manufacturer no longer makes this part, and there's no substitute part

Primer Body 32184
#127

Basic engine diagram

Primer body

Part #32184

The manufacturer no longer makes this part, and there's no substitute part

Screw 28820
#80

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Engine Carburetor O-ring 630740
#13

Replacement parts diagram

Lawn & garden equipment engine carburetor o-ring

Part #630740

This item is not returnable
$3.64 |
23% OFF MSRP : $4.70
In Stock
Lawn & Garden Equipment Engine Carburetor Diaphragm 630978
#22

Replacement parts diagram

Lawn & garden equipment engine carburetor diaphragm

Part #630978

This item is not returnable
$6.79 |
13% OFF Phone Price : $7.79
In Stock
