Ryobi
Power Screwdriver

Model # E-3800 Official Ryobi screwdriver

Here are the diagrams and repair parts for Official Ryobi E-3800 screwdriver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Brand Seal 6920486
#20

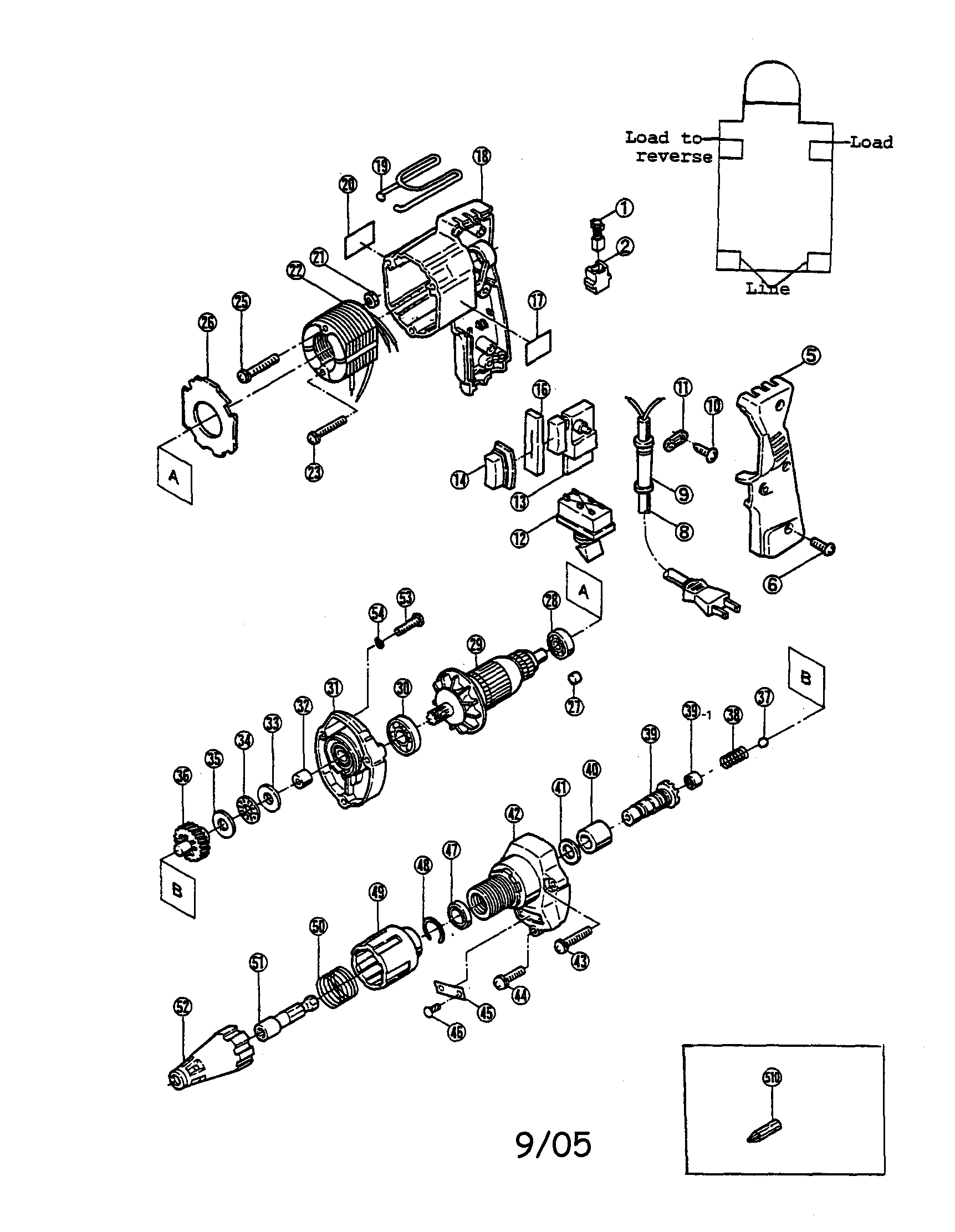

Screw driver assembly diagram

Brand seal

Part #6920486

The manufacturer no longer makes this part, and there's no substitute part

Guide Ring 6750025
Guide ring

Part #6750025

The manufacturer no longer makes this part, and there's no substitute part

Shaft Assembly 6080470
#39

Screw driver assembly diagram

Shaft assembly

Part #6080470

The manufacturer no longer makes this part, and there's no substitute part

Rubber Knock 6120126
#27

Screw driver assembly diagram

Rubber knock

Part #6120126

The manufacturer no longer makes this part, and there's no substitute part

Cord Holder 6560101
#9

Screw driver assembly diagram

Cord holder

Part #6560101

The manufacturer no longer makes this part, and there's no substitute part

Nmplt 120v 6912798
#45

Screw driver assembly diagram

Nmplt 120v

Part #6912798

The manufacturer no longer makes this part, and there's no substitute part

Brush 6540743
#1

Screw driver assembly diagram

Brush

Part #6540743

The manufacturer no longer makes this part, and there's no substitute part

Switch 6550230
#13

Screw driver assembly diagram

Switch

Part #6550230

The manufacturer no longer makes this part, and there's no substitute part

Brand Seal 6920478
#17

Screw driver assembly diagram

Brand seal

Part #6920478

The manufacturer no longer makes this part, and there's no substitute part

Screw 9060414
#10

Screw driver assembly diagram

Screw

Part #9060414

The manufacturer no longer makes this part, and there's no substitute part
